Commercial
Insulated
Pin Terminals

Filter
1102-67-0315
1102-67-0315
1102-67-0315
0.681" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Green YES

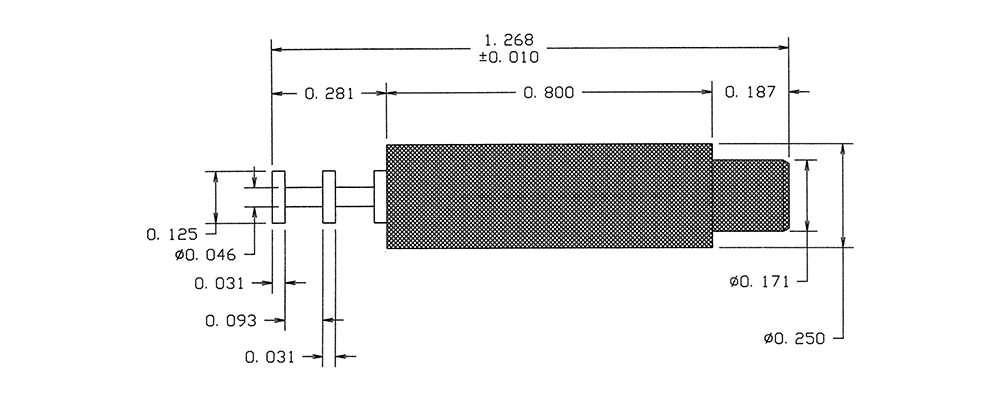

1102-71-04411
1102-71-04411
1102-71-04411
1.268" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Brown NO

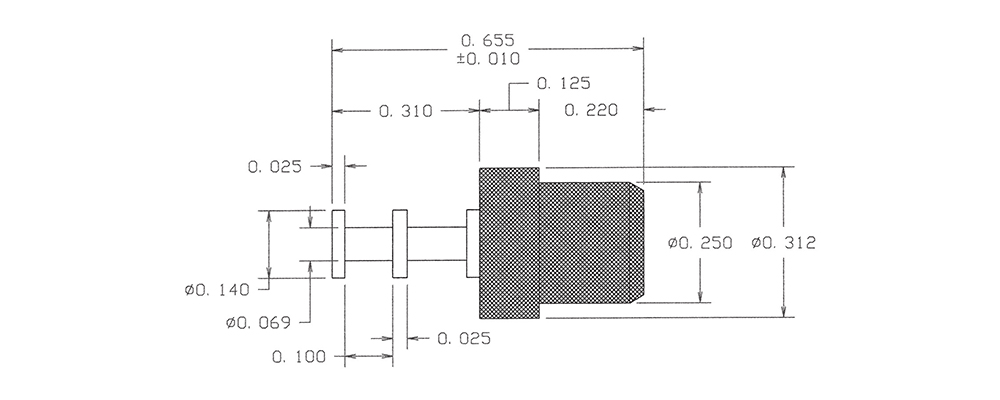

1102-76-0517
1102-76-0517
1102-76-0517
0.655" - - Press Fit Up to 3/16 0.236 Brass Electro Solder - - PTFE Violet NO

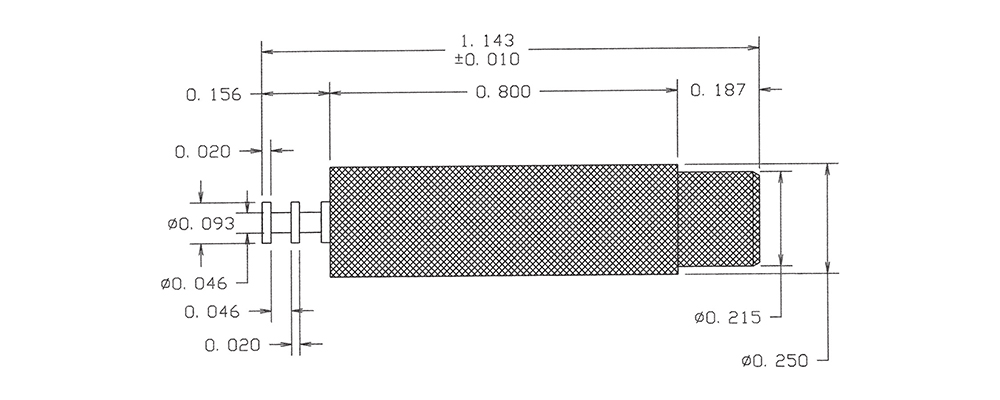

1102-81-0113
1102-81-0113
1102-81-0113
1.143" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Orange NO
1102-85-0319
1102-85-0319
1102-85-0319
0.968" - - Press Fit Up to 1/4 0.203 Brass Gold - - PTFE White YES
1102-94-04415
1102-94-04415
1102-94-04415
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin - - PTFE Green YES

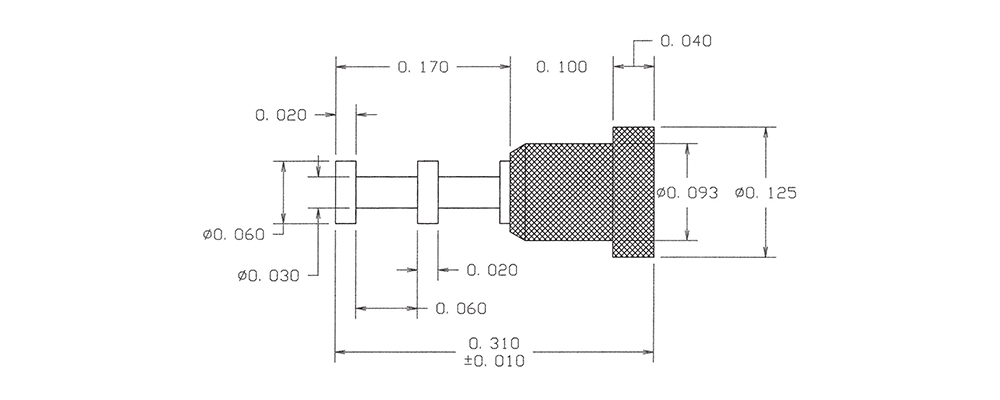

1102R-01-08811
1102R-01-08811
1102R-01-08811
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1102R-21-0117
1102R-21-0117
1102R-21-0117
0.455" - - Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES

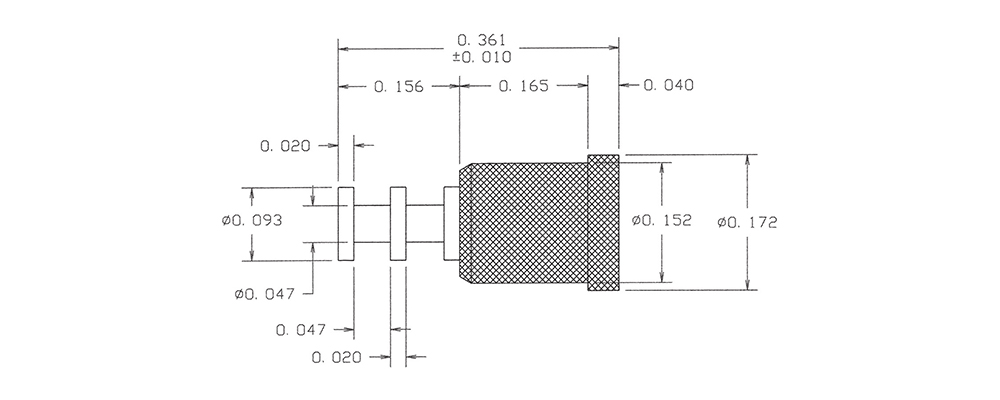

1102R-28-0413
1102R-28-0413
1102R-28-0413
0.361" - - Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Orange NO
1102R-74-04419
1102R-74-04419
1102R-74-04419
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin - - PTFE White YES
1102R-92-08815
1102R-92-08815
1102R-92-08815
0.460" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Green NO

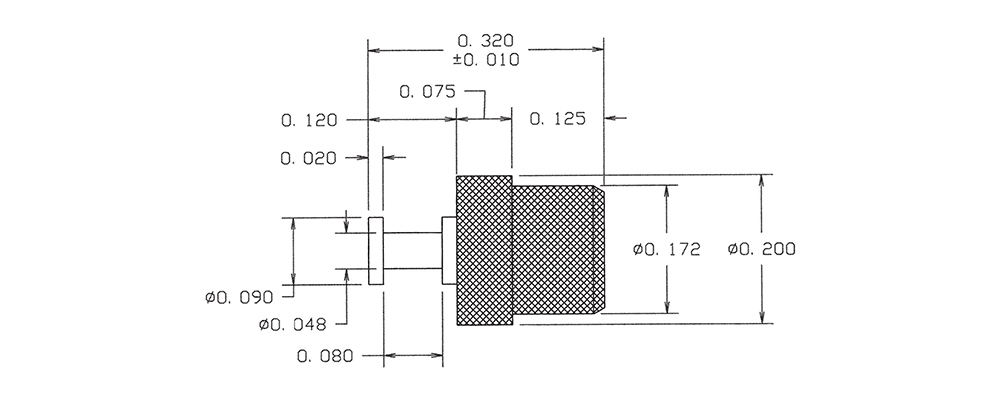

1103-08-0311
1103-08-0311
1103-08-0311
0.320" - - Press Fit 3/32 0.152 Brass Gold - - PTFE Brown NO
1103R-08-0417
1103R-08-0417
1103R-08-0417
0.320" - - Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Violet YES

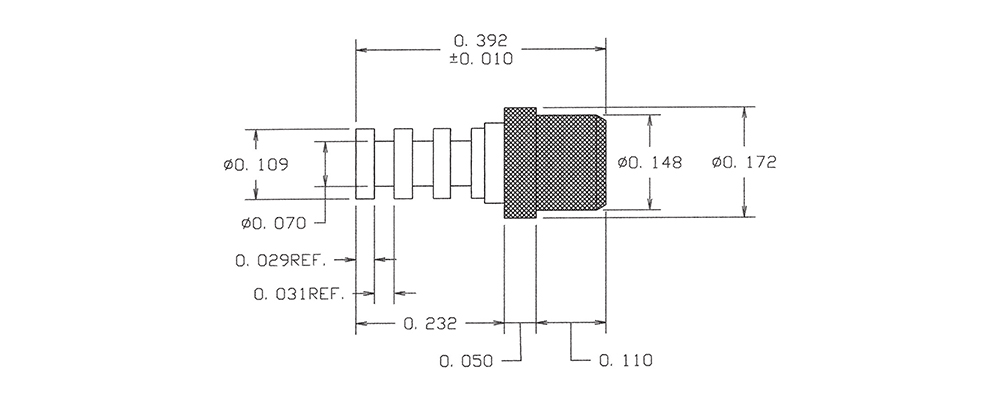

1104-04-0513
1104-04-0513
1104-04-0513
0.392" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO

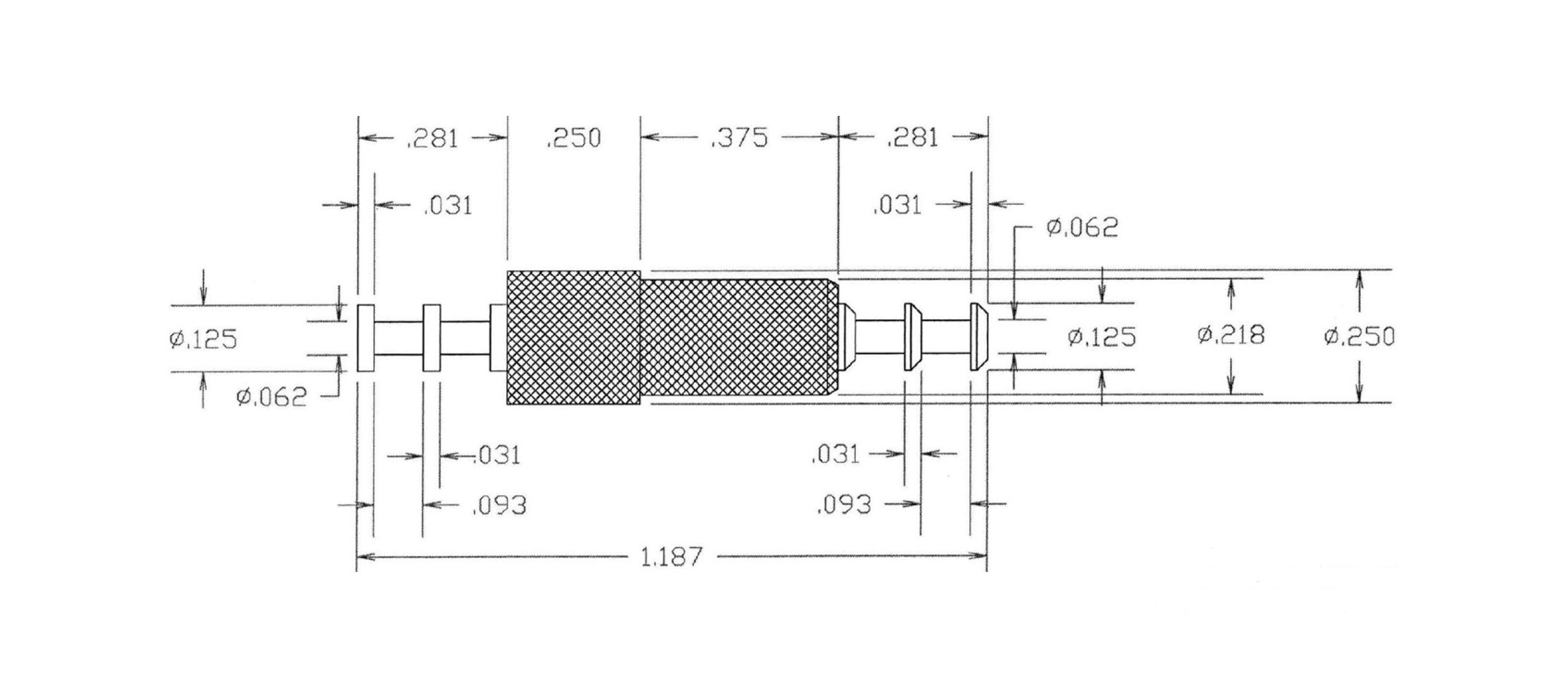

1105-01-08819
1105-01-08819
1105-01-08819
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Bright Tin-Lead - - PTFE White NO

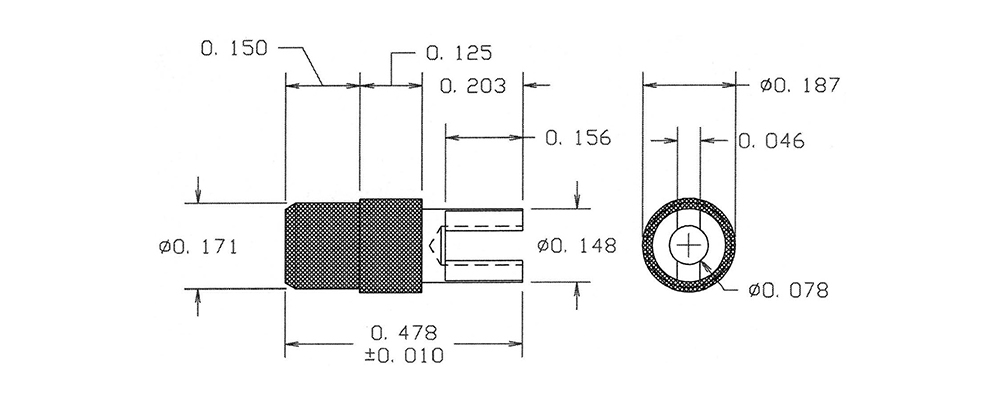

1106-03-0315
1106-03-0315
1106-03-0315
0.478" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Green YES

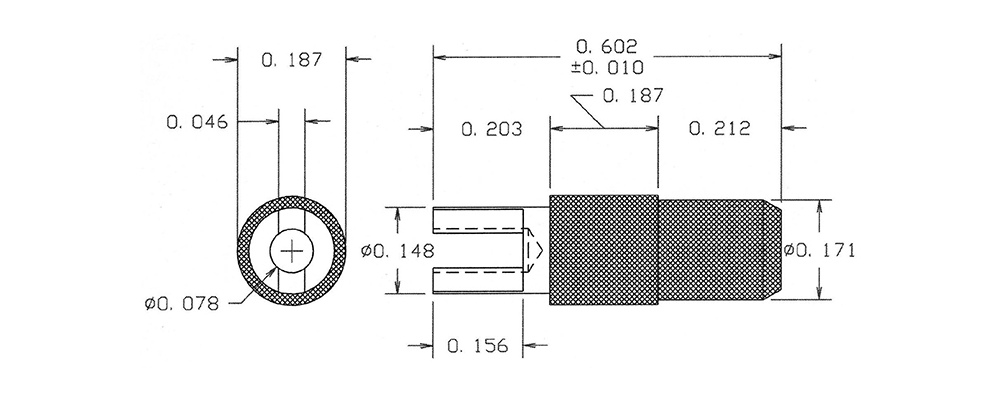

1106-07-04411
1106-07-04411
1106-07-04411
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Brown NO
1106-11-0517
1106-11-0517
1106-11-0517
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Violet NO

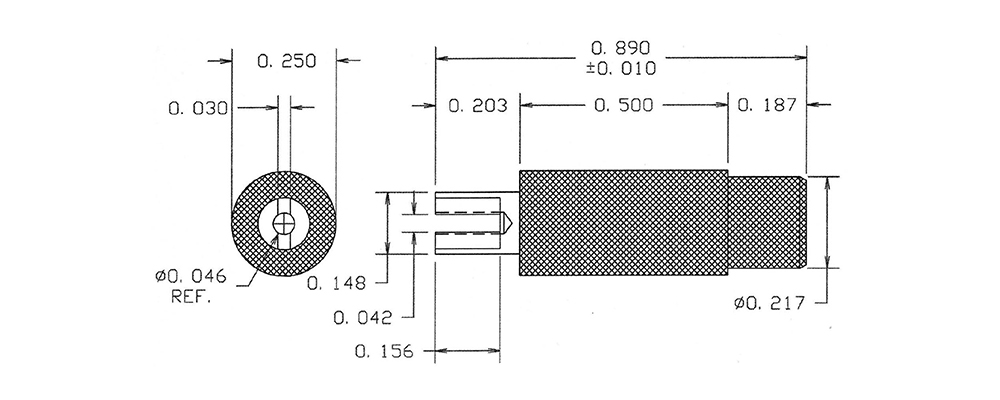

1106-16-0113
1106-16-0113
1106-16-0113
0.890" - - Press Fit 5/32 0.205 Brass Silver - - PTFE Orange NO
1106-22-0319
1106-22-0319
1106-22-0319
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
