Commercial
Insulated
Pin Terminals

Filter
1126-26-08814
1126-26-08814
1126-26-08814
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Yellow NO
1113-04-08812
1113-04-08812
1113-04-08812
0.411" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1126-26-08818
1126-26-08818
1126-26-08818
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Gray NO

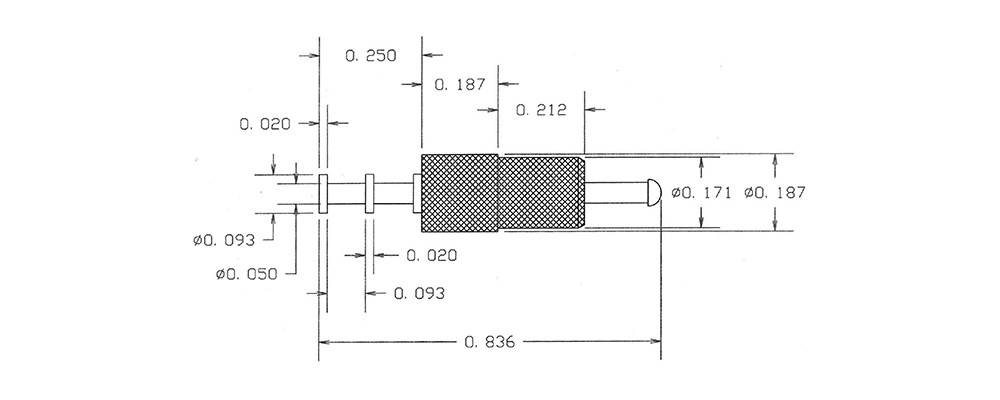

1111-26-0518
1111-26-0518
1111-26-0518
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Gray NO
1111-26-0515
1111-26-0515
1111-26-0515
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Green NO
1113-04-0316
1113-04-0316
1113-04-0316
0.411" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
1111-26-0513
1111-26-0513
1111-26-0513
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Orange NO
1111-26-0511
1111-26-0511
1111-26-0511
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Brown NO
1111-26-0510
1111-26-0510
1111-26-0510
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO
1151-26-0517
1151-26-0517
1151-26-0517
0.360" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1151-26-0510
1151-26-0510
1151-26-0510
0.360" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO
1156-26-08810
1156-26-08810
1156-26-08810
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1156-26-08811
1156-26-08811
1156-26-08811
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1156-26-08814
1156-26-08814
1156-26-08814
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1156-26-08817
1156-26-08817
1156-26-08817
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1112R-05-0410
1112R-05-0410
1112R-05-0410
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Black YES
1110-04-04419
1110-04-04419
1110-04-04419
0.453" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE White YES
1123R-05-0411
1123R-05-0411
1123R-05-0411
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Brown NO

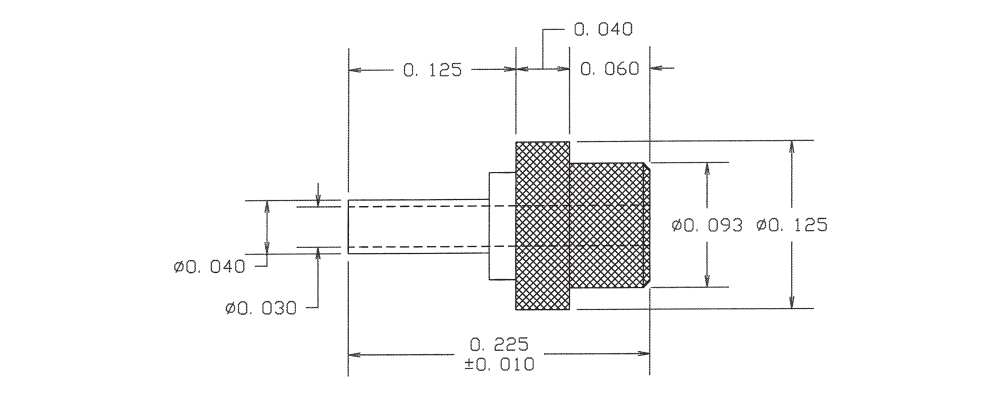

1114-05-0513
1114-05-0513
1114-05-0513
0.317" 0.040 - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Orange NO
1114-05-08813
1114-05-08813
1114-05-08813
0.317" 0.040 - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
