Commercial
Insulated
Pin Terminals

Filter
1116-26-0118
1116-26-0118
1116-26-0118
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO
1117-15-0414
1117-15-0414
1117-15-0414
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Electro-Tin Nickel Brass PTFE Yellow NO
1117-19-0510
1117-19-0510
1117-19-0510
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Electro Solder Nickel Brass PTFE Black NO
1117-53-08816
1117-53-08816
1117-53-08816
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Blue NO
1118-32-0312
1118-32-0312
1118-32-0312
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Gold - - PTFE Red NO
1119-22-0418
1119-22-0418
1119-22-0418
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Electro-Tin - - PTFE Gray NO
1119-32-0514
1119-32-0514
1119-32-0514
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Yellow NO
1121-02-0110
1121-02-0110
1121-02-0110
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Silver - - PTFE Black YES
1121-06-0316
1121-06-0316
1121-06-0316
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Blue YES
1121-11-04412
1121-11-04412
1121-11-04412
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Red NO
1121-15-0518
1121-15-0518
1121-15-0518
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Gray NO
1121-20-0114
1121-20-0114
1121-20-0114
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Silver - - PTFE Yellow NO
1121-24-0410
1121-24-0410
1121-24-0410
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro-Tin - - PTFE Black YES
1121-30-04416
1121-30-04416
1121-30-04416
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Blue YES

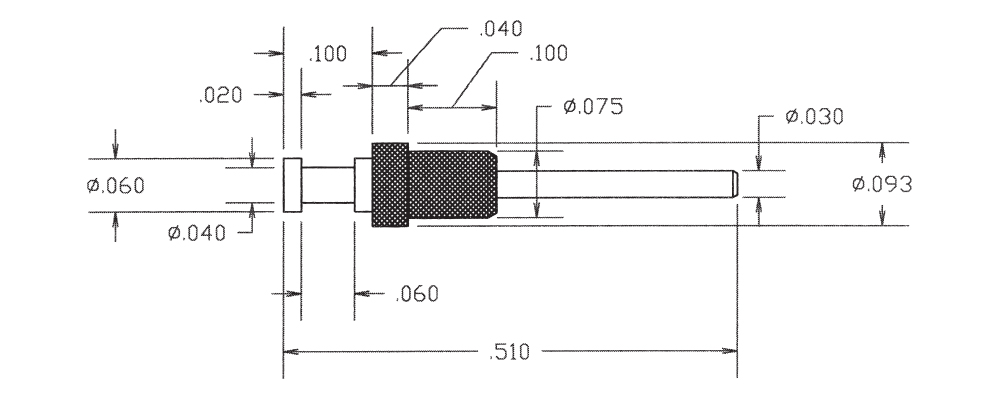

1121-51-08812
1121-51-08812
1121-51-08812
0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Red NO
1121R-06-0118
1121R-06-0118
1121R-06-0118
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Gray NO
1121R-50-0414
1121R-50-0414
1121R-50-0414
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1123-03-0510
1123-03-0510
1123-03-0510
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO
1123-07-08816
1123-07-08816
1123-07-08816
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1123-72-0312
1123-72-0312
1123-72-0312
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO
