Commercial
Insulated
Pin Terminals

Filter
1110-28-0418
1110-28-0418
1110-28-0418
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1110-32-0514
1110-32-0514
1110-32-0514
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1110-40-0110
1110-40-0110
1110-40-0110
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Silver - - PTFE Black YES
1110-44-0316
1110-44-0316
1110-44-0316
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Gold - - PTFE Blue YES
1110-48-04412
1110-48-04412
1110-48-04412
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Red NO
1110-53-0518
1110-53-0518
1110-53-0518
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Gray NO
1110-61-0114
1110-61-0114
1110-61-0114
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Yellow NO
1110-66-0410
1110-66-0410
1110-66-0410
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1110-70-04416
1110-70-04416
1110-70-04416
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE Blue YES
1110-75-08812
1110-75-08812
1110-75-08812
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Red NO
1110-93-0118
1110-93-0118
1110-93-0118
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Gray NO
1111-02-0414
1111-02-0414
1111-02-0414
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro-Tin - - PTFE Yellow NO
1111-10-0510
1111-10-0510
1111-10-0510
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Black NO

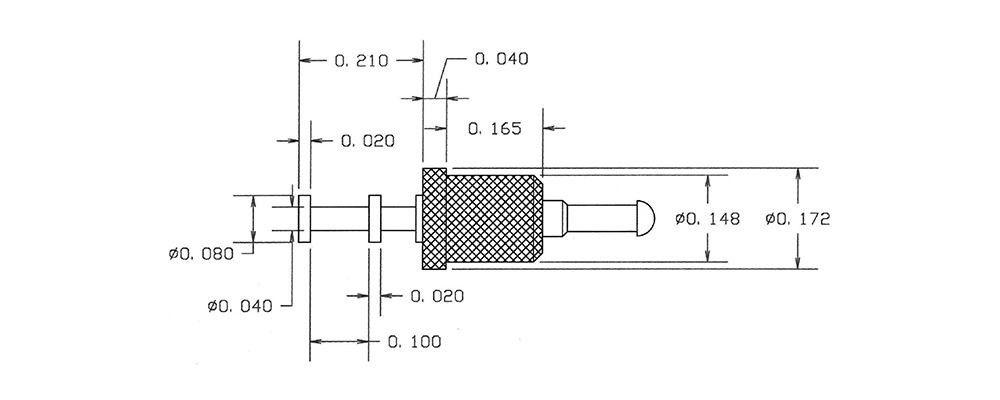

1111-14S-08816
1111-14S-08816
1111-14S-08816
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1111-20-0312
1111-20-0312
1111-20-0312
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO
1111-24-0418
1111-24-0418
1111-24-0418
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Gray NO
1111-33-0514
1111-33-0514
1111-33-0514
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Yellow NO
1111-38-0110
1111-38-0110
1111-38-0110
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES
1111-44-0316
1111-44-0316
1111-44-0316
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Gold - - PTFE Blue YES
1111-50-04412
1111-50-04412
1111-50-04412
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Red NO
