Commercial
Insulated
Pin Terminals

Filter
1104-04-0118
1104-04-0118
1104-04-0118
0.392" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO
1105-01-0414
1105-01-0414
1105-01-0414
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Electro-Tin - - PTFE Yellow NO
1106-02-0510
1106-02-0510
1106-02-0510
0.478" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Black NO
1106-06-08816
1106-06-08816
1106-06-08816
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1106-11-0312
1106-11-0312
1106-11-0312
0.703" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Red NO
1106-15-0418
1106-15-0418
1106-15-0418
1.190" - - Press Fit 5/32 0.158 Brass Electro-Tin - - PTFE Gray NO
1106-19-0514
1106-19-0514
1106-19-0514
1.190" - - Press Fit 5/32 0.205 Brass Electro Solder - - PTFE Yellow NO
1106-52-0110
1106-52-0110
1106-52-0110
0.276" - - Press Fit 3/32 0.086 Brass Silver - - PTFE Black YES
1106R-23-0316
1106R-23-0316
1106R-23-0316
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
1106R-50-04412
1106R-50-04412
1106R-50-04412
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Red NO

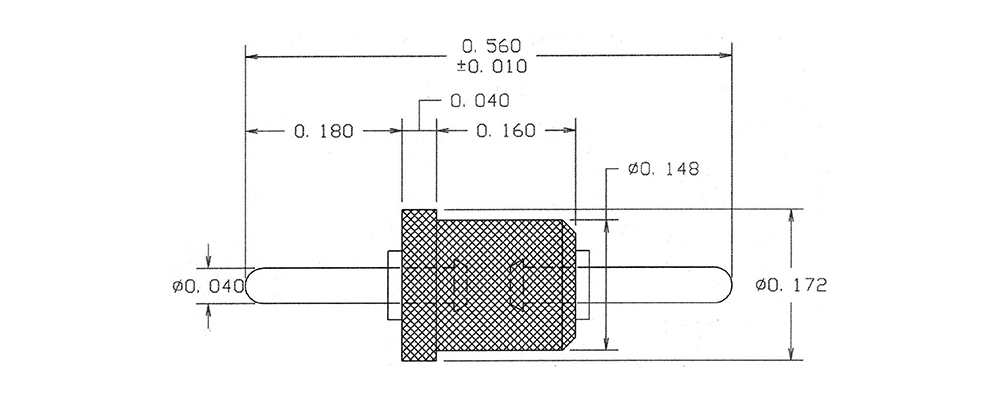

1107-02-0518
1107-02-0518
1107-02-0518
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Gray NO
1107-08-0114
1107-08-0114
1107-08-0114
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Yellow NO
1108-01-0410
1108-01-0410
1108-01-0410
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Electro-Tin - - PTFE Black YES
1108-05-04416
1108-05-04416
1108-05-04416
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Blue YES

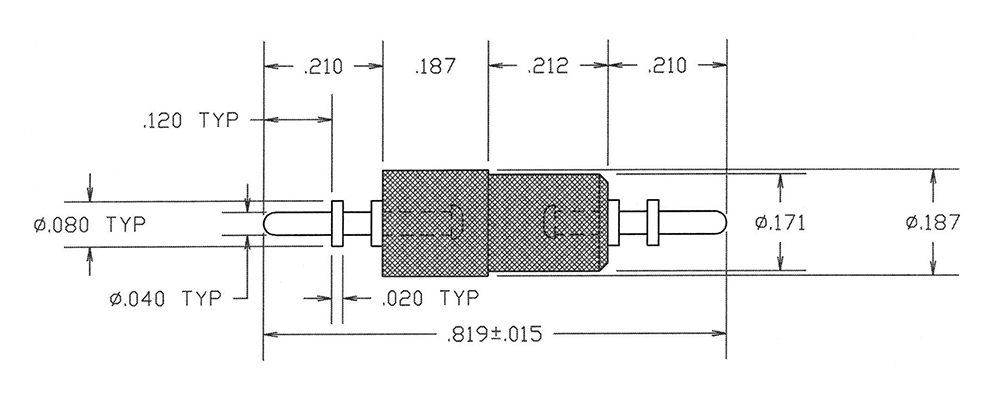

1108-30-08812
1108-30-08812
1108-30-08812
0.819" - Turret/Turret Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Red NO
1110-06-0118
1110-06-0118
1110-06-0118
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Gray NO
1110-10-0414
1110-10-0414
1110-10-0414
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Yellow NO
1110-15-0510
1110-15-0510
1110-15-0510
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO

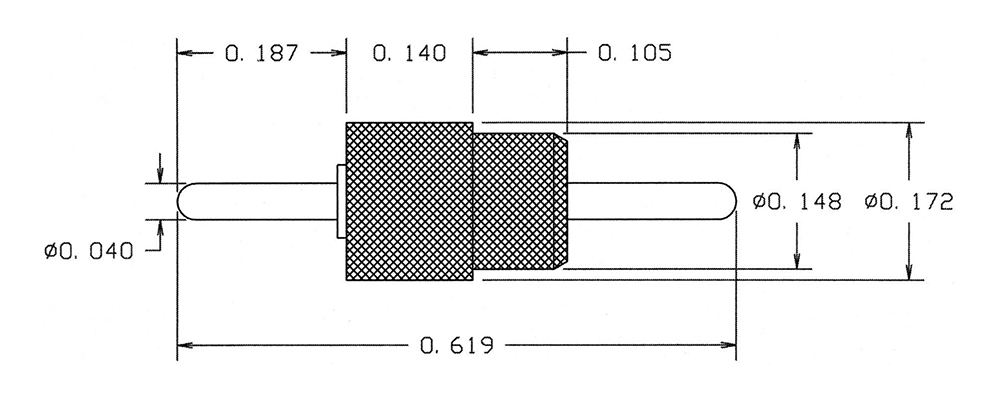

1110-19-08816
1110-19-08816
1110-19-08816
0.619" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1110-24-0312
1110-24-0312
1110-24-0312
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO
