Commercial
Insulated
Pin Terminals

Filter
1135-09-04416
1135-09-04416
1135-09-04416
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Blue YES
1137-02-08812
1137-02-08812
1137-02-08812
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Red NO

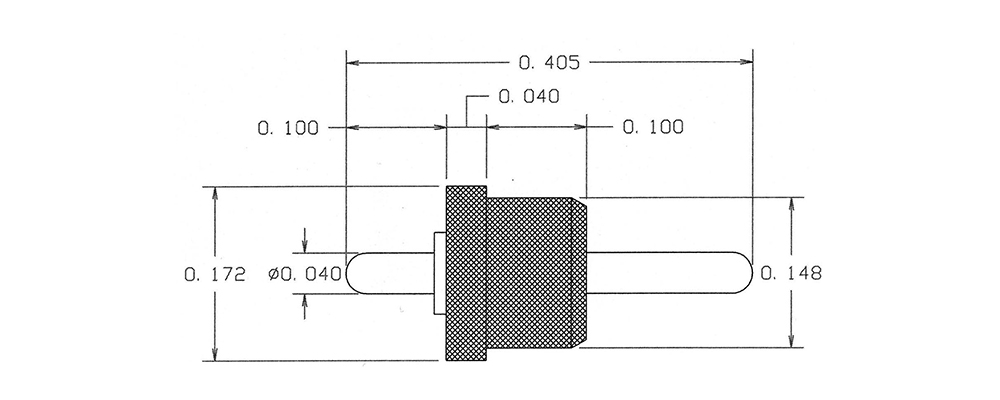

1139-04-0118
1139-04-0118
1139-04-0118
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO
1151-05-0414
1151-05-0414
1151-05-0414
0.350" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1151-11-0510
1151-11-0510
1151-11-0510
0.455" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Black NO

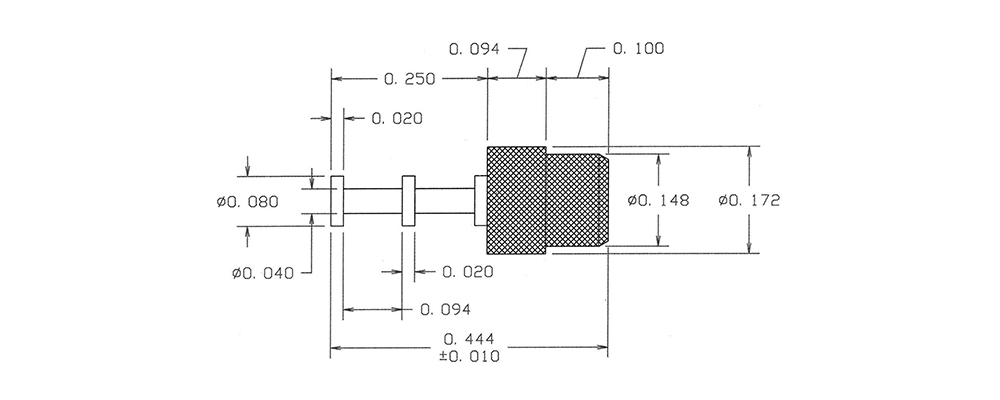

1151-19-08816
1151-19-08816
1151-19-08816
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

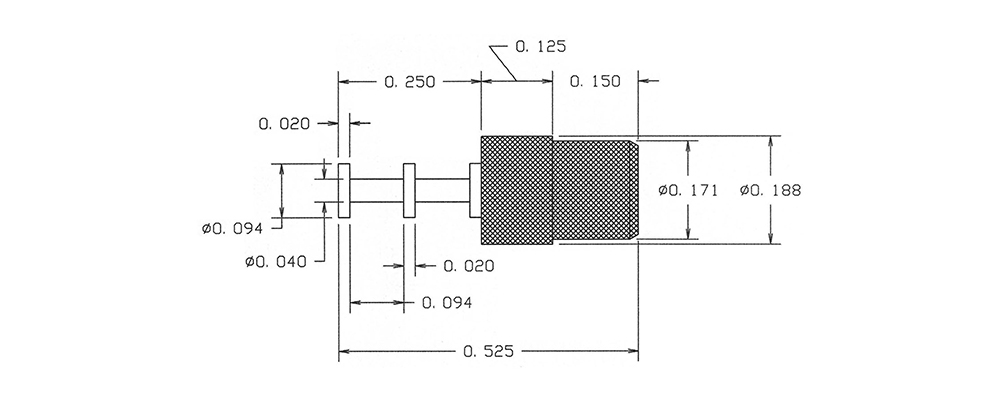

1151-39-0312
1151-39-0312
1151-39-0312
0.525" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Red NO

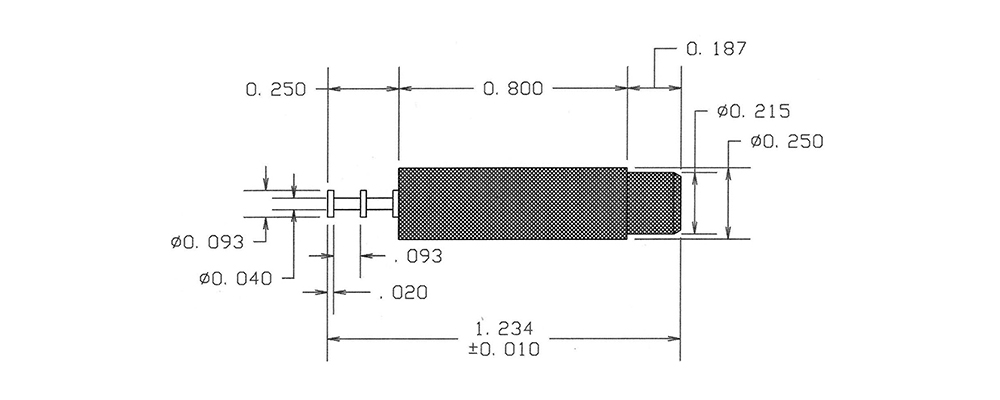

1151-51-0418
1151-51-0418
1151-51-0418
1.234" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Gray NO
1151R-09-0514
1151R-09-0514
1151R-09-0514
0.390" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO

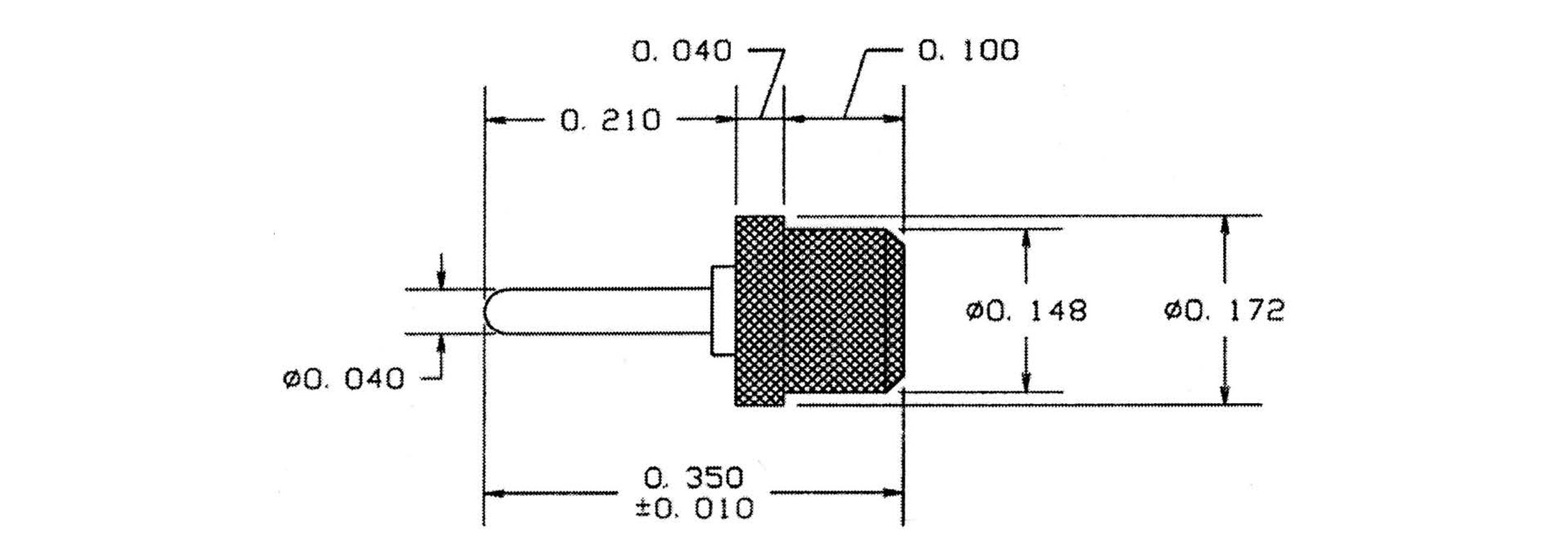

1152-01-0110
1152-01-0110
1152-01-0110
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES

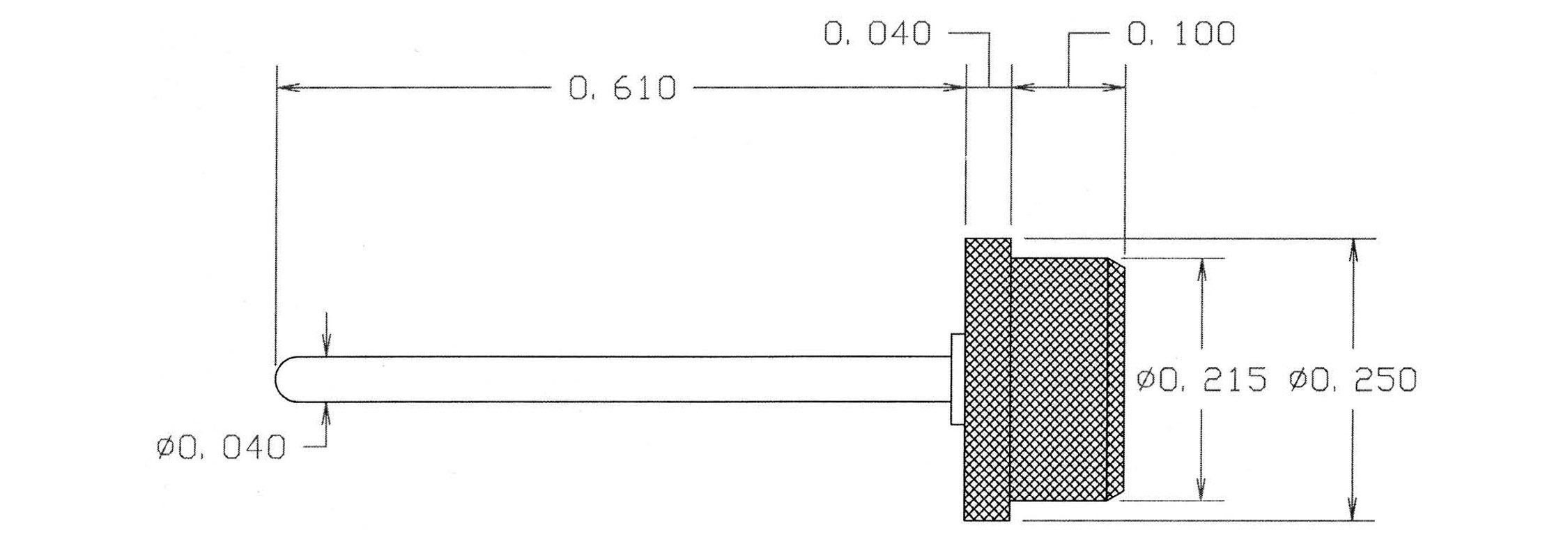

1152-31-0316
1152-31-0316
1152-31-0316
0.750" 0.040 - Press Fit 1/16 0.203 Brass Gold - - PTFE Blue YES
1152R-17-04412
1152R-17-04412
1152R-17-04412
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Red NO
1153-06-0518
1153-06-0518
1153-06-0518
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO

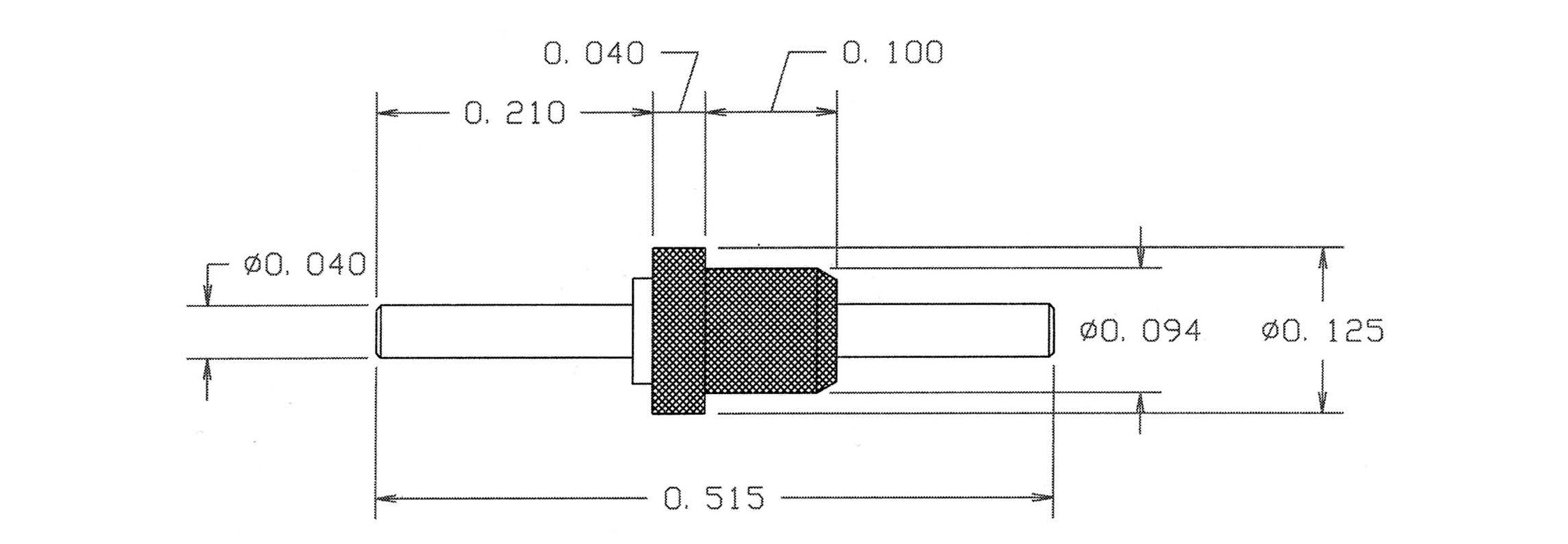

1153-32-0114
1153-32-0114
1153-32-0114
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Yellow NO
1154-10-0410
1154-10-0410
1154-10-0410
0.753" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Black YES
1154-44-04416
1154-44-04416
1154-44-04416
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Blue YES
1155-01-08812
1155-01-08812
1155-01-08812
0.427" - - Press Fit Up to 3/16 0.204 Brass Bright Tin-Lead - - PTFE Red NO
1155-13-0118
1155-13-0118
1155-13-0118
0.310" 0.040 - Press Fit 1/64 0.108 Brass Silver - - PTFE Gray NO
1156-02-0414
1156-02-0414
1156-02-0414
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Yellow NO
1156-07-0510
1156-07-0510
1156-07-0510
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Black NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
