Commercial
Insulated
Pin Terminals

Filter
1127-52-0316
1127-52-0316
1127-52-0316
0.875" - - Swage Mount 1/8 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Blue YES
1127-57-04412
1127-57-04412
1127-57-04412
0.579" - - 2-56 Nut 1/16 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-61-0518
1127-61-0518
1127-61-0518
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Gray NO
1127-66-0114
1127-66-0114
1127-66-0114
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES

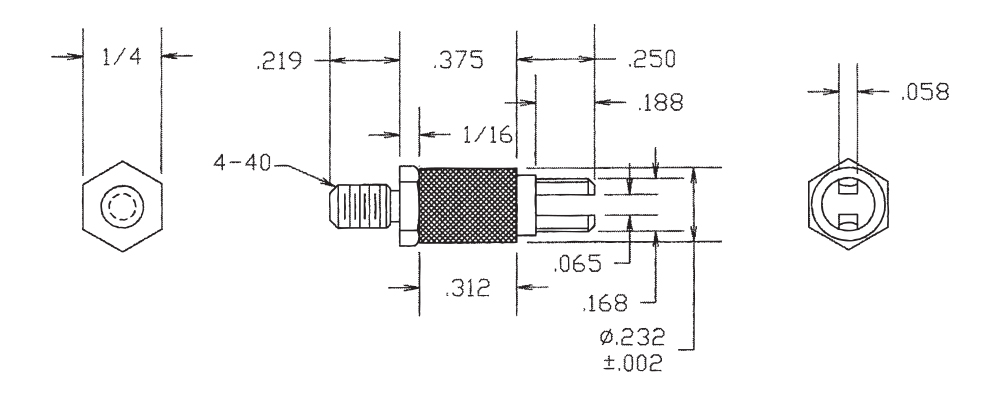

1127-70-0410
1127-70-0410
1127-70-0410
0.844" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES
1127-74-04416
1127-74-04416
1127-74-04416
1.000" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES

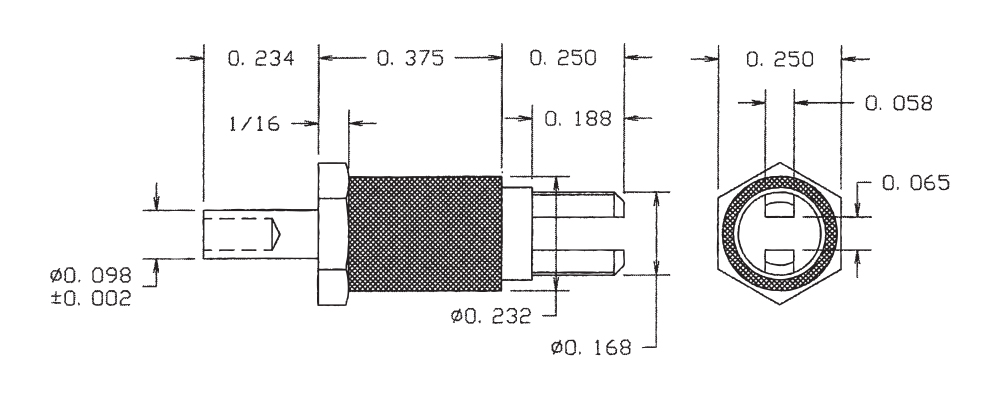

1127-78-08812
1127-78-08812
1127-78-08812
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO

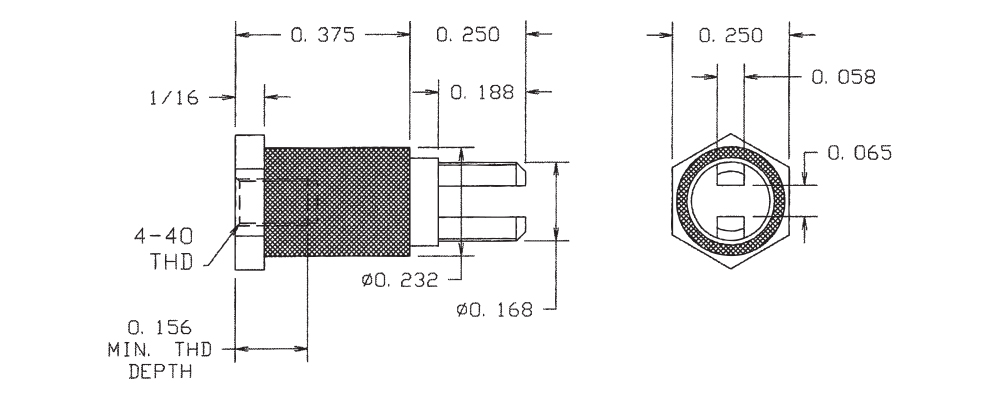

1127-83-0118
1127-83-0118
1127-83-0118
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
1127-87-0414
1127-87-0414
1127-87-0414
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-91-0510
1127-91-0510
1127-91-0510
0.674" - - Swage Mount 3/32 0.082 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-95-08816
1127-95-08816
1127-95-08816
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO

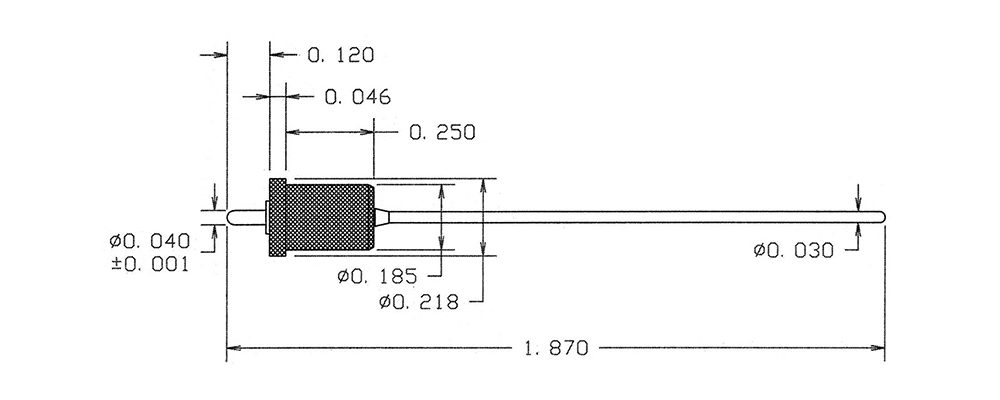

1130-02-0312
1130-02-0312
1130-02-0312
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Gold - - PTFE Red NO
1130-07-0418
1130-07-0418
1130-07-0418
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Gray NO
1130R-05-0514
1130R-05-0514
1130R-05-0514
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Yellow NO
1131-03-0110
1131-03-0110
1131-03-0110
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Silver - - PTFE Black YES
1131-07-0316
1131-07-0316
1131-07-0316
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Blue YES
1132-01-04412
1132-01-04412
1132-01-04412
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin - - PTFE Red NO
1133-02-0518
1133-02-0518
1133-02-0518
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Gray NO

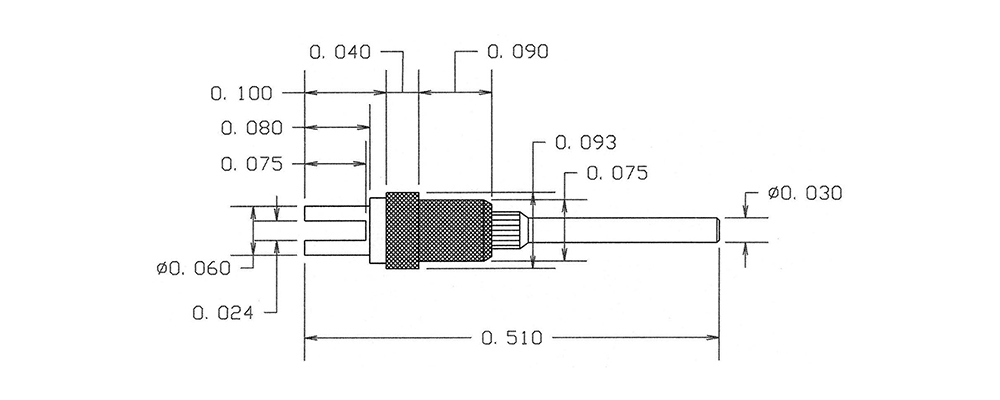

1135-01-0114
1135-01-0114
1135-01-0114
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Silver - - PTFE Yellow NO
1135-05-0410
1135-05-0410
1135-05-0410
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Black YES

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
