Commercial
Insulated
Pin Terminals

Filter
1125-83-08816
1125-83-08816
1125-83-08816
0.725" - - Swage Mount 3/32 0.191 Brass Bright Tin-Lead Electro-Tin Brass PTFE Blue NO
1125-89-0312
1125-89-0312
1125-89-0312
0.698" - - 4-40 Nut 1/16 0.120 Brass Gold Electro-Tin Brass PTFE Red NO
1125-93-0418
1125-93-0418
1125-93-0418
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE Gray NO
1125-97-0514
1125-97-0514
1125-97-0514
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Yellow NO
1126-30-0110
1126-30-0110
1126-30-0110
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Black YES
1126-34-0316
1126-34-0316
1126-34-0316
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Blue YES
1126-38-04412
1126-38-04412
1126-38-04412
1.469" - - 4-40 Nut 1/8 0.120 Brass Bright Tin ZINC Brass PTFE Red NO
1126-42-0518
1126-42-0518
1126-42-0518
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Gray NO

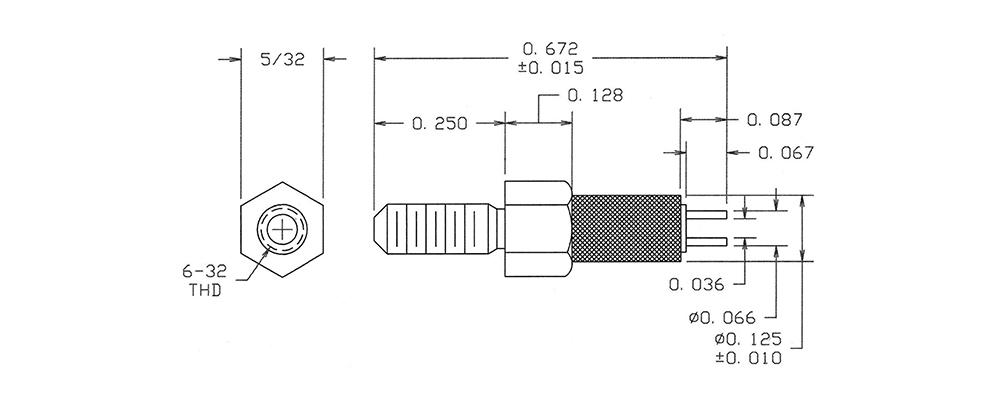

1126-47-0114
1126-47-0114
1126-47-0114
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Yellow NO
1127-04-0410
1127-04-0410
1127-04-0410
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin Electro-Tin Brass DIALLYL PHTHALATE Black YES
1127-08-04416
1127-08-04416
1127-08-04416
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-12-08812
1127-12-08812
1127-12-08812
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO
1127-17-0118
1127-17-0118
1127-17-0118
0.813" - - 6-32 Nut 3/32 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
1127-21-0414
1127-21-0414
1127-21-0414
0.938" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-25-0510
1127-25-0510
1127-25-0510
0.938" - - Swage Mount 3/32 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-30-08816
1127-30-08816
1127-30-08816
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO

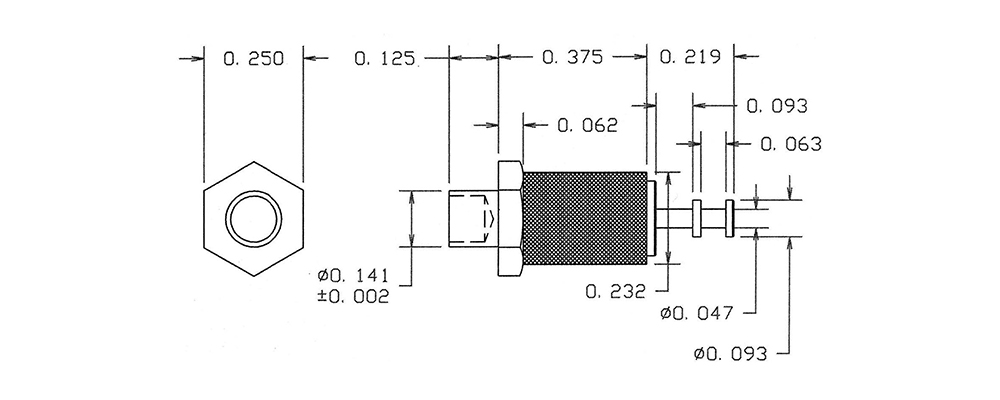

1127-35-0312
1127-35-0312
1127-35-0312
0.719" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
1127-39-0418
1127-39-0418
1127-39-0418
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-43-0514
1127-43-0514
1127-43-0514
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO
1127-48-0110
1127-48-0110
1127-48-0110
0.875" - - Swage Mount 1/8 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES
