Commercial
Insulated
Pin Terminals

Filter
1100-08-04416
1100-08-04416
1100-08-04416
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin - - PTFE Blue YES
1114-27-04412
1114-27-04412
1114-27-04412
0.367" 0.085 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Red NO
1100-13-08812
1100-13-08812
1100-13-08812
0.265" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO

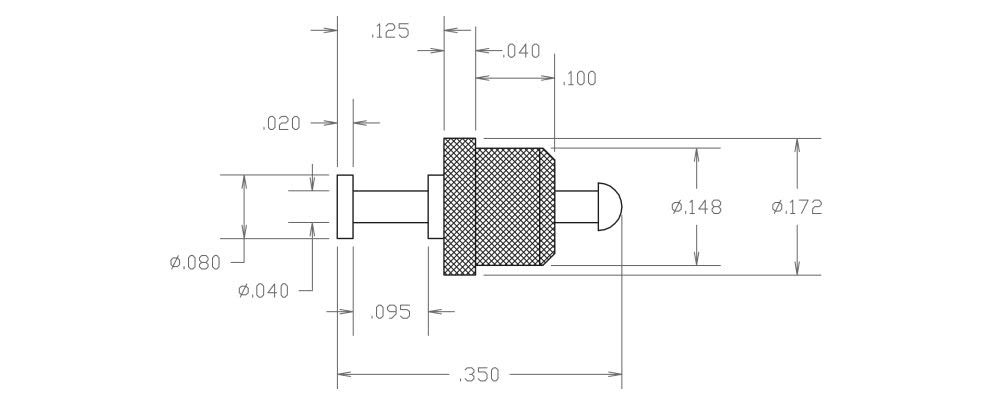

1121-08-0518
1121-08-0518
1121-08-0518
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Gray NO
1100-18-0118
1100-18-0118
1100-18-0118
0.247" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Gray NO
1124-10-0114
1124-10-0114
1124-10-0114
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Yellow NO
1100-22-0414
1100-22-0414
1100-22-0414
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Yellow NO
1125-80-0410
1125-80-0410
1125-80-0410
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Black YES
1100-32-0510
1100-32-0510
1100-32-0510
0.370" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO
1110-54-04416
1110-54-04416
1110-54-04416
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Blue YES
1100-42-08816
1100-42-08816
1100-42-08816
0.750" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1100-48-0312
1100-48-0312
1100-48-0312
0.600" 0.062 - Press Fit 1/8 0.167 Brass Gold - - PTFE Red NO
1100-73-0418
1100-73-0418
1100-73-0418
0.580" 0.063 - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Gray NO
1100R-08-0514
1100R-08-0514
1100R-08-0514
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Yellow NO
1100R-17-0110
1100R-17-0110
1100R-17-0110
0.305" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
1100R-28-0316
1100R-28-0316
1100R-28-0316
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES
1100R-63-04412
1100R-63-04412
1100R-63-04412
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Red NO
1101-04-0518
1101-04-0518
1101-04-0518
0.415" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Gray NO
1102-02-0114
1102-02-0114
1102-02-0114
0.330" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Yellow NO
1102-06-0410
1102-06-0410
1102-06-0410
0.531" - - Press Fit 1/16 0.114 Brass Electro-Tin - - PTFE Black YES
