Commercial
Insulated
Pin Terminals

Filter

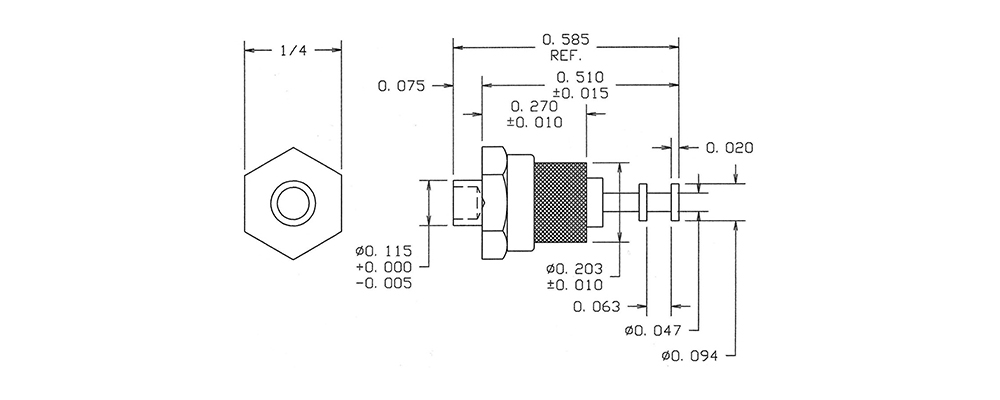

1125-27-0517
1125-27-0517
1125-27-0517
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Violet NO
09-2128-1-0113
09-2128-1-0113
09-2128-1-0113
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1100-47-0319
1100-47-0319
1100-47-0319
0.350" 0.040 - Press Fit 1/16 0.166 Brass Gold - - PTFE White YES
1100R-22-04415
1100R-22-04415
1100R-22-04415
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Green YES

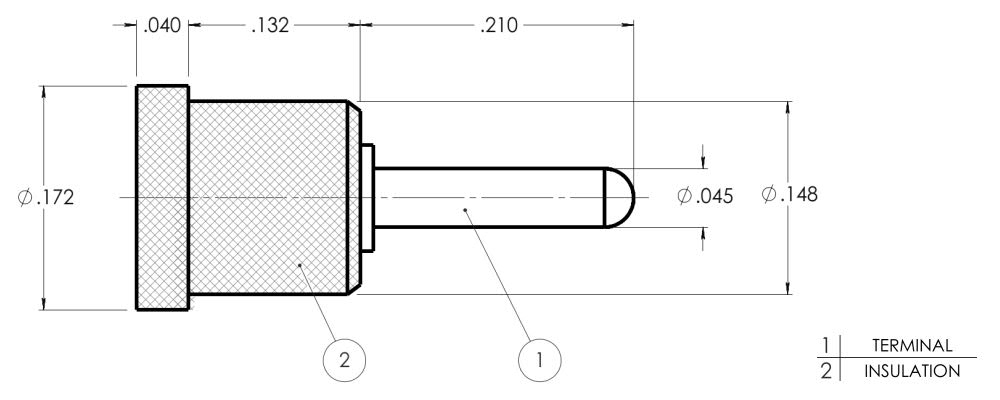

1100R-33-08811
1100R-33-08811
1100R-33-08811
0.382" 0.045 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1100R-53-0117
1100R-53-0117
1100R-53-0117
0.756" 0.040 - Press Fit 15/32 0.172 Brass Silver - - PTFE Violet YES
1100R-70-0413
1100R-70-0413
1100R-70-0413
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Orange NO
1102-43-04419
1102-43-04419
1102-43-04419
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE White YES
09-2078-1-0110
09-2078-1-0110
09-2078-1-0110
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Silver - - PTFE Black YES
1104R-53-08816
1104R-53-08816
1104R-53-08816
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
09-2094-1-0316
09-2094-1-0316
09-2094-1-0316
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Gold - - PTFE Blue YES
1111-19-0312
1111-19-0312
1111-19-0312
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Red NO
09-2101-1-04412
09-2101-1-04412
09-2101-1-04412
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Bright Tin - - PTFE Red NO
1112-05-0418
1112-05-0418
1112-05-0418
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Gray NO
09-2111-1-0518
09-2111-1-0518
09-2111-1-0518
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder Nickel Brass PTFE Gray NO
1112-20-0514
1112-20-0514
1112-20-0514
0.333" - - Press Fit 1/8 0.250 Brass Electro Solder - - PTFE Yellow NO
09-2121-1-0114
09-2121-1-0114
09-2121-1-0114
0.275" - - Press Fit 5/64 0.136 Brass Silver - - PTFE Yellow NO
1114-18-0110
1114-18-0110
1114-18-0110
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Black YES
1100-04-0410
1100-04-0410
1100-04-0410
0.250" 0.040 - Press Fit 3/64 0.086 Brass Electro-Tin - - PTFE Black YES
1114-24-0316
1114-24-0316
1114-24-0316
0.367" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
