Commercial
Insulated
Pin Terminals

Filter
1175-821-0417
1175-821-0417
1175-821-0417
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES
1175-841-0513
1175-841-0513
1175-841-0513
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO
1175-871-08819
1175-871-08819
1175-871-08819
0.560" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
1177-02-0315
1177-02-0315
1177-02-0315
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Gold - - PTFE Green YES
1177-11-04411
1177-11-04411
1177-11-04411
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1177-31-0517
1177-31-0517
1177-31-0517
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1177-41-0113
1177-41-0113
1177-41-0113
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Silver - - PTFE Orange NO
1177-52-0319
1177-52-0319
1177-52-0319
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Gold - - PTFE White YES
1177-56-04415
1177-56-04415
1177-56-04415
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin - - PTFE Green YES
1177-60-08811
1177-60-08811
1177-60-08811
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1178R-03-0117
1178R-03-0117
1178R-03-0117
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Silver - - PTFE Violet YES
1178R-10-0413
1178R-10-0413
1178R-10-0413
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro-Tin - - PTFE Orange NO
1178R-14-04419
1178R-14-04419
1178R-14-04419
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin - - PTFE White YES

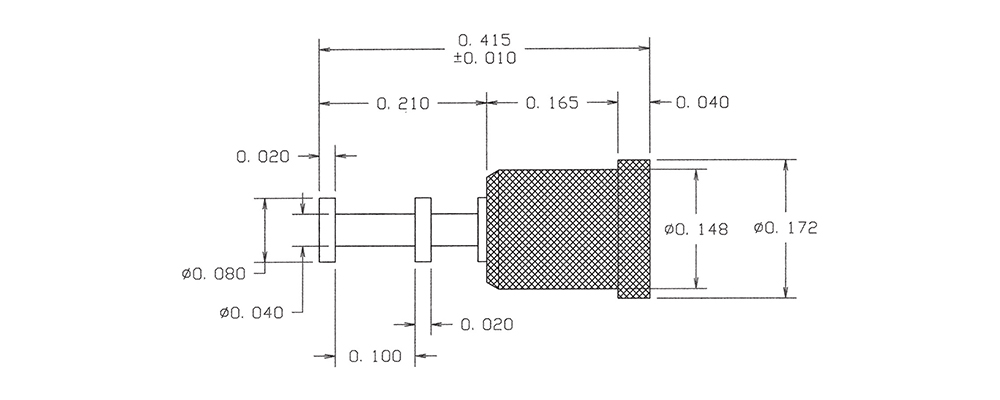

1102R-93-08815
1102R-93-08815
1102R-93-08815
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1125-02-0311
1125-02-0311
1125-02-0311
0.578" - - 2-56 Nut 7/64 0.094 Brass Gold Electro-Tin Brass PTFE Brown NO
1125-06-0417
1125-06-0417
1125-06-0417
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Violet YES
1125-10-0513
1125-10-0513
1125-10-0513
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Orange NO

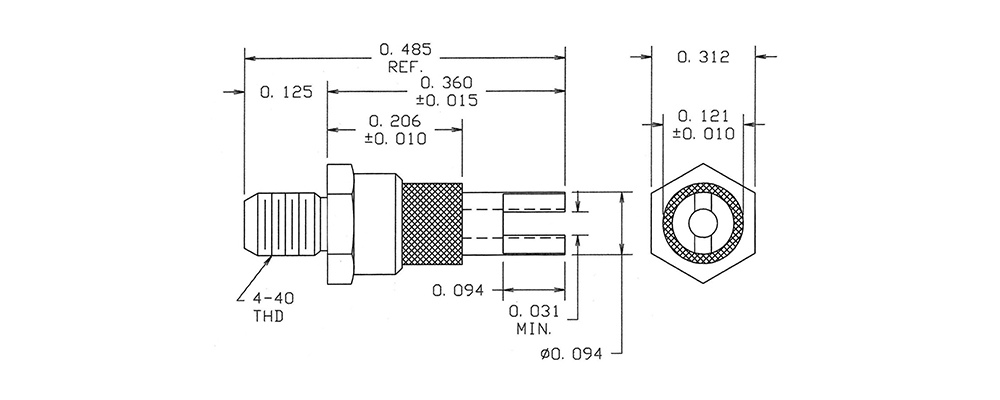

1125-14-08819
1125-14-08819
1125-14-08819
0.485" - - 4-40 1/8 4-40 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
1125-19-0315
1125-19-0315
1125-19-0315
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Gold Electro-Tin Brass PTFE Green YES
1125-23-04411
1125-23-04411
1125-23-04411
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Brown NO
