Commercial
Insulated
Pin Terminals

Filter
1125-83-08811
1125-83-08811
1125-83-08811
0.725" - - Swage Mount 3/32 0.191 Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO
1125-89-0117
1125-89-0117
1125-89-0117
0.698" - - 4-40 Nut 1/16 0.120 Brass Silver Electro-Tin Brass PTFE Violet YES
1125-93-0413
1125-93-0413
1125-93-0413
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE Orange NO
1125-97-04419
1125-97-04419
1125-97-04419
0.672" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass PTFE White YES
1126-27-08815
1126-27-08815
1126-27-08815
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Green NO
1126-34-0311
1126-34-0311
1126-34-0311
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Brown NO
1126-38-0417
1126-38-0417
1126-38-0417
1.469" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass PTFE Violet YES
1126-42-0513
1126-42-0513
1126-42-0513
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Orange NO
1126-46-08819
1126-46-08819
1126-46-08819
1.343" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE White NO
1127-04-0315
1127-04-0315
1127-04-0315
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold Electro-Tin Brass DIALLYL PHTHALATE Green YES
1127-08-04411
1127-08-04411
1127-08-04411
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-12-0517
1127-12-0517
1127-12-0517
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO

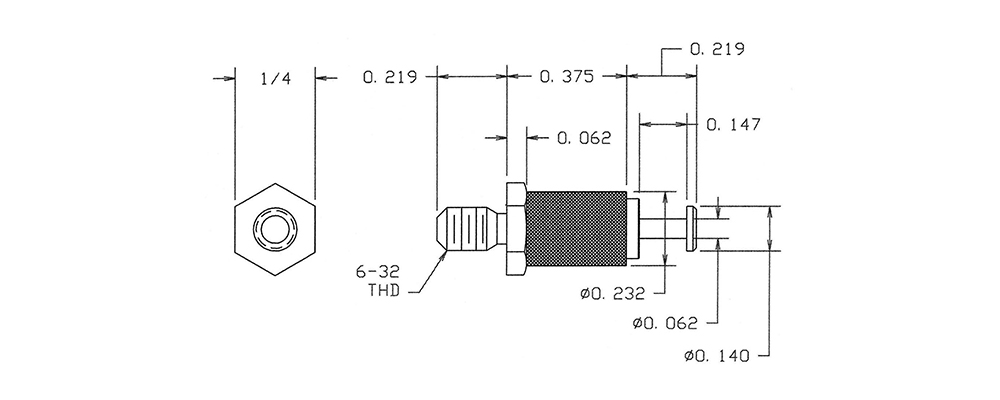

1127-17-0113
1127-17-0113
1127-17-0113
0.813" - - 6-32 Nut 3/32 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES
1127-21-0319
1127-21-0319
1127-21-0319
0.938" - - Swage Mount 3/32 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE White YES
1127-25-04415
1127-25-04415
1127-25-04415
0.938" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-30-08811
1127-30-08811
1127-30-08811
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO

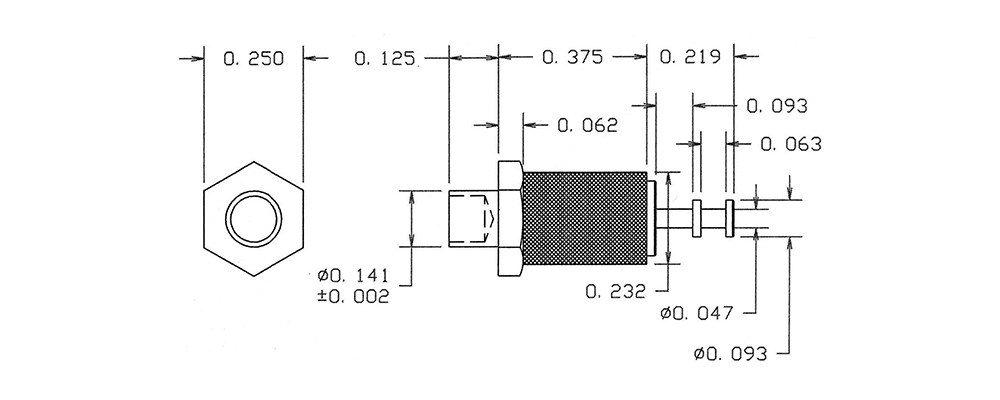

1127-35-0117
1127-35-0117
1127-35-0117
0.719" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-39-0413
1127-39-0413
1127-39-0413
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-43-04419
1127-43-04419
1127-43-04419
0.969" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-47-08815
1127-47-08815
1127-47-08815
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
