Commercial
Insulated
Pin Terminals

Filter
1135-09-04411
1135-09-04411
1135-09-04411
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Brown NO
1137-02-0517
1137-02-0517
1137-02-0517
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Violet NO

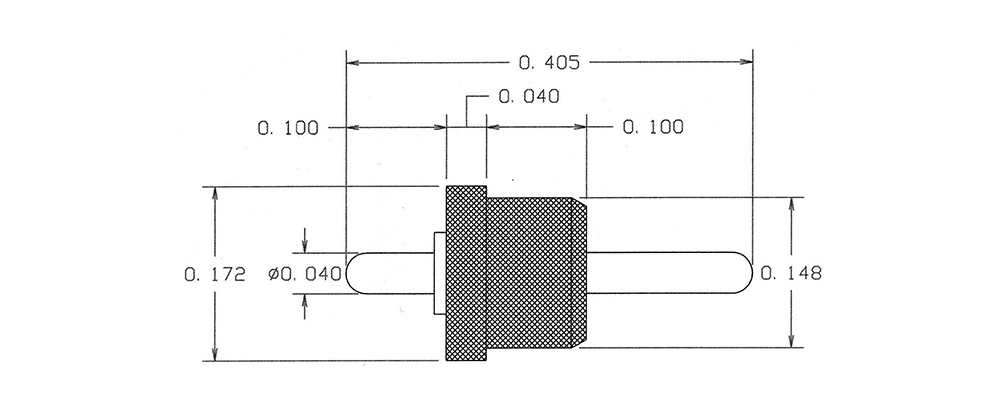

1139-04-0113
1139-04-0113
1139-04-0113
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1151-05-0319
1151-05-0319
1151-05-0319
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1151-11-04415
1151-11-04415
1151-11-04415
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Green YES
1151-19-08811
1151-19-08811
1151-19-08811
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO

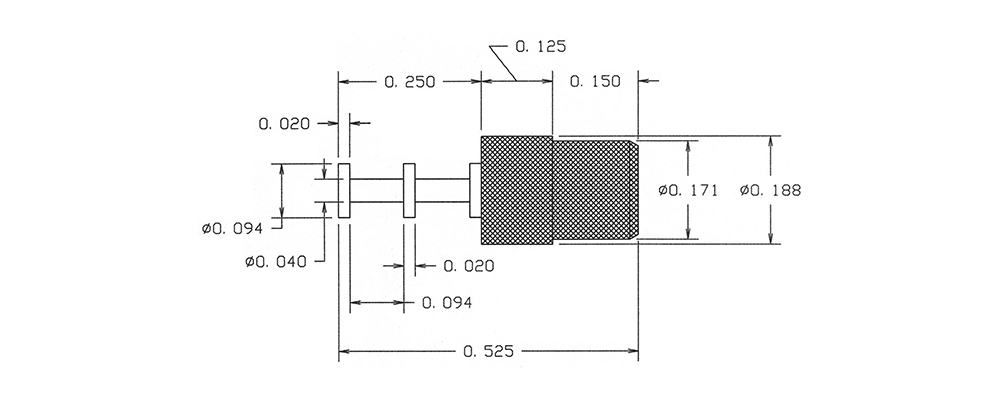

1151-39-0117
1151-39-0117
1151-39-0117
0.525" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Violet YES

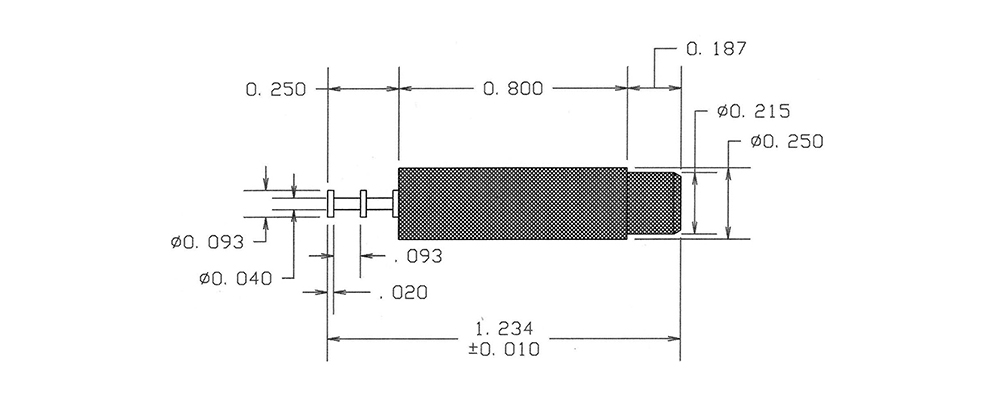

1151-51-0413
1151-51-0413
1151-51-0413
1.234" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Orange NO
1151R-09-04419
1151R-09-04419
1151R-09-04419
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1151R-38-08815
1151R-38-08815
1151R-38-08815
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1152-31-0311
1152-31-0311
1152-31-0311
0.750" 0.040 - Press Fit 1/16 0.203 Brass Gold - - PTFE Brown NO
1152R-17-0417
1152R-17-0417
1152R-17-0417
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Violet YES
1153-06-0513
1153-06-0513
1153-06-0513
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1153-31-08819
1153-31-08819
1153-31-08819
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE White NO

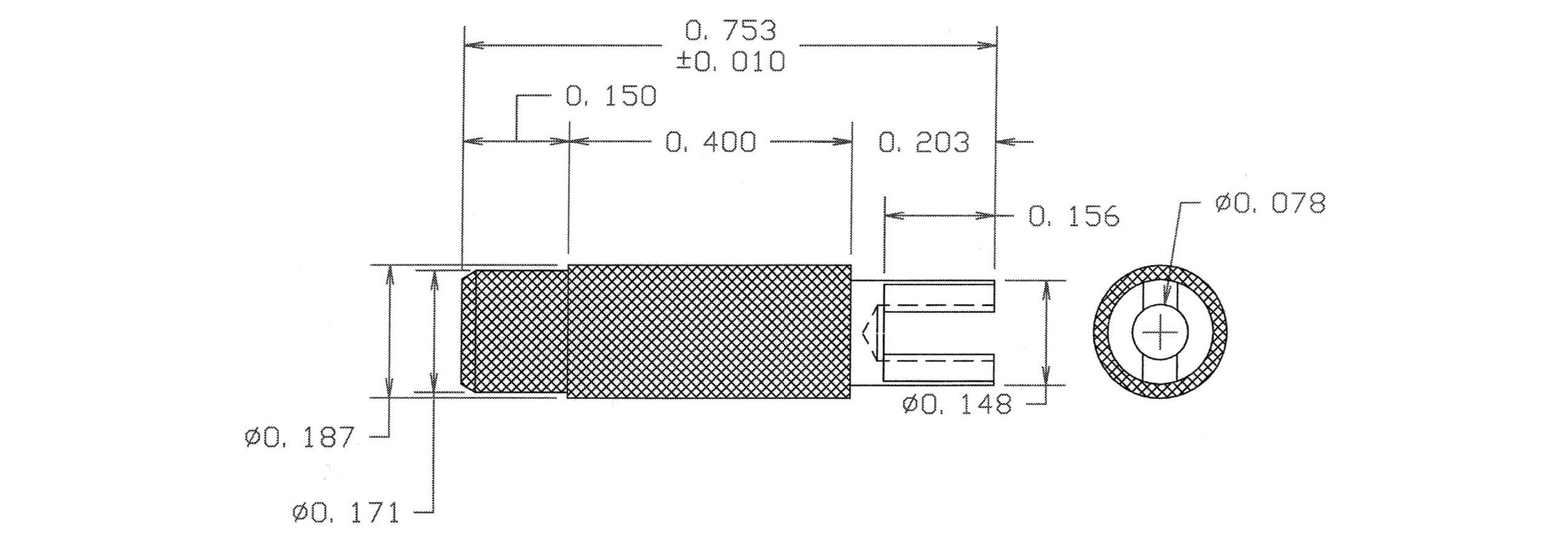

1154-10-0315
1154-10-0315
1154-10-0315
0.753" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Green YES
1154-44-04411
1154-44-04411
1154-44-04411
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Brown NO
1155-01-0517
1155-01-0517
1155-01-0517
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro Solder - - PTFE Violet NO

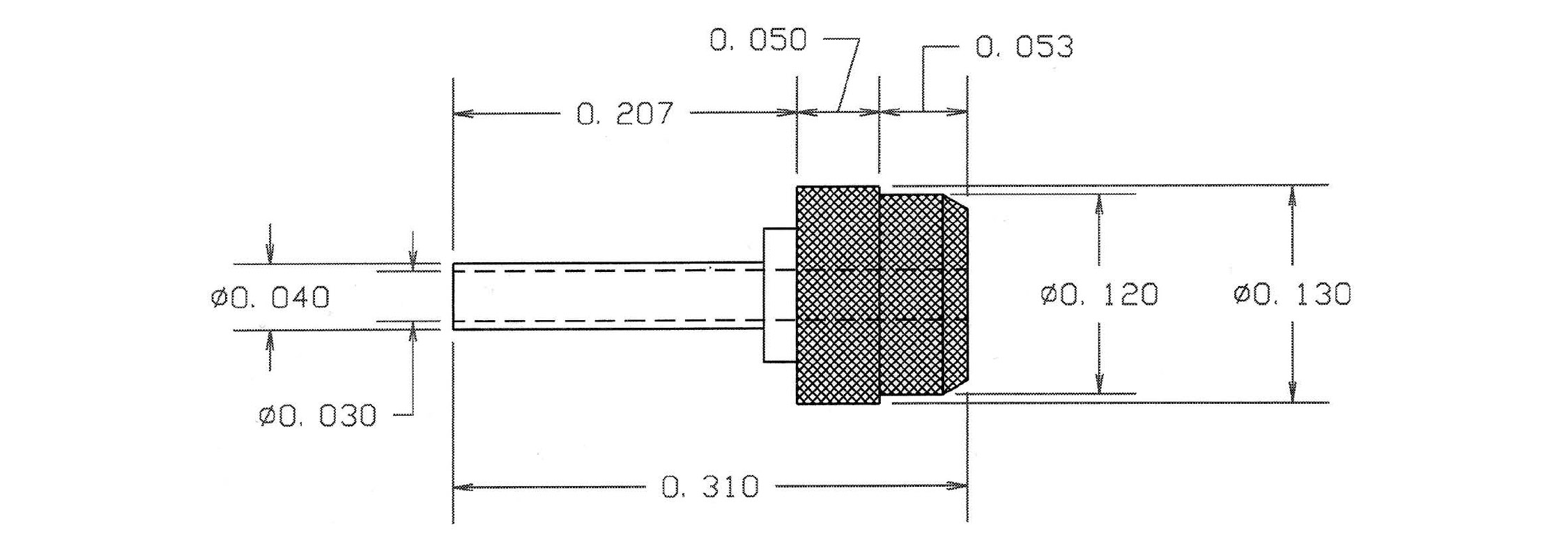

1155-13-0113
1155-13-0113
1155-13-0113
0.310" 0.040 - Press Fit 1/64 0.108 Brass Silver - - PTFE Orange NO
1156-02-0319
1156-02-0319
1156-02-0319
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Gold - - PTFE White YES
1156-07-04415
1156-07-04415
1156-07-04415
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Green YES
