Commercial
Insulated
Pin Terminals

Filter
1111-19-0515
1111-19-0515
1111-19-0515
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Green NO
09-2104-1-0115
09-2104-1-0115
09-2104-1-0115
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES

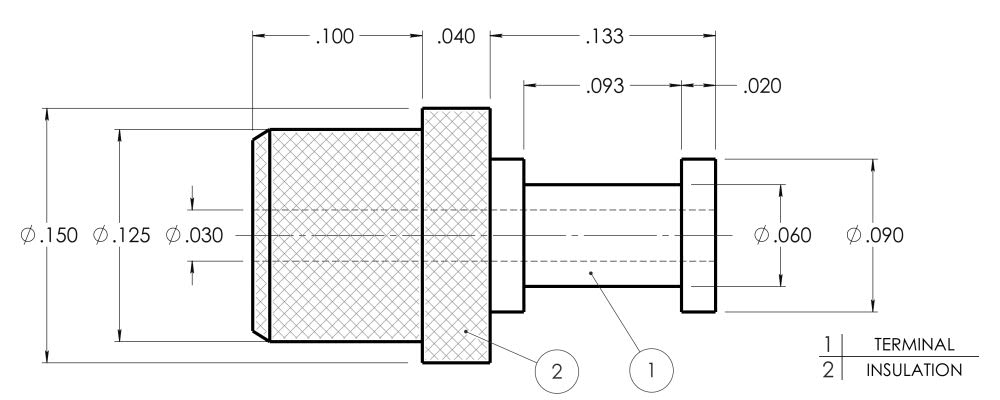

1112-07-0111
1112-07-0111
1112-07-0111
0.273" - - Press Fit 1/16 0.113 Brass Silver - - PTFE Brown NO
09-2112-1-0411
09-2112-1-0411
09-2112-1-0411
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin Nickel Brass PTFE Brown NO
1113-54-0317
1113-54-0317
1113-54-0317
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Gold - - PTFE Violet YES
09-2121-1-04417
09-2121-1-04417
09-2121-1-04417
0.275" - - Press Fit 5/64 0.136 Brass Bright Tin - - PTFE Violet YES
1114-18-04413
1114-18-04413
1114-18-04413
0.250" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Orange NO
1100-04-08813
1100-04-08813
1100-04-08813
0.250" 0.040 - Press Fit 3/64 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1114-24-0519
1114-24-0519
1114-24-0519
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO
1100-09-0119
1100-09-0119
1100-09-0119
0.350" 0.040 - Press Fit 3/32 0.098 Brass Silver - - PTFE White YES
1114R-16-0115
1114R-16-0115
1114R-16-0115
0.296" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1100-14-0415
1100-14-0415
1100-14-0415
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Green YES
1123R-75-0411
1123R-75-0411
1123R-75-0411
0.426" - - Press Fit 1/8 0.172 Brass Electro-Tin - - PTFE Brown NO
1100-18-0511
1100-18-0511
1100-18-0511
0.247" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Brown NO
1124-10-04417
1124-10-04417
1124-10-04417
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Violet YES
1100-22-08817
1100-22-08817
1100-22-08817
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1125-80-08813
1125-80-08813
1125-80-08813
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Orange NO
1100-34-0313
1100-34-0313
1100-34-0313
0.410" 0.040 - Press Fit 1/8 0.136 Brass Gold - - PTFE Orange NO
1110-95-0119
1110-95-0119
1110-95-0119
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE White YES
1100-43-0419
1100-43-0419
1100-43-0419
0.485" 0.040 - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE White YES
