Commercial
Insulated
Pin Terminals

Filter
1127-70-0312
1127-70-0312
1127-70-0312
0.844" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
1127-74-0418
1127-74-0418
1127-74-0418
1.000" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-78-0514
1127-78-0514
1127-78-0514
0.859" - - Swage Mount 3/16 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO
1127-83-0110
1127-83-0110
1127-83-0110
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES
1127-87-0316
1127-87-0316
1127-87-0316
0.515" - - 2-56 Nut 1/32 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Blue YES
1127-91-04412
1127-91-04412
1127-91-04412
0.674" - - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-95-0518
1127-95-0518
1127-95-0518
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Gray NO

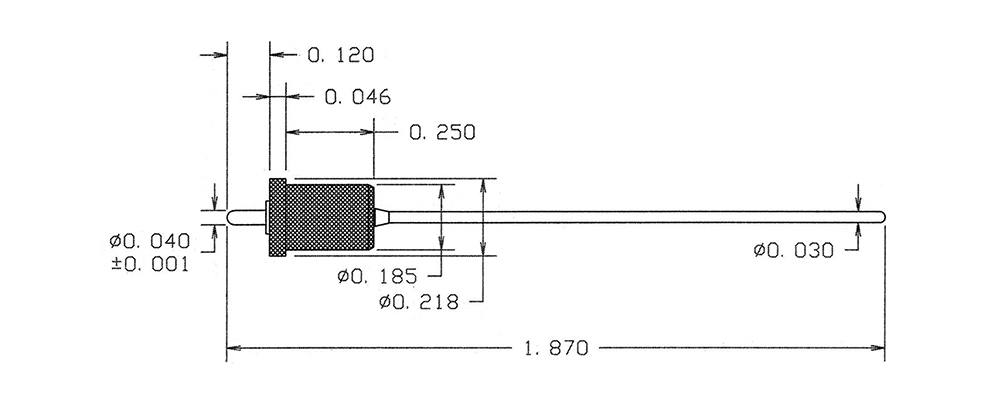

1130-02-0114
1130-02-0114
1130-02-0114
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Silver - - PTFE Yellow NO
1130-07-0410
1130-07-0410
1130-07-0410
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Black YES
1130R-05-04416
1130R-05-04416
1130R-05-04416
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Blue YES
1131-02-08812
1131-02-08812
1131-02-08812
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Red NO

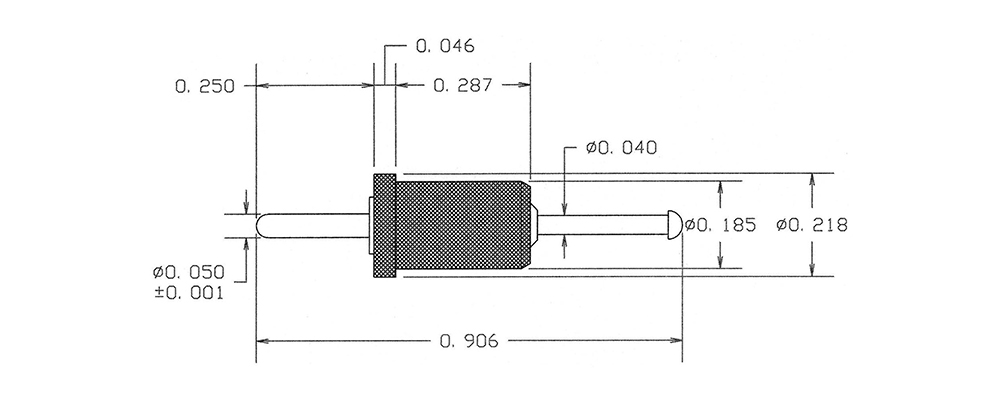

1131-07-0118
1131-07-0118
1131-07-0118
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Gray NO
1132-01-0414
1132-01-0414
1132-01-0414
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro-Tin - - PTFE Yellow NO
1133-02-0510
1133-02-0510
1133-02-0510
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Black NO
1133R-05-08816
1133R-05-08816
1133R-05-08816
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1135-05-0312
1135-05-0312
1135-05-0312
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Red NO
1135-09-0418
1135-09-0418
1135-09-0418
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Gray NO
1137-02-0514
1137-02-0514
1137-02-0514
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Yellow NO

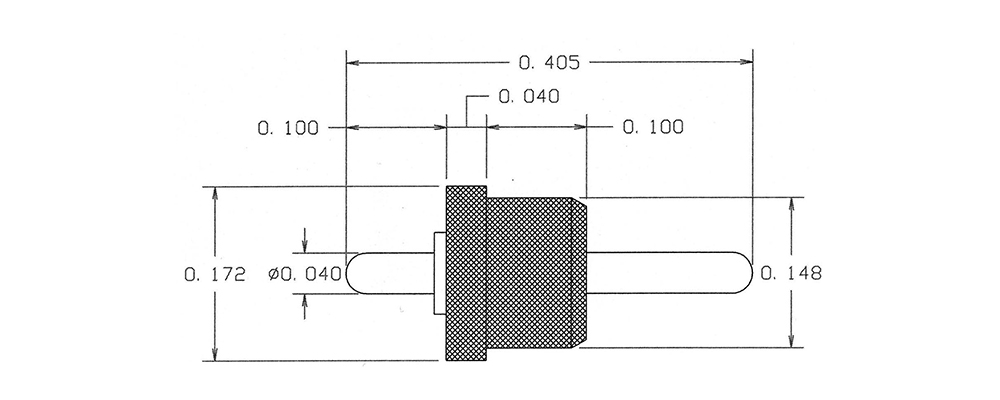

1139-04-0110
1139-04-0110
1139-04-0110
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
1151-05-0316
1151-05-0316
1151-05-0316
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES
