Commercial
Insulated
Pin Terminals

Filter
1178R-15-0312
1178R-15-0312
1178R-15-0312
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Gold - - PTFE Red NO
1102R-95-0418
1102R-95-0418
1102R-95-0418
0.812" - - Press Fit 13/64 0.297 Brass Electro-Tin - - PTFE Gray NO
1125-02-0514
1125-02-0514
1125-02-0514
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro Solder Electro-Tin Brass PTFE Yellow NO

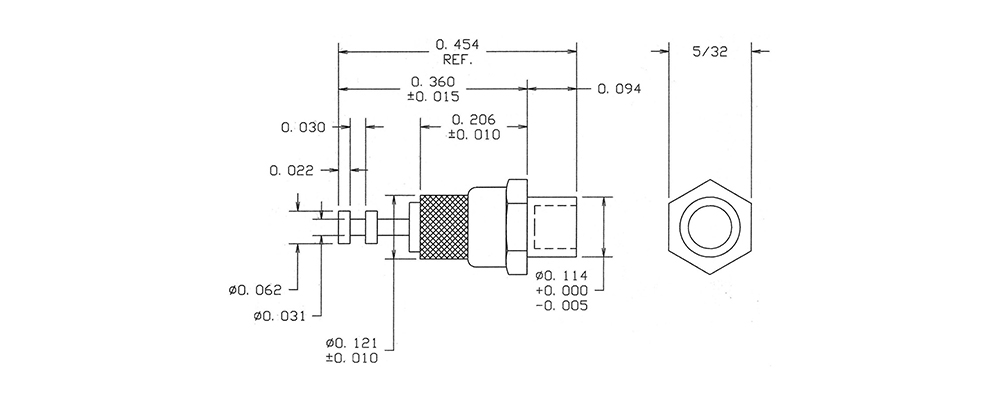

1125-07-0110
1125-07-0110
1125-07-0110
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Black YES
1125-11-0316
1125-11-0316
1125-11-0316
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Blue YES
1125-15-04412
1125-15-04412
1125-15-04412
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin Electro-Tin Brass PTFE Red NO
1125-19-0518
1125-19-0518
1125-19-0518
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Electro Solder Electro-Tin Brass PTFE Gray NO
1125-24-0114
1125-24-0114
1125-24-0114
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Silver Electro-Tin Brass PTFE Yellow NO
1125-28-0410
1125-28-0410
1125-28-0410
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro-Tin Electro-Tin Brass PTFE Black YES
09-2128-1-04416
09-2128-1-04416
09-2128-1-04416
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1100-47-08812
1100-47-08812
1100-47-08812
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin-Lead - - PTFE Red NO
1100R-23A-0118
1100R-23A-0118
1100R-23A-0118
0.330" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Gray NO
1100R-36-0414
1100R-36-0414
1100R-36-0414
0.390" 0.040 - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Yellow NO
1100R-53-0510
1100R-53-0510
1100R-53-0510
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro Solder - - PTFE Black NO
1100R-70-08816
1100R-70-08816
1100R-70-08816
0.750" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
09-2010-1-0317
09-2010-1-0317
09-2010-1-0317
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Gold - - PTFE Violet YES
1102-44-0313
1102-44-0313
1102-44-0313
0.750" - - Press Fit 1/16 0.152 Brass Gold - - PTFE Orange NO

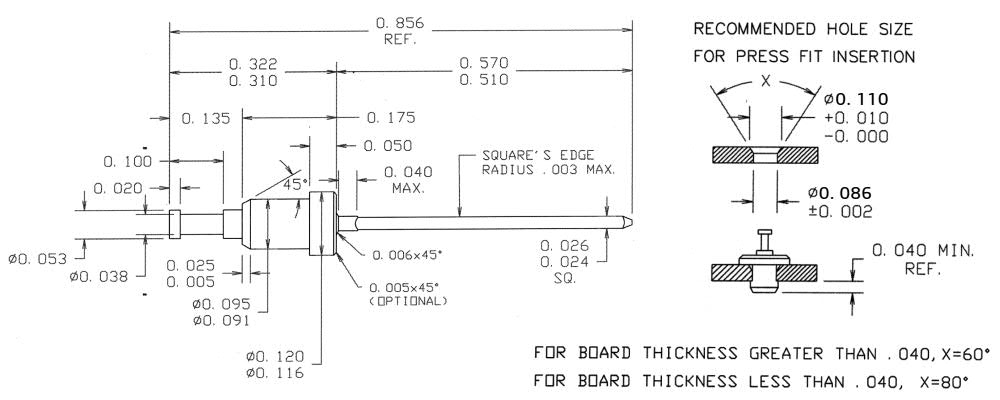

09-2078-1-04413
09-2078-1-04413
09-2078-1-04413
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Bright Tin - - PTFE Orange NO

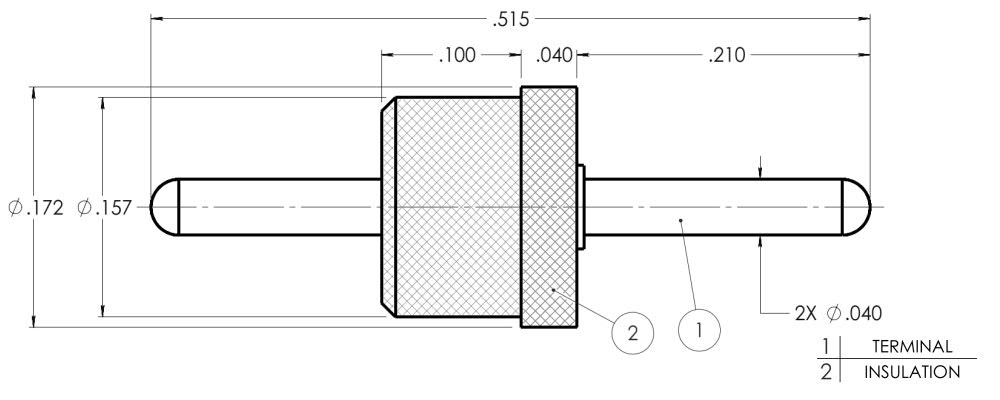

1110-39-0419
1110-39-0419
1110-39-0419
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Electro-Tin - - PTFE White YES
09-2094-1-0519
09-2094-1-0519
09-2094-1-0519
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Electro Solder - - PTFE White NO
