Commercial
Insulated
Pin Terminals

Filter
1126-27-08812
1126-27-08812
1126-27-08812
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Red NO
1126-34-0118
1126-34-0118
1126-34-0118
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Gray NO
1126-38-0414
1126-38-0414
1126-38-0414
1.469" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass PTFE Yellow NO
1126-42-0510
1126-42-0510
1126-42-0510
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Black NO
1126-46-08816
1126-46-08816
1126-46-08816
1.343" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Blue NO
1127-04-0312
1127-04-0312
1127-04-0312
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold Electro-Tin Brass DIALLYL PHTHALATE Red YES
1127-08-0418
1127-08-0418
1127-08-0418
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-12-0514
1127-12-0514
1127-12-0514
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO

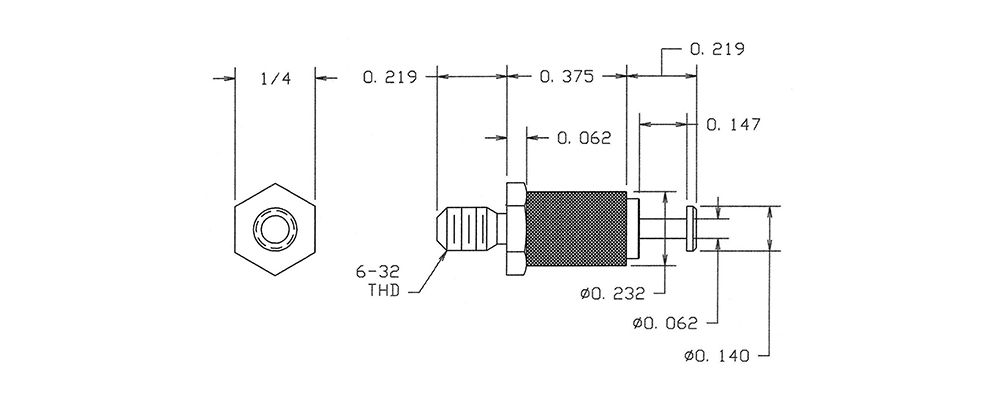

1127-17-0110
1127-17-0110
1127-17-0110
0.813" - - 6-32 Nut 3/32 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES
1127-21-0316
1127-21-0316
1127-21-0316
0.938" - - Swage Mount 3/32 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Blue YES
1127-25-04412
1127-25-04412
1127-25-04412
0.938" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-30-0518
1127-30-0518
1127-30-0518
0.813" - - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Gray NO

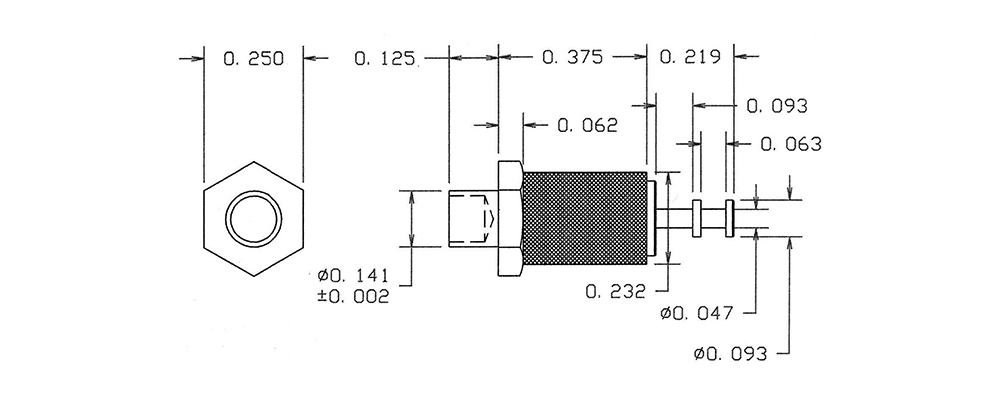

1127-35-0114
1127-35-0114
1127-35-0114
0.719" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-39-0410
1127-39-0410
1127-39-0410
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES
1127-43-04416
1127-43-04416
1127-43-04416
0.969" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-47-08812
1127-47-08812
1127-47-08812
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO
1127-52-0118
1127-52-0118
1127-52-0118
0.875" - - Swage Mount 1/8 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES

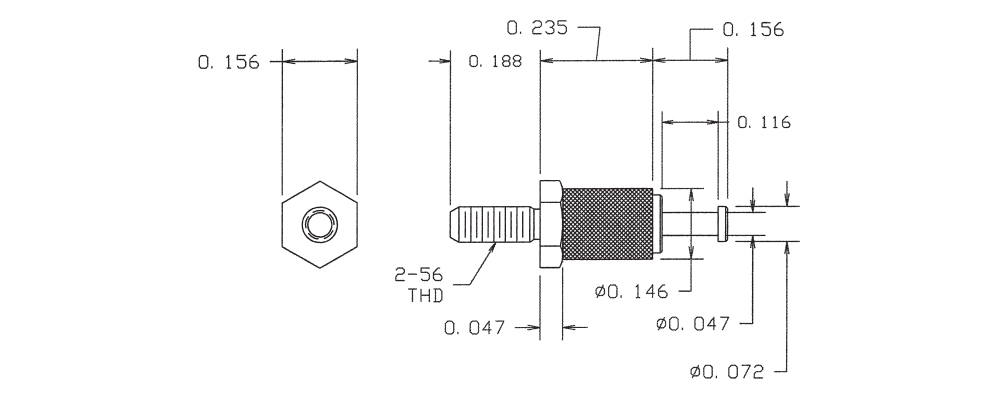

1127-57-0414
1127-57-0414
1127-57-0414
0.579" - - 2-56 Nut 1/16 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-61-0510
1127-61-0510
1127-61-0510
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-65-08816
1127-65-08816
1127-65-08816
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO
