Commercial
Insulated
Pin Terminals

Filter
1111-24-04417
1111-24-04417
1111-24-04417
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Violet YES

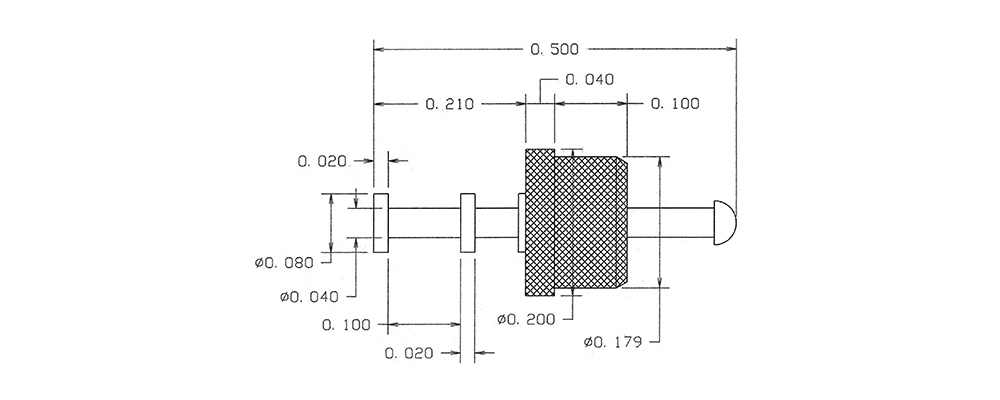

1111-33-08813
1111-33-08813
1111-33-08813
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Bright Tin-Lead - - PTFE Orange NO
1111-38-0119
1111-38-0119
1111-38-0119
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Silver - - PTFE White YES
1111-44-0415
1111-44-0415
1111-44-0415
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Electro-Tin - - PTFE Green YES
1111-50-0511
1111-50-0511
1111-50-0511
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Brown NO

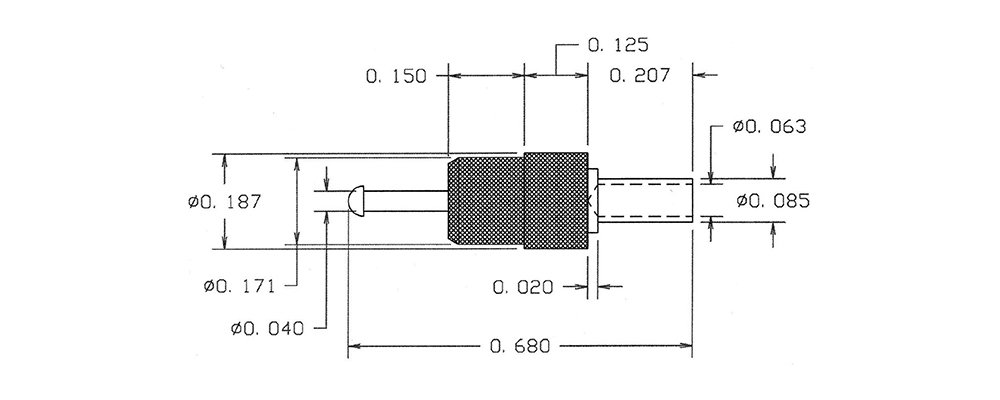

1111-57-08817
1111-57-08817
1111-57-08817
0.680" 0.040 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1111R-09-0313
1111R-09-0313
1111R-09-0313
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO
1111R-14-0419
1111R-14-0419
1111R-14-0419
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE White YES
1112-06-0515
1112-06-0515
1112-06-0515
0.233" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Green NO
1112-14-0111
1112-14-0111
1112-14-0111
0.293" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO
1112-65-0317
1112-65-0317
1112-65-0317
0.155" - - Press Fit 1/32 0.058 Brass Gold - - PTFE Violet YES

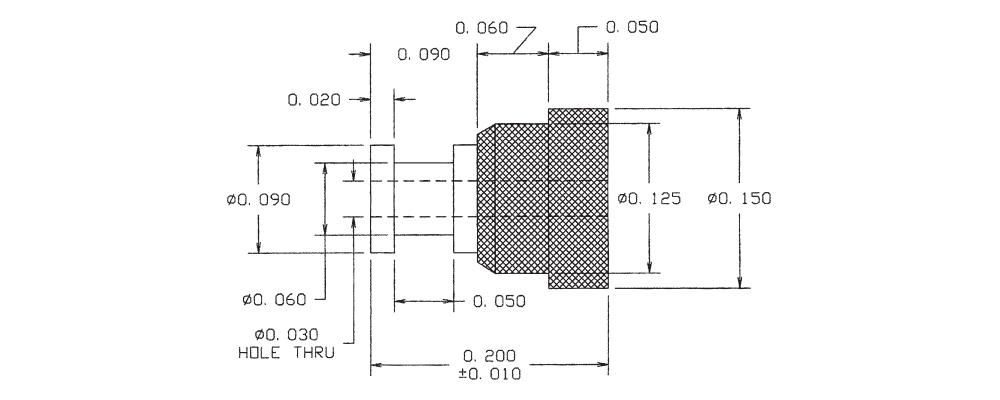

1112R-05-04413
1112R-05-04413
1112R-05-04413
0.200" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Orange NO
1112R-61-0519
1112R-61-0519
1112R-61-0519
0.200" - - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE White NO
1113-03-0115
1113-03-0115
1113-03-0115
0.333" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1113-57-0411
1113-57-0411
1113-57-0411
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1114-03-04417
1114-03-04417
1114-03-04417
0.215" 0.040 - Press Fit 1/64 0.086 Brass Bright Tin - - PTFE Violet YES

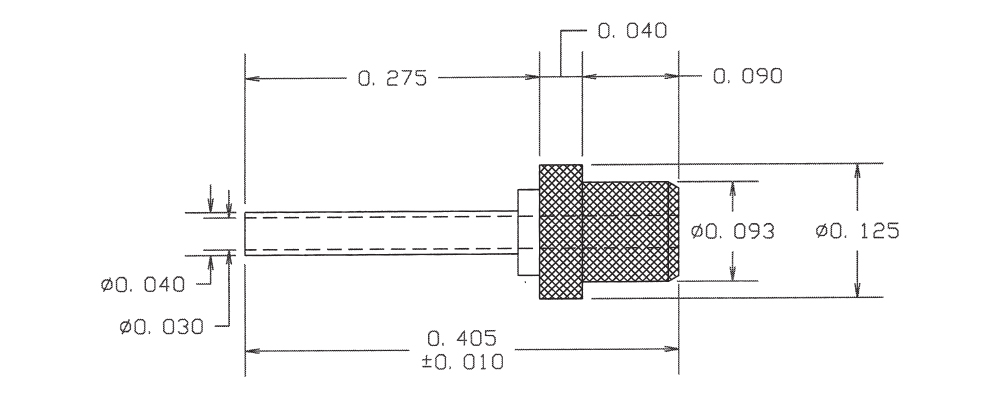

1114-07-08813
1114-07-08813
1114-07-08813
0.405" 0.040 - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1114-50-0119
1114-50-0119
1114-50-0119
0.270" 0.060 - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1114-74-0415
1114-74-0415
1114-74-0415
0.367" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES
1114R-12-0511
1114R-12-0511
1114R-12-0511
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Brown NO
