Commercial
Insulated
Pin Terminals

Filter

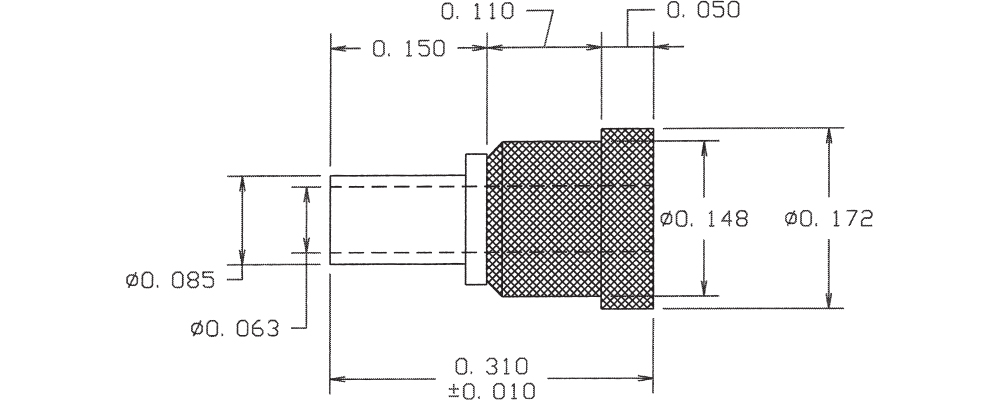

1114R-19-08817
1114R-19-08817
1114R-19-08817
0.310" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1114R-80-0313
1114R-80-0313
1114R-80-0313
0.380" 0.055 - Press Fit 1/32 0.136 Brass Gold - - PTFE Orange NO
1115-06-0419
1115-06-0419
1115-06-0419
0.367" 0.040 - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE White YES
1115-50-0515
1115-50-0515
1115-50-0515
0.353" - - Press Fit 3/32 0.187 Brass Electro Solder - - PTFE Green NO
1115R-02-0111
1115R-02-0111
1115R-02-0111
0.282" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Brown NO
1116-26-0317
1116-26-0317
1116-26-0317
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1117-15-04413
1117-15-04413
1117-15-04413
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin Nickel Brass PTFE Orange NO
1117-19-0519
1117-19-0519
1117-19-0519
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Electro Solder Nickel Brass PTFE White NO
1117-54-0115
1117-54-0115
1117-54-0115
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Green YES
1118-32-0411
1118-32-0411
1118-32-0411
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro-Tin - - PTFE Brown NO
1119-22-04417
1119-22-04417
1119-22-04417
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin - - PTFE Violet YES
1119-32-08813
1119-32-08813
1119-32-08813
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO
1121-02-0119
1121-02-0119
1121-02-0119
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Silver - - PTFE White YES
1121-06-0415
1121-06-0415
1121-06-0415
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES
1121-11-0511
1121-11-0511
1121-11-0511
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Brown NO

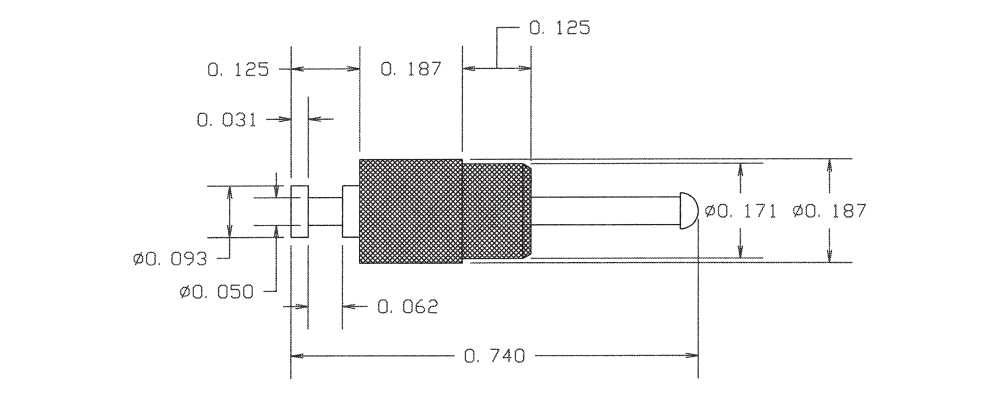

1121-15-08817
1121-15-08817
1121-15-08817
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1121-20-0313
1121-20-0313
1121-20-0313
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Gold - - PTFE Orange NO
1121-24-0419
1121-24-0419
1121-24-0419
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro-Tin - - PTFE White YES
1121-30-0515
1121-30-0515
1121-30-0515
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Green NO
1121-52-0111
1121-52-0111
1121-52-0111
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Brown NO
