Commercial
Insulated
Pin Terminals

Filter
1114-24-04413
1114-24-04413
1114-24-04413
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO

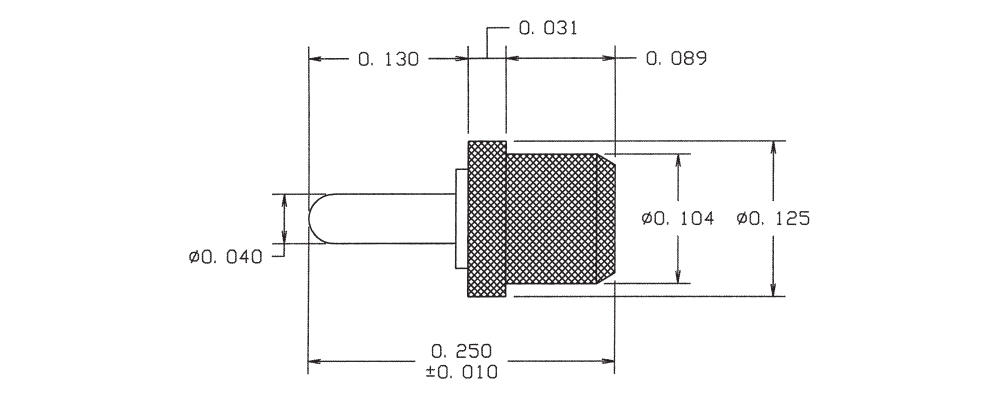

1100-08-08813
1100-08-08813
1100-08-08813
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin-Lead - - PTFE Orange NO
1114-27-0519
1114-27-0519
1114-27-0519
0.367" 0.085 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE White NO
1100-14-0119
1100-14-0119
1100-14-0119
0.280" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE White YES
1123R-75-0115
1123R-75-0115
1123R-75-0115
0.426" - - Press Fit 1/8 0.172 Brass Silver - - PTFE Green YES
1100-18-0415
1100-18-0415
1100-18-0415
0.247" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Green YES
1124-10-0411
1124-10-0411
1124-10-0411
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Brown NO
1100-22-0511
1100-22-0511
1100-22-0511
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Brown NO
1125-80-04417
1125-80-04417
1125-80-04417
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE Violet YES
1100-32-08817
1100-32-08817
1100-32-08817
0.370" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

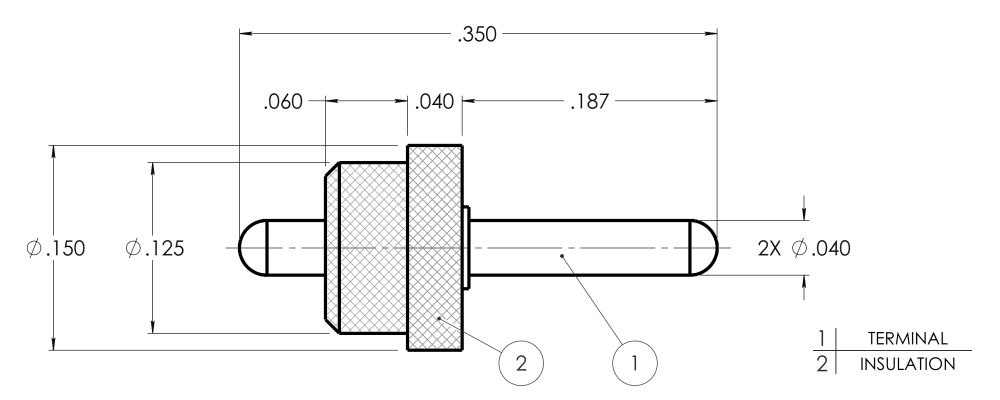

1110-54-08813
1110-54-08813
1110-54-08813
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Orange NO
1100-43-0313
1100-43-0313
1100-43-0313
0.485" 0.040 - Press Fit 1/8 0.152 Brass Gold - - PTFE Orange NO
1100-48-0419
1100-48-0419
1100-48-0419
0.600" 0.062 - Press Fit 1/8 0.167 Brass Electro-Tin - - PTFE White YES
1100-73-0515
1100-73-0515
1100-73-0515
0.580" 0.063 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Green NO
1100R-08A-0111
1100R-08A-0111
1100R-08A-0111
0.250" 0.040 - Press Fit 1/16 0.091 Brass Silver - - PTFE Brown NO
1100R-17-0317
1100R-17-0317
1100R-17-0317
0.305" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1100R-28-04413
1100R-28-04413
1100R-28-04413
0.350" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1100R-63-0519
1100R-63-0519
1100R-63-0519
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE White NO
1101-05-0115
1101-05-0115
1101-05-0115
0.428" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1102-02-0411
1102-02-0411
1102-02-0411
0.330" - - Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Brown NO
