Commercial
Insulated
Pin Terminals

Filter
1170-22-0414
1170-22-0414
1170-22-0414
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1175-012-0510
1175-012-0510
1175-012-0510
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO

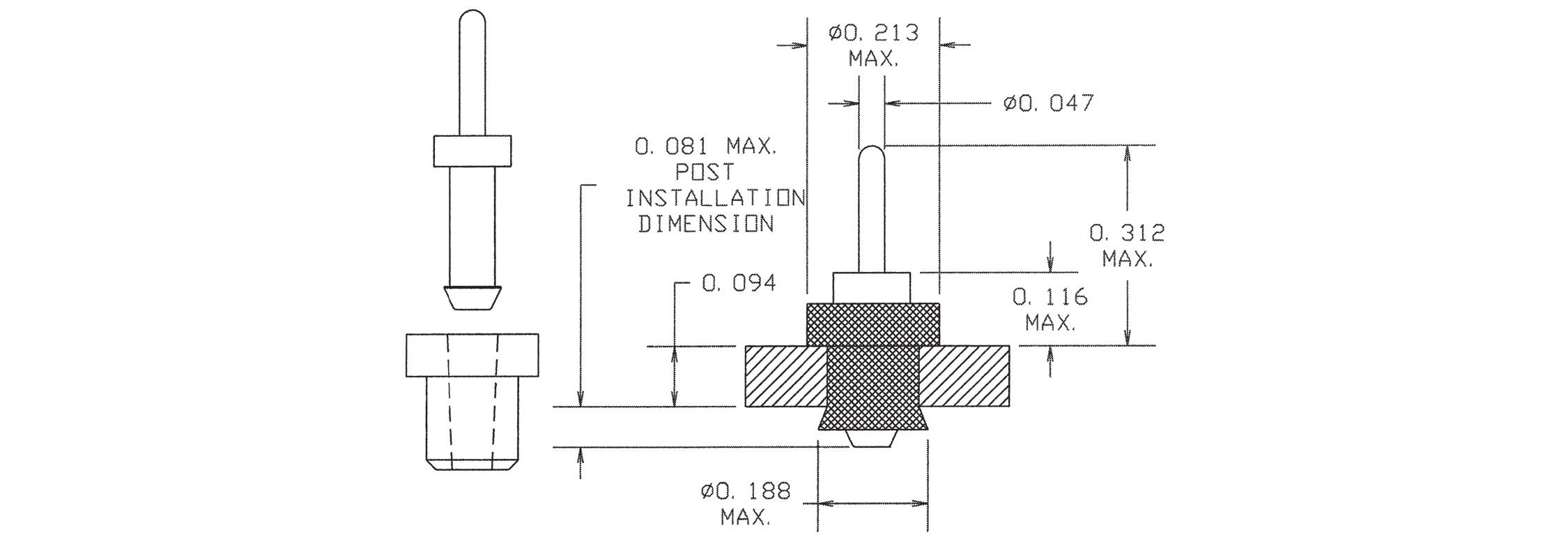

1175-023-08816
1175-023-08816
1175-023-08816
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
1175-351-0312
1175-351-0312
1175-351-0312
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1175-372-0418
1175-372-0418
1175-372-0418
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO

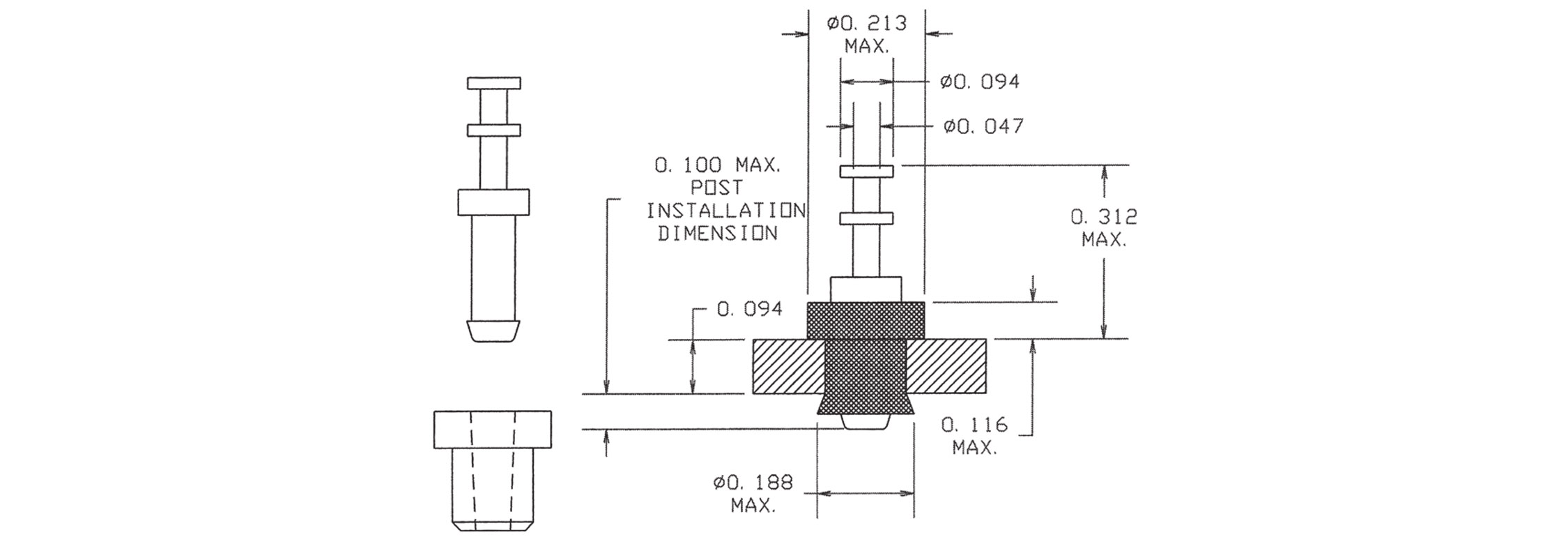

1175-403-0514
1175-403-0514
1175-403-0514
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO
1175-414-0110
1175-414-0110
1175-414-0110
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Black YES
1175-424-0316
1175-424-0316
1175-424-0316
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Blue YES
1175-434-04412
1175-434-04412
1175-434-04412
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO

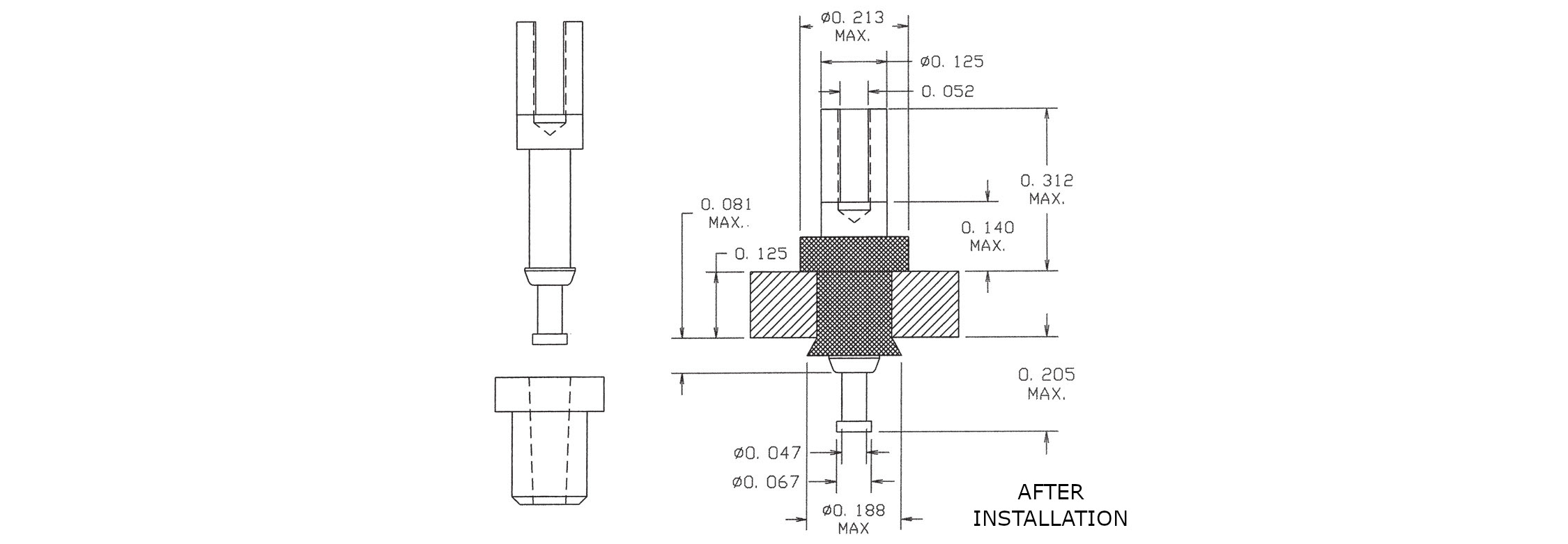

1175-444-0518
1175-444-0518
1175-444-0518
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO

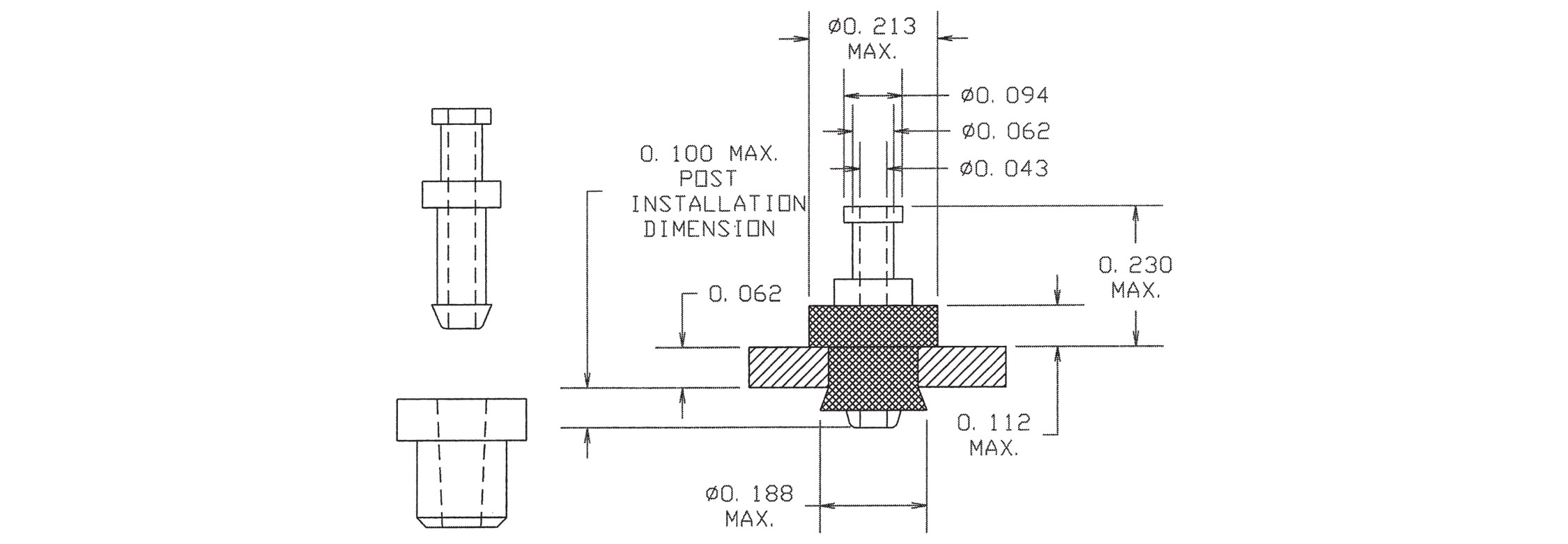

1175-462-0114
1175-462-0114
1175-462-0114
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO
1175-473-0410
1175-473-0410
1175-473-0410
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES

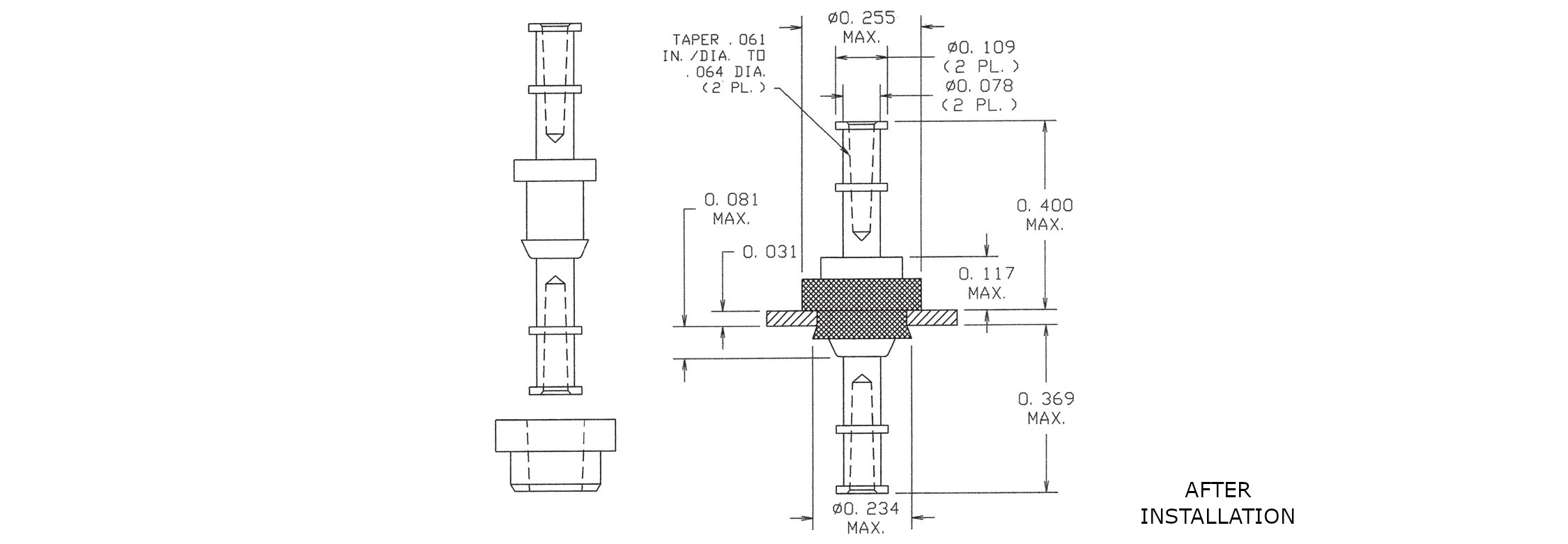

1175-491-04416
1175-491-04416
1175-491-04416
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES

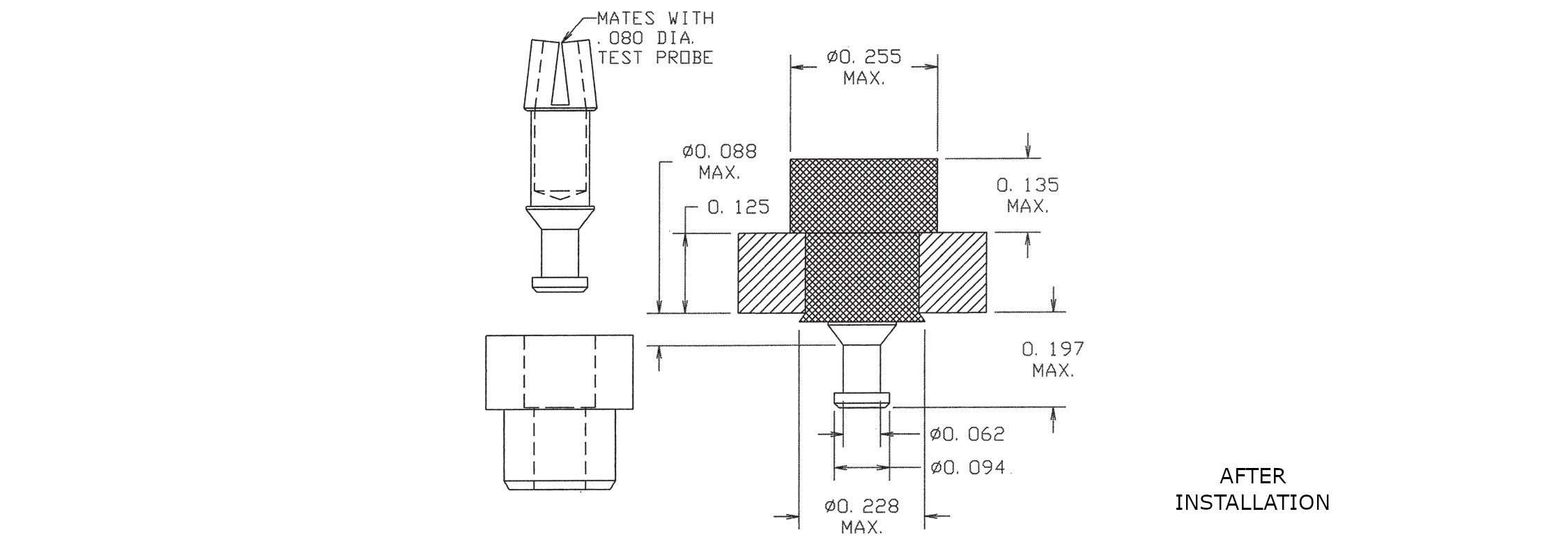

1175-514-08812
1175-514-08812
1175-514-08812
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-702-0118
1175-702-0118
1175-702-0118
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
1175-712-0414
1175-712-0414
1175-712-0414
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-722-0510
1175-722-0510
1175-722-0510
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO

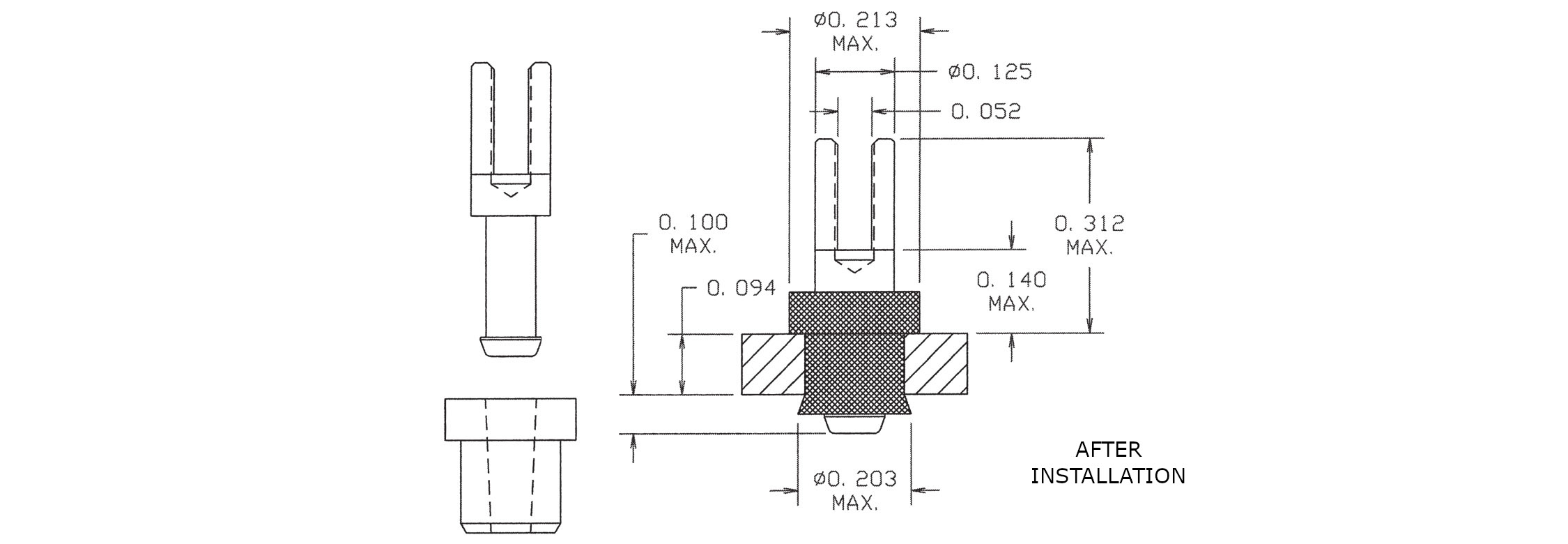

1175-733-08816
1175-733-08816
1175-733-08816
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO

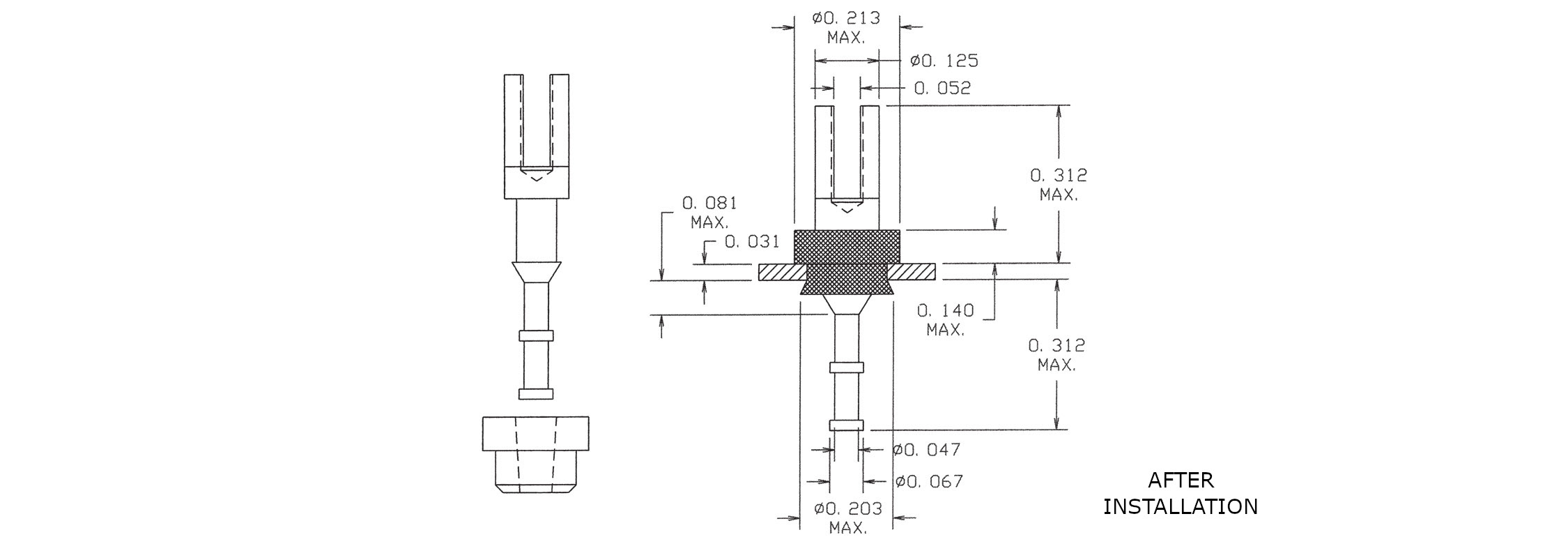

1175-751-0312
1175-751-0312
1175-751-0312
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Red NO

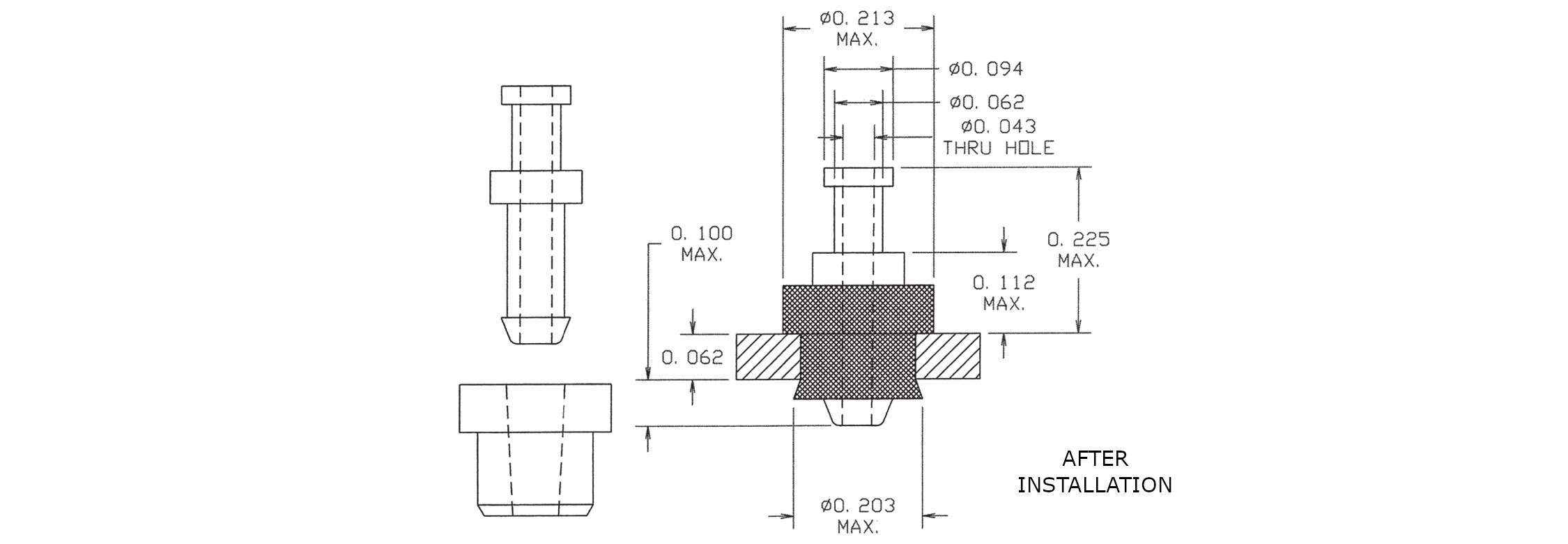

1175-762-0418
1175-762-0418
1175-762-0418
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO
