Commercial
Insulated
Pin Terminals

Filter

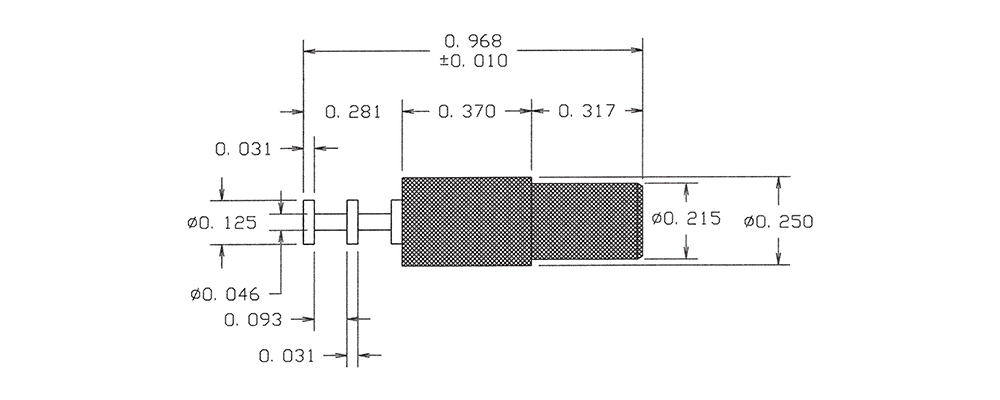

1102-85-0111
1102-85-0111
1102-85-0111
0.968" - - Press Fit Up to 1/4 0.203 Brass Silver - - PTFE Brown NO
1102-94-0317
1102-94-0317
1102-94-0317
0.649" - - Press Fit Up to 3/16 0.191 Brass Gold - - PTFE Violet YES
1102R-01-04413
1102R-01-04413
1102R-01-04413
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Orange NO
1102R-18-0519
1102R-18-0519
1102R-18-0519
0.500" - - Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE White NO
1102R-28-0115
1102R-28-0115
1102R-28-0115
0.361" - - Press Fit 1/8 0.140 Brass Silver - - PTFE Green YES
1102R-74-0411
1102R-74-0411
1102R-74-0411
0.375" - - Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Brown NO
1102R-92-04417
1102R-92-04417
1102R-92-04417
0.460" - - Press Fit 3/32 0.172 Brass Bright Tin - - PTFE Violet YES

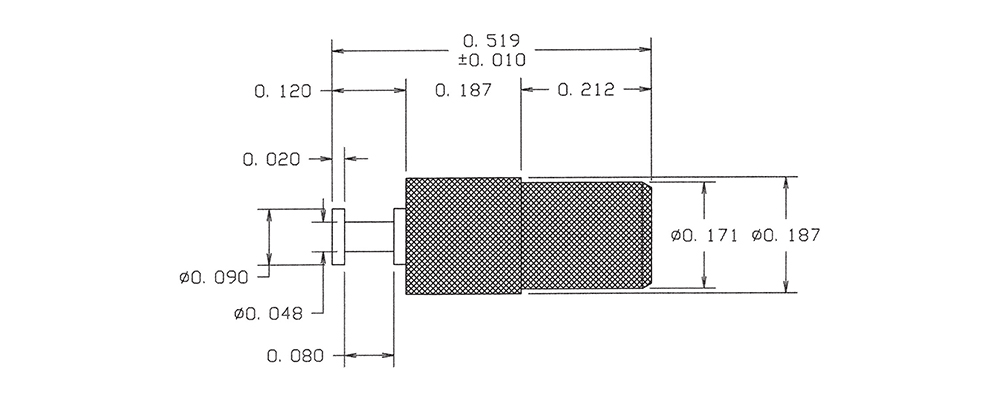

1103-07-08813
1103-07-08813
1103-07-08813
0.519" - - Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO
1103R-08-0119
1103R-08-0119
1103R-08-0119
0.320" - - Press Fit 3/32 0.158 Brass Silver - - PTFE White YES
1104-04-0415
1104-04-0415
1104-04-0415
0.392" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES
1105-01-0511
1105-01-0511
1105-01-0511
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Electro Solder - - PTFE Brown NO
1106-02-08817
1106-02-08817
1106-02-08817
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1106-07-0313
1106-07-0313
1106-07-0313
0.602" - - Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Orange NO
1106-11-0419
1106-11-0419
1106-11-0419
0.703" - - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE White YES
1106-15-0515
1106-15-0515
1106-15-0515
1.190" - - Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Green NO

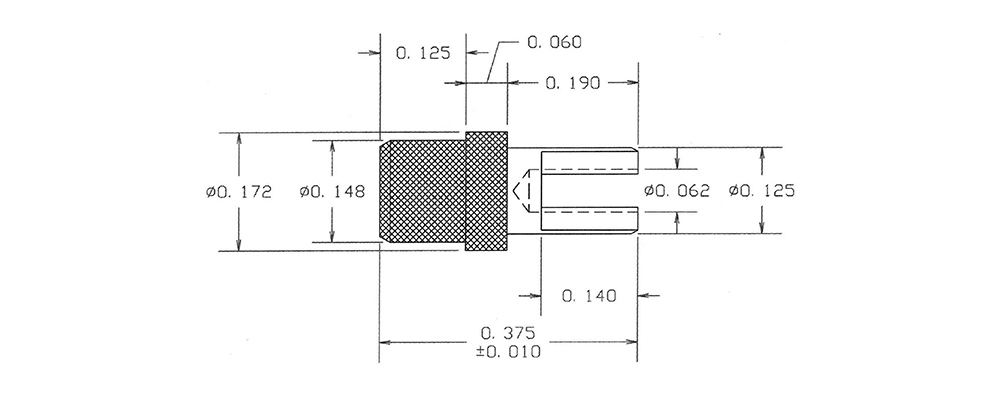

1106-22-0111
1106-22-0111
1106-22-0111
0.375" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Brown NO
1106-52-0317
1106-52-0317
1106-52-0317
0.276" - - Press Fit 3/32 0.086 Brass Gold - - PTFE Violet YES
1106R-23-04413
1106R-23-04413
1106R-23-04413
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO
1106R-50-0519
1106R-50-0519
1106R-50-0519
0.350" - - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE White NO
1107-03-0115
1107-03-0115
1107-03-0115
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Silver - - PTFE Green YES
