Commercial
Insulated
Pin Terminals

Filter

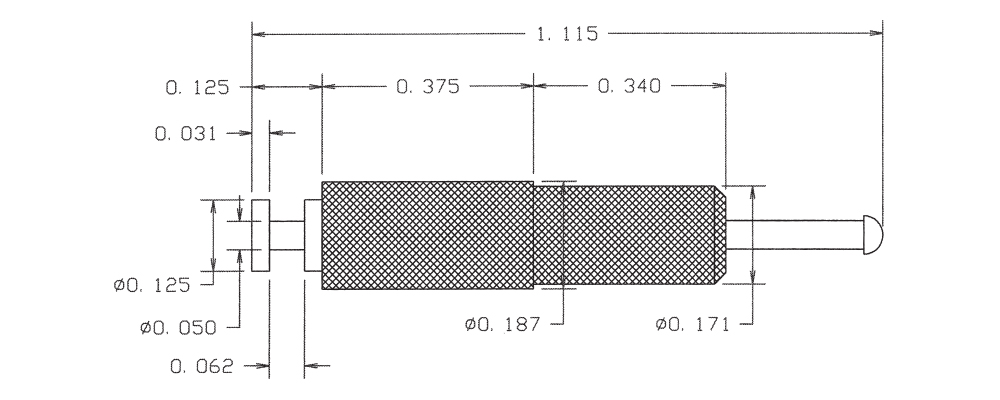

1121-20-0411
1121-20-0411
1121-20-0411
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Electro-Tin - - PTFE Brown NO

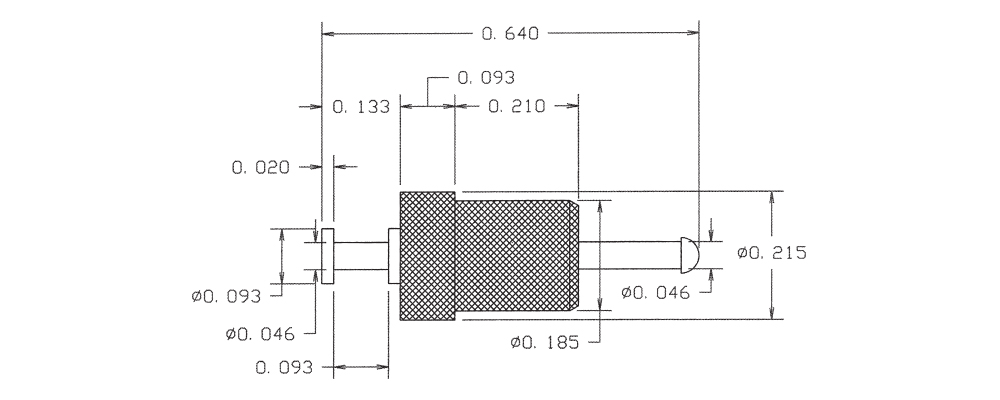

1121-24-04417
1121-24-04417
1121-24-04417
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Bright Tin - - PTFE Violet YES

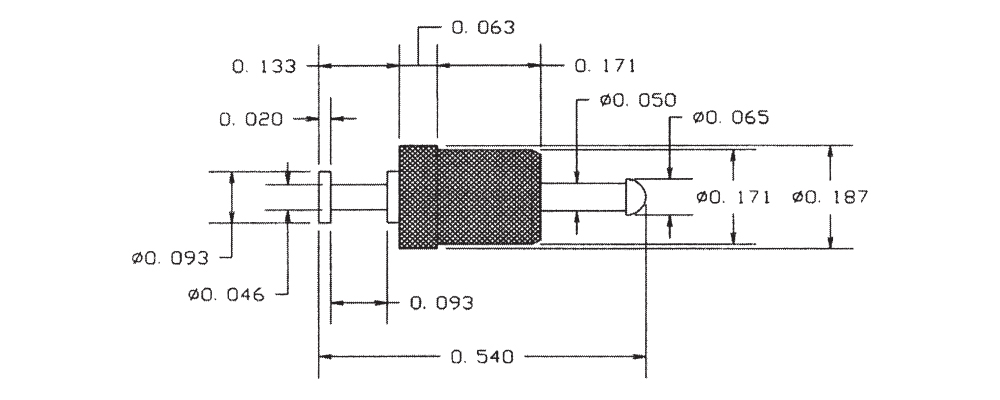

1121-30-08813
1121-30-08813
1121-30-08813
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Orange NO

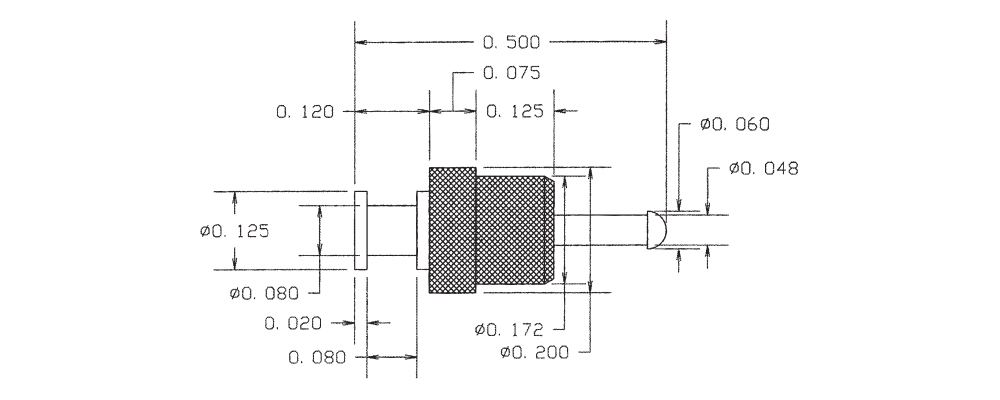

1121-52-0119
1121-52-0119
1121-52-0119
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE White YES
1121R-06-0415
1121R-06-0415
1121R-06-0415
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES
1121R-50-0511
1121R-50-0511
1121R-50-0511
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1123-03-08817
1123-03-08817
1123-03-08817
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1123-08-0313
1123-08-0313
1123-08-0313
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Gold - - PTFE Orange NO

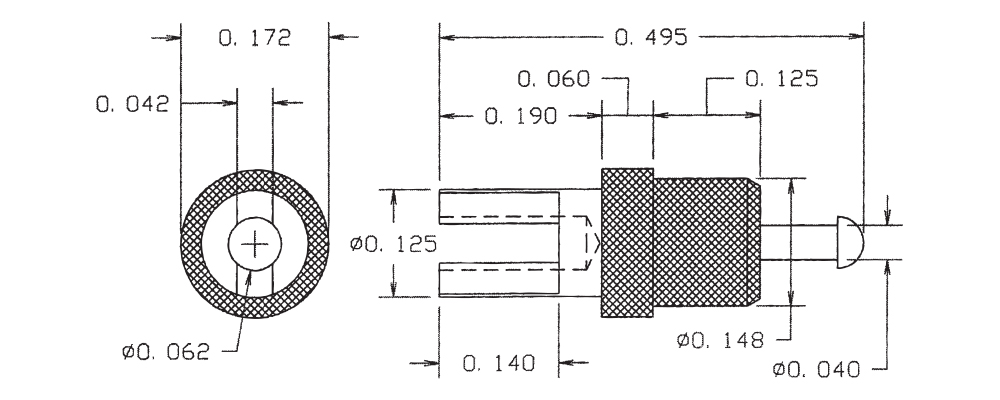

1123-72-0419
1123-72-0419
1123-72-0419
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE White YES
1123R-05-0515
1123R-05-0515
1123R-05-0515
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro Solder - - PTFE Green NO

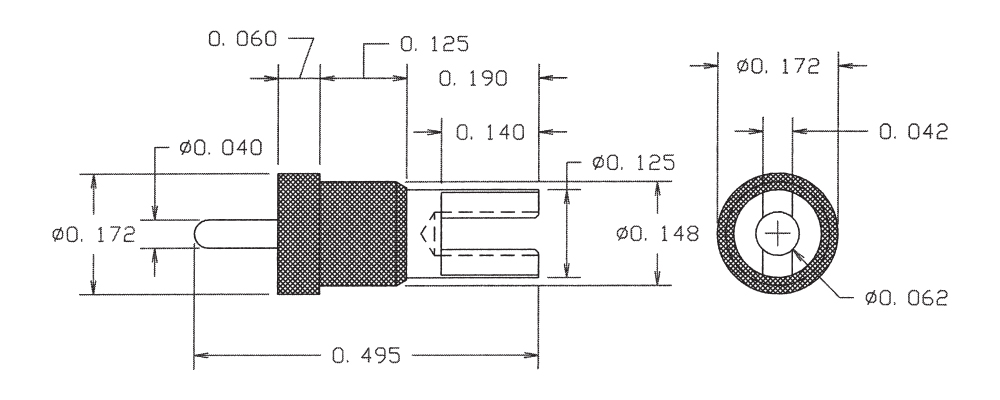

1123R-70-0111
1123R-70-0111
1123R-70-0111
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO
1125-35-0317
1125-35-0317
1125-35-0317
0.850" - - 6-32 Nut 1/8 0.144 Brass Gold Electro-Tin Brass PTFE Violet YES

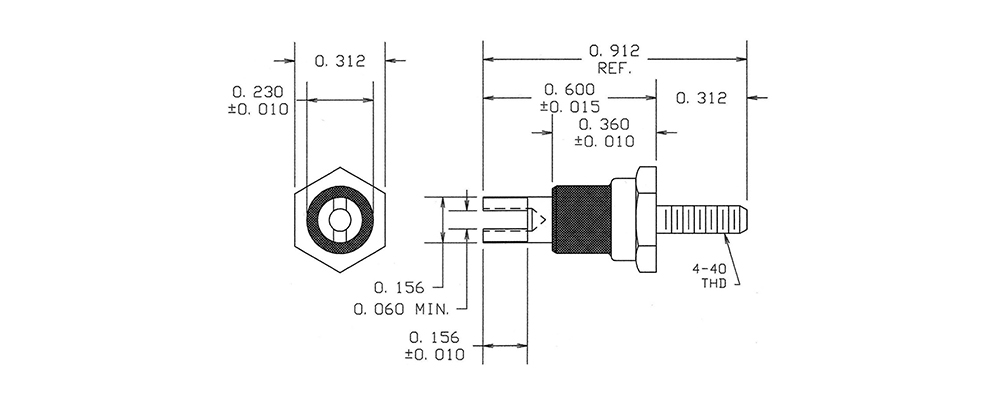

1125-40-04413
1125-40-04413
1125-40-04413
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Orange NO

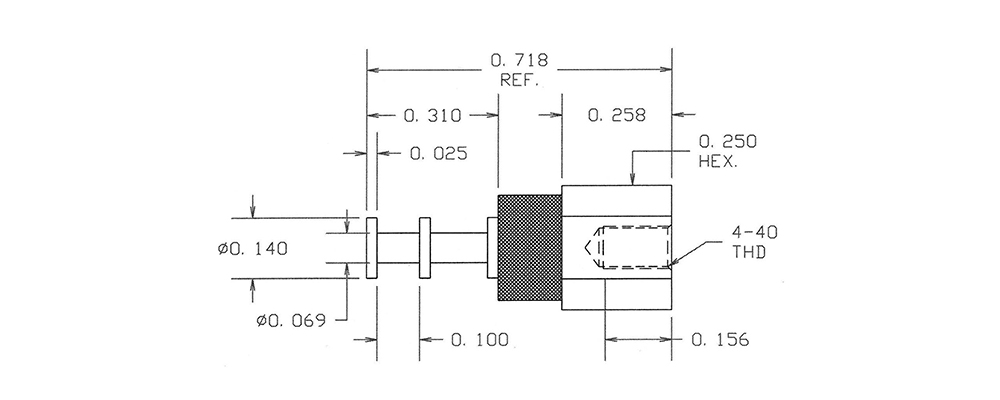

1125-44-0519
1125-44-0519
1125-44-0519
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass PTFE White NO

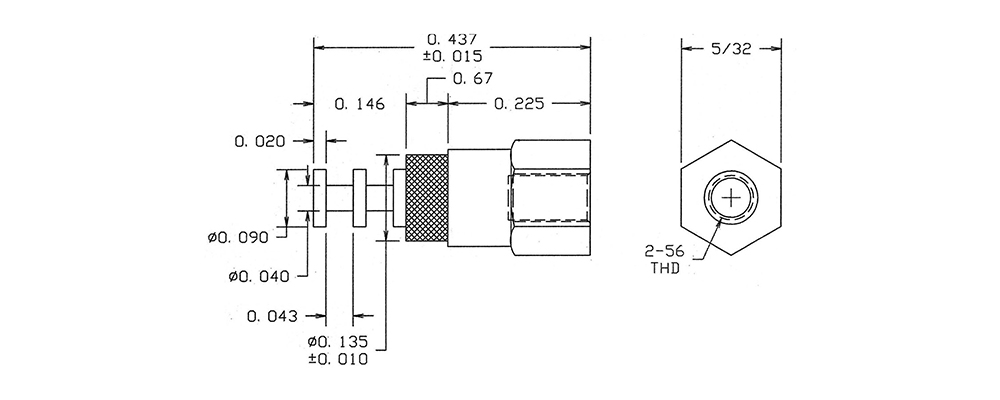

1125-49-0115
1125-49-0115
1125-49-0115
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Green YES

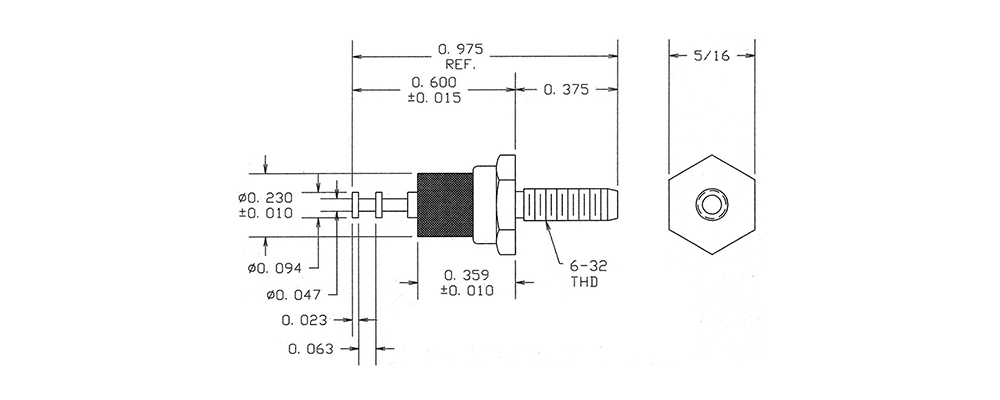

1125-53-0411
1125-53-0411
1125-53-0411
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin Electro-Tin Brass PTFE Brown NO
1125-57-04417
1125-57-04417
1125-57-04417
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Violet YES

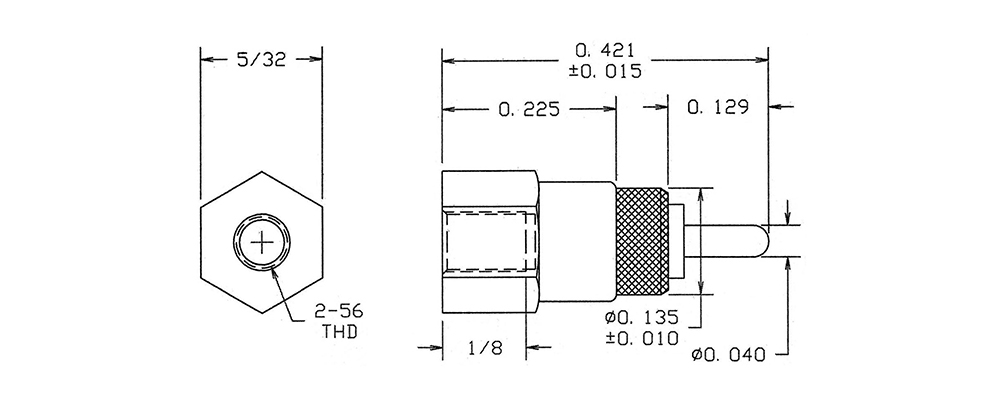

1125-62-08813
1125-62-08813
1125-62-08813
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin-Lead ZINC Brass PTFE Orange NO

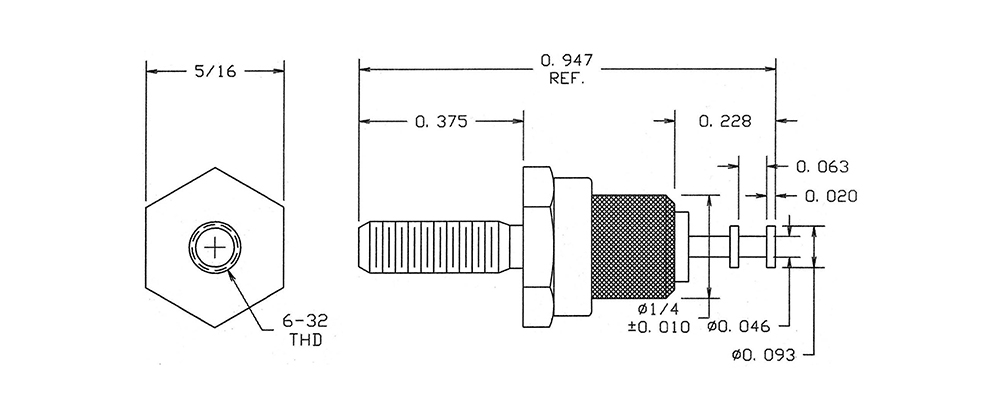

1125-74-0119
1125-74-0119
1125-74-0119
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass PTFE White YES

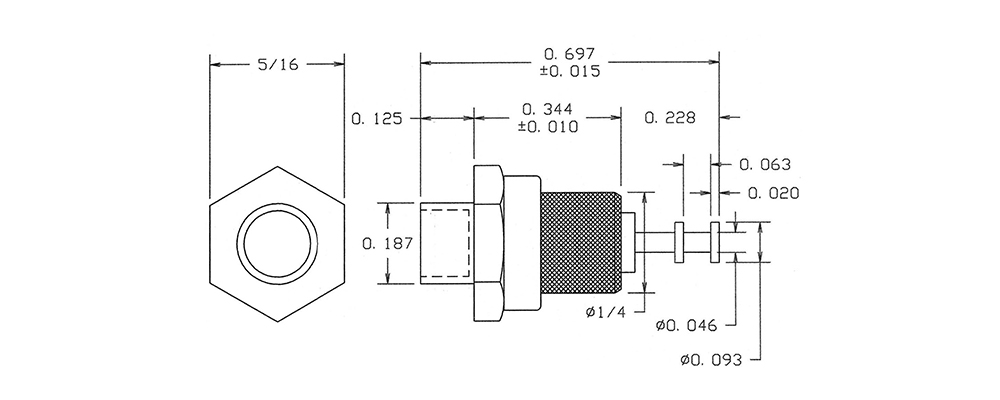

1125-78-0415
1125-78-0415
1125-78-0415
0.697" - - Swage Mount 3/32 0.194 Brass Electro-Tin ZINC Brass PTFE Green YES
