Commercial
Insulated
Pin Terminals

Filter
1102R-28-04417
1102R-28-04417
1102R-28-04417
0.361" - - Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Violet YES
1102R-74-08813
1102R-74-08813
1102R-74-08813
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Orange NO
1103-01-0119
1103-01-0119
1103-01-0119
0.250" - - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1103-08-0415
1103-08-0415
1103-08-0415
0.320" - - Press Fit 3/32 0.152 Brass Electro-Tin - - PTFE Green YES
1103R-08-0511
1103R-08-0511
1103R-08-0511
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Brown NO
1104-04-08817
1104-04-08817
1104-04-08817
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

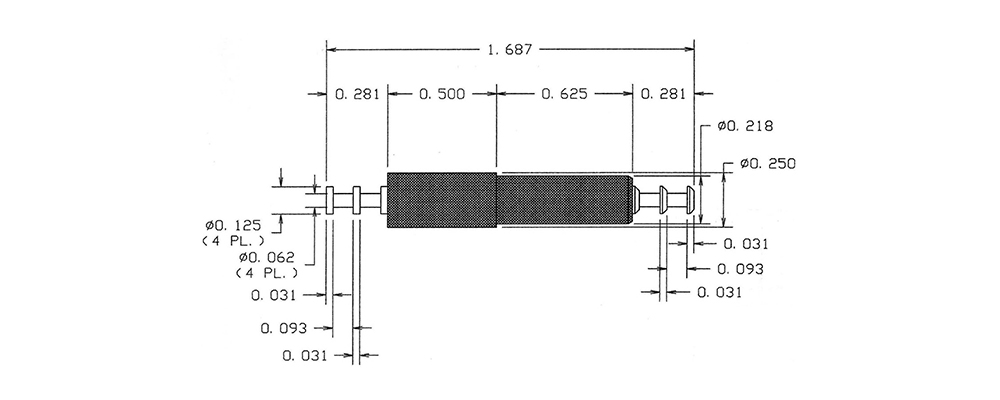

1105-02-0313
1105-02-0313
1105-02-0313
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Orange NO
1106-03-0419
1106-03-0419
1106-03-0419
0.478" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE White YES
1106-07-0515
1106-07-0515
1106-07-0515
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Green NO

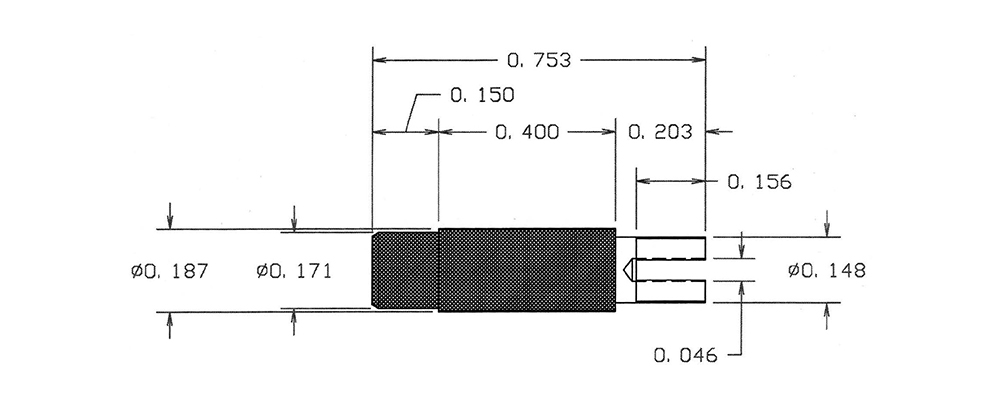

1106-12-0111
1106-12-0111
1106-12-0111
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Brown NO

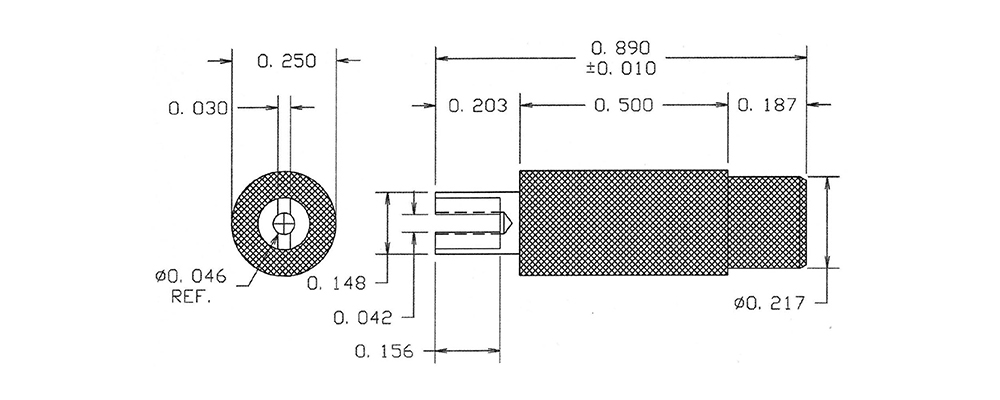

1106-16-0317
1106-16-0317
1106-16-0317
0.890" - - Press Fit 5/32 0.205 Brass Gold - - PTFE Violet YES

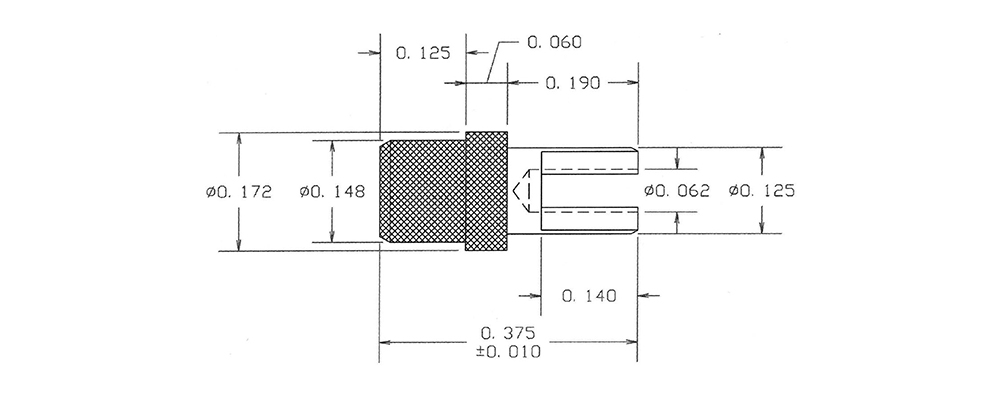

1106-22-04413
1106-22-04413
1106-22-04413
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO
1106-52-0519
1106-52-0519
1106-52-0519
0.276" - - Press Fit 3/32 0.086 Brass Electro Solder - - PTFE White NO
1106R-24-0115
1106R-24-0115
1106R-24-0115
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Green YES

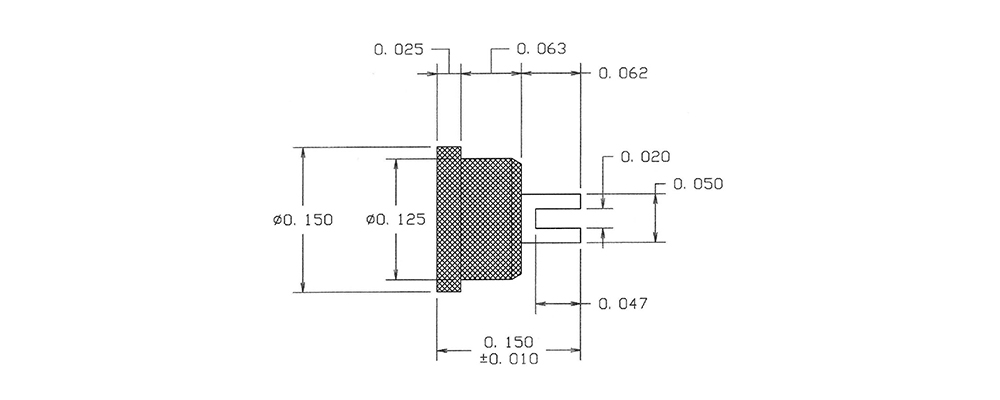

1106R-51-0411
1106R-51-0411
1106R-51-0411
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Brown NO
1107-03-04417
1107-03-04417
1107-03-04417
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Violet YES
1107-08-08813
1107-08-08813
1107-08-08813
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO

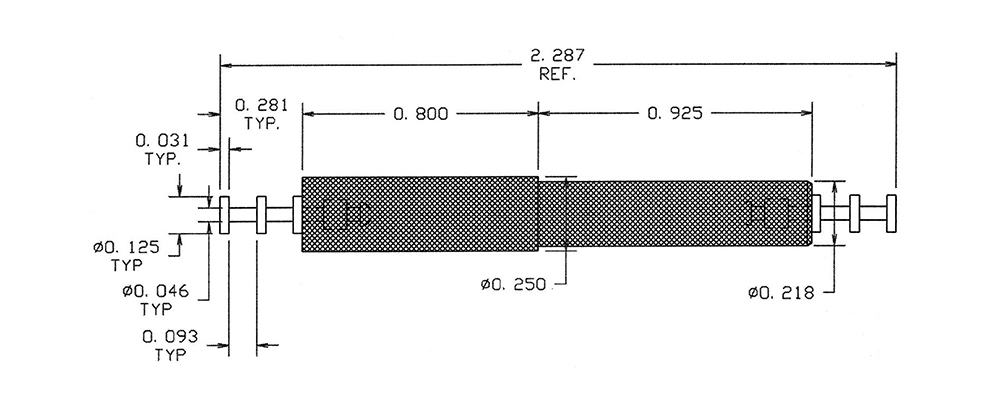

1108-02-0119
1108-02-0119
1108-02-0119
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE White YES

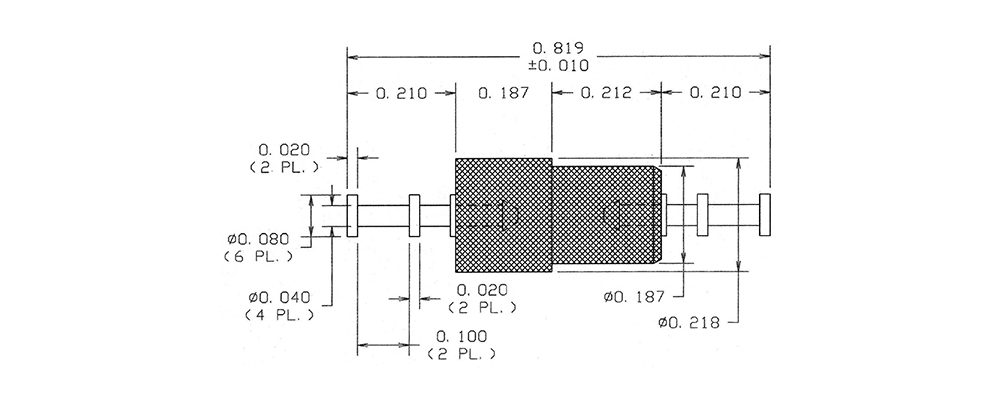

1108-06-0415
1108-06-0415
1108-06-0415
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Green YES
1110-02-0511
1110-02-0511
1110-02-0511
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Brown NO
