Commercial
Insulated
Pin Terminals

Filter
1121R-06-08817
1121R-06-08817
1121R-06-08817
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1122-01-0313
1122-01-0313
1122-01-0313
0.250" - - Press Fit 1/64 0.070 Brass Gold - - PTFE Orange NO

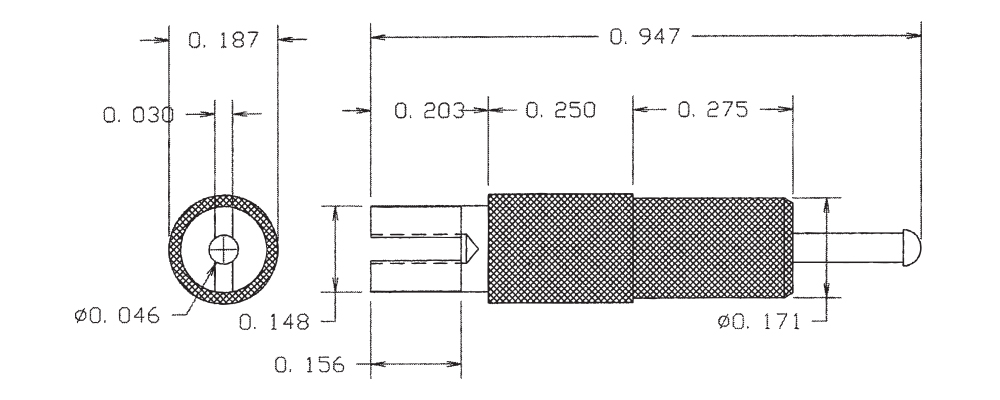

1123-04-0419
1123-04-0419
1123-04-0419
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE White YES
1123-08-0515
1123-08-0515
1123-08-0515
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Electro Solder - - PTFE Green NO

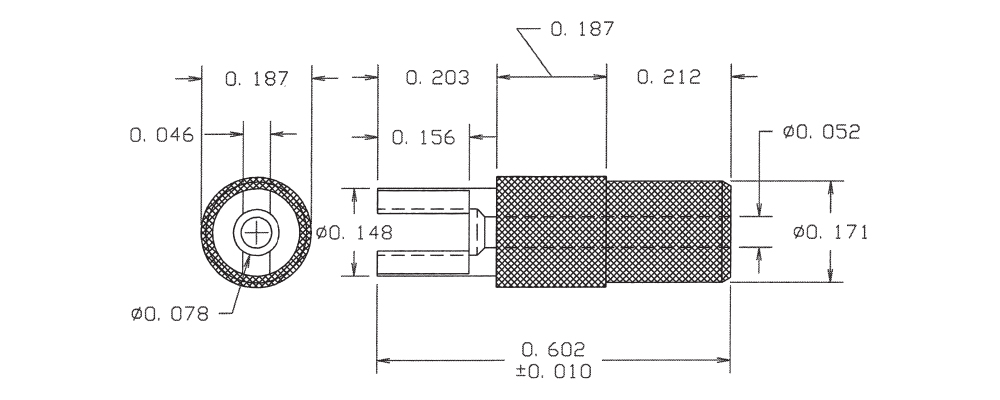

1123-73-0111
1123-73-0111
1123-73-0111
0.602" - - Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Brown NO

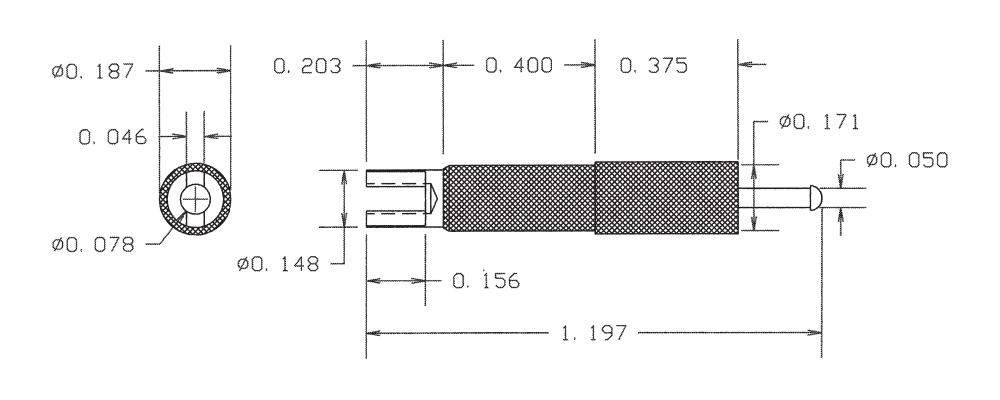

1123R-07-0317
1123R-07-0317
1123R-07-0317
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Gold - - PTFE Violet YES
1123R-70-04413
1123R-70-04413
1123R-70-04413
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1125-35-0519
1125-35-0519
1125-35-0519
0.850" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Electro-Tin Brass PTFE White NO

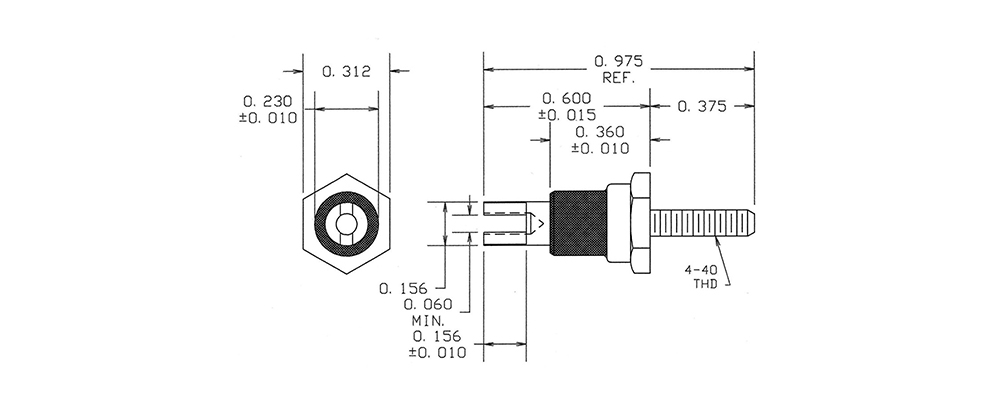

1125-41-0115
1125-41-0115
1125-41-0115
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Silver Electro-Tin Brass PTFE Green YES

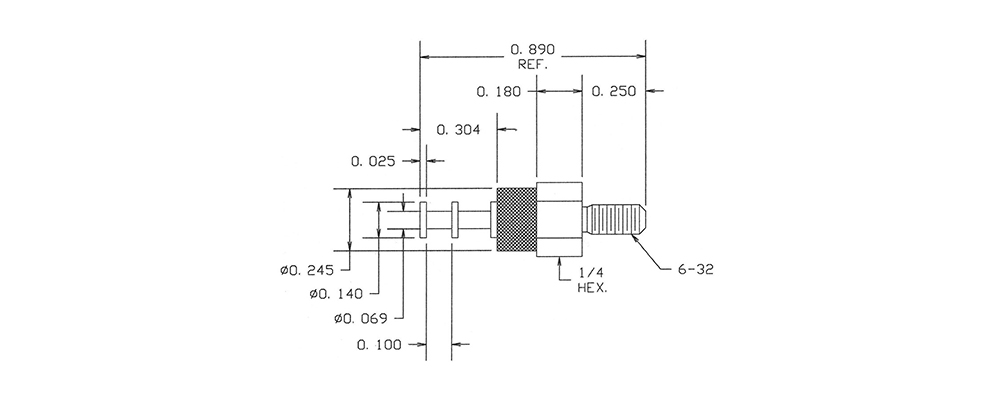

1125-45-0411
1125-45-0411
1125-45-0411
0.890" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Brown NO
1125-49-04417
1125-49-04417
1125-49-04417
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Violet YES
1125-53-08813
1125-53-08813
1125-53-08813
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Orange NO
1125-58-0119
1125-58-0119
1125-58-0119
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE White YES
1125-63-0415
1125-63-0415
1125-63-0415
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE Green YES
1125-74-0511
1125-74-0511
1125-74-0511
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder ZINC Brass PTFE Brown NO
1125-78-08817
1125-78-08817
1125-78-08817
0.697" - - Swage Mount 3/32 0.194 Brass Bright Tin-Lead ZINC Brass PTFE Violet NO
1125-84-0313
1125-84-0313
1125-84-0313
0.756" - - Swage Mount 1/8 0.191 Brass Gold Electro-Tin Brass PTFE Orange NO
1125-89-0419
1125-89-0419
1125-89-0419
0.698" - - 4-40 Nut 1/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE White YES
1125-93-0515
1125-93-0515
1125-93-0515
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass PTFE Green NO
1125-98-0111
1125-98-0111
1125-98-0111
0.467" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Brown NO
