Commercial
Insulated
Pin Terminals

Filter
1114-25-0313
1114-25-0313
1114-25-0313
0.413" 0.085 - Press Fit 1/8 0.136 Brass Gold - - PTFE Orange NO
1100-09-04413
1100-09-04413
1100-09-04413
0.350" 0.040 - Press Fit 3/32 0.098 Brass Bright Tin - - PTFE Orange NO
1114R-16-0419
1114R-16-0419
1114R-16-0419
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
1100-14-0519
1100-14-0519
1100-14-0519
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE White NO
1123R-75-0515
1123R-75-0515
1123R-75-0515
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE Green NO

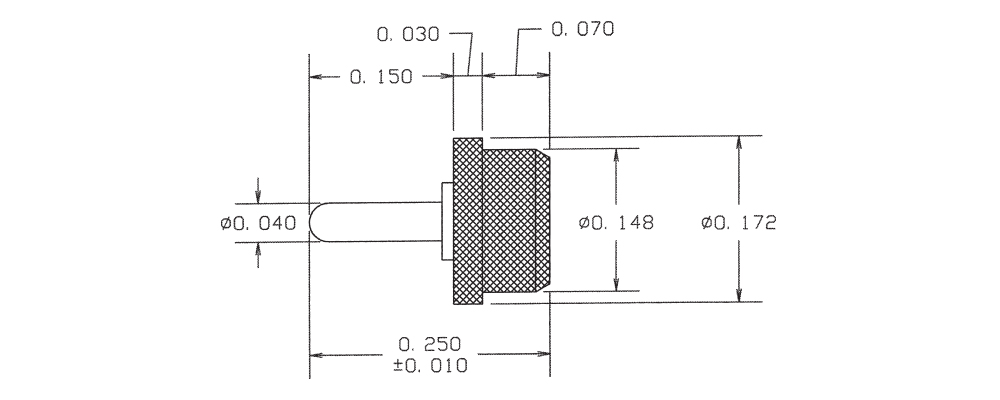

1100-19-0115
1100-19-0115
1100-19-0115
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Green YES
1124-11-0111
1124-11-0111
1124-11-0111
1.024" 0.050 THREAD/TIP Press Fit Up to 1/4 0.158 Brass Silver - - PTFE Brown NO

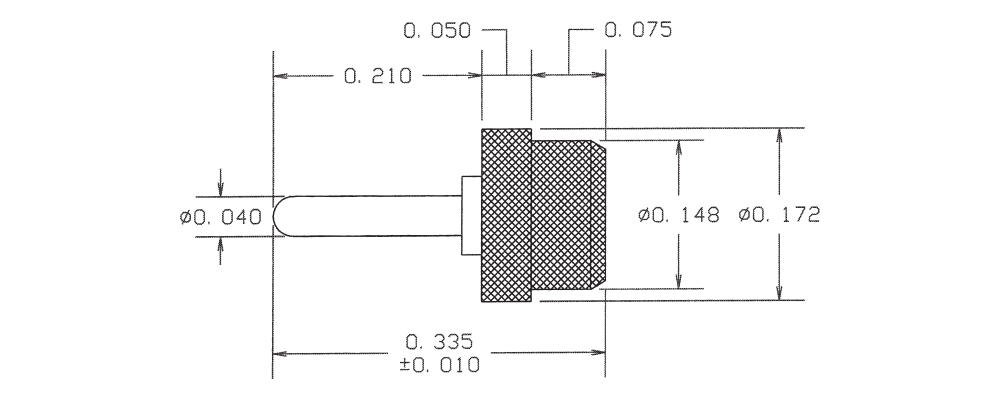

1100-24-0411
1100-24-0411
1100-24-0411
0.335" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1153-12-0317
1153-12-0317
1153-12-0317
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES
1100-34-04417
1100-34-04417
1100-34-04417
0.410" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Violet YES
1110-95-04413
1110-95-04413
1110-95-04413
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO
1100-43-08813
1100-43-08813
1100-43-08813
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Orange NO

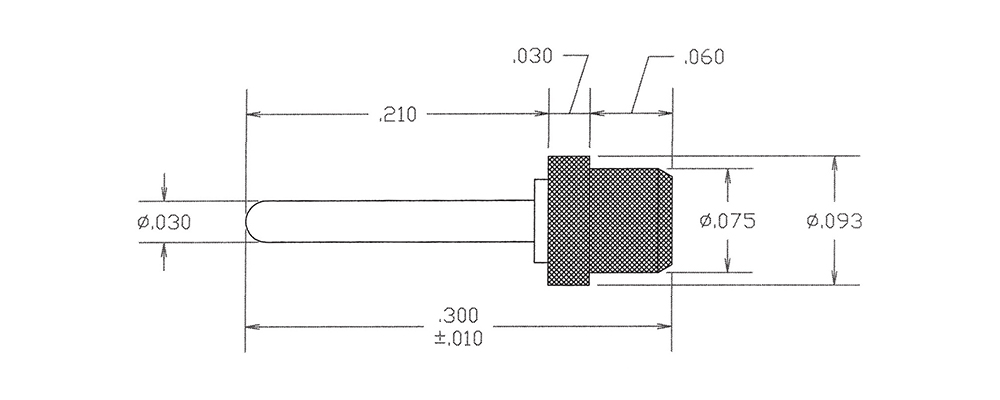

1100-56-0119
1100-56-0119
1100-56-0119
0.300" 0.030 - Press Fit 1/32 0.070 Brass Silver - - PTFE White YES

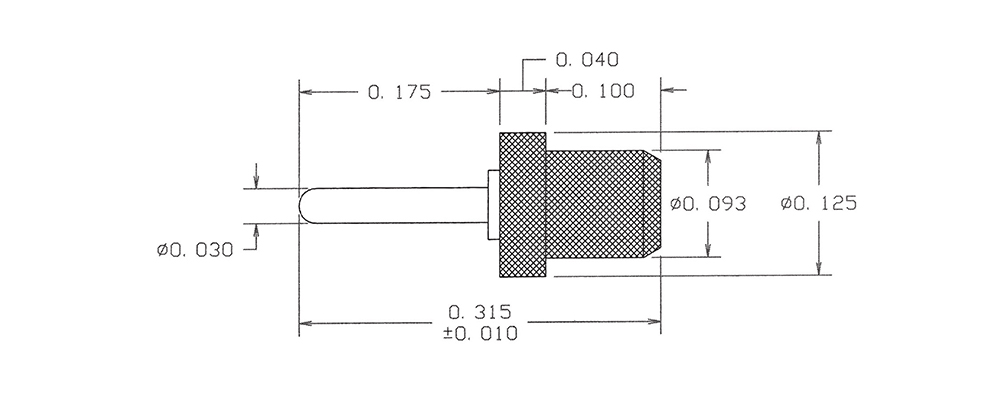

1100-93-0415
1100-93-0415
1100-93-0415
0.315" 0.030 - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Green YES
1100R-08A-0511
1100R-08A-0511
1100R-08A-0511
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Brown NO
1100R-17-08817
1100R-17-08817
1100R-17-08817
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

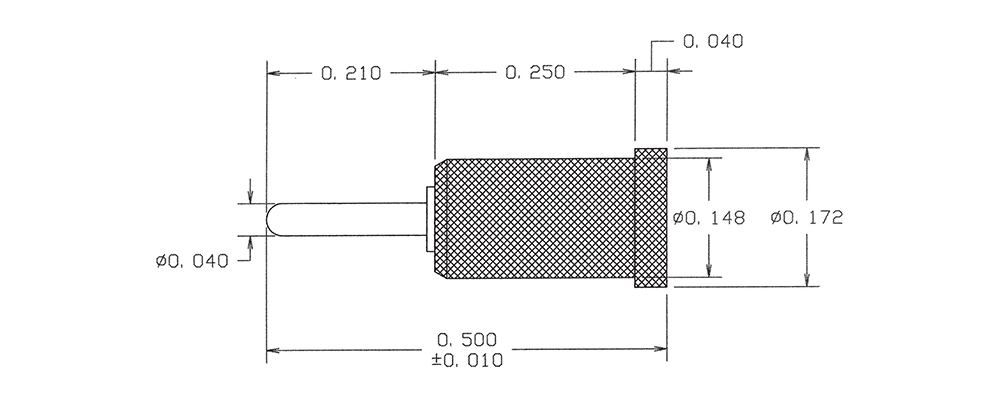

1100R-35-0313
1100R-35-0313
1100R-35-0313
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Orange NO
1100R-66-0419
1100R-66-0419
1100R-66-0419
0.350" 0.040 - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE White YES
1101-05-0515
1101-05-0515
1101-05-0515
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Green NO
1102-03-0111
1102-03-0111
1102-03-0111
0.350" - - Press Fit 1/16 0.086 Brass Silver - - PTFE Brown NO
