Commercial
Insulated
Pin Terminals

Filter
1121-20-08811
1121-20-08811
1121-20-08811
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin-Lead - - PTFE Brown NO

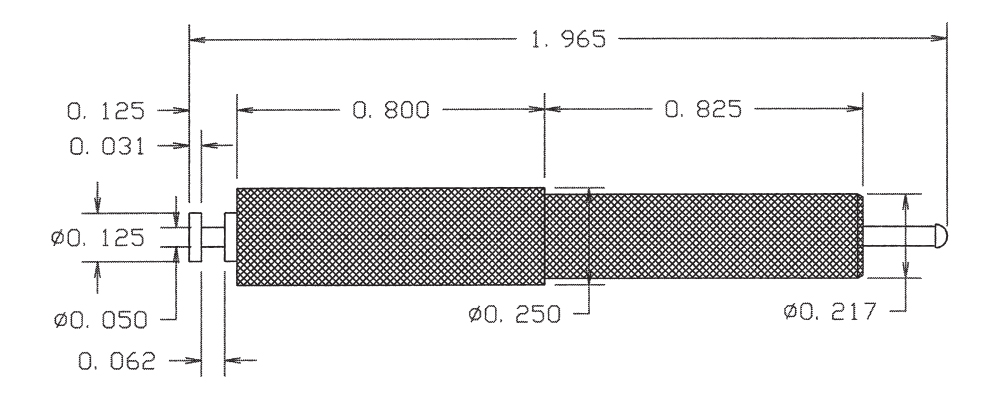

1121-26-0117
1121-26-0117
1121-26-0117
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Silver - - PTFE Violet YES

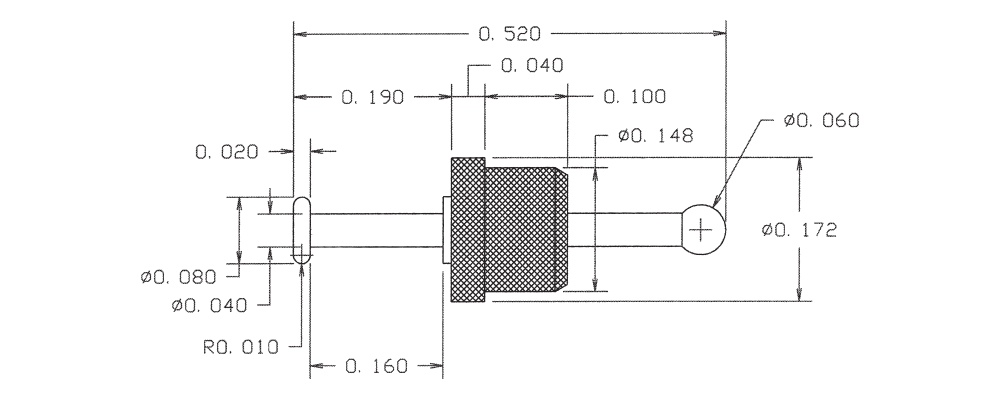

1121-31-0413
1121-31-0413
1121-31-0413
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1121-52-04419
1121-52-04419
1121-52-04419
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE White YES
1121R-06-08815
1121R-06-08815
1121R-06-08815
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1122-01-0311
1122-01-0311
1122-01-0311
0.250" - - Press Fit 1/64 0.070 Brass Gold - - PTFE Brown NO

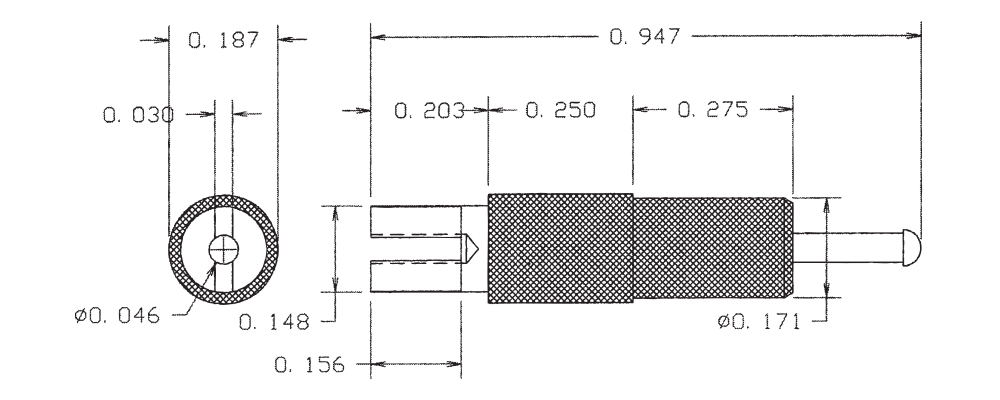

1123-04-0417
1123-04-0417
1123-04-0417
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Violet YES
1123-08-0513
1123-08-0513
1123-08-0513
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Electro Solder - - PTFE Orange NO
1123-72-08819
1123-72-08819
1123-72-08819
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE White NO

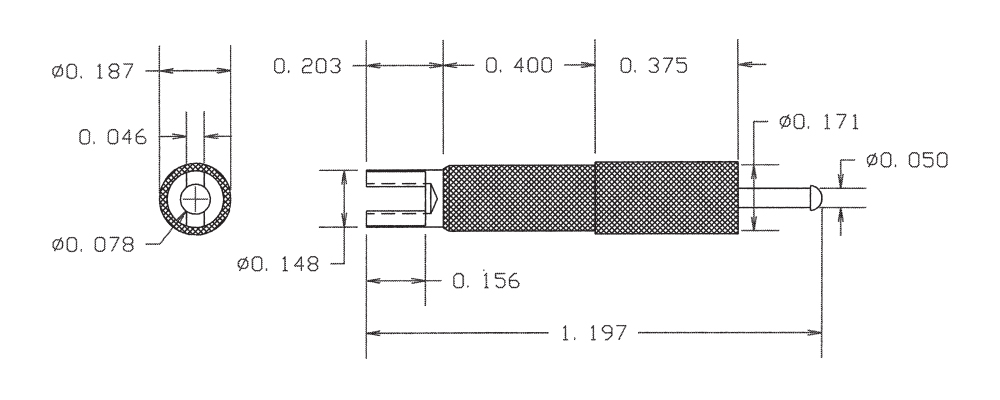

1123R-07-0315
1123R-07-0315
1123R-07-0315
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Gold - - PTFE Green YES
1123R-70-04411
1123R-70-04411
1123R-70-04411
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1125-35-0517
1125-35-0517
1125-35-0517
0.850" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Electro-Tin Brass PTFE Violet NO

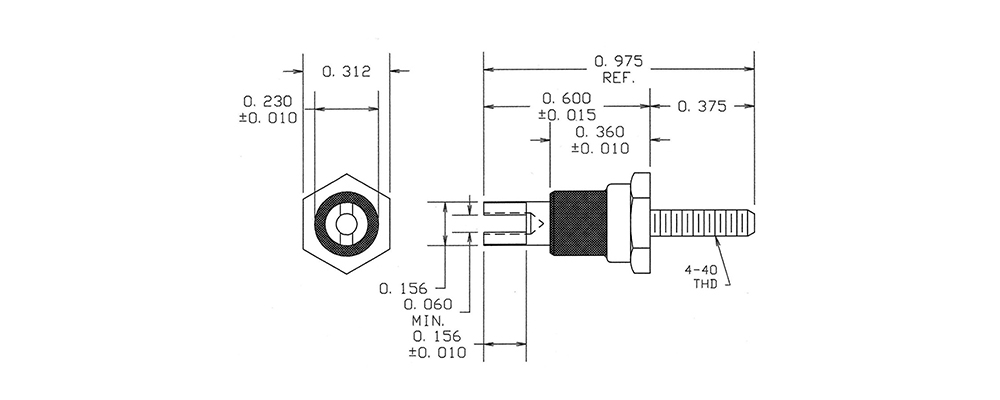

1125-41-0113
1125-41-0113
1125-41-0113
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Silver Electro-Tin Brass PTFE Orange NO
1125-45-0319
1125-45-0319
1125-45-0319
0.890" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE White YES
1125-49-04415
1125-49-04415
1125-49-04415
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Green YES
1125-53-08811
1125-53-08811
1125-53-08811
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO
1125-58-0117
1125-58-0117
1125-58-0117
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Violet YES

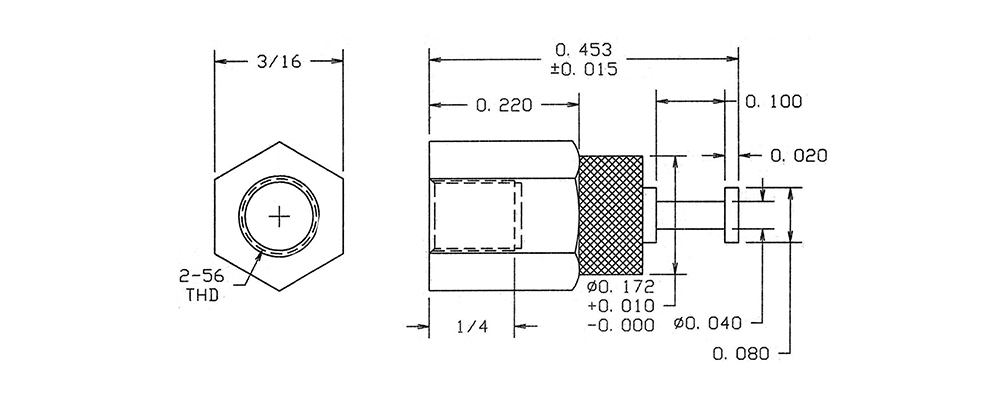

1125-63-0413
1125-63-0413
1125-63-0413
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE Orange NO
1125-74-04419
1125-74-04419
1125-74-04419
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin ZINC Brass PTFE White YES
1125-78-08815
1125-78-08815
1125-78-08815
0.697" - - Swage Mount 3/32 0.194 Brass Bright Tin-Lead ZINC Brass PTFE Green NO
