Commercial
Insulated
Pin Terminals

Filter
1107-08-08811
1107-08-08811
1107-08-08811
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1108-02-0117
1108-02-0117
1108-02-0117
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE Violet YES

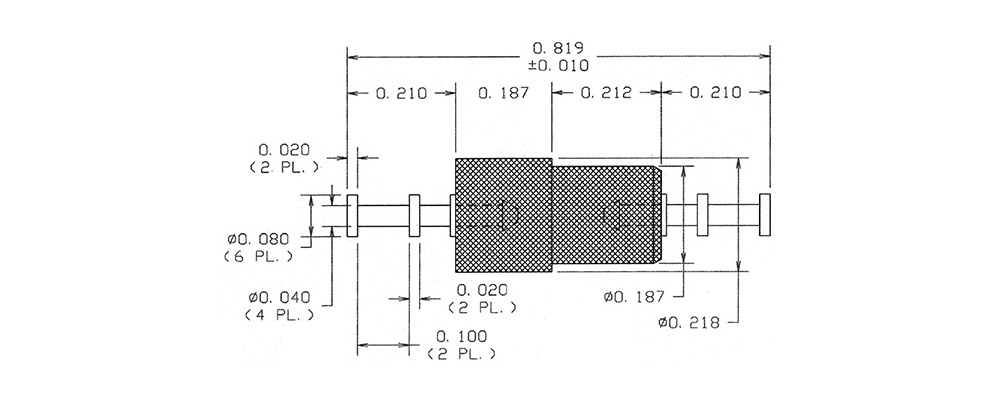

1108-06-0413
1108-06-0413
1108-06-0413
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Orange NO
1110-02-04419
1110-02-04419
1110-02-04419
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE White YES
1110-06-08815
1110-06-08815
1110-06-08815
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Green NO

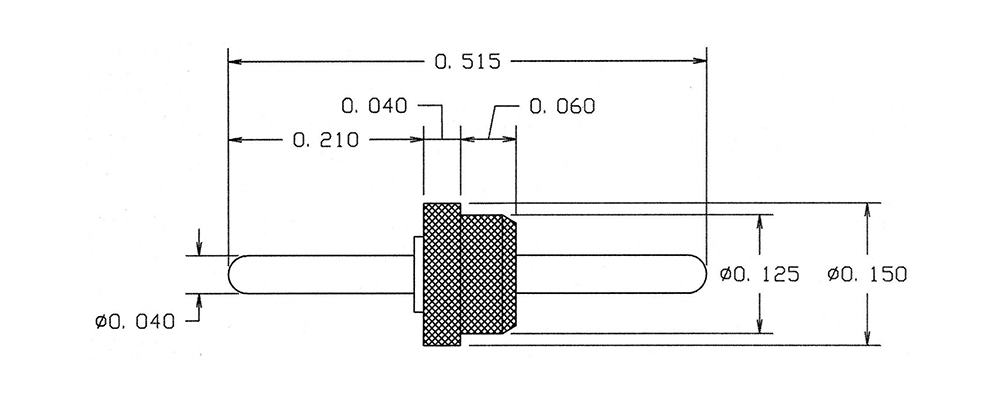

1110-11-0311
1110-11-0311
1110-11-0311
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Brown NO

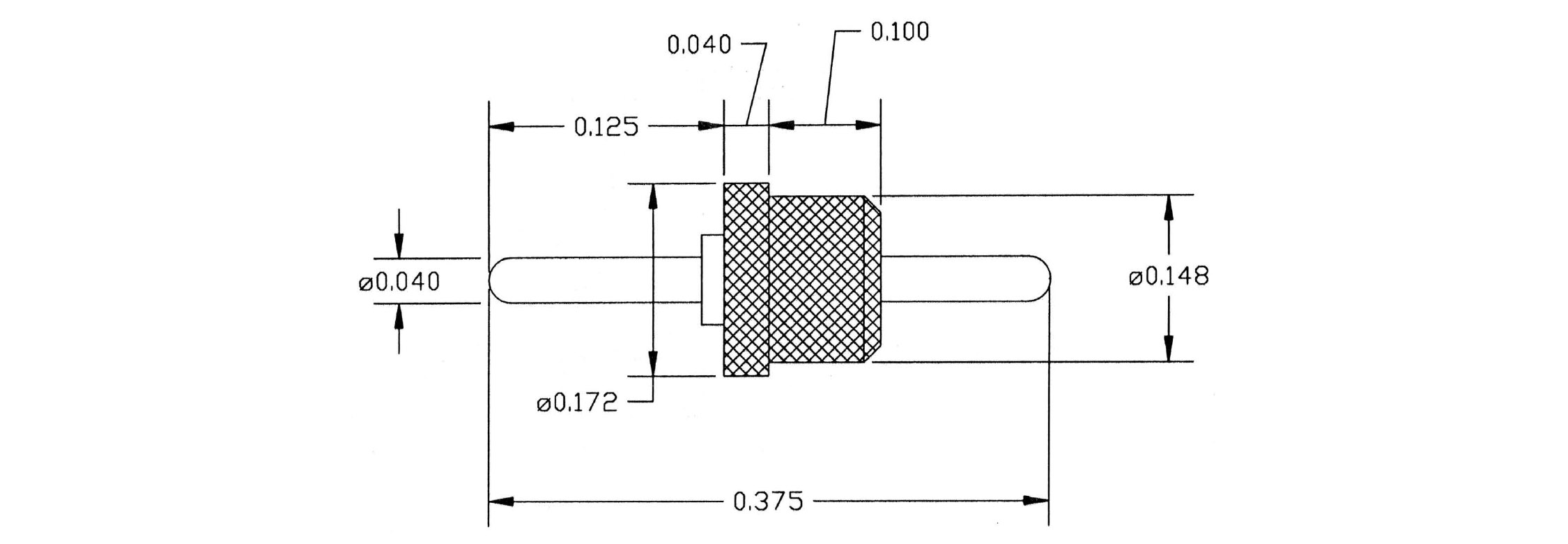

1110-16-0417
1110-16-0417
1110-16-0417
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1110-20-0513
1110-20-0513
1110-20-0513
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1110-24-08819
1110-24-08819
1110-24-08819
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE White NO
1110-29-0315
1110-29-0315
1110-29-0315
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES
1110-33-04411
1110-33-04411
1110-33-04411
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1110-40-0517
1110-40-0517
1110-40-0517
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Violet NO
1110-45-0113
1110-45-0113
1110-45-0113
2.500" 0.040 Pin/Pin Press Fit 1/16 0.156 Brass Silver - - PTFE Orange NO

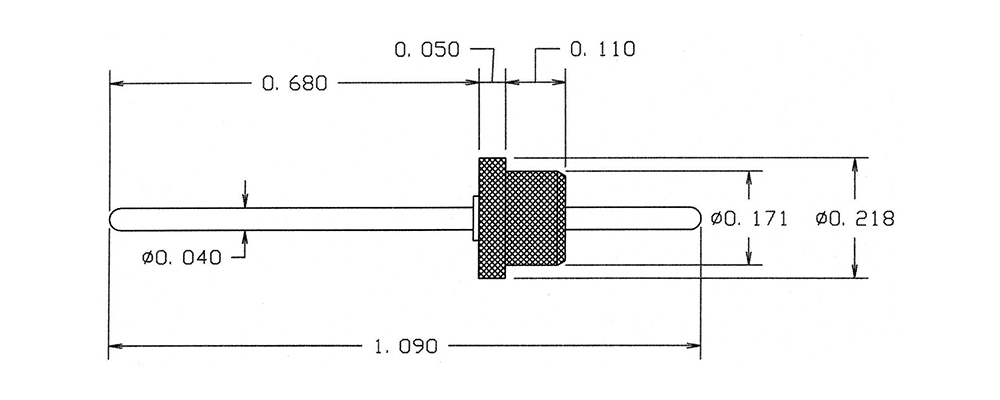

1110-49-0319
1110-49-0319
1110-49-0319
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Gold - - PTFE White YES
1110-55-04415
1110-55-04415
1110-55-04415
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Green YES
1110-61-08811
1110-61-08811
1110-61-08811
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1110-67-0117
1110-67-0117
1110-67-0117
0.580" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES

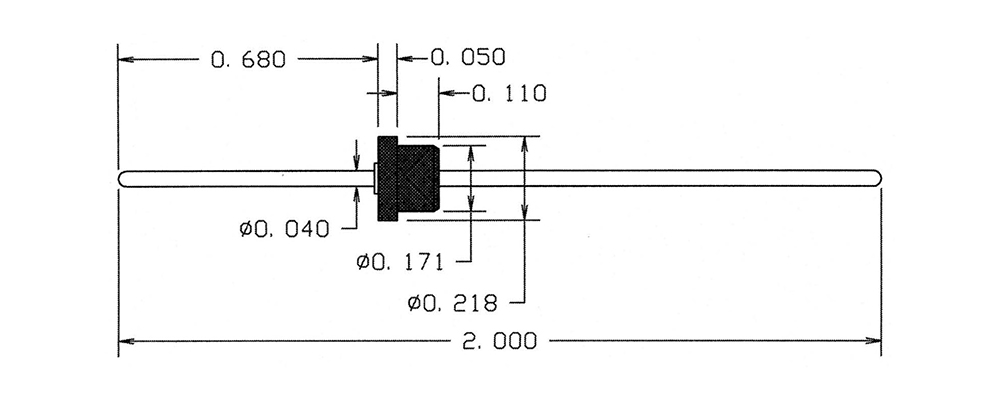

1110-71-0413
1110-71-0413
1110-71-0413
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Orange NO
1110-76-04419
1110-76-04419
1110-76-04419
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Bright Tin - - PTFE White YES
1110-93-08815
1110-93-08815
1110-93-08815
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Green NO
