Commercial
Insulated
Pin Terminals

Filter

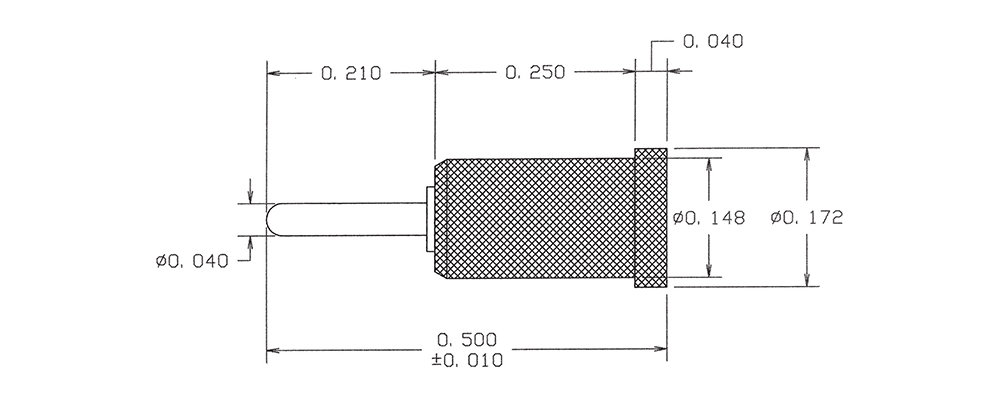

1100R-35-0311
1100R-35-0311
1100R-35-0311
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Brown NO
1100R-66-0417
1100R-66-0417
1100R-66-0417
0.350" 0.040 - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Violet YES
1101-05-0513
1101-05-0513
1101-05-0513
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Orange NO
1102-02-08819
1102-02-08819
1102-02-08819
0.330" - - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE White NO

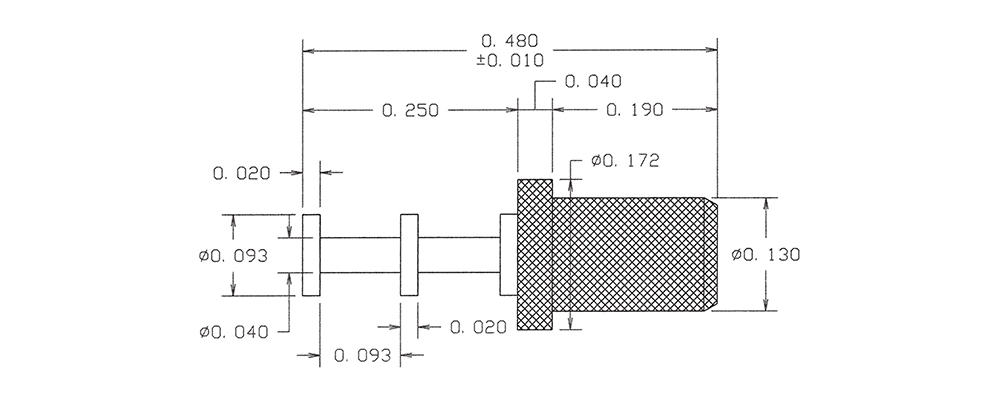

1102-07-0315
1102-07-0315
1102-07-0315
0.480" - - Press Fit 5/32 0.118 Brass Gold - - PTFE Green YES
1102-12-04411
1102-12-04411
1102-12-04411
0.334" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Brown NO
1102-16-0517
1102-16-0517
1102-16-0517
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Violet NO
1102-23-0113
1102-23-0113
1102-23-0113
0.482" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1102-27-0319
1102-27-0319
1102-27-0319
0.346" - - Press Fit 1/8 0.140 Brass Gold - - PTFE White YES
1102-31-04415
1102-31-04415
1102-31-04415
0.431" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Green YES
1102-35-08811
1102-35-08811
1102-35-08811
0.656" - - Press Fit 1/16 0.152 Brass Bright Tin-Lead - - PTFE Brown NO

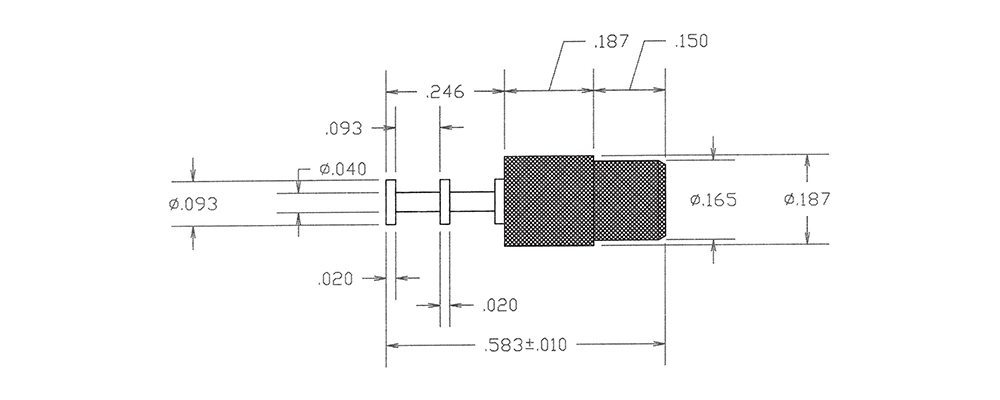

1102-41-0117
1102-41-0117
1102-41-0117
0.583" - - Press Fit 1/8 0.152 Brass Silver - - PTFE Violet YES
1102-49-0413
1102-49-0413
1102-49-0413
0.681" - - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Orange NO
1102-53-04419
1102-53-04419
1102-53-04419
0.431" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE White YES
1102-57-08815
1102-57-08815
1102-57-08815
0.706" - - Press Fit Up to 1/4 0.158 Brass Bright Tin-Lead - - PTFE Green NO

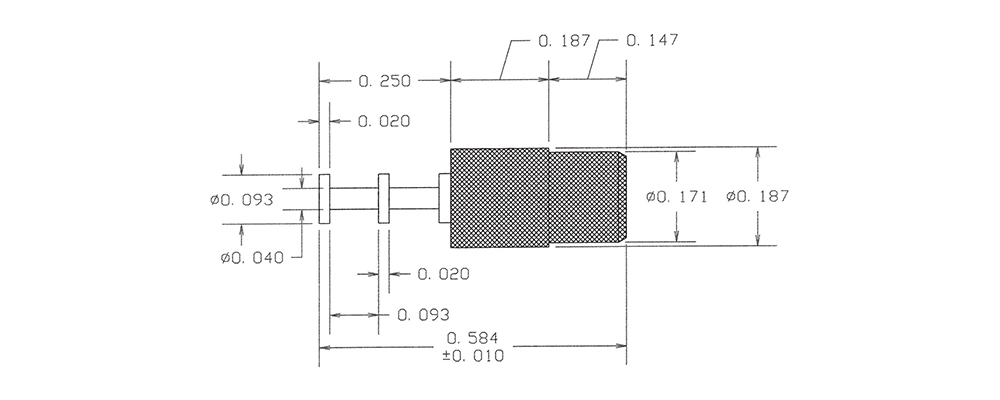

1102-63-0311
1102-63-0311
1102-63-0311
0.584" - - Press Fit 3/32 0.158 Brass Gold - - PTFE Brown NO
1102-67-0417
1102-67-0417
1102-67-0417
0.681" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Violet YES
1102-71-0513
1102-71-0513
1102-71-0513
1.268" - - Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Orange NO
1102-76-08819
1102-76-08819
1102-76-08819
0.655" - - Press Fit Up to 3/16 0.236 Brass Bright Tin-Lead - - PTFE White NO

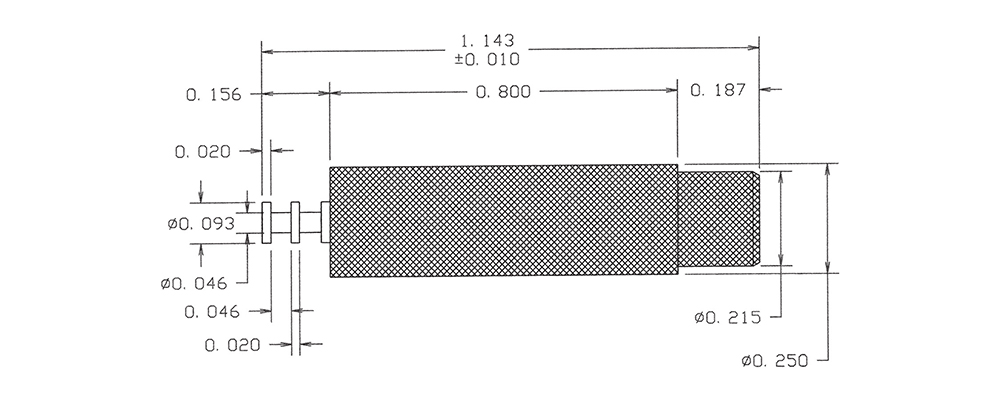

1102-81-0315
1102-81-0315
1102-81-0315
1.143" - - Press Fit 5/32 0.203 Brass Gold - - PTFE Green YES
