Commercial
Insulated
Pin Terminals

Filter

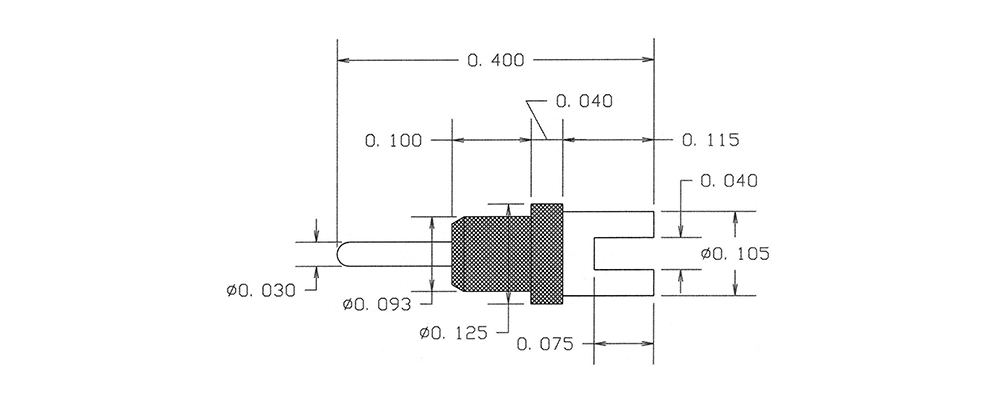

1135-09-08811
1135-09-08811
1135-09-08811
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1137-03-0117
1137-03-0117
1137-03-0117
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Violet YES

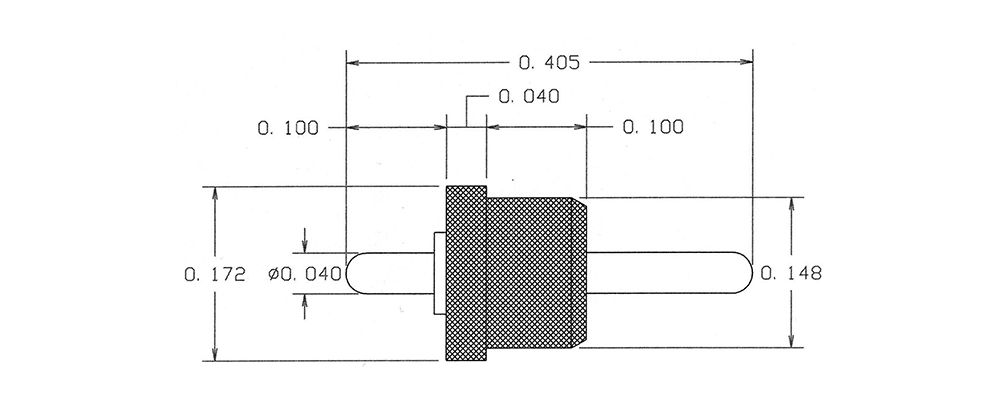

1139-04-0413
1139-04-0413
1139-04-0413
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO

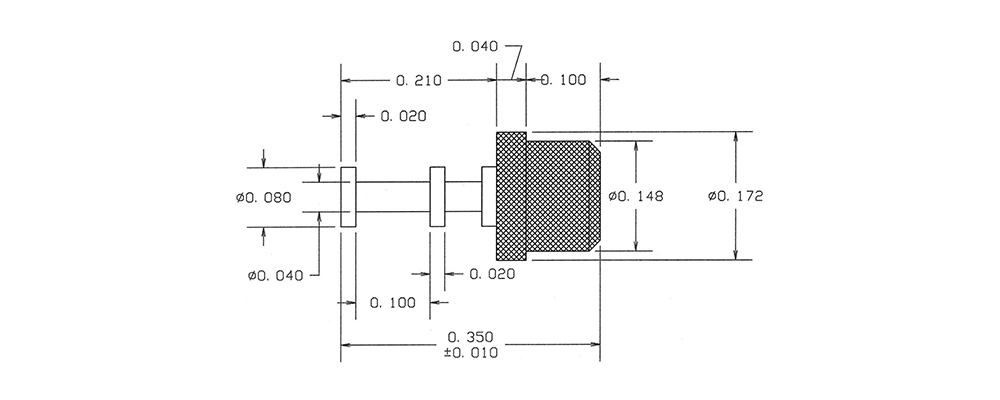

1151-05-04419
1151-05-04419
1151-05-04419
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1151-11-08815
1151-11-08815
1151-11-08815
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO

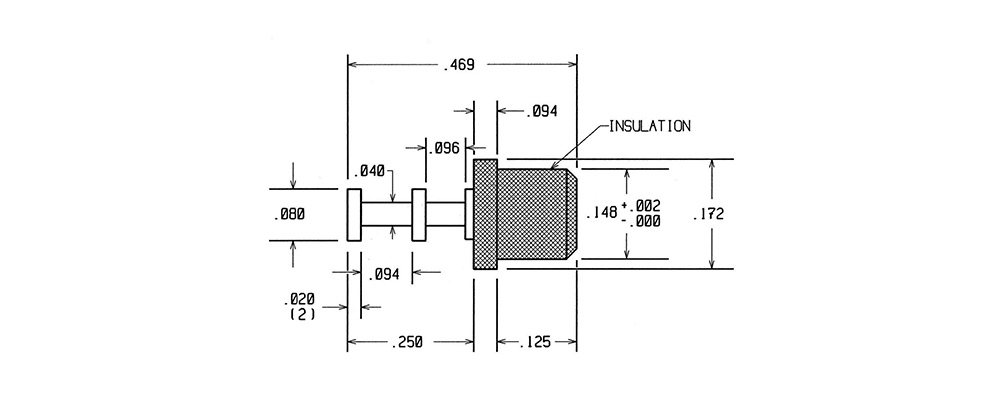

1151-20-0311
1151-20-0311
1151-20-0311
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO

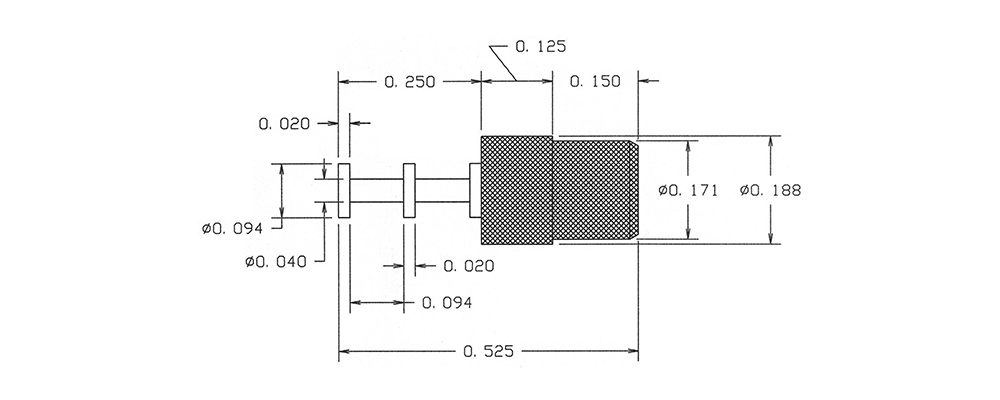

1151-39-0417
1151-39-0417
1151-39-0417
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Violet YES
1151-51-0513
1151-51-0513
1151-51-0513
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Orange NO

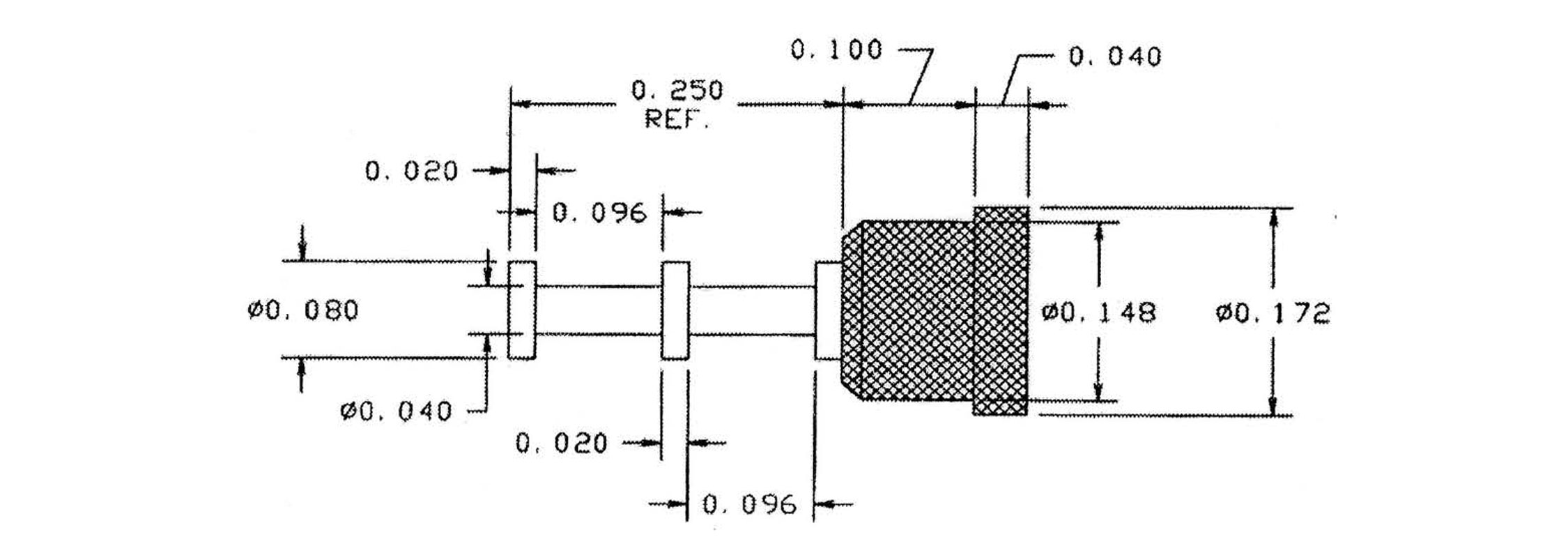

1151R-09-08819
1151R-09-08819
1151R-09-08819
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1152-01-0315
1152-01-0315
1152-01-0315
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES

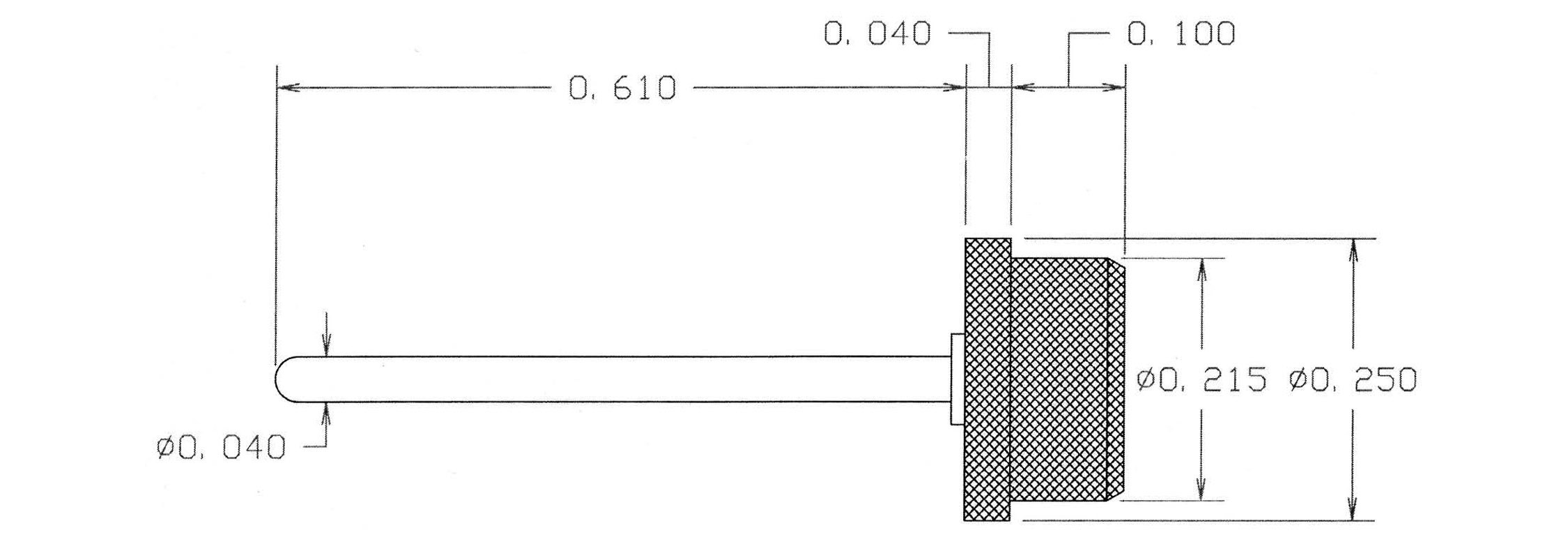

1152-31-04411
1152-31-04411
1152-31-04411
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Brown NO
1152R-17-0517
1152R-17-0517
1152R-17-0517
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Violet NO

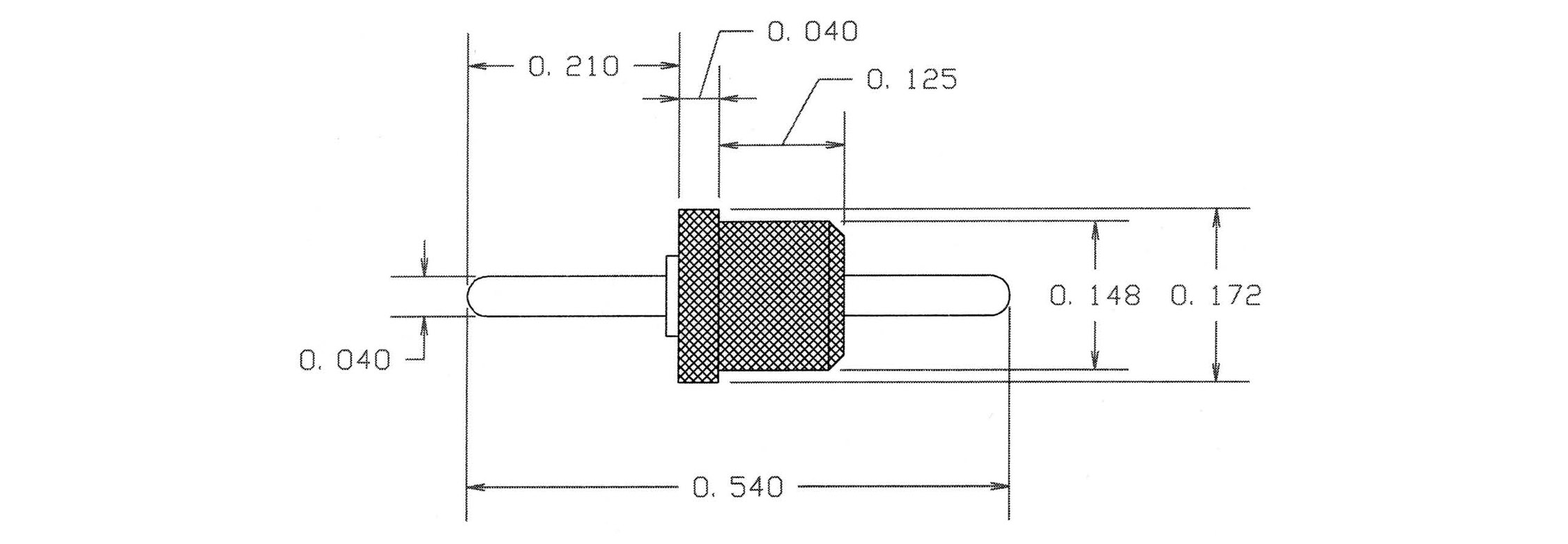

1153-07-0113
1153-07-0113
1153-07-0113
0.540" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO

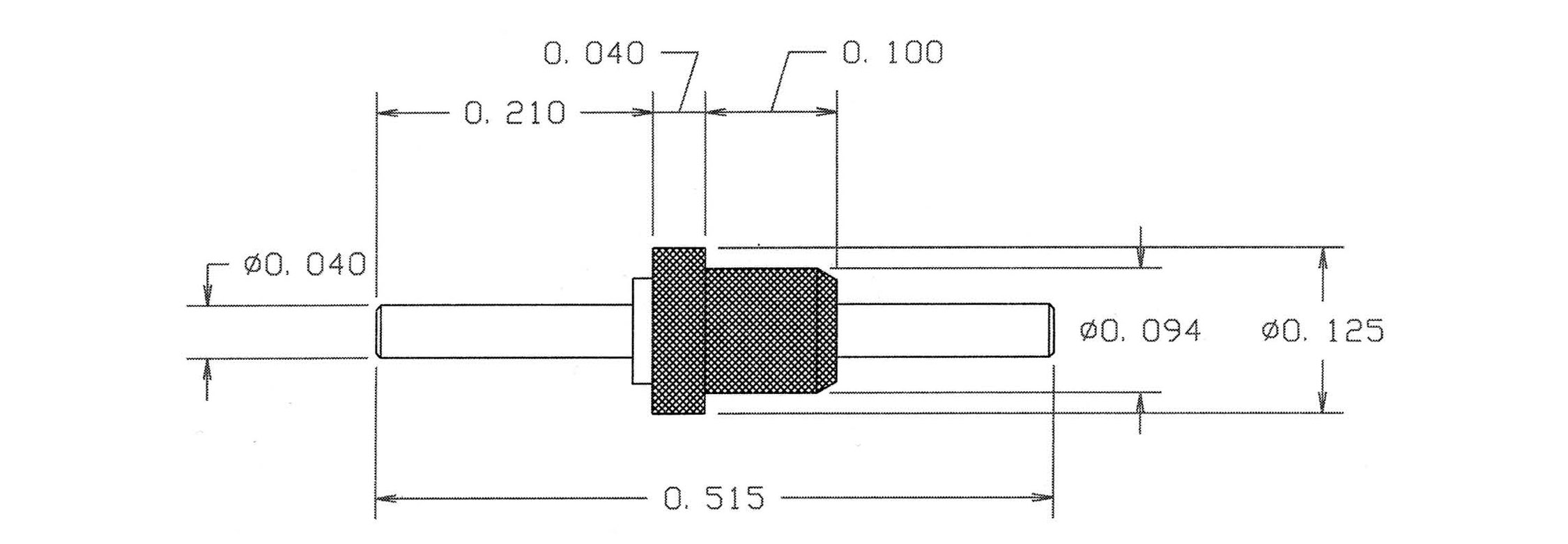

1153-32-0319
1153-32-0319
1153-32-0319
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE White YES

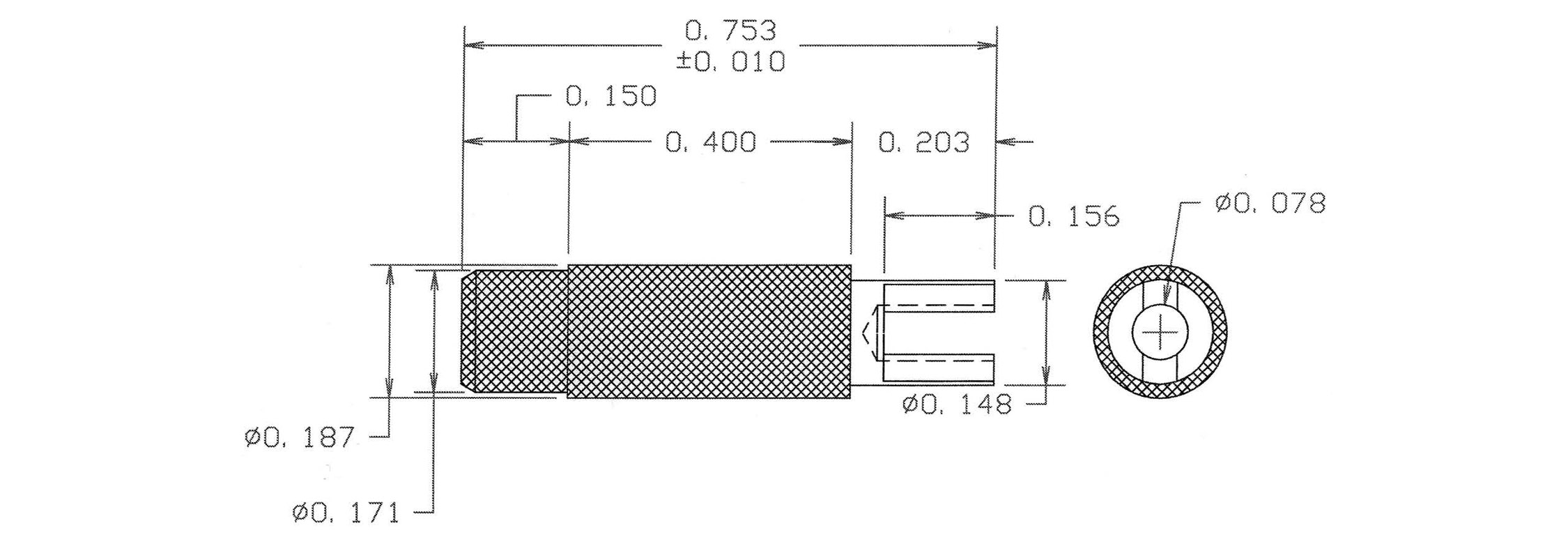

1154-10-04415
1154-10-04415
1154-10-04415
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Green YES
1154-44-08811
1154-44-08811
1154-44-08811
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO

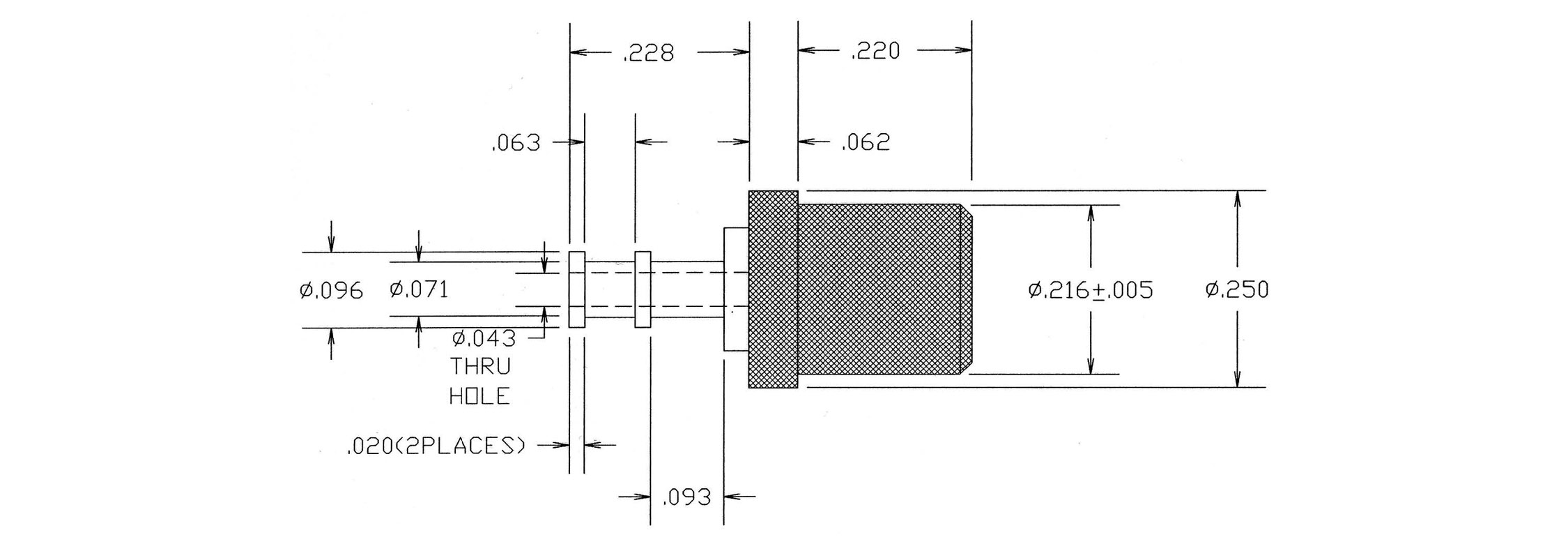

1155-02-0117
1155-02-0117
1155-02-0117
0.510" - - Press Fit Up to 3/16 0.204 Brass Silver - - PTFE Violet YES

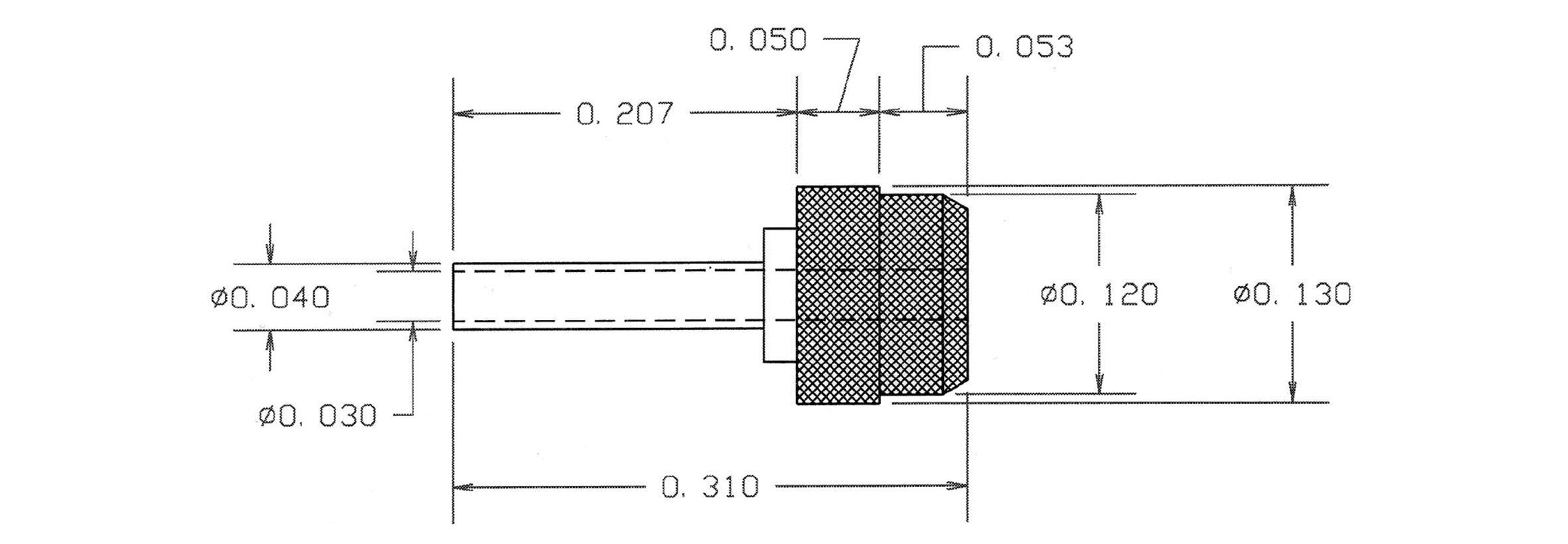

1155-13-0413
1155-13-0413
1155-13-0413
0.310" 0.040 - Press Fit 1/64 0.108 Brass Electro-Tin - - PTFE Orange NO

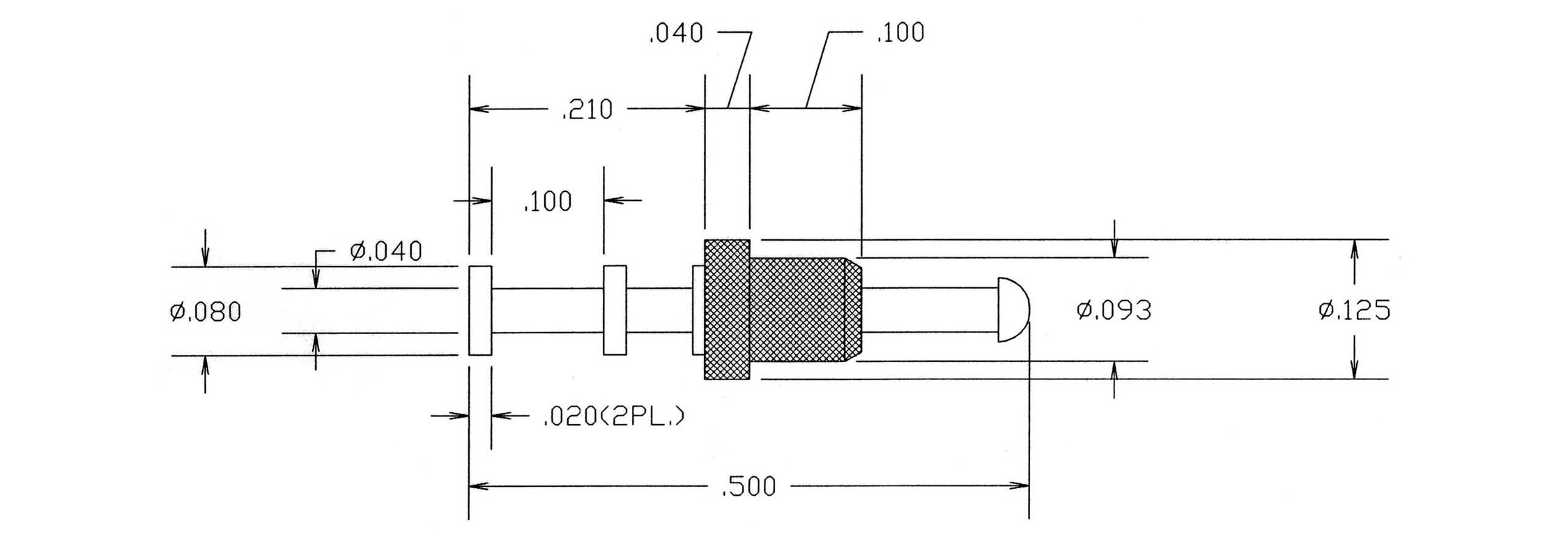

1156-02-04419
1156-02-04419
1156-02-04419
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE White YES
1156-07-08815
1156-07-08815
1156-07-08815
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Green NO
