Commercial
Insulated
Pin Terminals

Filter
1113-54-04419
1113-54-04419
1113-54-04419
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin - - PTFE White YES
09-2121-1-08819
09-2121-1-08819
09-2121-1-08819
0.275" - - Press Fit 5/64 0.136 Brass Bright Tin-Lead - - PTFE White NO
1114-18-08815
1114-18-08815
1114-18-08815
0.250" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1100-05-0315
1100-05-0315
1100-05-0315
0.262" 0.040 - Press Fit 3/64 0.086 Brass Gold - - PTFE Green YES
1114-25-0311
1114-25-0311
1114-25-0311
0.413" 0.085 - Press Fit 1/8 0.136 Brass Gold - - PTFE Brown NO
1100-09-04411
1100-09-04411
1100-09-04411
0.350" 0.040 - Press Fit 3/32 0.098 Brass Bright Tin - - PTFE Brown NO
1114R-16-0417
1114R-16-0417
1114R-16-0417
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1100-14-0517
1100-14-0517
1100-14-0517
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Violet NO
1123R-75-0513
1123R-75-0513
1123R-75-0513
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE Orange NO

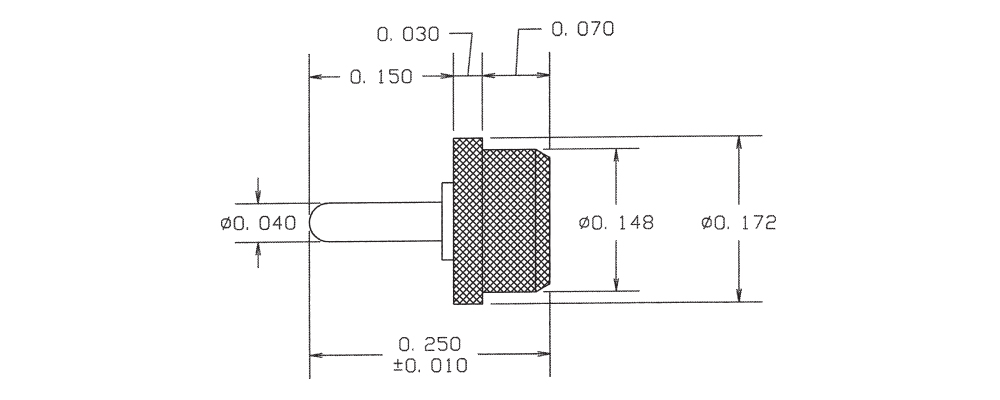

1100-19-0113
1100-19-0113
1100-19-0113
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Orange NO
1124-10-08819
1124-10-08819
1124-10-08819
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE White NO
1100-24-0319
1100-24-0319
1100-24-0319
0.335" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE White YES
1153-12-0315
1153-12-0315
1153-12-0315
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES
1100-34-04415
1100-34-04415
1100-34-04415
0.410" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Green YES
1110-95-04411
1110-95-04411
1110-95-04411
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Brown NO
1100-43-08811
1100-43-08811
1100-43-08811
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Brown NO

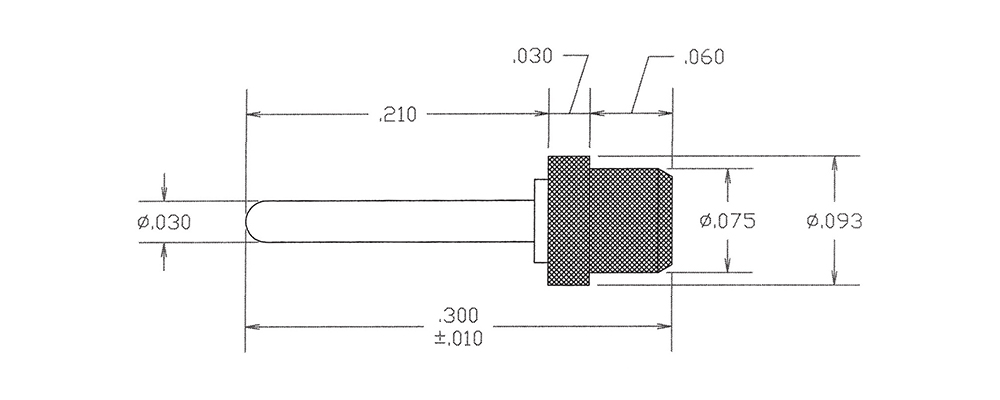

1100-56-0117
1100-56-0117
1100-56-0117
0.300" 0.030 - Press Fit 1/32 0.070 Brass Silver - - PTFE Violet YES
1100-93-0413
1100-93-0413
1100-93-0413
0.315" 0.030 - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Orange NO
1100R-08A-04419
1100R-08A-04419
1100R-08A-04419
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE White YES
1100R-17-08815
1100R-17-08815
1100R-17-08815
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
