Insulated
PC Jacks

Filter

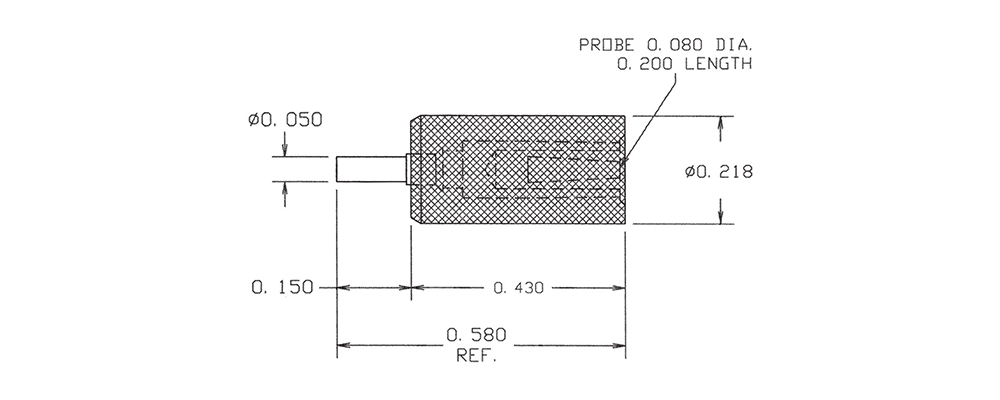

1128-58-03514
1128-58-03514
1128-58-03514
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Yellow -

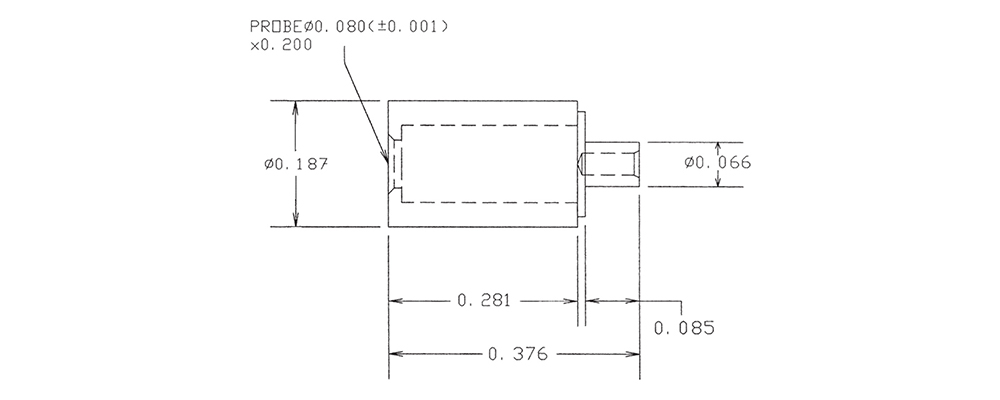

1138-06-03510
1138-06-03510
1138-06-03510
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Black -
09-9294-1-08816
09-9294-1-08816
09-9294-1-08816
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
09-9011-1-03513
09-9011-1-03513
09-9011-1-03513
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Orange M39024/12-17

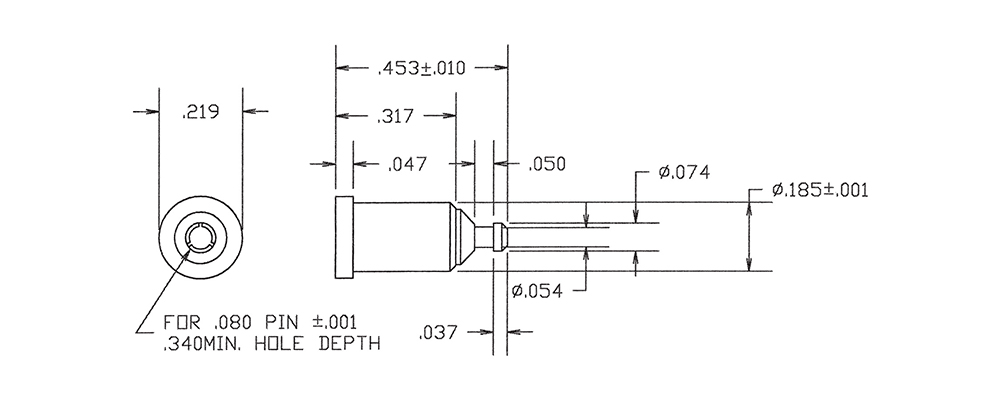

09-9084-1-06319
09-9084-1-06319
09-9084-1-06319
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE White -

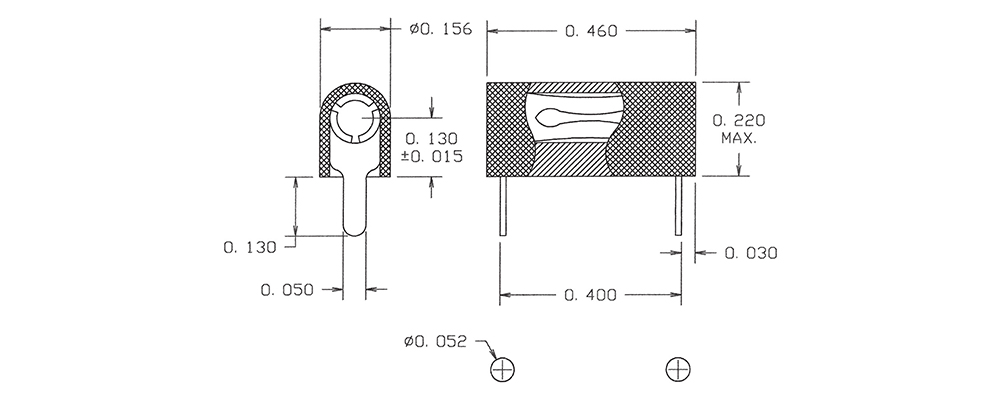

09-9201-1-0315
09-9201-1-0315
09-9201-1-0315
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9265-1-0311
09-9265-1-0311
09-9265-1-0311
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Brown -

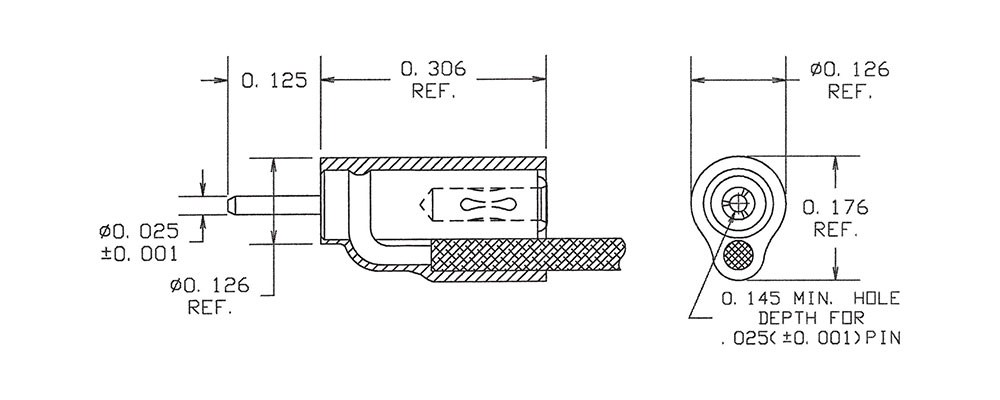

09-9055-1-0615
09-9055-1-0615
09-9055-1-0615
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Electro-Tin Polyolefin Green -

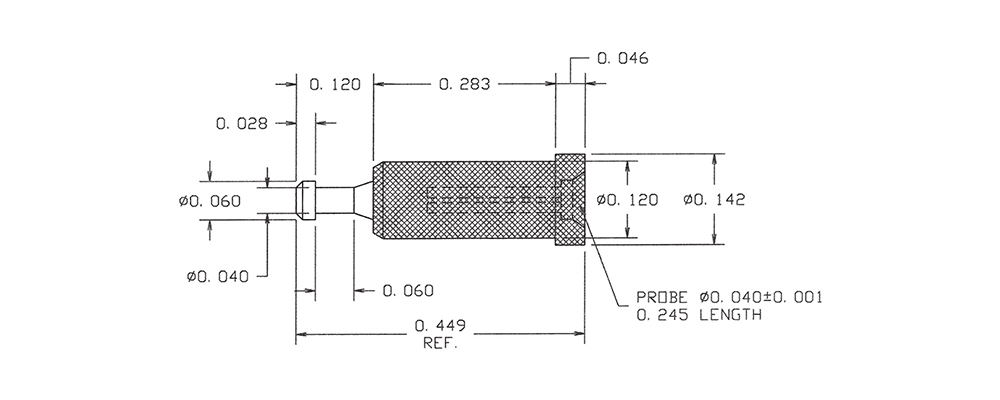

1128-03-03517
1128-03-03517
1128-03-03517
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Violet -
1128-17-03513
1128-17-03513
1128-17-03513
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Orange -

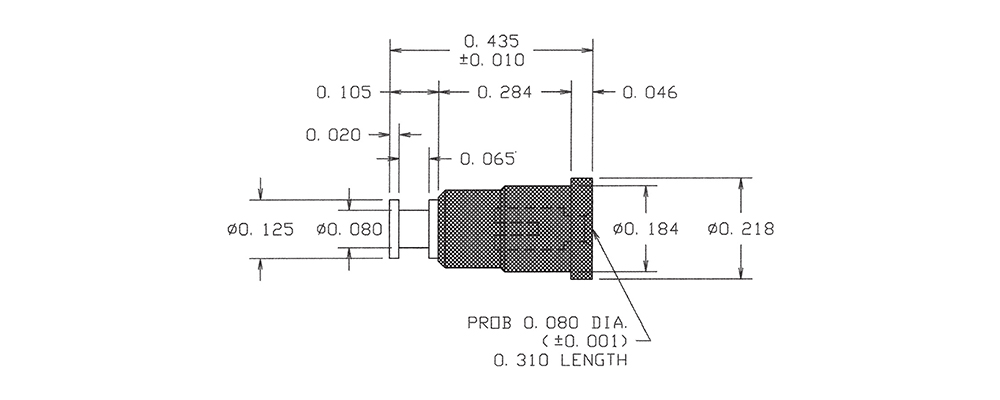

1128-35-03519
1128-35-03519
1128-35-03519
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE White -
1128-58-03515
1128-58-03515
1128-58-03515
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Green -
1138-06-03511
1138-06-03511
1138-06-03511
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Brown -
09-9294-1-08817
09-9294-1-08817
09-9294-1-08817
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -
09-9011-1-03514
09-9011-1-03514
09-9011-1-03514
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Yellow M39024/12-19
09-9084-1-08810
09-9084-1-08810
09-9084-1-08810
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Black -
09-9201-1-0316
09-9201-1-0316
09-9201-1-0316
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
09-9265-1-0312
09-9265-1-0312
09-9265-1-0312
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Red -

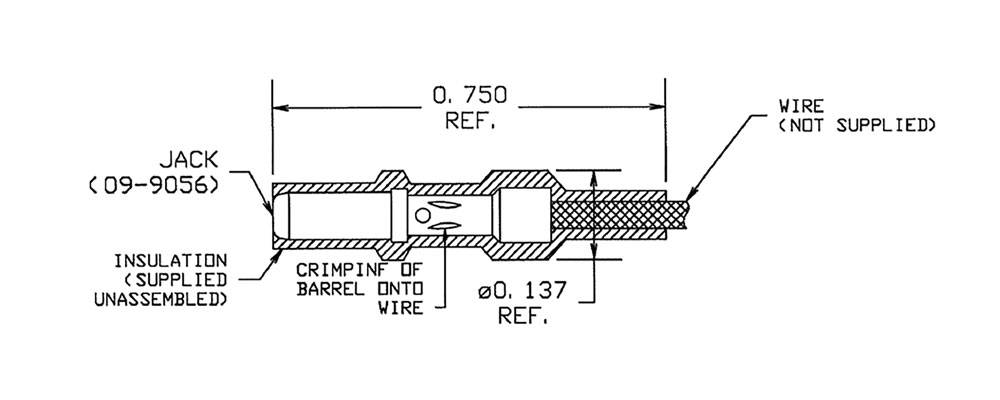

09-9057-1-0310
09-9057-1-0310
09-9057-1-0310
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Black -
1128-03-03518
1128-03-03518
1128-03-03518
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Gray -
