Insulated
PC Jacks

Filter

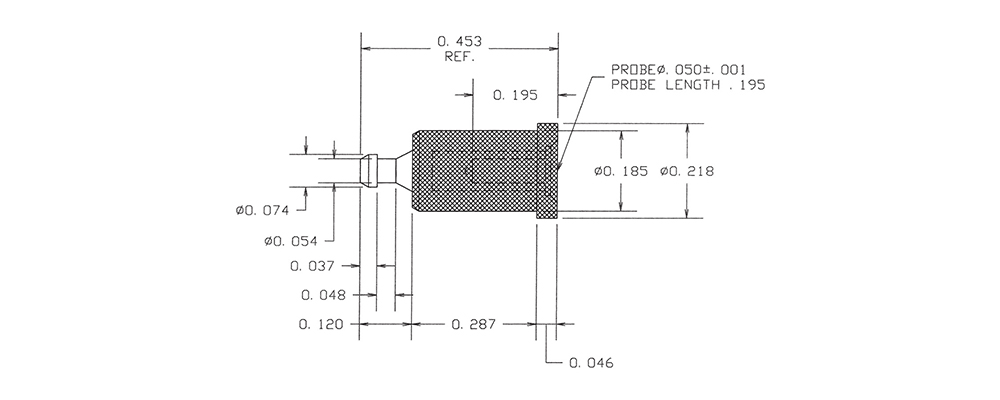

1128-17-03514
1128-17-03514
1128-17-03514
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Yellow -

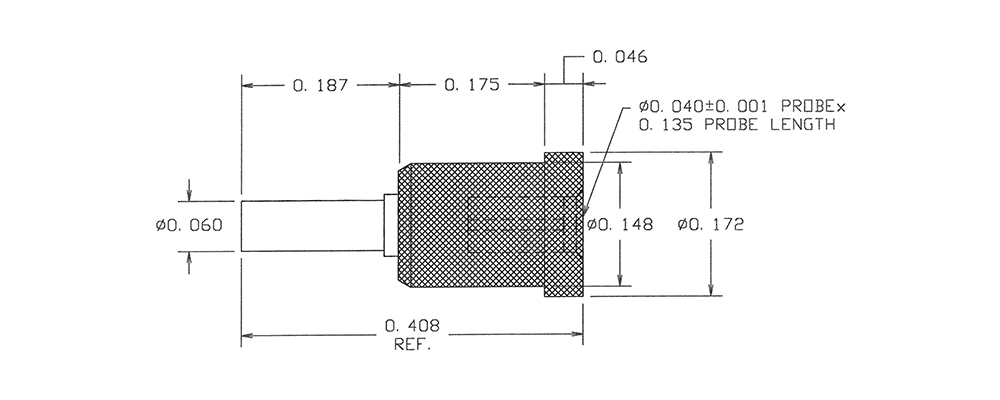

1128-36-0310
1128-36-0310
1128-36-0310
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Black -

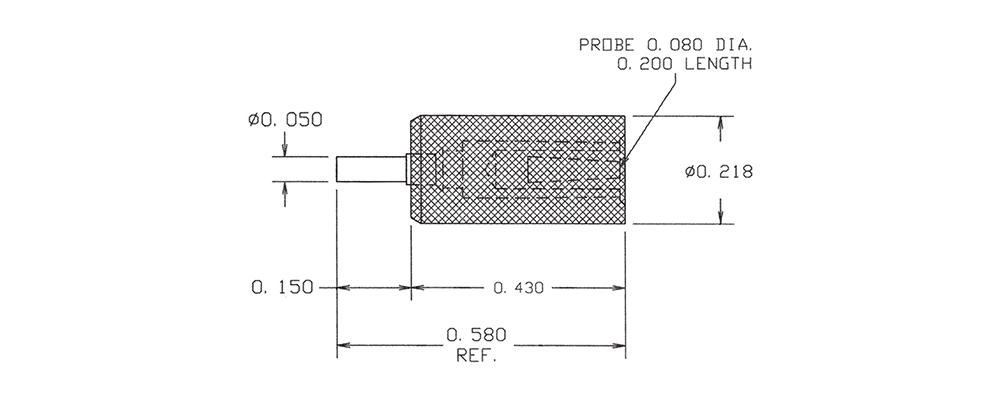

1128-58-03516
1128-58-03516
1128-58-03516
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Blue -

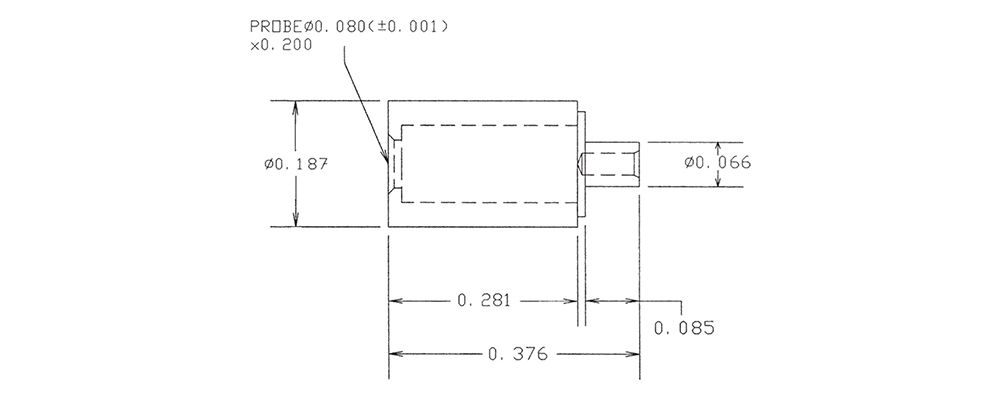

1138-06-03512
1138-06-03512
1138-06-03512
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Red -

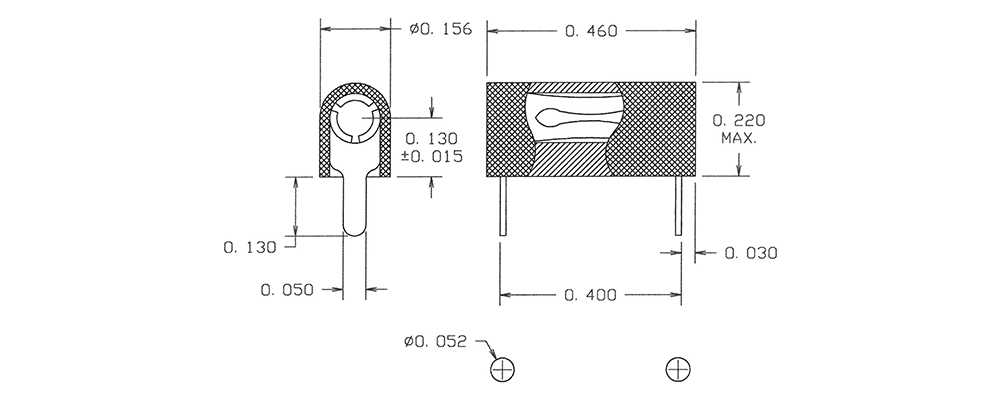

09-9294-1-08818
09-9294-1-08818
09-9294-1-08818
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9011-1-03515
09-9011-1-03515
09-9011-1-03515
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Green M39024/12-16

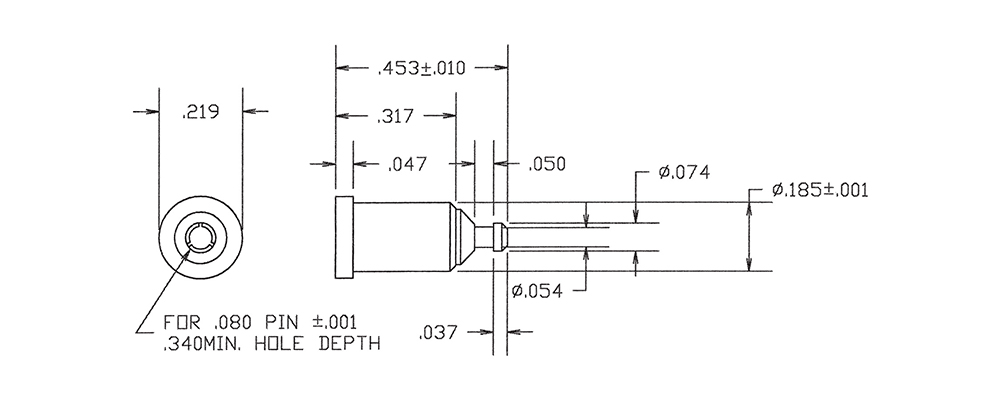

09-9084-1-08811
09-9084-1-08811
09-9084-1-08811
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Brown -
09-9201-1-0317
09-9201-1-0317
09-9201-1-0317
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -
09-9265-1-0313
09-9265-1-0313
09-9265-1-0313
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Orange -

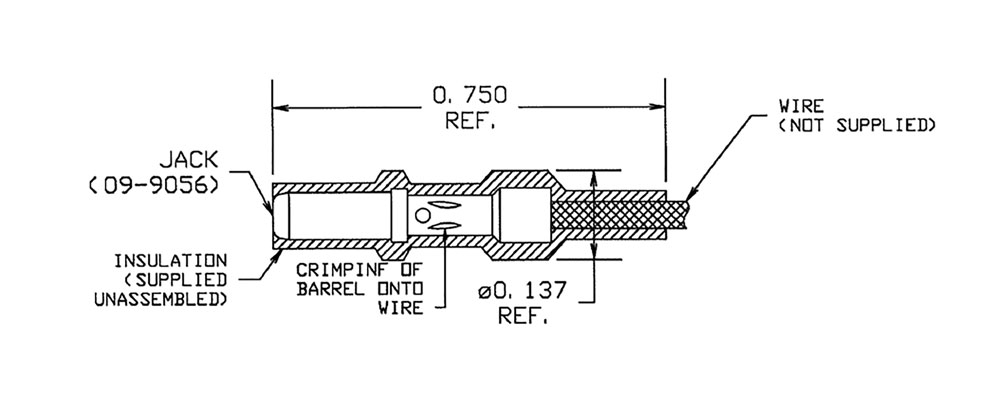

09-9057-1-0312
09-9057-1-0312
09-9057-1-0312
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Red -

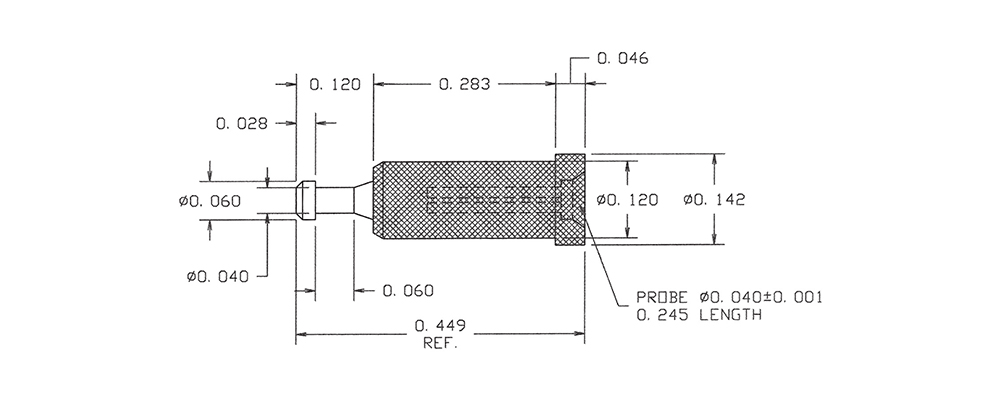

1128-03-03519
1128-03-03519
1128-03-03519
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE White -
1128-17-03515
1128-17-03515
1128-17-03515
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Green -
1128-36-0311
1128-36-0311
1128-36-0311
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Brown -
1128-58-03517
1128-58-03517
1128-58-03517
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Violet -
1138-06-03513
1138-06-03513
1138-06-03513
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Orange -
09-9294-1-08819
09-9294-1-08819
09-9294-1-08819
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9011-1-03516
09-9011-1-03516
09-9011-1-03516
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Blue M39024/12-18
09-9084-1-08812
09-9084-1-08812
09-9084-1-08812
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Red -
09-9201-1-0318
09-9201-1-0318
09-9201-1-0318
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9265-1-0314
09-9265-1-0314
09-9265-1-0314
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Yellow -
