Insulated
PC Jacks

Filter

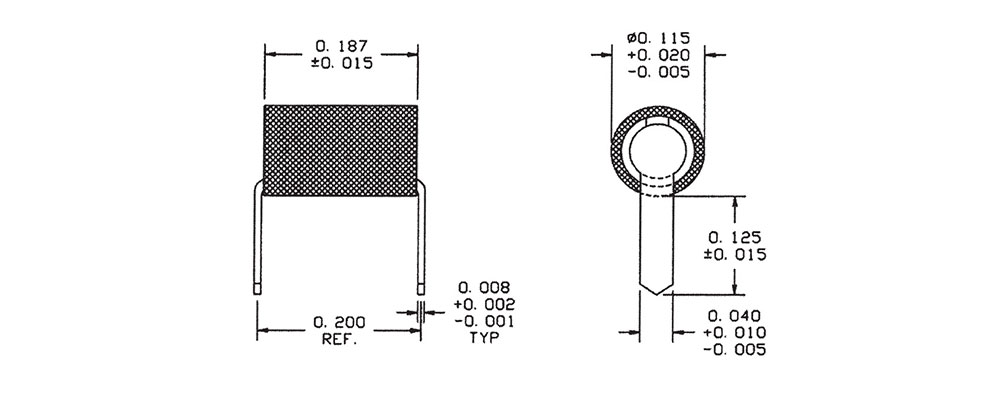

09-9350-1-03511
09-9350-1-03511
09-9350-1-03511
0.080 0.187 " 0.200" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Brown M39024/18-03

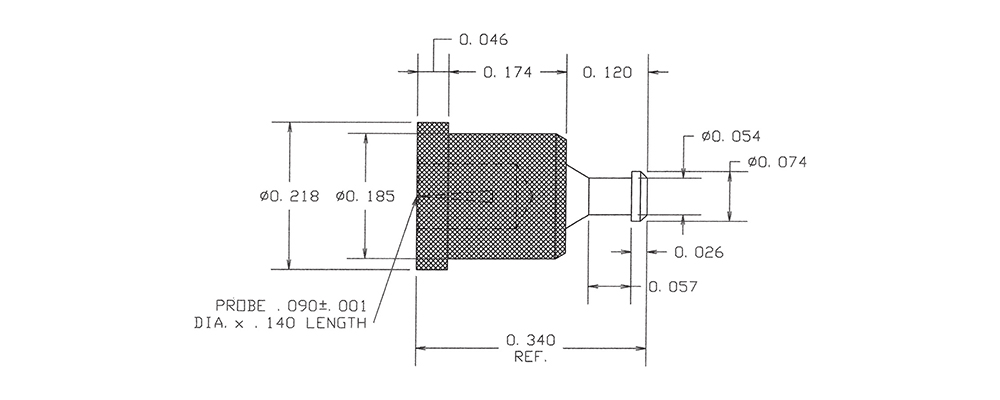

1128-12-03517
1128-12-03517
1128-12-03517
0.090 0.140 " 0.340" Jack/Turret Press Fit 0.172 1/32 - 1/8 Vertical - - PTFE Violet -

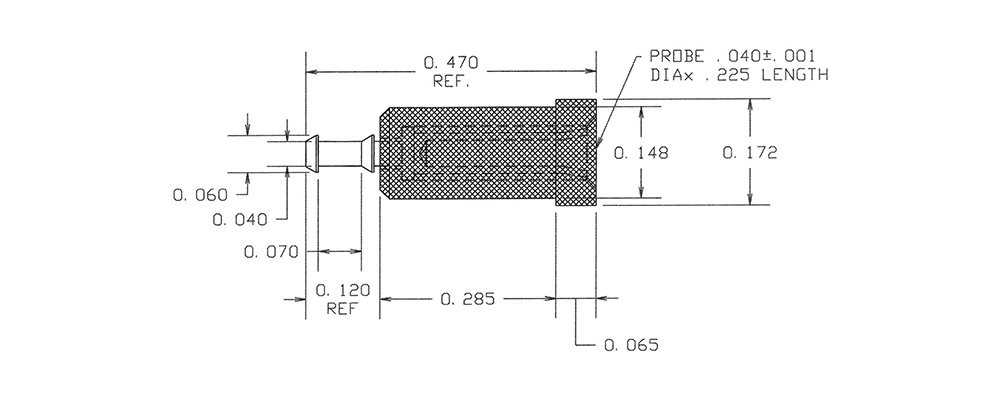

1128-32-0313
1128-32-0313
1128-32-0313
0.040 0.225 " 0.470" Jack/Turret Press Fit 0.136 1/32 - 15/64 Vertical - - PTFE Orange -

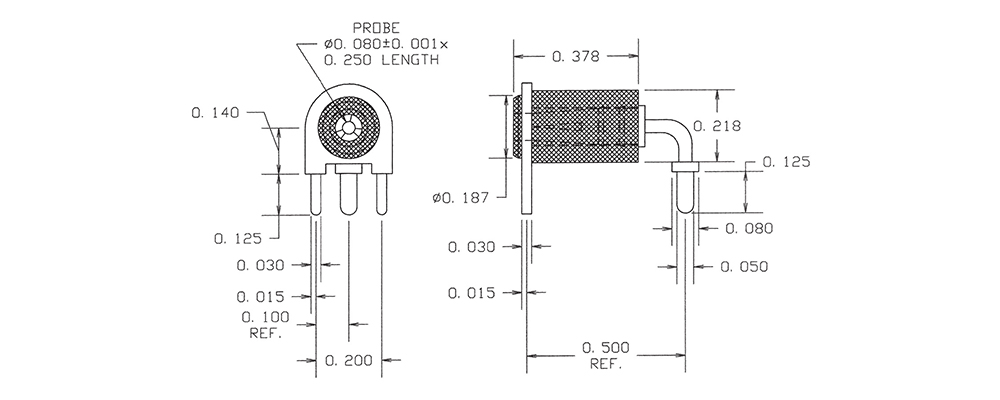

1128-54-03519
1128-54-03519
1128-54-03519
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE White -

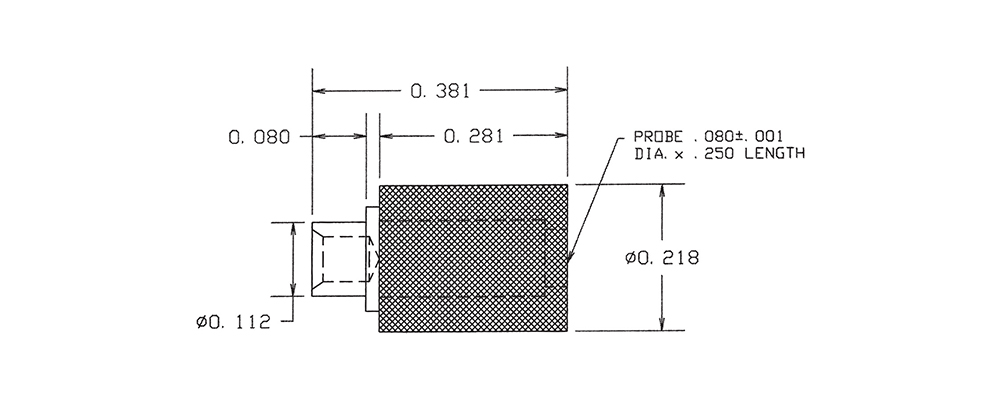

1138-02-03515
1138-02-03515
1138-02-03515
0.080 0.250 " 0.381" - Swage Mount 0.114 1/16 Vertical - - PTFE Green -

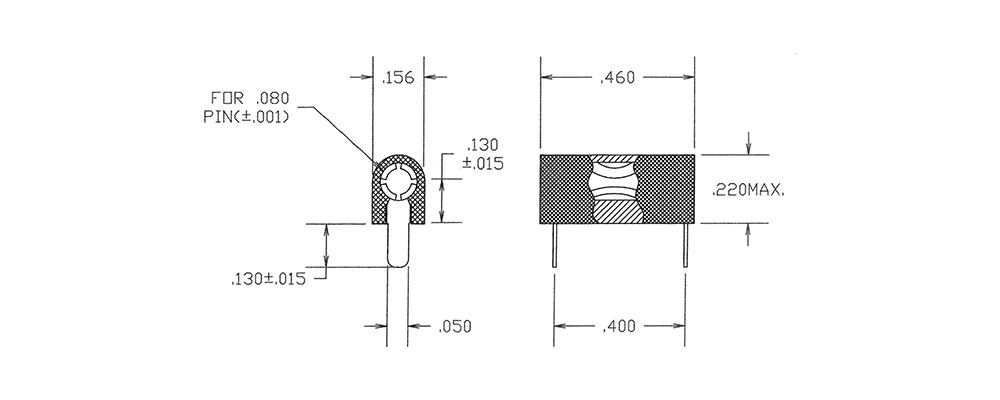

20-9201-1-03511
20-9201-1-03511
20-9201-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown -

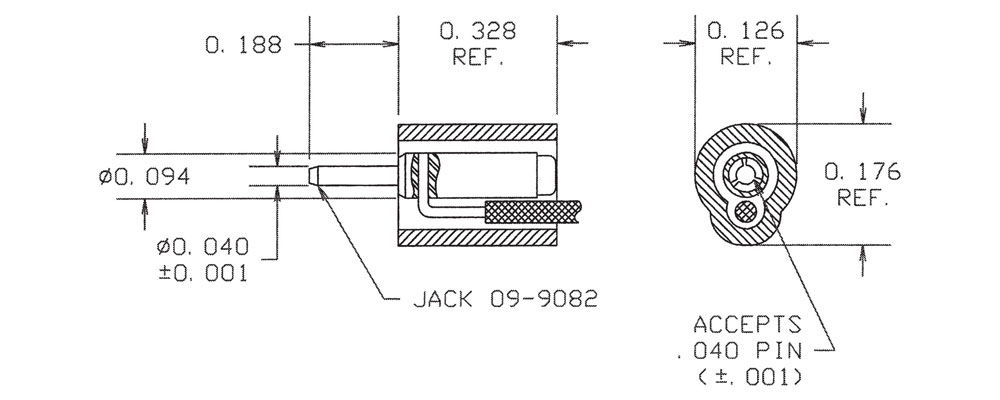

09-9083-1-03516
09-9083-1-03516
09-9083-1-03516
0.140 0.190 " 0.516" Jack/Pin - - - - Brass Gold Polyolefin Blue -

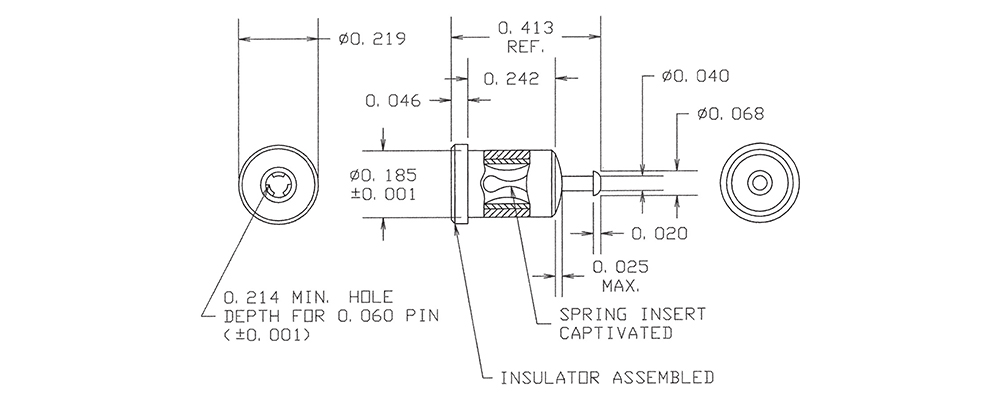

09-9175-1-08810
09-9175-1-08810
09-9175-1-08810
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Black -

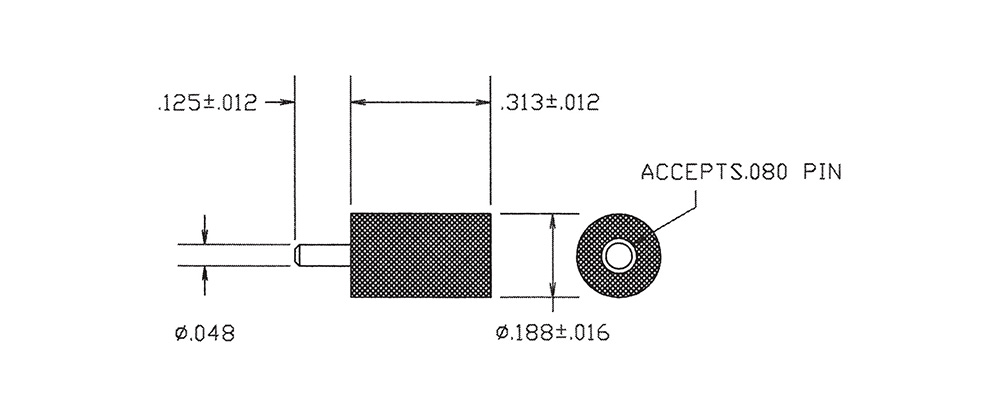

09-9221-1-03516
09-9221-1-03516
09-9221-1-03516
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Blue -

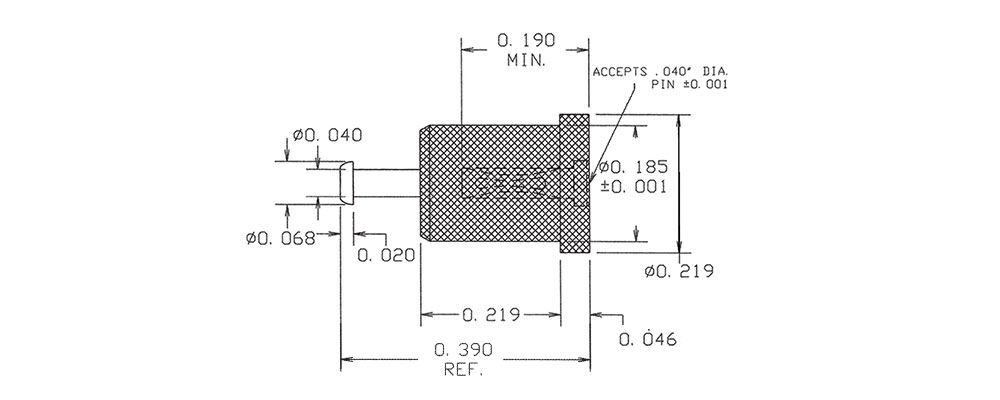

09-9012-1-03513
09-9012-1-03513
09-9012-1-03513
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Orange -
09-9350-1-03512
09-9350-1-03512
09-9350-1-03512
0.080 0.187 " 0.200" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Red M39024/18-04
1128-12-03518
1128-12-03518
1128-12-03518
0.090 0.140 " 0.340" Jack/Turret Press Fit 0.172 1/32 - 1/8 Vertical - - PTFE Gray -
1128-32-0314
1128-32-0314
1128-32-0314
0.040 0.225 " 0.470" Jack/Turret Press Fit 0.136 1/32 - 15/64 Vertical - - PTFE Yellow -

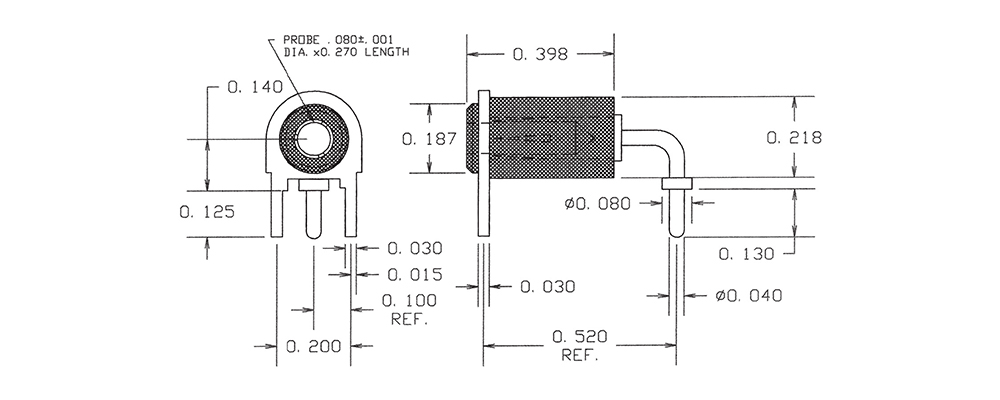

1128-55-0310
1128-55-0310
1128-55-0310
0.080 0.270 " 0.607" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Black -
1138-02-03516
1138-02-03516
1138-02-03516
0.080 0.250 " 0.381" - Swage Mount 0.114 1/16 Vertical - - PTFE Blue -
20-9201-1-03512
20-9201-1-03512
20-9201-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red -
09-9083-1-03519
09-9083-1-03519
09-9083-1-03519
0.140 0.190 " 0.516" Jack/Pin - - - - Brass Gold Polyolefin White -
09-9175-1-08811
09-9175-1-08811
09-9175-1-08811
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Brown -
09-9221-1-03517
09-9221-1-03517
09-9221-1-03517
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Violet -
09-9012-1-03514
09-9012-1-03514
09-9012-1-03514
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Yellow -
