Military
Non-Insulated
Terminals

Filter
15R-201-3-088
15R-201-3-088
15R-201-3-088
0.299" - Swage Mount 0.113" 3/32 0.076 Phosphor Bronze Bright Tin-Lead M55155/12XD02 AA59126/12XD02
15R-204-3-088
15R-204-3-088
15R-204-3-088
0.501" - Swage Mount 0.141" 3/32 0.116 Phosphor Bronze Bright Tin-Lead M55155/12XD08 AA59126/12XD08

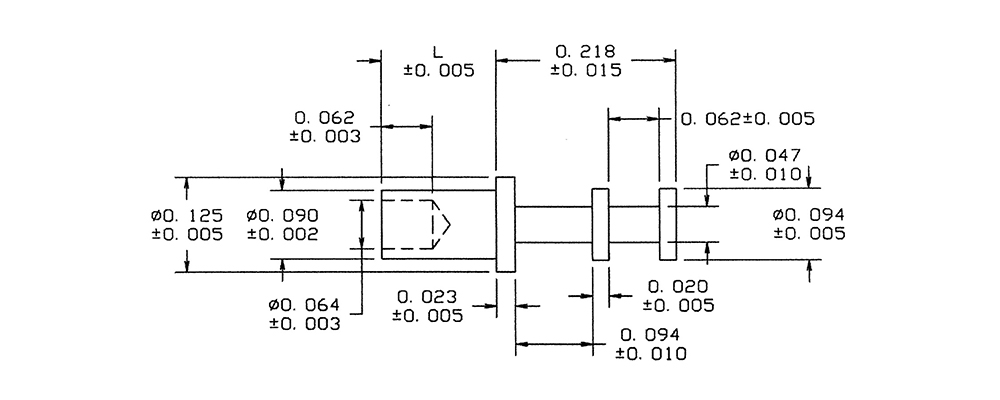

15R-209-1-088
15R-209-1-088
15R-209-1-088
0.296" - Swage Mount 0.078" 1/32 0.094 Phosphor Bronze Bright Tin-Lead M55155/30XD03 AA59126/30XD03
15R-209-2-05
15R-209-2-05
15R-209-2-05
0.327" - Swage Mount 0.109" 1/16 0.094 Phosphor Bronze Electro Solder M55155/30XB06 AA59126/30XB06
15R-209-1-05
15R-209-1-05
15R-209-1-05
0.296" - Swage Mount 0.078" 1/32 0.094 Phosphor Bronze Electro Solder M55155/30XB03 AA59126/30XB03
15R-209-3-05
15R-209-3-05
15R-209-3-05
0.358" - Swage Mount 0.140" 3/32 0.094 Phosphor Bronze Electro Solder M55155/30XB10 AA59126/30XB10
15R-209-6-095
15R-209-6-095
15R-209-6-095
0.452" - Swage Mount 0.234" 3/16 0.094 Phosphor Bronze Hot Solder Dip M55155/30XC17 AA59126/30XC17
15R-209-2-095
15R-209-2-095
15R-209-2-095
0.327" - Swage Mount 0.109" 1/16 0.094 Phosphor Bronze Hot Solder Dip M55155/30XC06 AA59126/30XC06
15R-209-4-095
15R-209-4-095
15R-209-4-095
0.389" - Swage Mount 0.171" 1/8 0.094 Phosphor Bronze Hot Solder Dip M55155/30XC14 AA59126/30XC14

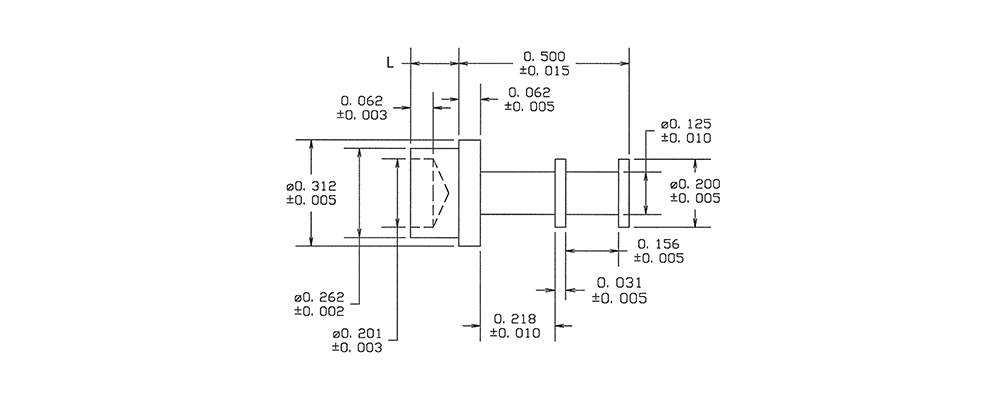

15R-211-2-095
15R-211-2-095
15R-211-2-095
0.609" - Swage Mount 0.109" 1/16 0.266 Phosphor Bronze Hot Solder Dip M55155/30XC08 AA59126/30XC08
15-211-2-088
15-211-2-088
15-211-2-088
0.609" - Swage Mount 0.109" 1/16 0.266 Brass Bright Tin-Lead M55155/30XJ08 AA59126/30XJ08
15R-211-3-095
15R-211-3-095
15R-211-3-095
0.640" - Swage Mount 0.140" 3/32 0.266 Phosphor Bronze Hot Solder Dip M55155/30XC12 AA59126/30XC12
15R-211-2-088
15R-211-2-088
15R-211-2-088
0.609" - Swage Mount 0.109" 1/16 0.266 Phosphor Bronze Bright Tin-Lead M55155/30XD08 AA59126/30XD08
15-211-3-095
15-211-3-095
15-211-3-095
0.640" - Swage Mount 0.140" 3/32 0.266 Brass Hot Solder Dip M55155/30XI12 AA59126/30XI12
15R-211-3-088
15R-211-3-088
15R-211-3-088
0.640" - Swage Mount 0.140" 3/32 0.266 Phosphor Bronze Bright Tin-Lead M55155/30XD12 AA59126/30XD12
15-211-3-088
15-211-3-088
15-211-3-088
0.640" - Swage Mount 0.140" 3/32 0.266 Brass Bright Tin-Lead M55155/30XJ12 AA59126/30XJ12
15R-214-2-088
15R-214-2-088
15R-214-2-088
0.240" - Swage Mount 0.084" 1/16 0.067 Phosphor Bronze Bright Tin-Lead M55155/30XD05 AA59126/30XD05
15R-214-3-095
15R-214-3-095
15R-214-3-095
0.271" - Swage Mount 0.115" 3/32 0.067 Phosphor Bronze Hot Solder Dip M55155/30XC09 AA59126/30XC09
15R-214-1-095
15R-214-1-095
15R-214-1-095
0.209" - Swage Mount 0.053" 1/32 0.067 Phosphor Bronze Hot Solder Dip M55155/30XC02 AA59126/30XC02
15R-214-4-088
15R-214-4-088
15R-214-4-088
0.303" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Bright Tin-Lead M55155/30XD13 AA59126/30XD13
