Commercial
Non-Insulated
Terminals

Filter
09-0268-2A-044
09-0268-2A-044
09-0268-2A-044
0.384" - - Swage Mount 0.094" 1/16 0.094 Brass Bright Tin YES
09-0319-1-035
09-0319-1-035
09-0319-1-035
0.425" 0.052 - - - - - Brass Gold YES
09-6003-1-035
09-6003-1-035
09-6003-1-035
0.800" 0.025 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Gold YES
09-7020-3A-05
09-7020-3A-05
09-7020-3A-05
0.270" - - Swage Mount 0.130" 3/32 0.059 Brass Electro Solder NO

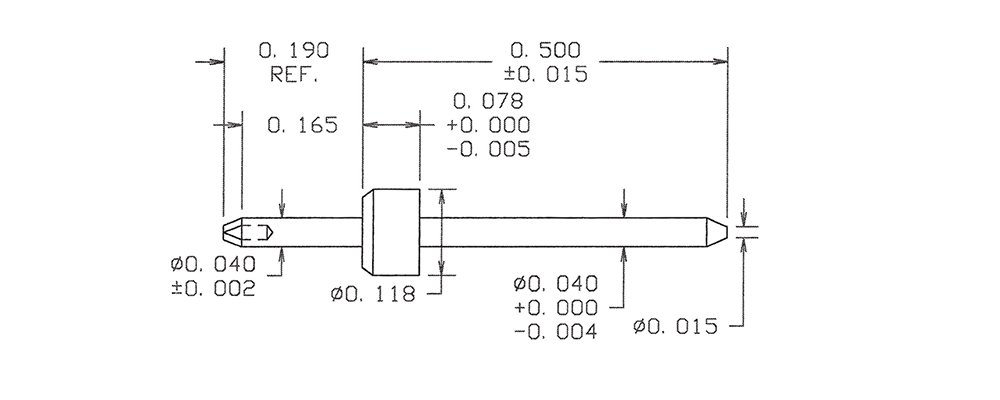

09-7138-4-035
09-7138-4-035
09-7138-4-035
0.690" 0.040 (+0.000/-0.004) - RIVET MOUNT 0.165" 1/8 0.044 Brass Gold YES
09-7165-2-088
09-7165-2-088
09-7165-2-088
0.594" 0.063 - RIVET MOUNT 0.098" 1/16 0.067 Brass Bright Tin-Lead NO
09-8001-2-04
09-8001-2-04
09-8001-2-04
0.670" 0.020 - Solder 0.100" 1/16 0.024 Brass Electro-Tin YES
09-8044-3-01
09-8044-3-01
09-8044-3-01
0.433" 0.031 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES
09-8080-2-04
09-8080-2-04
09-8080-2-04
0.337" 0.018 - Swage Mount 0.082" 1/16 0.052 Brass Electro-Tin YES
09-8137-2-01
09-8137-2-01
09-8137-2-01
0.541" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.086 Brass Silver YES
09-8171-1-044
09-8171-1-044
09-8171-1-044
0.155" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES
09-8298-1-044
09-8298-1-044
09-8298-1-044
0.248" 0.040 - Swage Mount 0.075" 1/32 0.076 Brass Bright Tin YES
09-8480-2-01
09-8480-2-01
09-8480-2-01
0.232" 0.025 - Swage Mount 0.082" 1/16 0.0465 Brass Silver YES
09-8656-1-095
09-8656-1-095
09-8656-1-095
0.409" - - Swage Mount 0.078" 1/32 0.094 Brass Hot Solder Dip NO

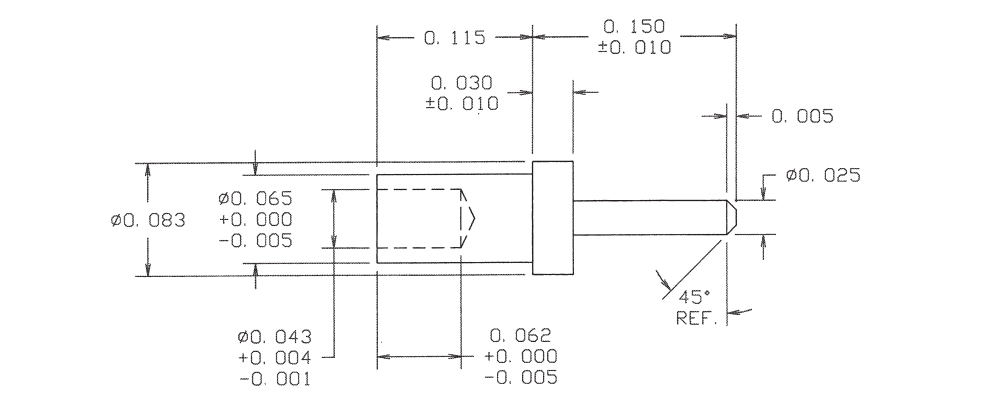

09-8774-2-044
09-8774-2-044
09-8774-2-044
0.265" 0.025 - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin YES
09-8850-1-05
09-8850-1-05
09-8850-1-05
0.196" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO
10-103-2-04
10-103-2-04
10-103-2-04
0.343" - - Swage Mount 0.109" 1/16 0.116 Brass Electro-Tin YES
10-109-3-095
10-109-3-095
10-109-3-095
0.284" - - Swage Mount 0.125" 3/32 0.094 Brass Hot Solder Dip NO
10-120-2-04
10-120-2-04
10-120-2-04
0.250" - - Swage Mount 0.094" 1/16 0.052 Brass Electro-Tin YES
10-201-2-088
10-201-2-088
10-201-2-088
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead NO
