Commercial
Non-Insulated
Terminals

Filter
10-812-6-044
10-812-6-044
10-812-6-044
0.719" - Turret/Turret Swage Mount 0.219" 3/16 0.147 Brass Bright Tin YES
10-823-3-01
10-823-3-01
10-823-3-01
0.597" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.120" 3/32 0.120 Brass Silver YES
10-833-1-088
10-833-1-088
10-833-1-088
0.376" 0.050 - Swage Mount 0.063" 1/32 0.064 Brass Bright Tin-Lead NO

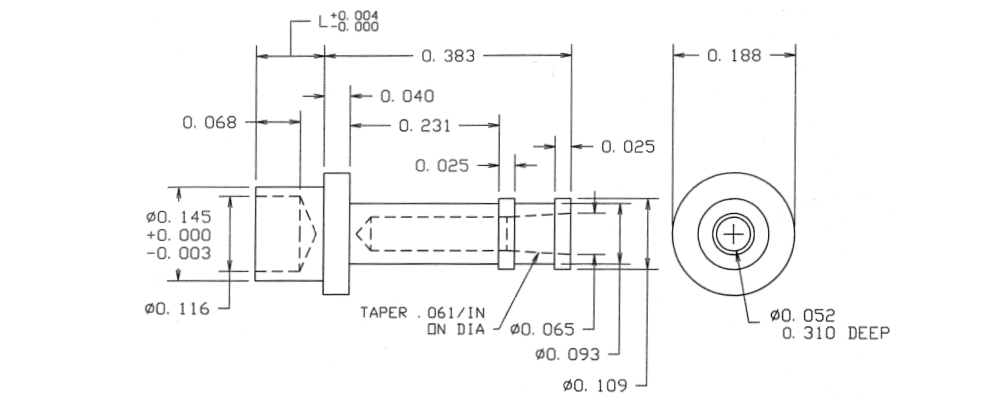

10-840-4-04
10-840-4-04
10-840-4-04
0.548" - - Swage Mount 0.165" 1/8 0.1495 Brass Electro-Tin YES
10-864-2-01
10-864-2-01
10-864-2-01
0.615" 0.040 - Swage Mount 0.094" 1/16 0.094 Brass Silver YES

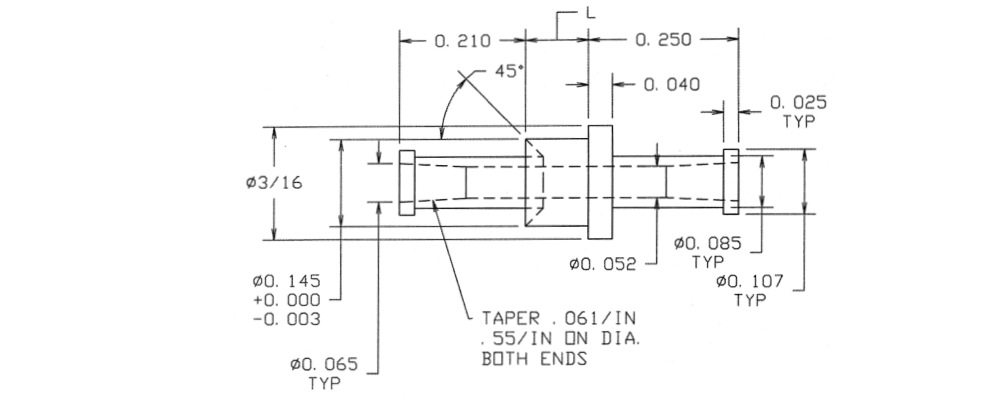

10-882-5-05
10-882-5-05
10-882-5-05
0.655" - Turret/Turret Swage Mount 0.195" 5/32 0.147 Brass Electro Solder NO
10-902-4-044
10-902-4-044
10-902-4-044
0.344" 0.060 - Swage Mount 0.156" 1/8 0.064 Brass Bright Tin YES
10-918-1-04
10-918-1-04
10-918-1-04
0.371" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES
10-931-4-01
10-931-4-01
10-931-4-01
0.312" - - Swage Mount 0.156" 1/8 0.0635 Brass Silver YES
10-975-2-01
10-975-2-01
10-975-2-01
1.102" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
14-946-2-04
14-946-2-04
14-946-2-04
0.245" - - Swage Mount 0.094" 1/16 0.063 LEADED Red Brass Electro-Tin YES
10-401-4-044
10-401-4-044
10-401-4-044
0.312" - - Swage Mount 0.156" 1/8 0.067 Brass Bright Tin YES
10-416-2-03
10-416-2-03
10-416-2-03
0.240" - - Swage Mount 0.084" 1/16 0.064 Brass Gold YES
10-450-3-05
10-450-3-05
10-450-3-05
0.323" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO

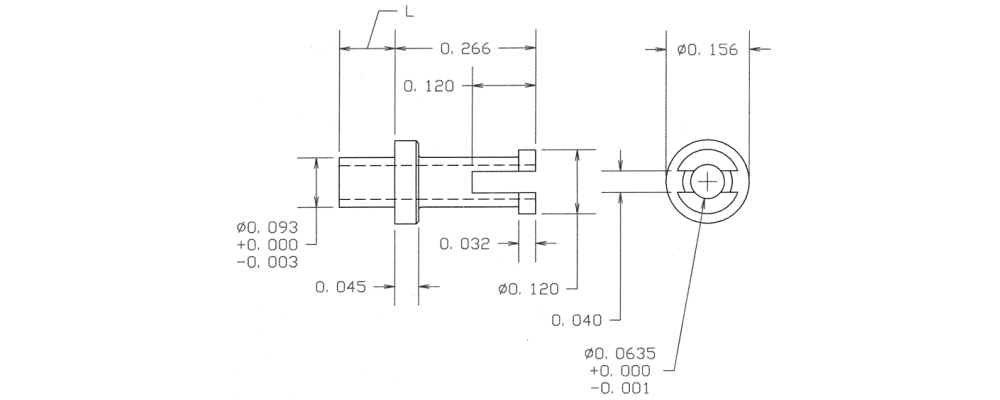

10-473-2-035
10-473-2-035
10-473-2-035
0.371" - - Swage Mount 0.105" 1/16 0.096 Brass Gold YES
14-414-6-088
14-414-6-088
14-414-6-088
0.364" - - Swage Mount 0.207" 3/16 0.052 LEADED Red Brass Bright Tin-Lead NO
09-0057-1-04
09-0057-1-04
09-0057-1-04
0.450" - - Solder 0.100" 1/32 TO 1/16 0.096 Brass Electro-Tin YES
09-0150-1-044
09-0150-1-044
09-0150-1-044
0.123" - - Swage Mount 0.053" 1/32 0.037 Brass Bright Tin YES

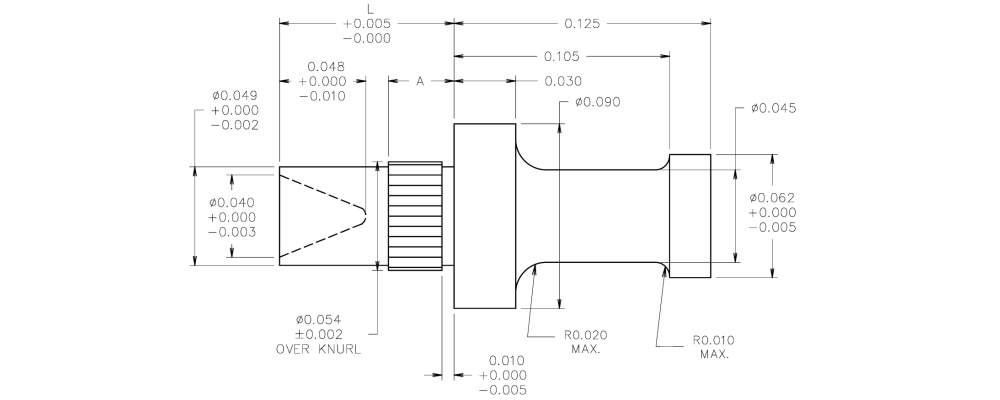

09-0182-2-01
09-0182-2-01
09-0182-2-01
0.210" - - Swage Mount 0.085" 1/16 0.052 Brass Silver YES

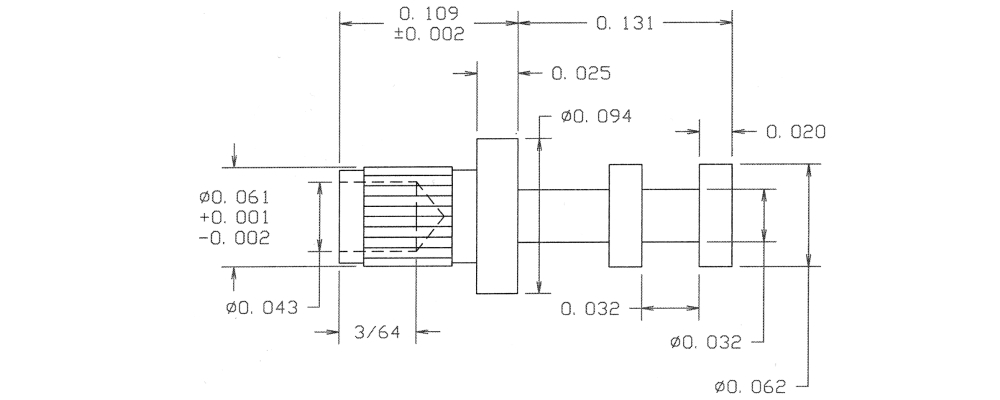

09-0221-2-01
09-0221-2-01
09-0221-2-01
0.349" - - Swage Mount 0.084" 1/16 0.063 Brass Silver YES
