Commercial
Non-Insulated
Terminals

Filter
10-704-4-044
10-704-4-044
10-704-4-044
0.281" - - 4-40 - - 4-40 THREAD Brass Bright Tin YES
10-8011-3-01
10-8011-3-01
10-8011-3-01
0.391" - - Swage Mount 0.141" 3/32 0.116 Brass Silver YES

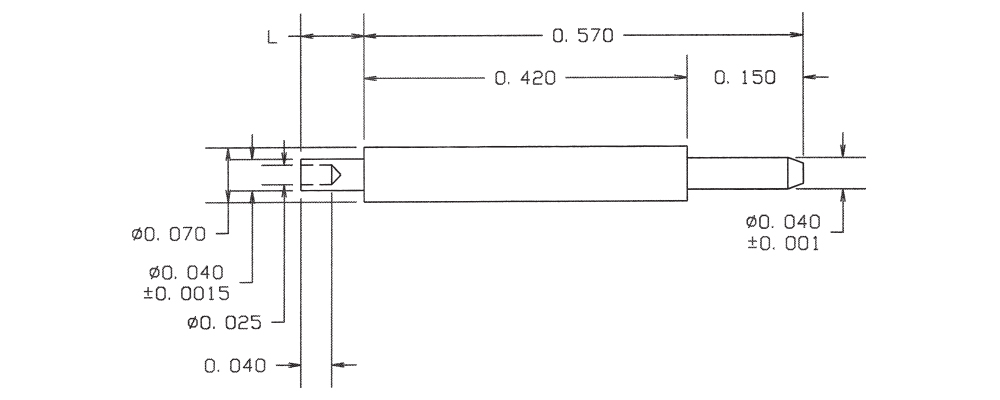

10-8022-1-044
10-8022-1-044
10-8022-1-044
0.621" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

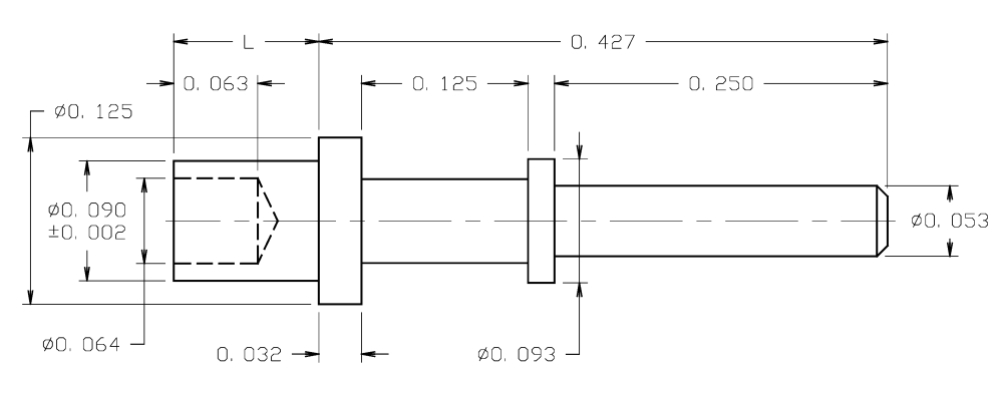

10-806-3-088
10-806-3-088
10-806-3-088
0.568" - - Swage Mount 0.141" 3/32 0.094 Brass Bright Tin-Lead NO
10-812-2-03
10-812-2-03
10-812-2-03
0.594" - Turret/Turret Swage Mount 0.094" 1/16 0.147 Brass Gold YES
10-821-3-088
10-821-3-088
10-821-3-088
0.468" 0.040 Pin/Pin Swage Mount 0.135" 3/32 0.094 Brass Bright Tin-Lead NO
10-832-2-04
10-832-2-04
10-832-2-04
0.344" 0.050 - Swage Mount 0.094" 1/16 0.064 Brass Electro-Tin YES
10-840-1-01
10-840-1-01
10-840-1-01
0.458" - - Swage Mount 0.075" 1/32 0.1495 Brass Silver YES
10-862-1-044
10-862-1-044
10-862-1-044
0.313" 0.040 - Swage Mount 0.063" 1/32 0.094 Brass Bright Tin YES
10-882-2-035
10-882-2-035
10-882-2-035
0.565" - Turret/Turret Swage Mount 0.105" 1/16 0.147 Brass Gold YES
10-902-1-03
10-902-1-03
10-902-1-03
0.250" 0.060 - Swage Mount 0.062" 1/32 0.064 Brass Gold YES

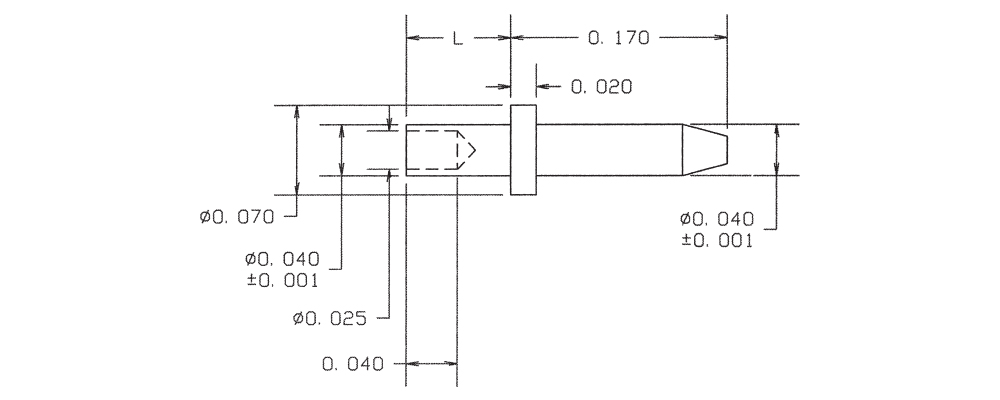

10-917-1-01
10-917-1-01
10-917-1-01
0.221" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

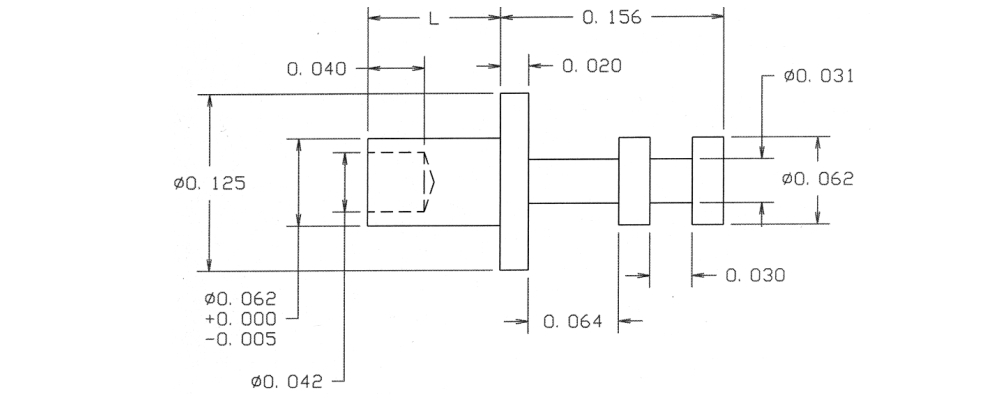

10-931-1-01
10-931-1-01
10-931-1-01
0.218" - - Swage Mount 0.062" 1/32 0.0635 Brass Silver YES
10-974-1-044
10-974-1-044
10-974-1-044
1.071" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES
14-916-2-03
14-916-2-03
14-916-2-03
0.402" 0.040 - Swage Mount 0.082" 1/16 0.043 LEADED Red Brass Gold YES
10-401-11-03
10-401-11-03
10-401-11-03
0.181" - - Swage Mount 0.025" 1/64 0.067 Brass Gold YES
10-414-6-05
10-414-6-05
10-414-6-05
0.363" - - Swage Mount 0.207" 3/16 0.052 Brass Electro Solder NO

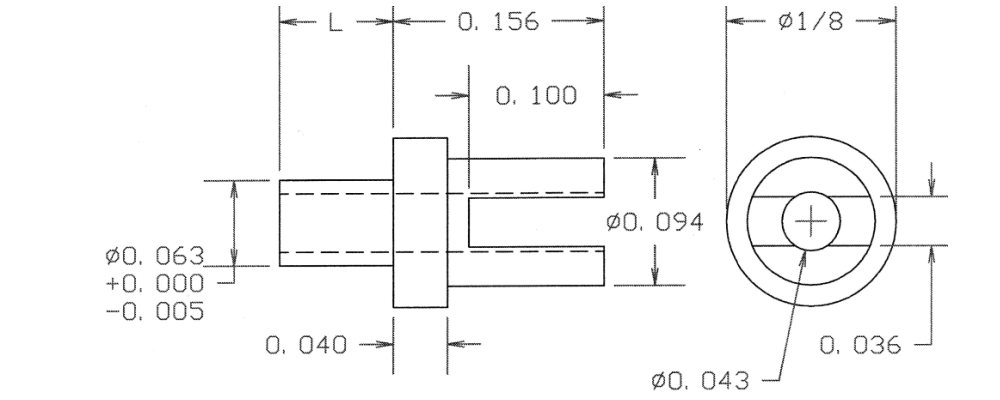

10-449-4-035
10-449-4-035
10-449-4-035
0.303" - - Swage Mount 0.147" 1/8 0.064 Brass Gold YES

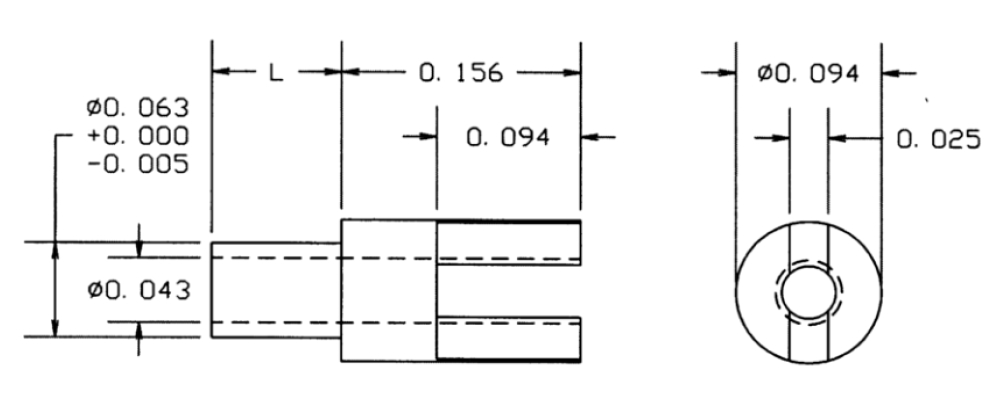

10-471-6-088
10-471-6-088
10-471-6-088
0.365" - - Swage Mount 0.209" 3/16 0.067 Brass Bright Tin-Lead NO
14-414-2A-04
14-414-2A-04
14-414-2A-04
0.250" - - Swage Mount 0.094" 1/16 0.052 LEADED Red Brass Electro-Tin YES
