Commercial
Non-Insulated
Terminals

Filter
10-102-2-088
10-102-2-088
10-102-2-088
0.296" - - Swage Mount 0.109" 1/16 0.082 Brass Bright Tin-Lead NO
10-108-4-035
10-108-4-035
10-108-4-035
0.240" - - Swage Mount 0.147" 1/8 0.067 Brass Gold YES

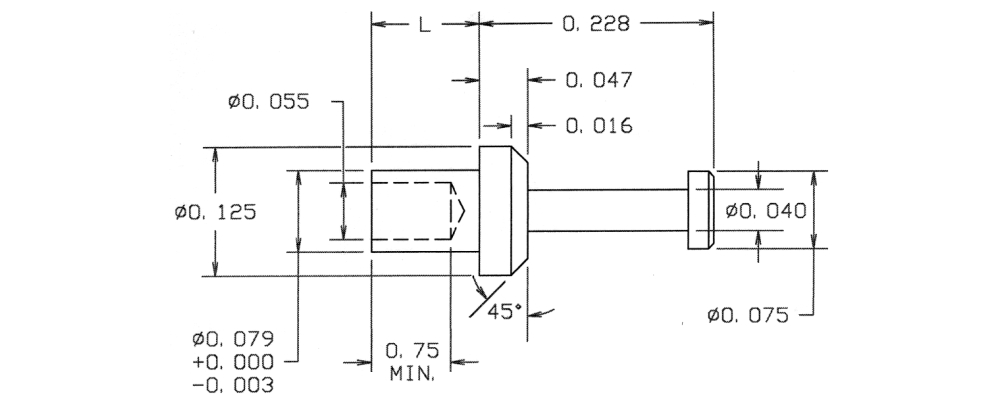

10-119-1-088
10-119-1-088
10-119-1-088
0.303" - - Swage Mount 0.075" 1/32 0.082 Brass Bright Tin-Lead NO
10-138-3-01
10-138-3-01
10-138-3-01
0.375" - - Swage Mount 0.125" 3/32 0.067 Brass Silver YES

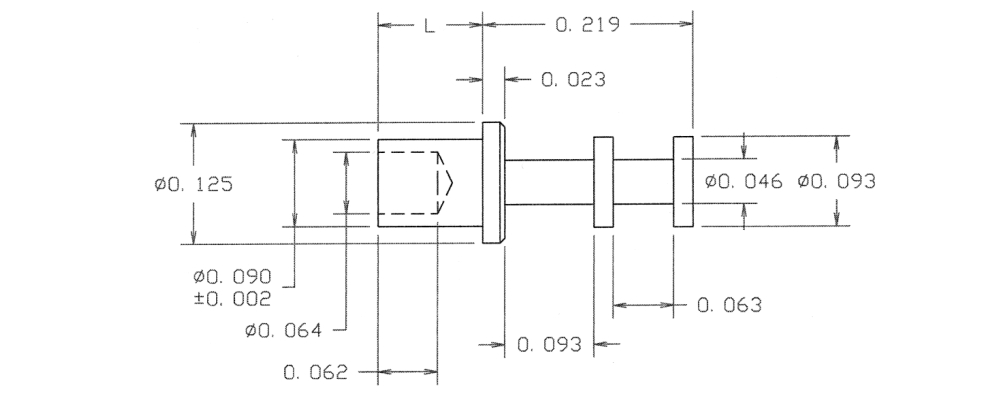

10-209-1-01
10-209-1-01
10-209-1-01
0.297" - - Swage Mount 0.078" 1/32 0.094 Brass Silver YES
10-215-5-044
10-215-5-044
10-215-5-044
0.332" - - Swage Mount 0.178" 5/32 0.063 Brass Bright Tin YES

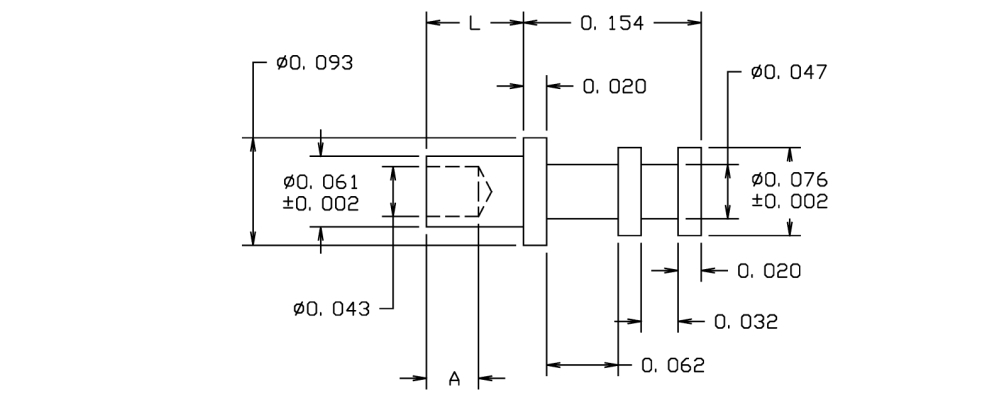

10-225-4-088
10-225-4-088
10-225-4-088
0.301" - - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin-Lead NO
10-240-2-035
10-240-2-035
10-240-2-035
0.469" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-301-2-044
10-301-2-044
10-301-2-044
0.281" - - Swage Mount 0.094" 1/16 0.076 Brass Bright Tin YES

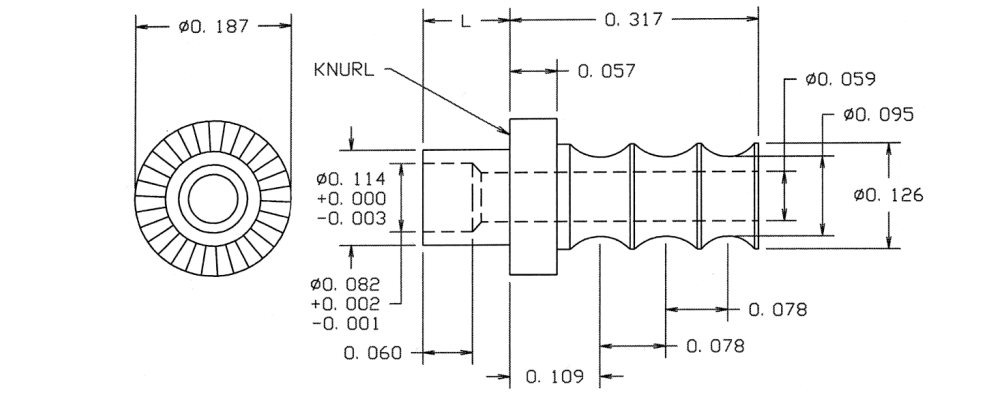

10-309-6-044
10-309-6-044
10-309-6-044
0.547" - - Swage Mount 0.230" 3/16 0.116 Brass Bright Tin YES
10-318-3-03
10-318-3-03
10-318-3-03
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-336-2-05
10-336-2-05
10-336-2-05
0.453" - - Swage Mount 0.125" 3/32 0.125 Brass Electro Solder NO

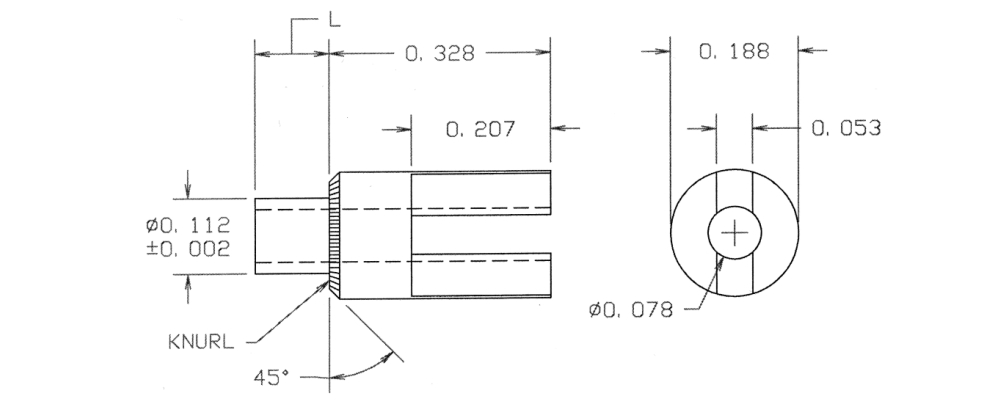

10-411-3-035
10-411-3-035
10-411-3-035
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES

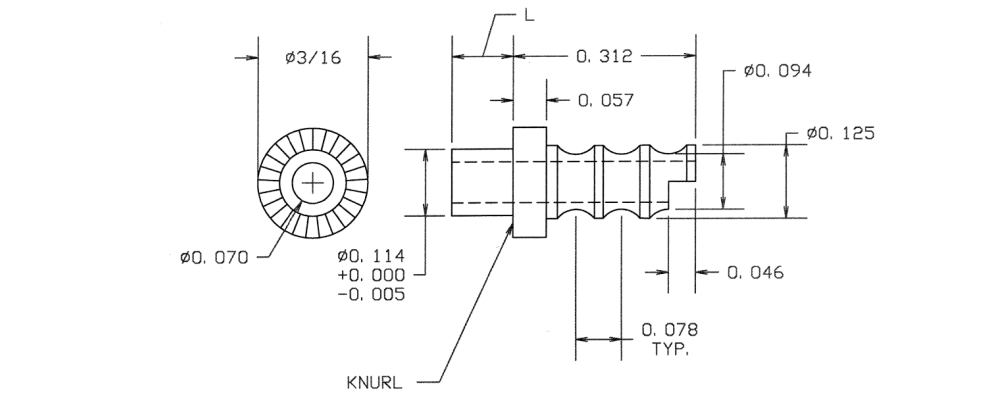

10-422-2-04
10-422-2-04
10-422-2-04
0.417" - - Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES
10-441-2-04
10-441-2-04
10-441-2-04
0.449" - - Swage Mount 0.105" 1/16 0.1405 Brass Electro-Tin YES

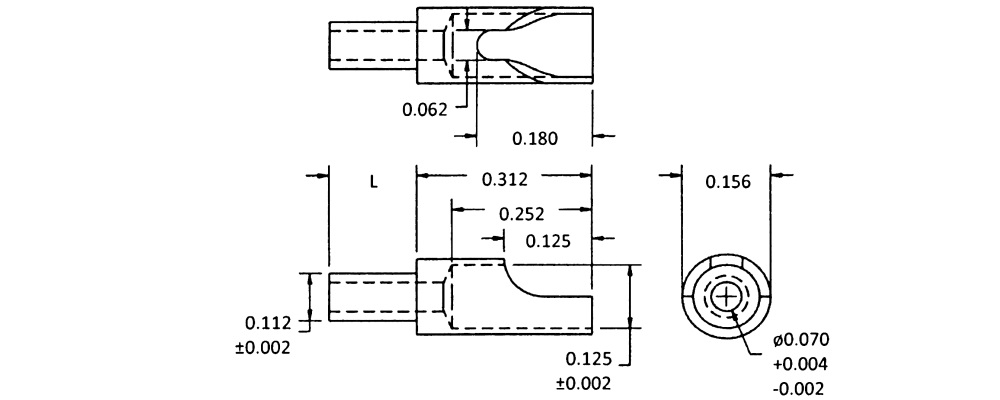

10-456-4-01
10-456-4-01
10-456-4-01
0.484" - - Swage Mount 0.172" 1/8 0.116 Brass Silver YES
10-467-6-04
10-467-6-04
10-467-6-04
0.918" - - Swage Mount 0.230" 3/16 0.1875 Brass Electro-Tin YES
10-501-1A-095
10-501-1A-095
10-501-1A-095
0.254" - Turret/Turret Swage Mount 0.068" 1/32 0.076 Brass Hot Solder Dip NO
10-507-1-095
10-507-1-095
10-507-1-095
0.547" - Turret/Turret Swage Mount 0.078" 1/32 0.185 Brass Hot Solder Dip NO
10-512-8-095
10-512-8-095
10-512-8-095
0.661" - Double Turret/Double Turret Swage Mount 0.290" 1/4 0.129 Brass Hot Solder Dip NO
