Commercial
Non-Insulated
Terminals

Filter

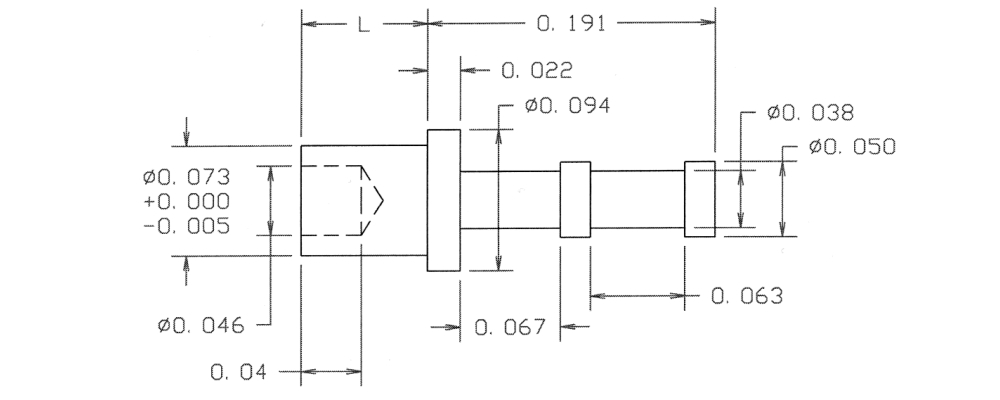

10-206-1-044
10-206-1-044
10-206-1-044
0.244" - - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin YES
10-214-5-044
10-214-5-044
10-214-5-044
0.334" - - Swage Mount 0.178" 5/32 0.067 Brass Bright Tin YES

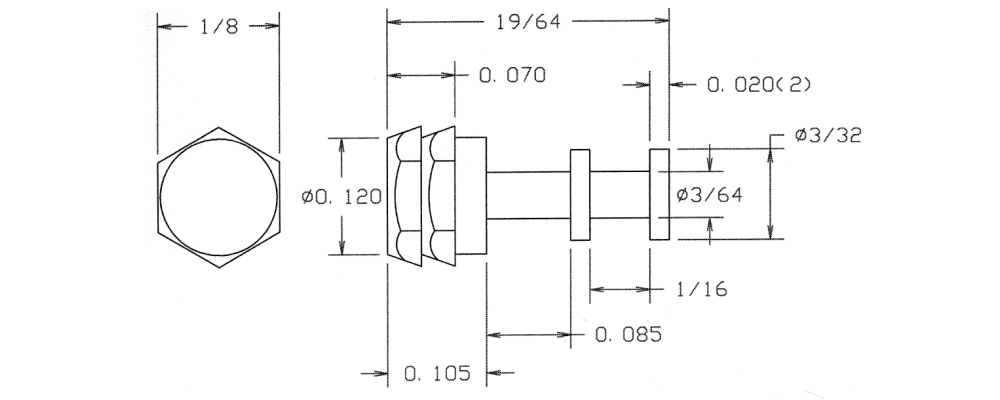

10-222-1-04
10-222-1-04
10-222-1-04
0.297" - - Press Fit/Solder 0.105" 3/32 0.128 Brass Electro-Tin YES

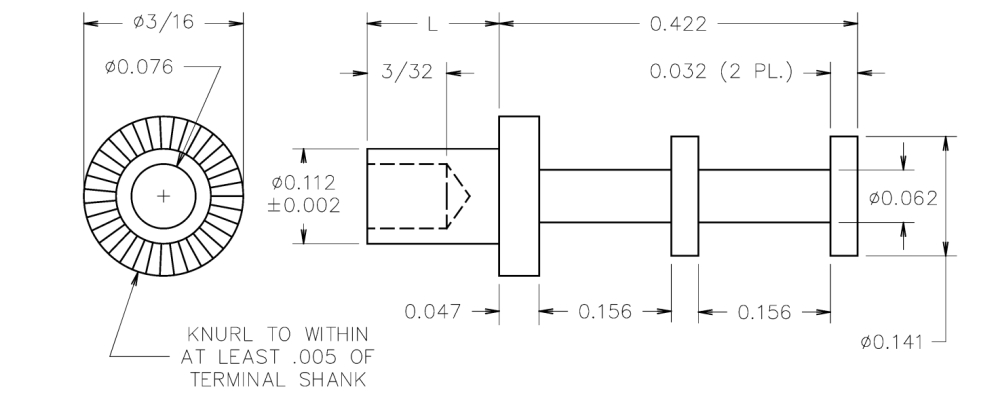

10-236-4-01
10-236-4-01
10-236-4-01
0.578" - - Swage Mount 0.156" 1/8 0.116 Brass Silver YES
10-259-6-04
10-259-6-04
10-259-6-04
0.438" - - Swage Mount 0.219" 3/16 0.094 Brass Electro-Tin YES

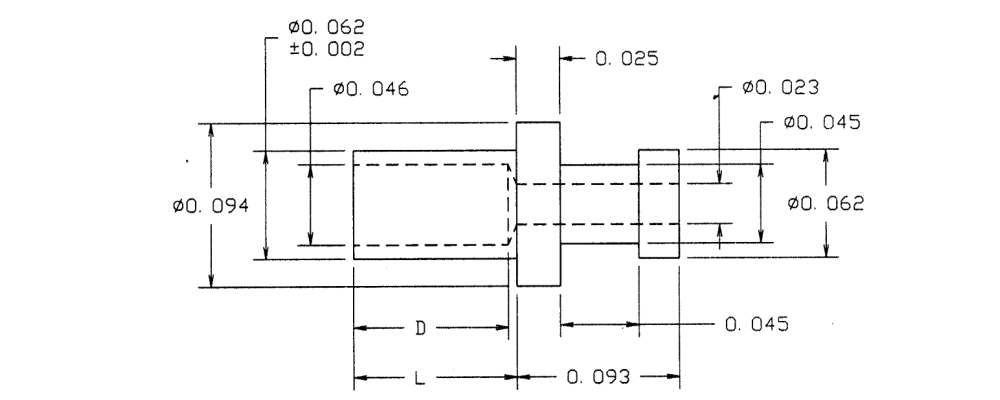

10-308-11-044
10-308-11-044
10-308-11-044
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Bright Tin YES

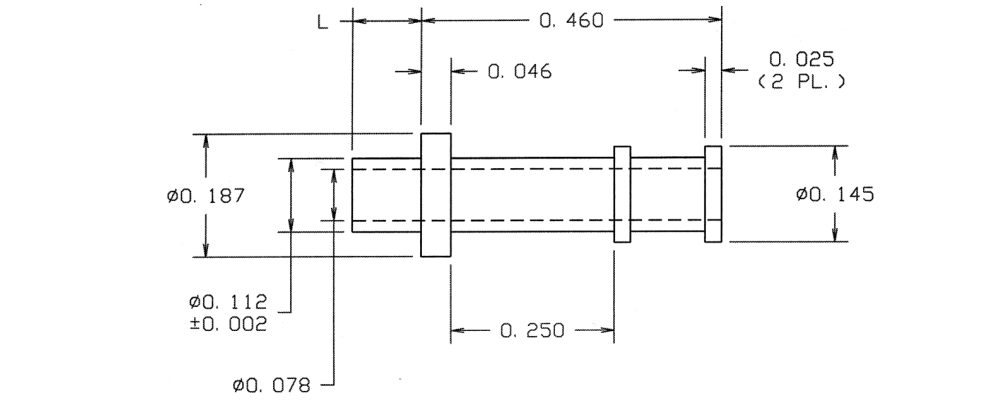

10-316-3-03
10-316-3-03
10-316-3-03
0.595" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-331-2-05
10-331-2-05
10-331-2-05
0.437" - - Swage Mount 0.109" 1/16 0.086 Brass Electro Solder NO
10-405-4-035
10-405-4-035
10-405-4-035
0.489" - - Swage Mount 0.172" 1/8 0.116 Brass Gold YES
10-420-2-04
10-420-2-04
10-420-2-04
0.484" - - Swage Mount 0.109" 1/16 0.154 Brass Electro-Tin YES
10-433-4-04
10-433-4-04
10-433-4-04
0.860" - - Swage Mount 0.172" 1/8 0.182 Brass Electro-Tin YES
10-454-2-01
10-454-2-01
10-454-2-01
0.339" - - Swage Mount 0.089" 1/16 0.067 Brass Silver YES

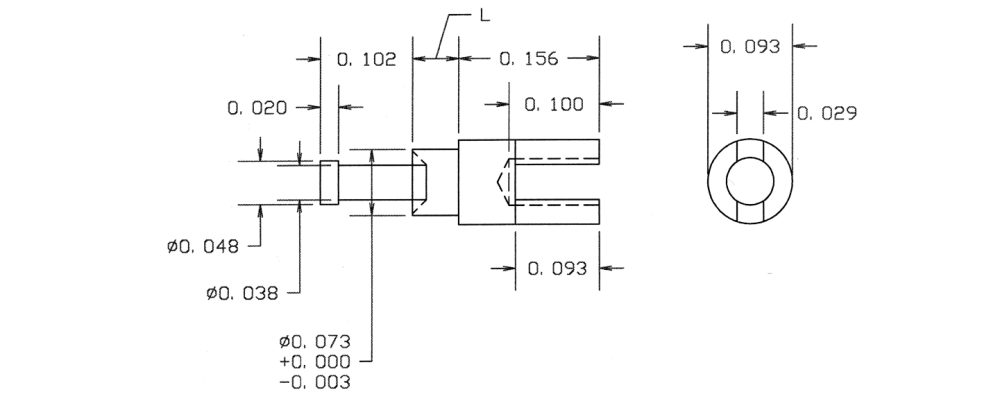

10-466-1-01
10-466-1-01
10-466-1-01
0.309" - TURRET/THREAD Swage Mount 0.051" 1/32 0.076 Brass Silver YES
10-490-6-035
10-490-6-035
10-490-6-035
0.634" - TURRET/SLOTTED Swage Mount 0.228" 3/16 0.120 Brass Gold YES
10-505-3-095
10-505-3-095
10-505-3-095
0.448" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.094 Brass Hot Solder Dip NO
10-511-4-095
10-511-4-095
10-511-4-095
0.837" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.116 Brass Hot Solder Dip NO
10-520-6-095
10-520-6-095
10-520-6-095
1.167" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.266 Brass Hot Solder Dip NO
10-533-1-095
10-533-1-095
10-533-1-095
0.321" - Turret/Turret Swage Mount 0.075" 1/32 0.094 Brass Hot Solder Dip NO
10-550-6-095
10-550-6-095
10-550-6-095
0.699" - TURRET/DOUBLE TURRET Swage Mount 0.230" 3/16 0.206 Brass Hot Solder Dip NO
10-602-3-095
10-602-3-095
10-602-3-095
0.625" - - Swage Mount 0.141" 3/32 0.116 Brass Hot Solder Dip NO
