Commercial
Non-Insulated
Terminals

Filter
10-101-1-035
10-101-1-035
10-101-1-035
0.155" - - Swage Mount 0.051" 1/32 0.076 Brass Gold YES
10-107-11-088
10-107-11-088
10-107-11-088
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Bright Tin-Lead NO
10-115-2-035
10-115-2-035
10-115-2-035
0.209" - - Swage Mount 0.084" 1/16 0.037 Brass Gold YES

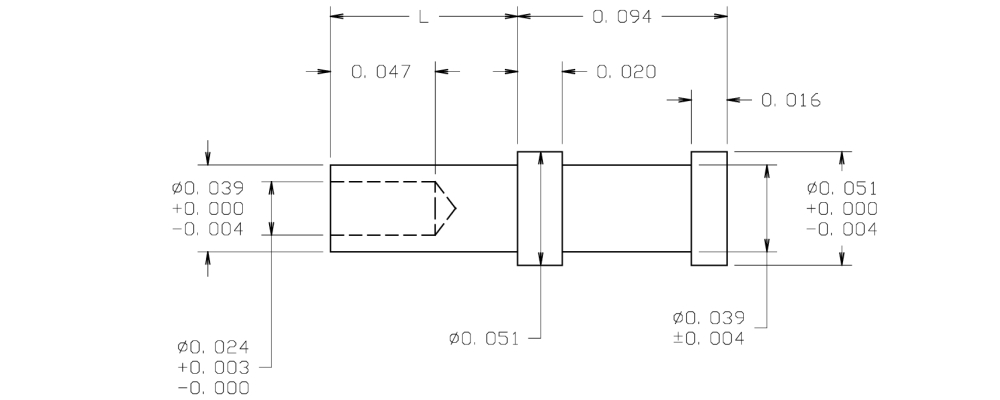

10-136-2-044
10-136-2-044
10-136-2-044
0.178" - - Swage Mount 0.084" 1/16 0.041 Brass Bright Tin YES
10-206-1-01
10-206-1-01
10-206-1-01
0.244" - - Swage Mount 0.053" 1/32 0.076 Brass Silver YES
10-214-5-01
10-214-5-01
10-214-5-01
0.334" - - Swage Mount 0.178" 5/32 0.067 Brass Silver YES

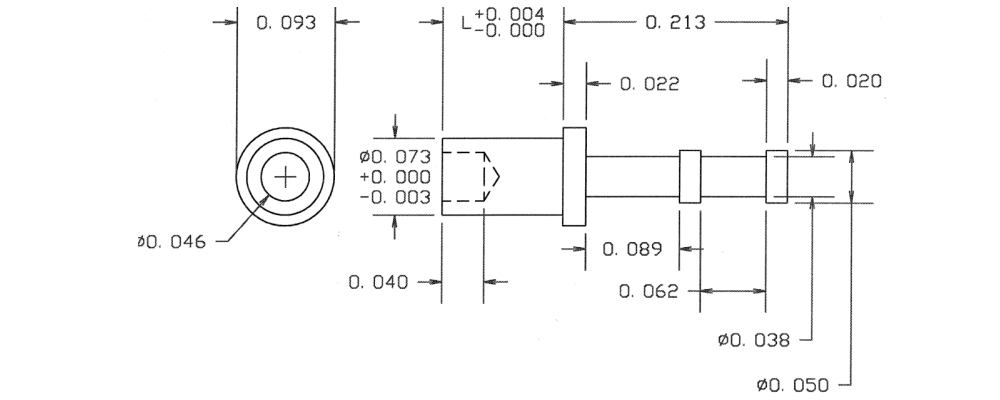

10-221-4-095
10-221-4-095
10-221-4-095
0.360" - - Swage Mount 0.147" 1/8 0.076 Brass Hot Solder Dip NO
10-236-3A-04
10-236-3A-04
10-236-3A-04
0.556" - - Swage Mount 0.136" 3/32 0.116 Brass Electro-Tin YES

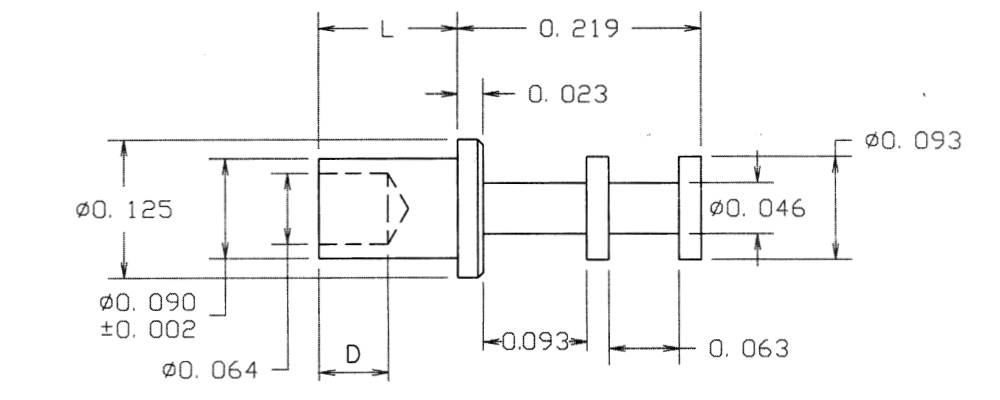

10-259-4-095
10-259-4-095
10-259-4-095
0.375" - - Swage Mount 0.156" 1/8 0.094 Brass Hot Solder Dip NO

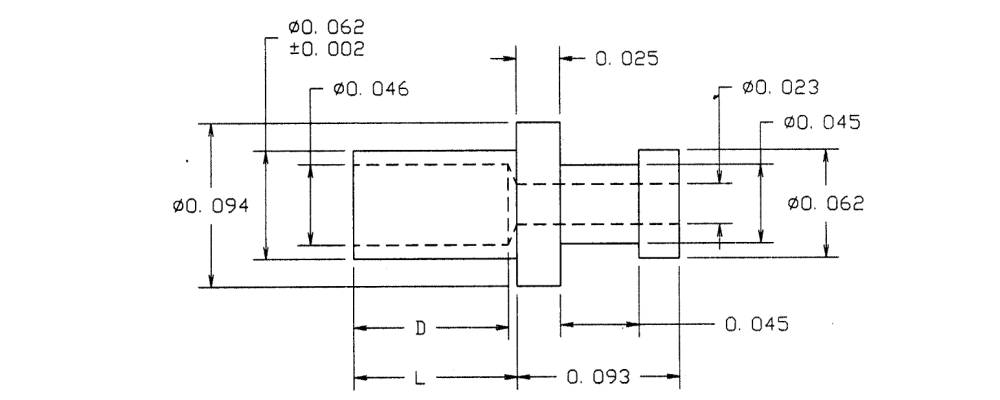

10-308-11-01
10-308-11-01
10-308-11-01
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Silver YES
10-316-2-044
10-316-2-044
10-316-2-044
0.569" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin YES

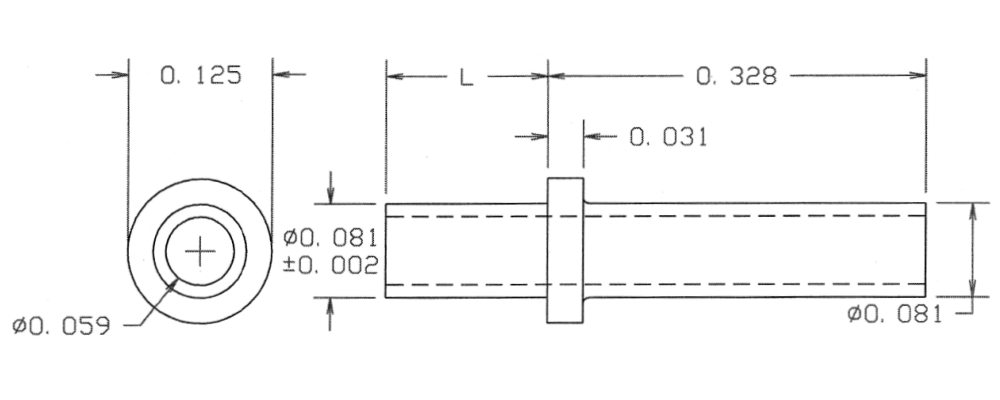

10-331-2-03
10-331-2-03
10-331-2-03
0.437" - - Swage Mount 0.109" 1/16 0.086 Brass Gold YES
10-405-3-05
10-405-3-05
10-405-3-05
0.458" - - Swage Mount 0.141" 3/32 0.116 Brass Electro Solder NO
10-419-4-095
10-419-4-095
10-419-4-095
0.556" - SLOTTED/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Hot Solder Dip NO

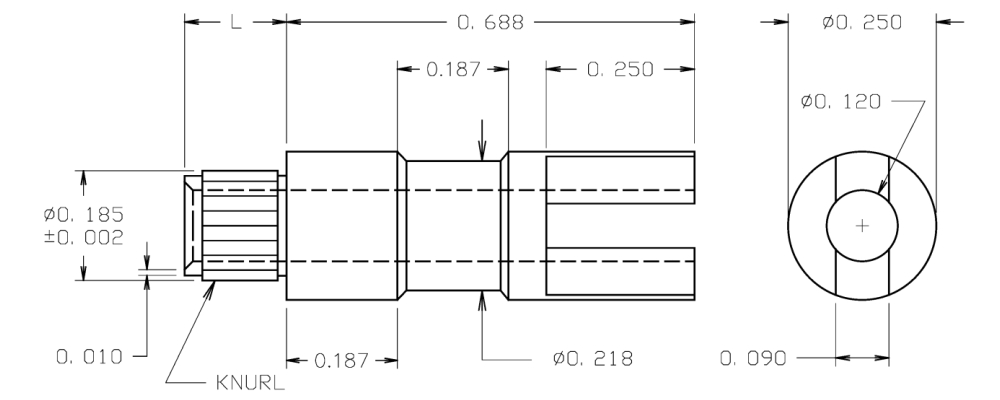

10-433-3-088
10-433-3-088
10-433-3-088
0.829" - - Swage Mount 0.141" 3/32 0.182 Brass Bright Tin-Lead NO
10-451-4-04
10-451-4-04
10-451-4-04
0.516" - - Swage Mount 0.172" 1/8 0.116 Brass Electro-Tin YES
10-465-4-04
10-465-4-04
10-465-4-04
0.547" - - Swage Mount 0.172" 1/8 0.1405 Brass Electro-Tin YES
10-490-5-05
10-490-5-05
10-490-5-05
0.602" - TURRET/SLOTTED Swage Mount 0.196" 5/32 0.120 Brass Electro Solder NO
10-505-3-04
10-505-3-04
10-505-3-04
0.448" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.094 Brass Electro-Tin YES

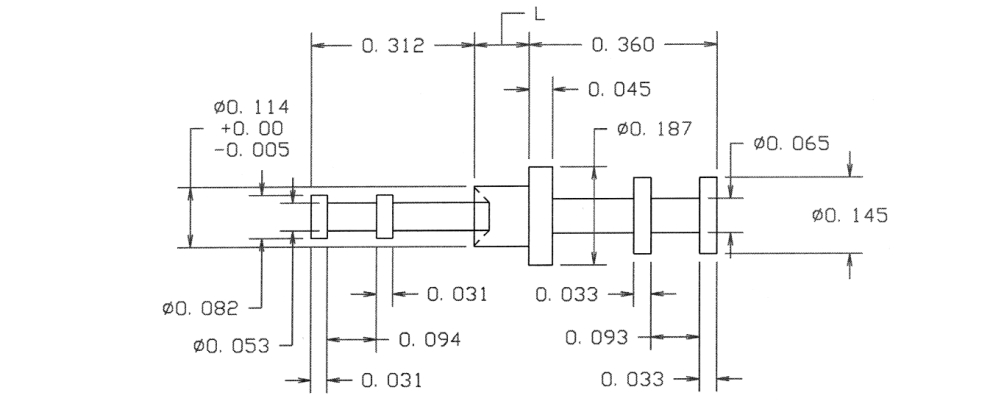

10-511-4-04
10-511-4-04
10-511-4-04
0.837" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
