Commercial
Non-Insulated
Terminals

Filter
10-544-6-04
10-544-6-04
10-544-6-04
0.460" - Turret/Turret Swage Mount 0.219" 3/16 0.094 Brass Electro-Tin YES
10-513-1-04
10-513-1-04
10-513-1-04
0.394" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.129 Brass Electro-Tin YES
10-410-3-04
10-410-3-04
10-410-3-04
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES
10-834-1-05
10-834-1-05
10-834-1-05
0.438" 0.050 - Swage Mount 0.063" 1/32 0.064 Brass Electro Solder NO
10-806-6-044
10-806-6-044
10-806-6-044
0.661" - - Swage Mount 0.234" 3/16 0.094 Brass Bright Tin YES
10-251-2-095
10-251-2-095
10-251-2-095
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Hot Solder Dip NO
10-136-1-095
10-136-1-095
10-136-1-095
0.149" - - Swage Mount 0.055" 1/32 0.041 Brass Hot Solder Dip NO

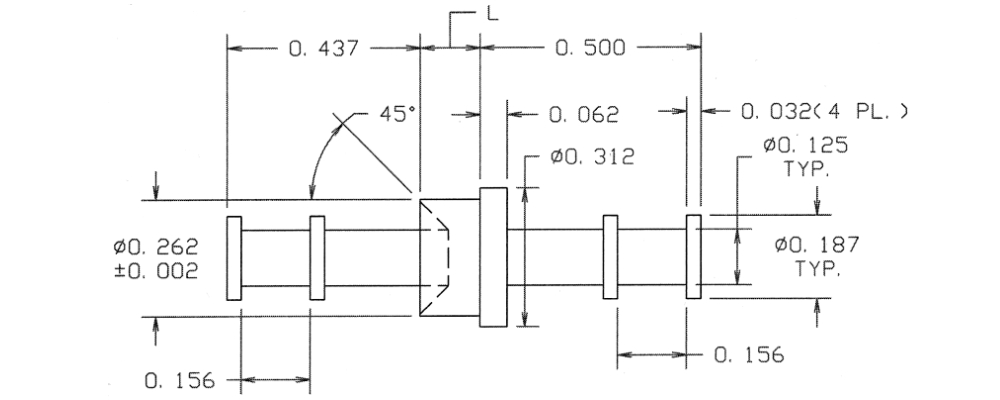

10-520-4-095
10-520-4-095
10-520-4-095
1.102" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.266 Brass Hot Solder Dip NO
10-101-3-095
10-101-3-095
10-101-3-095
0.217" - - Swage Mount 0.113" 3/32 0.076 Brass Hot Solder Dip NO
09-0260-1-095
09-0260-1-095
09-0260-1-095
0.376" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Hot Solder Dip NO
10-259-8-05
10-259-8-05
10-259-8-05
0.500" - - Swage Mount 0.281" 1/4 0.094 Brass Electro Solder NO
09-0024-1-044
09-0024-1-044
09-0024-1-044
0.507" - - Swage Mount 0.062" 1/32 0.094 Brass Bright Tin YES
10-508-2A-01
10-508-2A-01
10-508-2A-01
0.549" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.206 Brass Silver YES
09-0246-1-044
09-0246-1-044
09-0246-1-044
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Bright Tin YES
09-0292-4-044
09-0292-4-044
09-0292-4-044
0.482" 0.065 - 4-40 - - 4-40 THREAD Brass Bright Tin YES

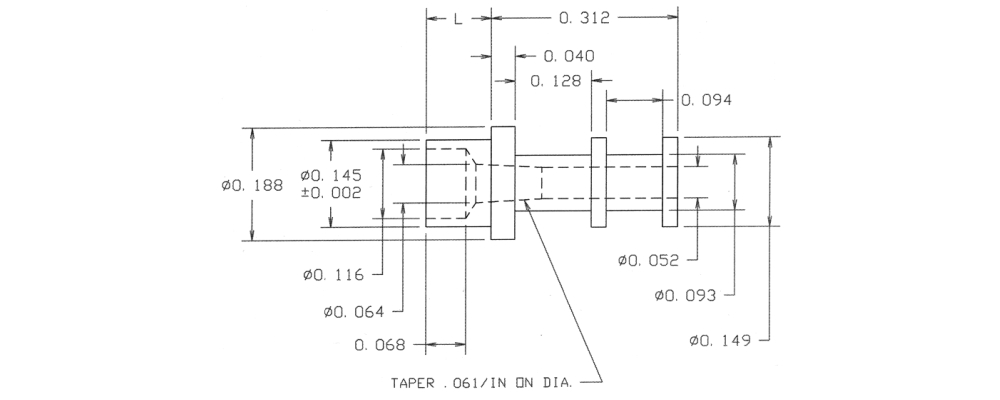

10-810-6-044
10-810-6-044
10-810-6-044
0.546" - - Swage Mount 0.234" 3/16 0.1495 Brass Bright Tin YES
10-238-1-044
10-238-1-044
10-238-1-044
0.499" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
10-238-3-044
10-238-3-044
10-238-3-044
0.562" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin YES
10-410-4-044
10-410-4-044
10-410-4-044
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
09-0294-7-044
09-0294-7-044
09-0294-7-044
0.565" - - Swage Mount 0.253" 7/32 0.116 Brass Bright Tin YES
