Commercial
Non-Insulated
Terminals

Filter
10-530-1-04
10-530-1-04
10-530-1-04
0.544" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.159 Brass Electro-Tin YES
10-544-4-04
10-544-4-04
10-544-4-04
0.397" - Turret/Turret Swage Mount 0.156" 1/8 0.094 Brass Electro-Tin YES
10-562-5-04
10-562-5-04
10-562-5-04
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Electro-Tin YES
10-606-4-095
10-606-4-095
10-606-4-095
0.481" - - Swage Mount 0.165" 1/8 0.094 Brass Hot Solder Dip NO
10-714-1-035
10-714-1-035
10-714-1-035
0.637" - DOUBLE TURRET/THREAD Swage Mount 0.075" 1/32 0.204 Brass Gold YES
10-8015-4-035
10-8015-4-035
10-8015-4-035
0.520" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Gold YES
10-8025-4-01
10-8025-4-01
10-8025-4-01
0.442" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Silver YES
10-808-3-088
10-808-3-088
10-808-3-088
0.612" - - Swage Mount 0.141" 3/32 0.094 Brass Bright Tin-Lead NO
10-815-3-088
10-815-3-088
10-815-3-088
0.335" - - Swage Mount 0.135" 3/32 0.1495 Brass Bright Tin-Lead NO
10-825-2-035
10-825-2-035
10-825-2-035
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Gold YES
10-835-3-03
10-835-3-03
10-835-3-03
0.563" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Gold YES
10-846-3-05
10-846-3-05
10-846-3-05
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO

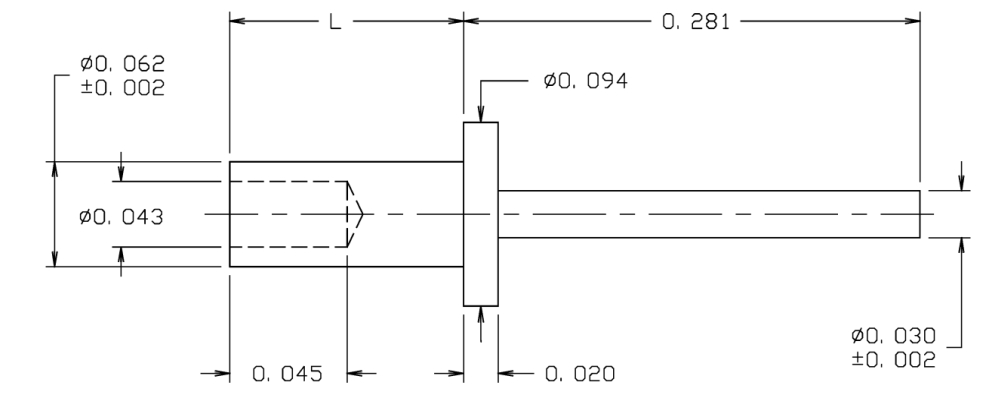

10-869-4-035
10-869-4-035
10-869-4-035
0.428" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Gold YES

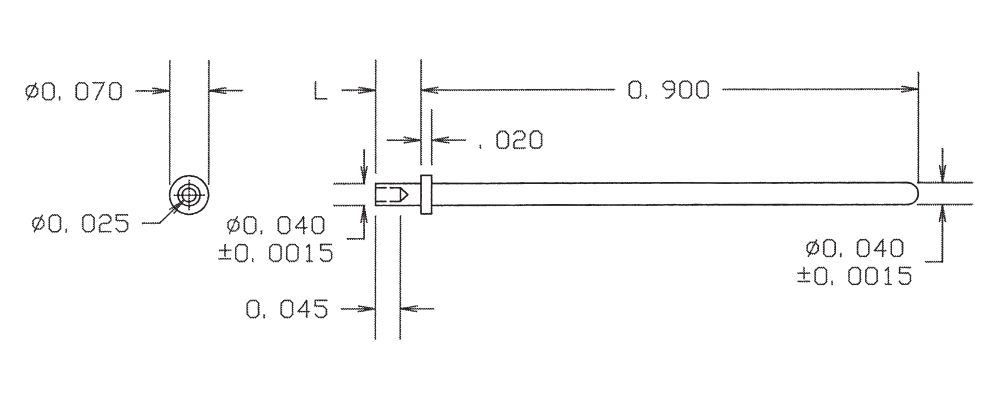

10-893-2-01
10-893-2-01
10-893-2-01
0.982" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
10-906-1-05
10-906-1-05
10-906-1-05
0.198" - - Swage Mount 0.062" 1/32 0.0635 Brass Electro Solder NO
10-921-2-05
10-921-2-05
10-921-2-05
0.302" 0.045 - Swage Mount 0.094" 1/16 0.064 Brass Electro Solder NO
10-938-1-03
10-938-1-03
10-938-1-03
0.385" 0.038 - Swage Mount 0.060" 1/32 0.042 Brass Gold YES
14-346-2-035
14-346-2-035
14-346-2-035
0.297" - - Swage Mount 0.109" 1/16 0.082 LEADED Red Brass Gold YES
19-246-2-05
19-246-2-05
19-246-2-05
0.468" - - Swage Mount 0.109" 1/16 0.116 LEADED Red Brass Electro Solder NO
10-408-4-088
10-408-4-088
10-408-4-088
0.477" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin-Lead NO
