Commercial
Insulated
Pin Terminals

Filter
1130-07-0419
1130-07-0419
1130-07-0419
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE White YES
1130R-05-0515
1130R-05-0515
1130R-05-0515
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Green NO
1131-03-0111
1131-03-0111
1131-03-0111
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Silver - - PTFE Brown NO
1131-07-0317
1131-07-0317
1131-07-0317
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Violet YES
1132-01-04413
1132-01-04413
1132-01-04413
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin - - PTFE Orange NO
1133-02-0519
1133-02-0519
1133-02-0519
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE White NO

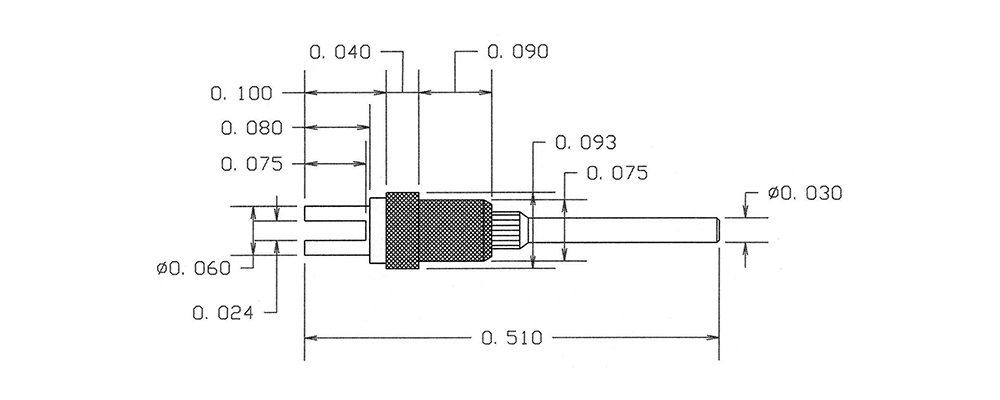

1135-01-0115
1135-01-0115
1135-01-0115
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Silver - - PTFE Green YES
1135-05-0411
1135-05-0411
1135-05-0411
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Brown NO
1135-09-04417
1135-09-04417
1135-09-04417
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Violet YES
1137-02-08813
1137-02-08813
1137-02-08813
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Orange NO

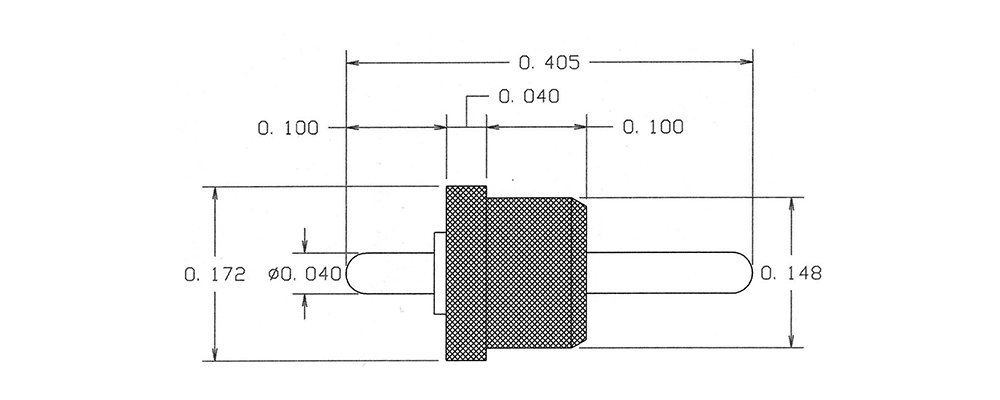

1139-04-0119
1139-04-0119
1139-04-0119
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1151-05-0415
1151-05-0415
1151-05-0415
0.350" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES
1151-11-0511
1151-11-0511
1151-11-0511
0.455" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Brown NO
1151-19-08817
1151-19-08817
1151-19-08817
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

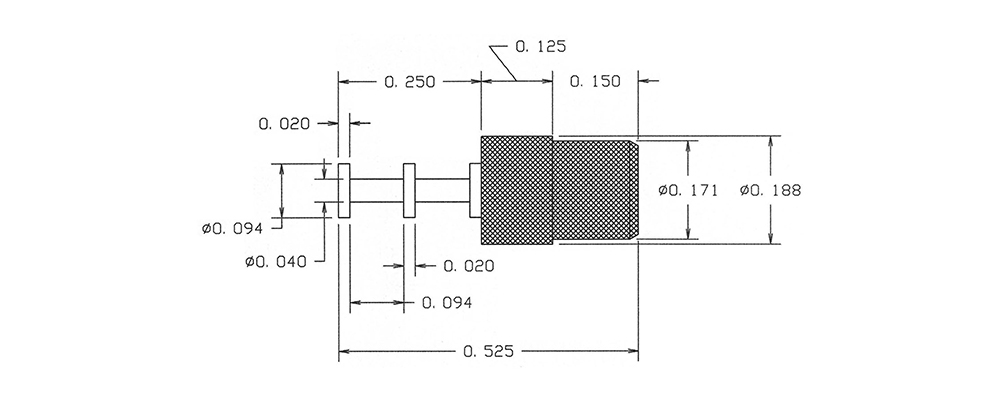

1151-39-0313
1151-39-0313
1151-39-0313
0.525" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Orange NO
1151-51-0419
1151-51-0419
1151-51-0419
1.234" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE White YES
1151R-09-0515
1151R-09-0515
1151R-09-0515
0.390" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO

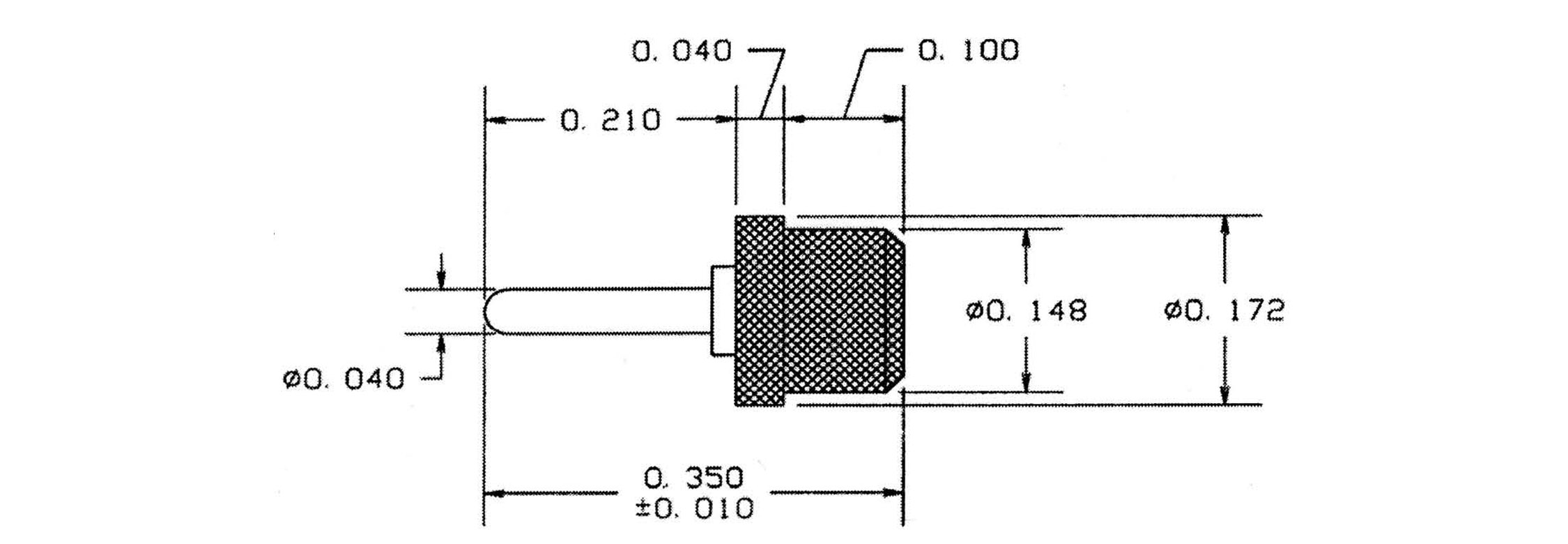

1152-01-0111
1152-01-0111
1152-01-0111
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO
1152-31-0317
1152-31-0317
1152-31-0317
0.750" 0.040 - Press Fit 1/16 0.203 Brass Gold - - PTFE Violet YES
1152R-17-04413
1152R-17-04413
1152R-17-04413
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Orange NO
