Commercial
Insulated
Pin Terminals

Filter
1125-40-0519
1125-40-0519
1125-40-0519
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE White NO
1125-45-0115
1125-45-0115
1125-45-0115
0.890" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Green YES
1125-49-0411
1125-49-0411
1125-49-0411
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE Brown NO

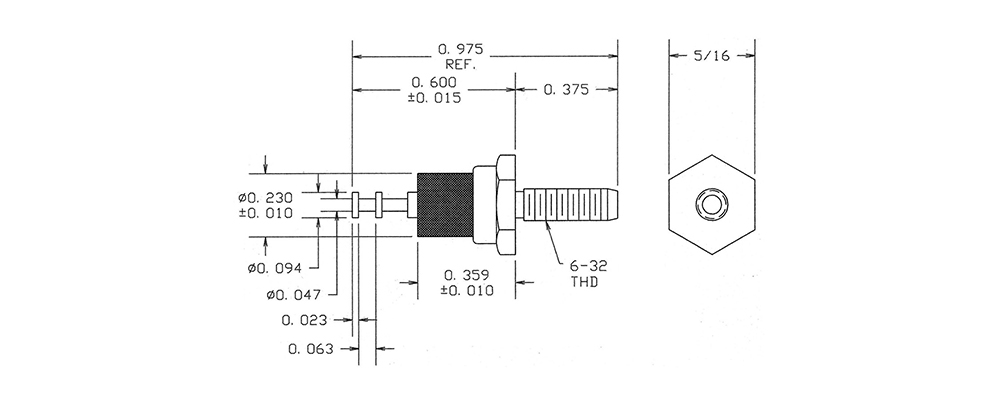

1125-53-04417
1125-53-04417
1125-53-04417
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin Electro-Tin Brass PTFE Violet YES
1125-57-08813
1125-57-08813
1125-57-08813
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Orange NO
1125-63-0119
1125-63-0119
1125-63-0119
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE White YES

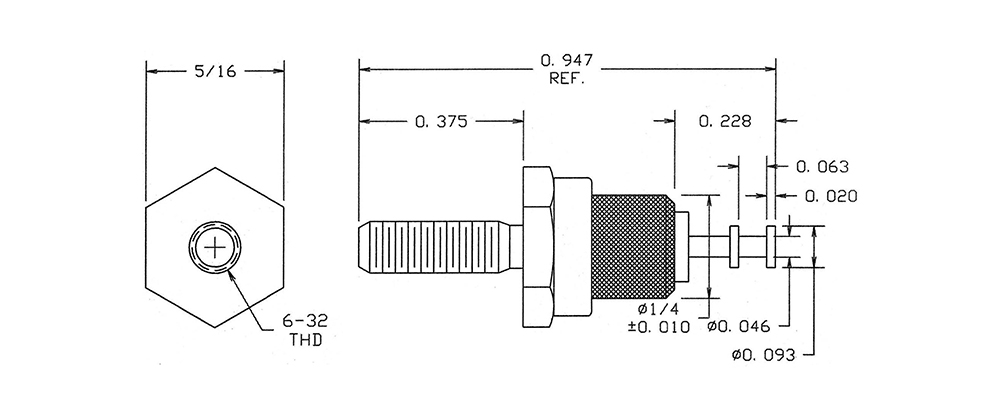

1125-74-0415
1125-74-0415
1125-74-0415
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass PTFE Green YES
1125-78-0511
1125-78-0511
1125-78-0511
0.697" - - Swage Mount 3/32 0.194 Brass Electro Solder ZINC Brass PTFE Brown NO
1125-83-08817
1125-83-08817
1125-83-08817
0.725" - - Swage Mount 3/32 0.191 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO

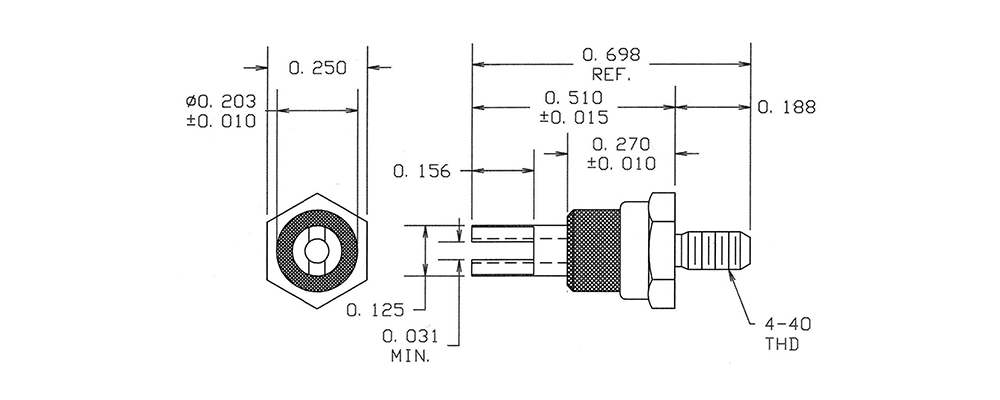

1125-89-0313
1125-89-0313
1125-89-0313
0.698" - - 4-40 Nut 1/16 0.120 Brass Gold Electro-Tin Brass PTFE Orange NO

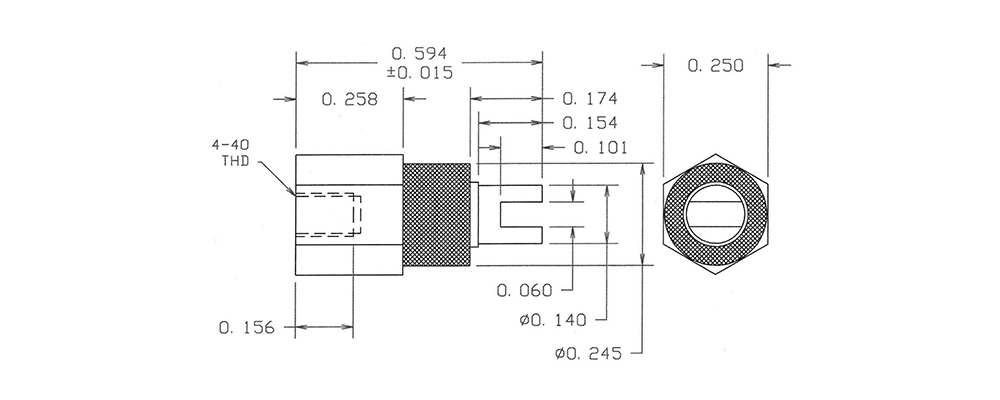

1125-93-0419
1125-93-0419
1125-93-0419
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE White YES

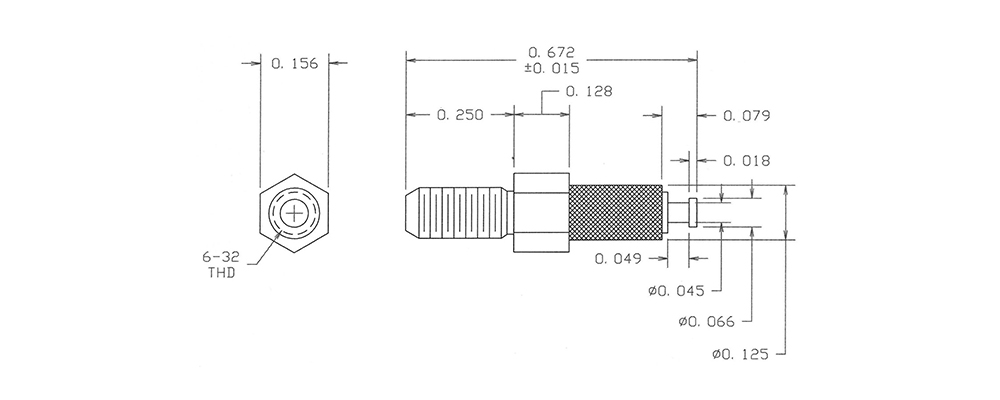

1125-97-0515
1125-97-0515
1125-97-0515
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Green NO

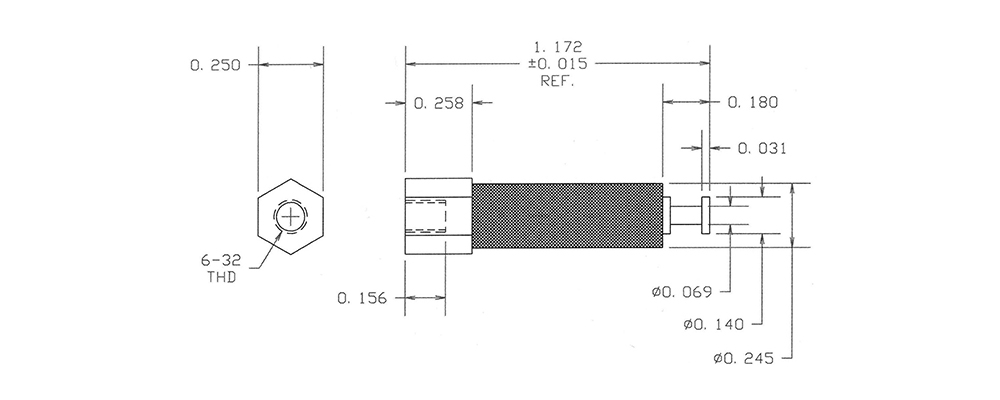

1126-30-0111
1126-30-0111
1126-30-0111
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Brown NO

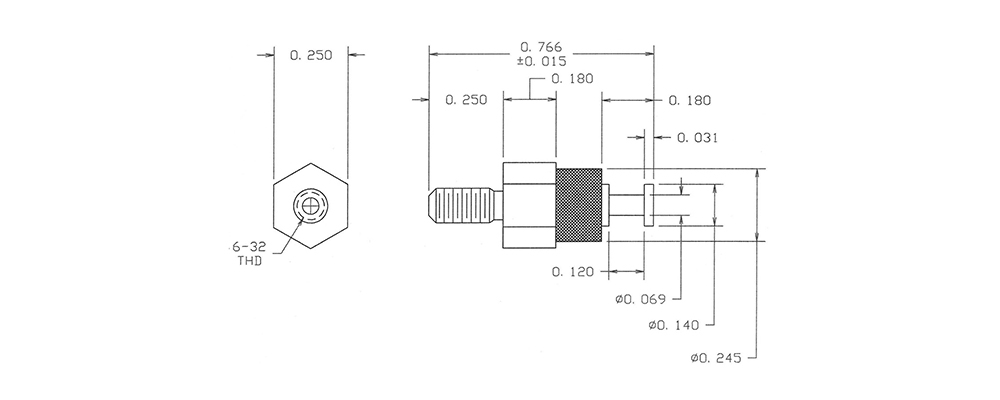

1126-34-0317
1126-34-0317
1126-34-0317
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Violet YES

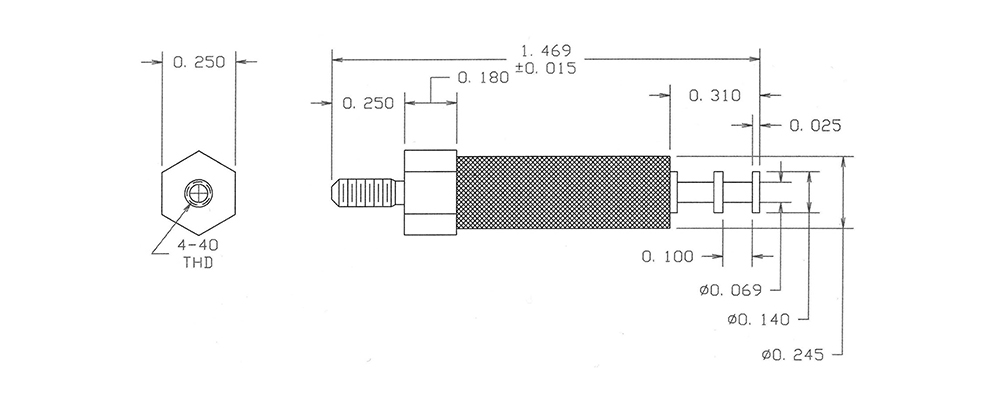

1126-38-04413
1126-38-04413
1126-38-04413
1.469" - - 4-40 Nut 1/8 0.120 Brass Bright Tin ZINC Brass PTFE Orange NO
1126-42-0519
1126-42-0519
1126-42-0519
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE White NO

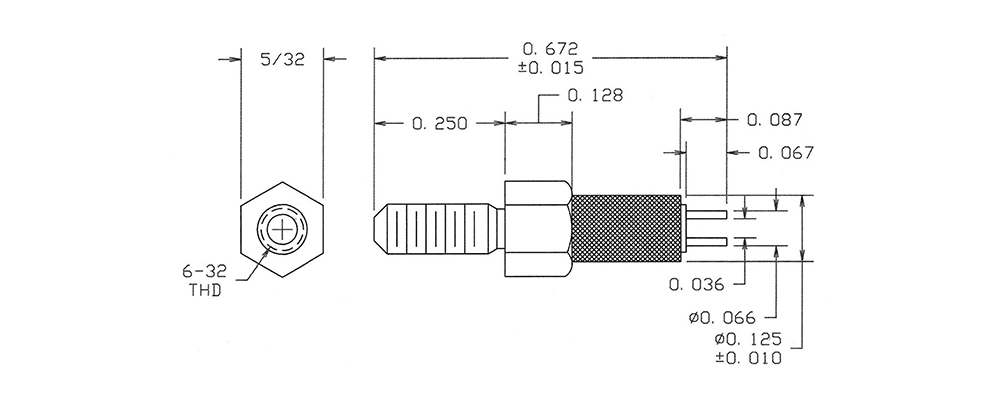

1126-47-0115
1126-47-0115
1126-47-0115
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Green YES
1127-04-0411
1127-04-0411
1127-04-0411
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin Electro-Tin Brass DIALLYL PHTHALATE Brown YES

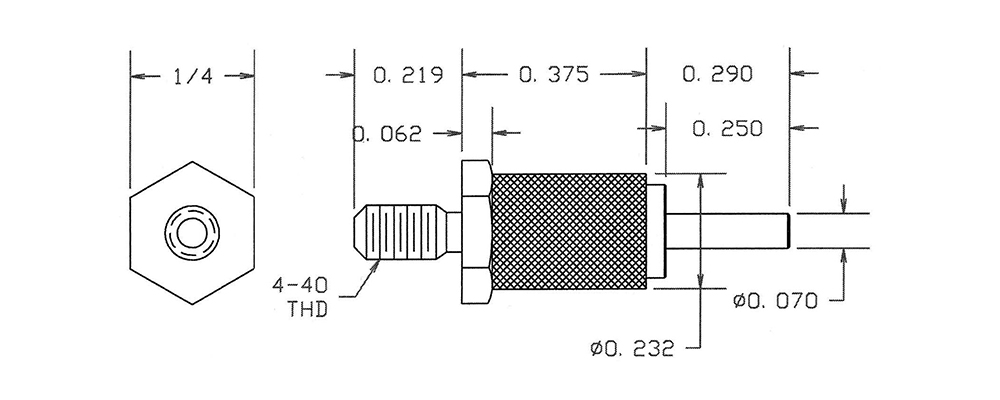

1127-08-04417
1127-08-04417
1127-08-04417
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES

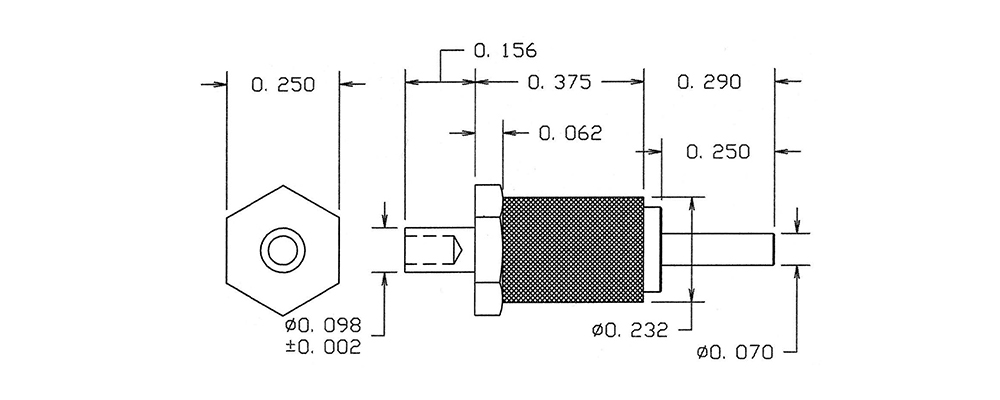

1127-12-08813
1127-12-08813
1127-12-08813
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO
