Commercial
Insulated
Pin Terminals

Filter
1106-06-0517
1106-06-0517
1106-06-0517
0.555" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Violet NO
1106-11-0113
1106-11-0113
1106-11-0113
0.703" - - Press Fit 1/16 0.158 Brass Silver - - PTFE Orange NO
1106-15-0319
1106-15-0319
1106-15-0319
1.190" - - Press Fit 5/32 0.158 Brass Gold - - PTFE White YES
1106-19-04415
1106-19-04415
1106-19-04415
1.190" - - Press Fit 5/32 0.205 Brass Bright Tin - - PTFE Green YES
1106-50-08811
1106-50-08811
1106-50-08811
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin-Lead - - PTFE Brown NO
1106R-23-0117
1106R-23-0117
1106R-23-0117
0.375" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES
1106R-50-0413
1106R-50-0413
1106R-50-0413
0.350" - - Press Fit 1/16 0.091 Brass Electro-Tin - - PTFE Orange NO

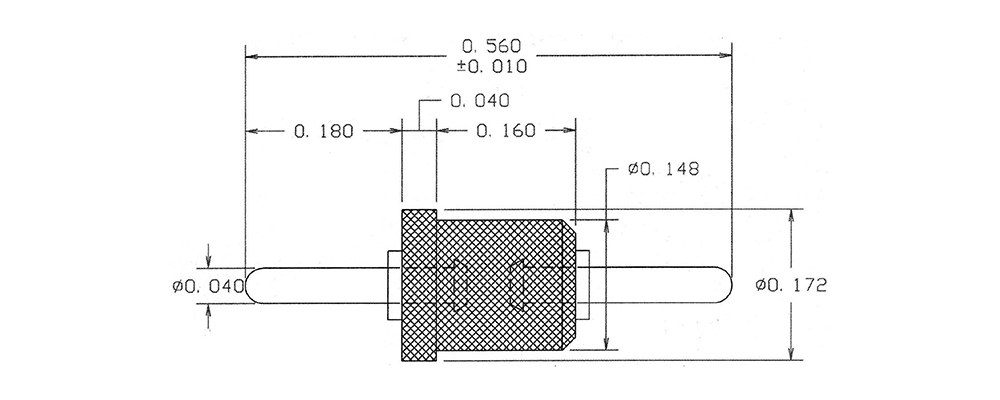

1107-02-04419
1107-02-04419
1107-02-04419
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin - - PTFE White YES

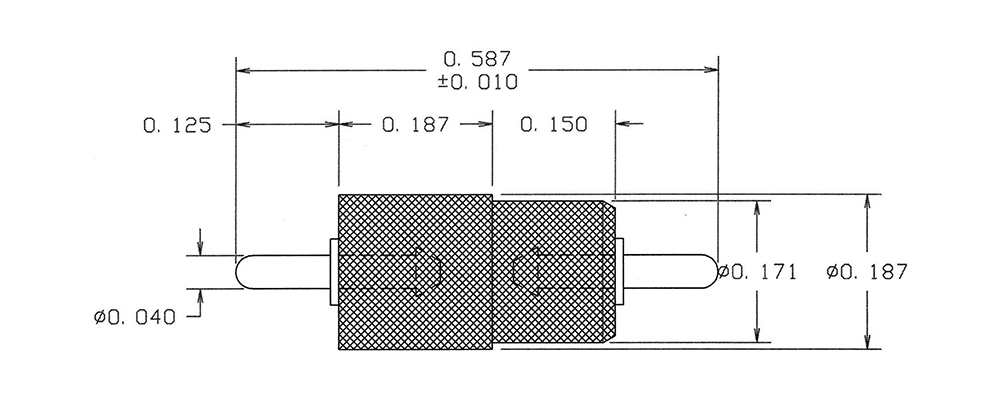

1107-07-08815
1107-07-08815
1107-07-08815
0.587" 0.040 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1108-01-0311
1108-01-0311
1108-01-0311
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Brown NO
1108-05-0417
1108-05-0417
1108-05-0417
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1108-30-0513
1108-30-0513
1108-30-0513
0.819" - Turret/Turret Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Orange NO

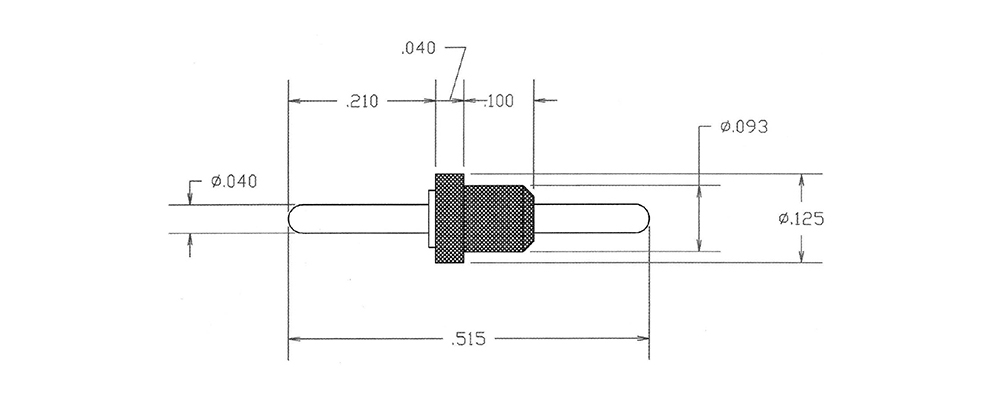

1110-05-08819
1110-05-08819
1110-05-08819
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO
1110-10-0315
1110-10-0315
1110-10-0315
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Green YES
1110-15-04411
1110-15-04411
1110-15-04411
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1110-19-0517
1110-19-0517
1110-19-0517
0.619" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1110-24-0113
1110-24-0113
1110-24-0113
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO
1110-28-0319
1110-28-0319
1110-28-0319
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1110-32-04415
1110-32-04415
1110-32-04415
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Green YES
1110-37-08811
1110-37-08811
1110-37-08811
0.890" 0.045 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
