Commercial
Insulated
Pin Terminals

Filter
1177-52-0318
1177-52-0318
1177-52-0318
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Gold - - PTFE Gray NO
1177-56-04414
1177-56-04414
1177-56-04414
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1177-60-08810
1177-60-08810
1177-60-08810
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1178R-03-0116
1178R-03-0116
1178R-03-0116
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Silver - - PTFE Blue YES
1178R-10-0412
1178R-10-0412
1178R-10-0412
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro-Tin - - PTFE Red NO
1178R-14-04418
1178R-14-04418
1178R-14-04418
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin - - PTFE Gray NO

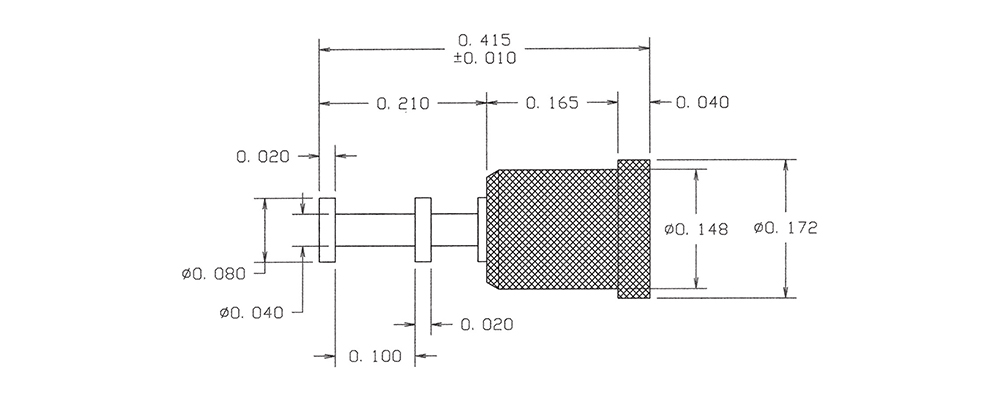

1102R-93-08814
1102R-93-08814
1102R-93-08814
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1125-02-0310
1125-02-0310
1125-02-0310
0.578" - - 2-56 Nut 7/64 0.094 Brass Gold Electro-Tin Brass PTFE Black YES
1125-06-0416
1125-06-0416
1125-06-0416
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
1125-10-0512
1125-10-0512
1125-10-0512
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Red NO

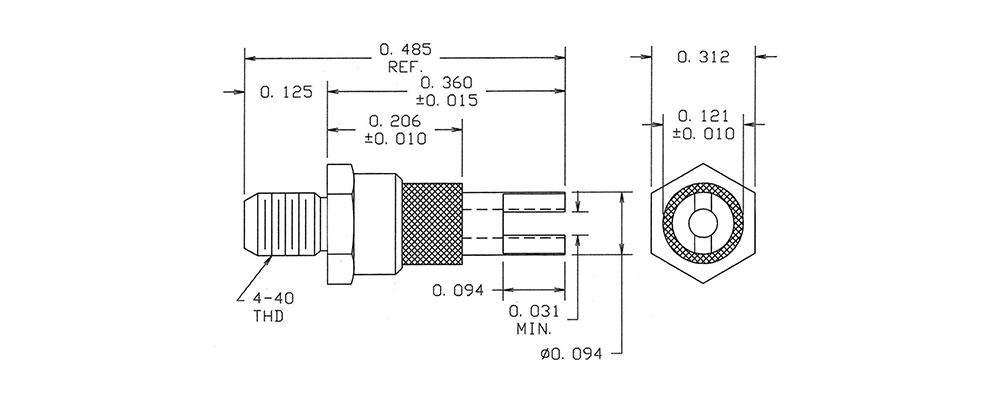

1125-14-08818
1125-14-08818
1125-14-08818
0.485" - - 4-40 1/8 4-40 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO
1125-19-0314
1125-19-0314
1125-19-0314
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Gold Electro-Tin Brass PTFE Yellow NO

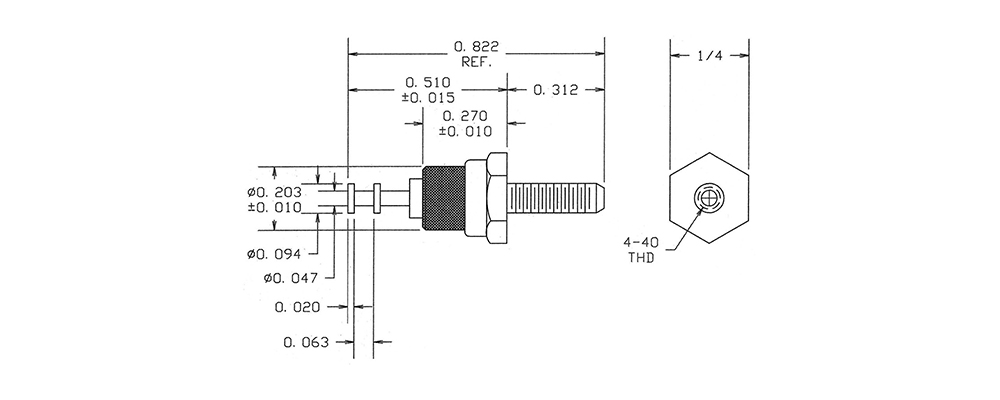

1125-23-04410
1125-23-04410
1125-23-04410
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-27-0516
1125-27-0516
1125-27-0516
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Blue NO
09-2128-1-0112
09-2128-1-0112
09-2128-1-0112
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1100-47-0318
1100-47-0318
1100-47-0318
0.350" 0.040 - Press Fit 1/16 0.166 Brass Gold - - PTFE Gray NO
1100R-22-04414
1100R-22-04414
1100R-22-04414
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Yellow NO

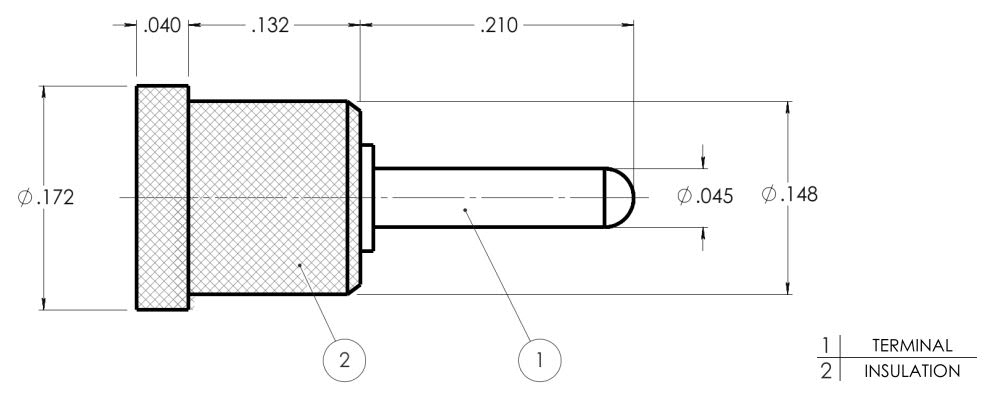

1100R-33-08810
1100R-33-08810
1100R-33-08810
0.382" 0.045 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1100R-53-0116
1100R-53-0116
1100R-53-0116
0.756" 0.040 - Press Fit 15/32 0.172 Brass Silver - - PTFE Blue YES
1100R-70-0412
1100R-70-0412
1100R-70-0412
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Red NO
