Commercial
Insulated
Pin Terminals

Filter
1175-841-0510
1175-841-0510
1175-841-0510
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-871-08816
1175-871-08816
1175-871-08816
0.560" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
1177-02-0312
1177-02-0312
1177-02-0312
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Gold - - PTFE Red NO
1177-11-0418
1177-11-0418
1177-11-0418
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1177-31-0514
1177-31-0514
1177-31-0514
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1177-41-0110
1177-41-0110
1177-41-0110
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Silver - - PTFE Black YES
1177-52-0316
1177-52-0316
1177-52-0316
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Gold - - PTFE Blue YES
1177-56-04412
1177-56-04412
1177-56-04412
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin - - PTFE Red NO
1177-60-0518
1177-60-0518
1177-60-0518
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Gray NO
1178R-03-0114
1178R-03-0114
1178R-03-0114
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Silver - - PTFE Yellow NO
1178R-10-0410
1178R-10-0410
1178R-10-0410
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro-Tin - - PTFE Black YES
1178R-14-04416
1178R-14-04416
1178R-14-04416
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin - - PTFE Blue YES
1102R-93-08812
1102R-93-08812
1102R-93-08812
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1125-02-0118
1125-02-0118
1125-02-0118
0.578" - - 2-56 Nut 7/64 0.094 Brass Silver Electro-Tin Brass PTFE Gray NO
1125-06-0414
1125-06-0414
1125-06-0414
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Yellow NO
1125-10-0510
1125-10-0510
1125-10-0510
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Black NO

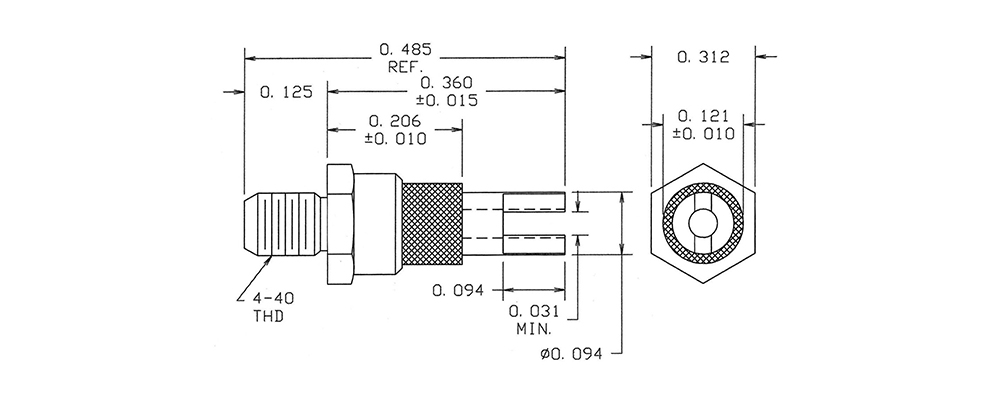

1125-14-08816
1125-14-08816
1125-14-08816
0.485" - - 4-40 1/8 4-40 THREAD Brass Bright Tin-Lead Electro-Tin Brass PTFE Blue NO
1125-19-0312
1125-19-0312
1125-19-0312
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Gold Electro-Tin Brass PTFE Red NO
1125-23-0418
1125-23-0418
1125-23-0418
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-27-0514
1125-27-0514
1125-27-0514
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Yellow NO
