Commercial
Insulated
Pin Terminals

Filter
1130R-05-0110
1130R-05-0110
1130R-05-0110
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Black YES
1131-02-0316
1131-02-0316
1131-02-0316
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Blue YES
1131-06-04412
1131-06-04412
1131-06-04412
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin - - PTFE Red NO
1131R-50-0518
1131R-50-0518
1131R-50-0518
0.562" 0.050 Pin/Tip Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Gray NO
1133-02-0114
1133-02-0114
1133-02-0114
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Silver - - PTFE Yellow NO
1133R-05-0410
1133R-05-0410
1133R-05-0410
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Black YES
1135-04-04416
1135-04-04416
1135-04-04416
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Bright Tin - - PTFE Blue YES

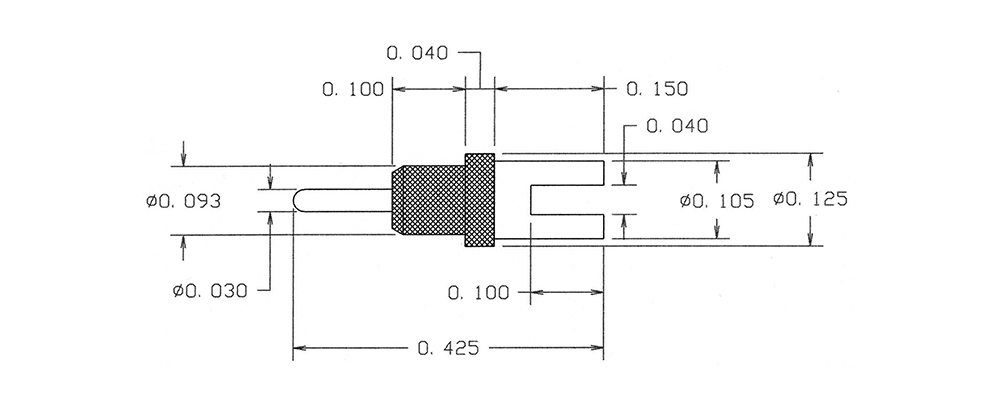

1135-08-08812
1135-08-08812
1135-08-08812
0.425" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Red NO
1137-02-0118
1137-02-0118
1137-02-0118
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Gray NO
1139-03-0414
1139-03-0414
1139-03-0414
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Yellow NO
1151-02-0510
1151-02-0510
1151-02-0510
0.350" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Black NO

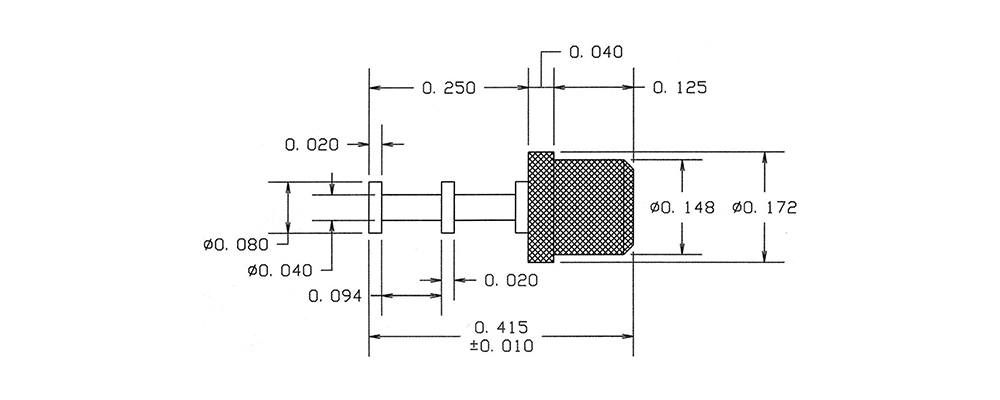

1151-10-08816
1151-10-08816
1151-10-08816
0.415" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

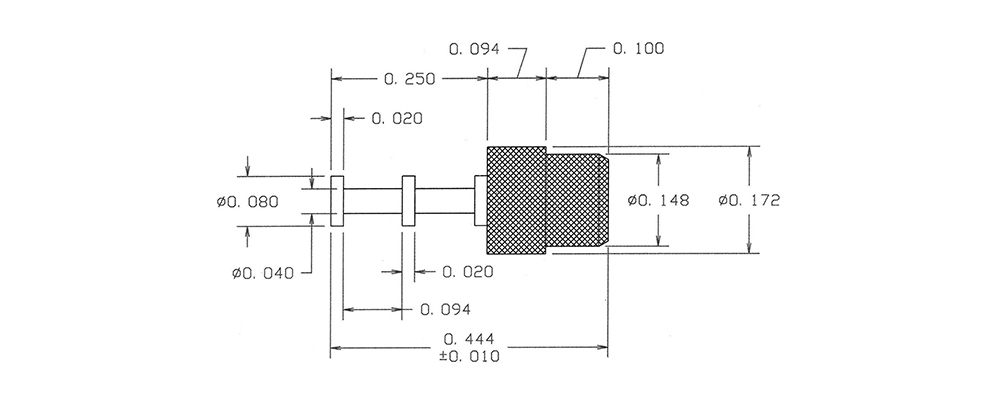

1151-19-0312
1151-19-0312
1151-19-0312
0.444" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Red NO
1151-38-0418
1151-38-0418
1151-38-0418
0.390" - - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Gray NO

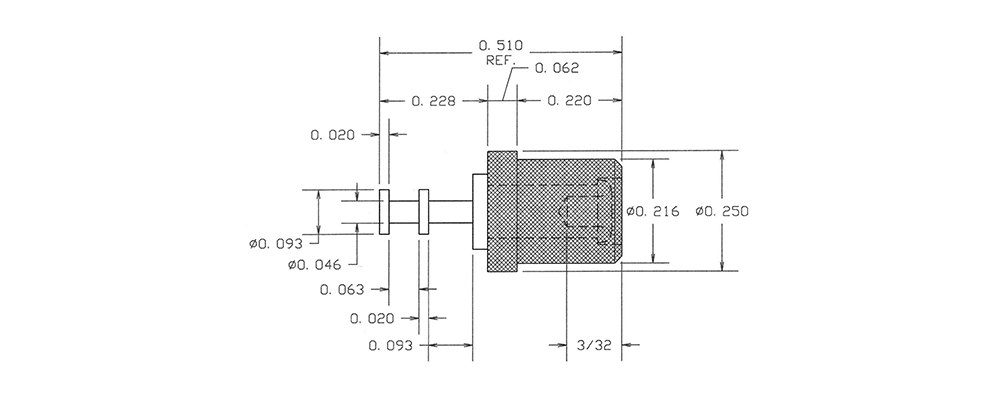

1151-44-0514
1151-44-0514
1151-44-0514
0.510" - - Press Fit Up to 3/16 0.204 Brass Electro Solder - - PTFE Yellow NO
1151R-09-0110
1151R-09-0110
1151R-09-0110
0.390" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES

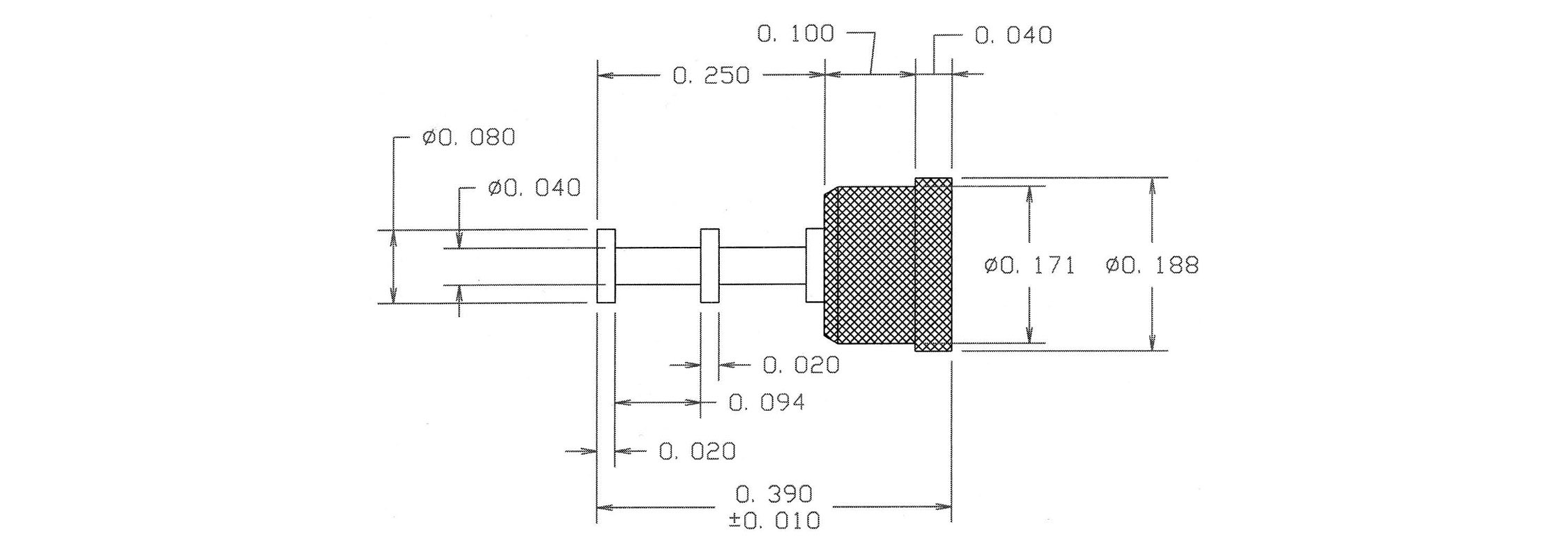

1151R-38-0316
1151R-38-0316
1151R-38-0316
0.390" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Blue YES

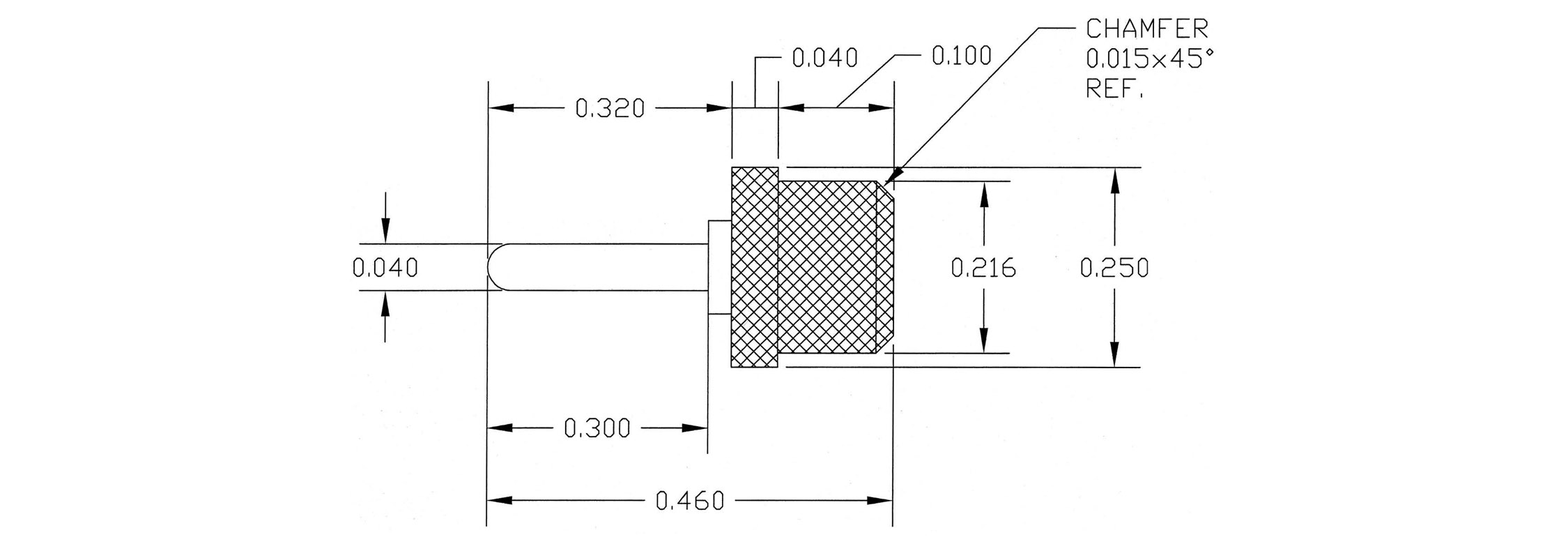

1152-29-04412
1152-29-04412
1152-29-04412
0.460" 0.040 - Press Fit 1/16 0.204 Brass Bright Tin - - PTFE Red NO

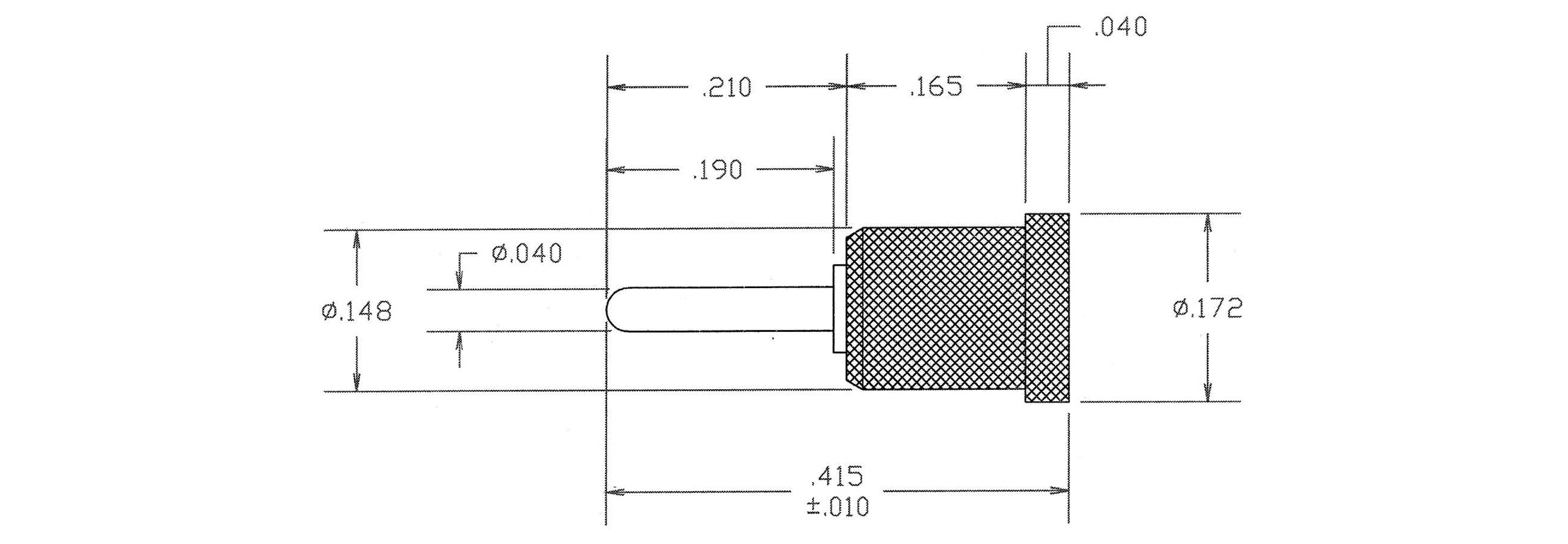

1152R-03-0518
1152R-03-0518
1152R-03-0518
0.415" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Gray NO
1153-06-0114
1153-06-0114
1153-06-0114
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Yellow NO
