Commercial
Insulated
Pin Terminals

Filter

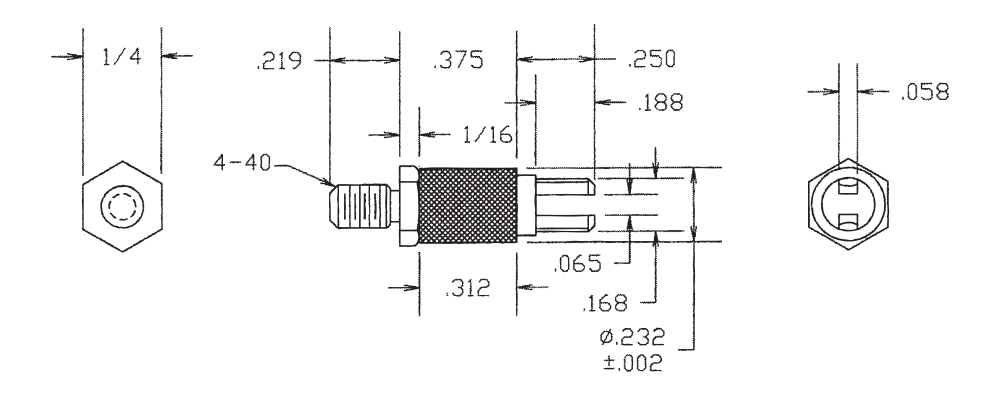

1127-70-0112
1127-70-0112
1127-70-0112
0.844" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Red YES
1127-74-0318
1127-74-0318
1127-74-0318
1.000" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Gray YES

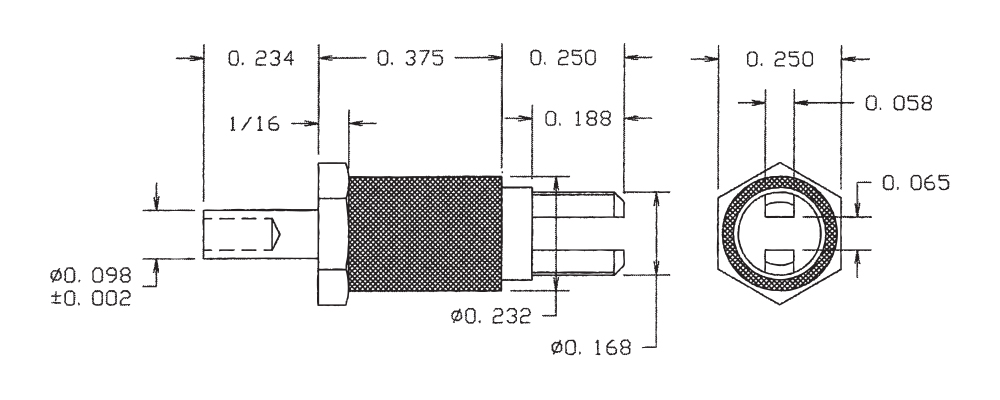

1127-78-04414
1127-78-04414
1127-78-04414
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-82-08810
1127-82-08810
1127-82-08810
0.859" - - Swage Mount 3/16 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO
1127-87-0116
1127-87-0116
1127-87-0116
0.515" - - 2-56 Nut 1/32 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
1127-91-0412
1127-91-0412
1127-91-0412
0.674" - - Swage Mount 3/32 0.082 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-95-04418
1127-95-04418
1127-95-04418
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1130-01-08814
1130-01-08814
1130-01-08814
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1130-07-0310
1130-07-0310
1130-07-0310
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Black YES
1130R-05-0416
1130R-05-0416
1130R-05-0416
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Blue YES
1131-02-0512
1131-02-0512
1131-02-0512
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Red NO
1131-06-08818
1131-06-08818
1131-06-08818
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Gray NO
1132-01-0314
1132-01-0314
1132-01-0314
0.645" 0.090 - Solder 7/32 0.0935 Brass Gold - - PTFE Yellow NO
1133-02-04410
1133-02-04410
1133-02-04410
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Black YES
1133R-05-0516
1133R-05-0516
1133R-05-0516
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Blue NO
1135-05-0112
1135-05-0112
1135-05-0112
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Red NO
1135-09-0318
1135-09-0318
1135-09-0318
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Gold - - PTFE Gray NO
1137-02-04414
1137-02-04414
1137-02-04414
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Yellow NO
1139-03-08810
1139-03-08810
1139-03-08810
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Black NO
1151-05-0116
1151-05-0116
1151-05-0116
0.350" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
